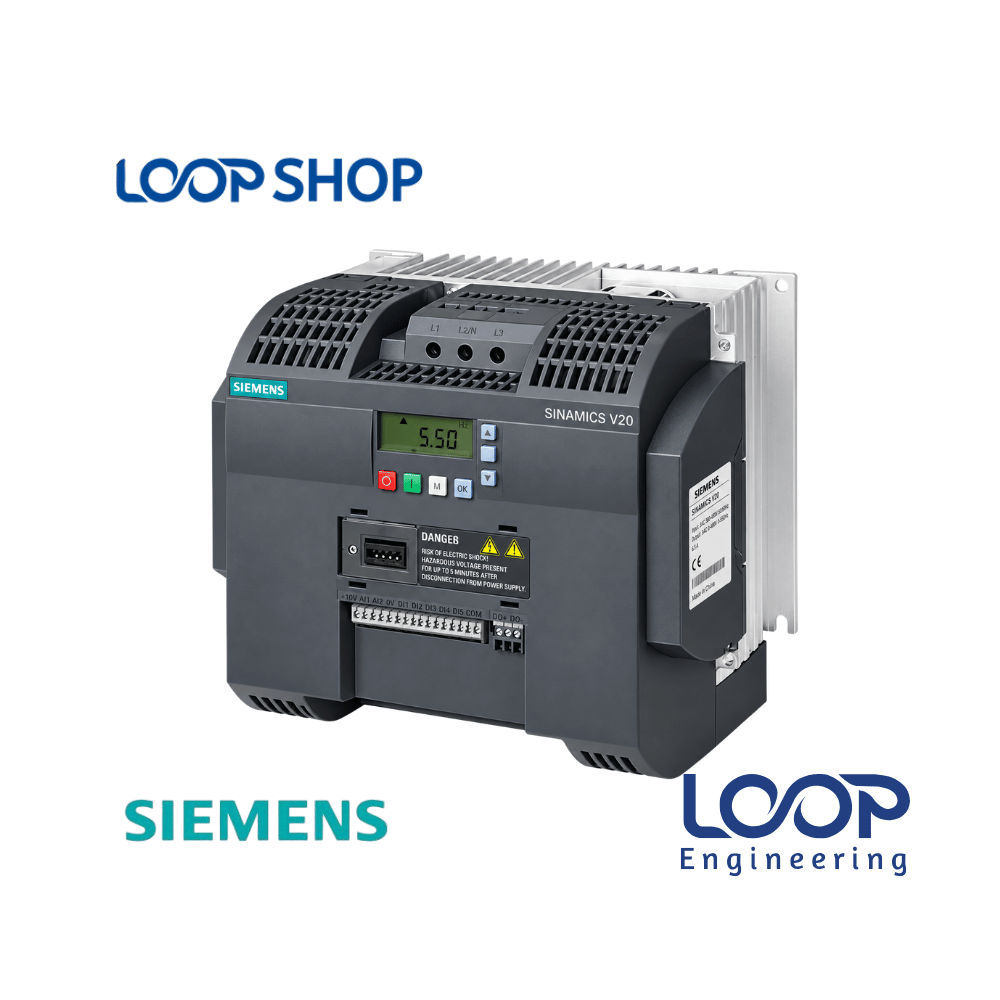

Siemens 6SL3210-5BE31-5UV0 SINAMICS V20 15kW VFD Industrial Drive

Description

The Siemens 6SL3210-5BE31-5UV0 SINAMICS V20 is a versatile 15 kW (20 HP) Variable Frequency Drive (VFD) designed for industrial motion control and automated heavy equipment operations. Operating on a 3-phase 380V–480V AC supply, it converts incoming electrical power into variable frequency and voltage outputs to precisely control motor rotation speed and dynamic torque.

This unit is essential for factory plant managers, electrical engineers, control panel builders, and maintenance professionals. In Bangladesh, where manufacturing facilities face power quality fluctuations and rising energy costs, the SINAMICS V20 basic converter offers efficient motor speed control, lowering power bills and preventing mechanical stress across production lines.

Key Features

• High overload capability handling 150% overload for 60 seconds to support heavy dynamic load startups.
• Integrated Basic Operator Panel (BOP) on the drive face for local setup, diagnostics, and parameter editing.
• Built-in USS and Modbus RTU communication protocols for PLC and industrial SCADA system integration.
• Integrated braking chopper enabling dynamic braking performance for rapid deceleration cycles.
• Versatile I/O layout featuring 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output.
• Energy-saving Eco Mode for automatic flux adaptation to minimize energy consumption at partial loads.
• Keep Running Mode allowing continuous operation under unstable utility power conditions.

Technical Advantages

• High Efficiency: Features an operational efficiency rating up to 98%, converting power with minimal internal thermal losses.
• Durable Construction: Built with conformal-coated electronic assemblies (Frame Size D) to withstand dust, humidity, and industrial contaminants.
• Safety Protection: Comprehensive protection suite including overvoltage, undervoltage, motor overload, earth fault, phase failure, and short-circuit protection.
• Energy Saving: Advanced V/f, V2/f, and FCC (Flux Current Control) modes optimize current output based on real-time load demand.
• Easy Maintenance: Quick parameter cloning via micro-SD card or battery-operated loader without requiring main line power connection.

Applications

• Residential: Main supply water booster pumps and HVAC pressure management for high-rise residential complexes.
• Commercial: Central HVAC air handling units, exhaust extraction fans, and chilled water circulation pumps in commercial towers.
• Industrial: Heavy-duty conveyors, agitators, industrial mixers, textile spinning machinery, and plastic extruders.
• Factory: Automated assembly lines, packaging conveyors, industrial compressors, and processing machinery.
• Office: Automated ventilation blowers, elevator hydraulic systems, and facility management pumps.
• Project Installation: Custom motor control centers (MCC), OEM machine builder control panels, and municipal water treatment plants.

Why Choose This Product?

• Reliability: Built to Siemens rigorous engineering standards, providing long-term uptime in demanding industrial conditions.
• Performance: Delivers precise speed regulation and high torque dynamic response across changing mechanical loads.
• Cost Effectiveness: Delivers rapid Return on Investment (ROI) through reduced power consumption and lower maintenance costs.
• After-Sales Value: Supported by extensive Siemens documentation, standard replacement parts availability, and local service channels across Bangladesh.

Technical Specification Table

Features List

✓ High-efficiency vector and V/f speed control modes

✓ Built-in operator panel (BOP) for parameter setup

✓ Integrated USS and Modbus RTU fieldbus support

✓ Energy-saving Eco Mode for optimized partial-load power

✓ Conformal coated circuit boards for harsh environments

Benefits For Customers

• Reduces Electricity Cost: Adjusts motor speed to real-time process requirements, reducing electrical consumption during continuous operation.
• Improves Operational Reliability: Soft-starting capability eliminates mechanical shock, belt slippage, and electrical voltage dips during startup.
• Saves Maintenance Cost: Lessens mechanical strain on gearboxes, couplings, and motor bearings to prevent costly downtime.
• Suitable for Bangladesh Environment: Handles ambient temperature variations and wide grid voltage fluctuations common in regional industrial hubs.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside a clean, dry control panel enclosure with an IP54 or higher rating.
• Ensure clear airflow clearances above and below the drive (minimum 100mm clearance) to allow heat evacuation.
• Use shielded power and signal cables, and route control wiring in separate conduits away from three-phase AC input/output lines.
• Ground the unit solidly to the main panel earthing busbar following Siemens installation guidelines.

Maintenance Tips:

• Regularly clean heat sink cooling fins and cooling fans using dry, oil-free compressed air to prevent thermal throttling.
• Inspect electrical terminal connections periodically and tighten terminal screws to correct torque specifications.
• Keep the enclosure ambient filter pads clean and verify that internal cooling fans operate without excessive noise.

Safety Instructions:

• Disconnect and lockout all high-voltage power lines prior to inspecting or servicing terminal connections.
• Wait a minimum of 5 minutes after switching off power to let internal DC bus capacitors fully discharge before handling.
• Ensure all wiring, parameter setup, and commissioning tasks are performed by qualified electrical personnel.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SINAMICS V20 15kW VFD in Bangladesh?

A: The price of the Siemens SINAMICS V20 15kW VFD (6SL3210-5BE31-5UV0) in Bangladesh depends on current import stock and market conditions. Visit loopshop.com.bd or contact our sales team for updated pricing.

Q: Where can I buy Siemens SINAMICS V20 15kW VFD in Bangladesh?

A: You can order genuine Siemens VFDs online at LOOP Shop (loopshop.com.bd) with direct shipping to Dhaka, Chattogram, and industrial areas across Bangladesh.

Q: What warranty does this product have?

A: The product comes with a standard manufacturer/supplier warranty against manufacturing defects. Detailed warranty terms are provided upon purchase at loopshop.com.bd.

Q: Is this suitable for Bangladesh climate?

A: Yes, with conformal-coated boards and an operating temperature range up to 60°C (with derating), it is suitable for industrial environments in Bangladesh.

Q: How to install this product?

A: Mount vertically on a flat surface inside an enclosure, connect 3-phase 380–480V input to L1/L2/L3 terminals and motor leads to U/V/W terminals, ground the chassis, and parameterize via the built-in BOP.

Q: Does this Siemens 15kW VFD include an integrated braking chopper?

A: Yes, the Frame Size D 15kW variant features an integrated braking chopper for direct connection of an external dynamic braking resistor.

Q: What is the input voltage rating for the 6SL3210-5BE31-5UV0 drive?

A: It requires a 3-phase AC power input rated at 380V to 480V (-15% / +10%) at 47 Hz to 63 Hz.

Q: Can I connect this VFD to a Modbus RTU network?

A: Yes, the drive includes built-in Modbus RTU and USS communication protocols for easy PLC integration.

Q: What is the output current of this Siemens 15kW VFD?

A: The rated output current is 31.0 Amperes for standard industrial three-phase induction motor drives.

Q: Is technical support available for setting up this drive at LOOP Shop?

A: Yes, LOOP Shop provides technical guidance and support for Siemens industrial automation product selection and setup.
