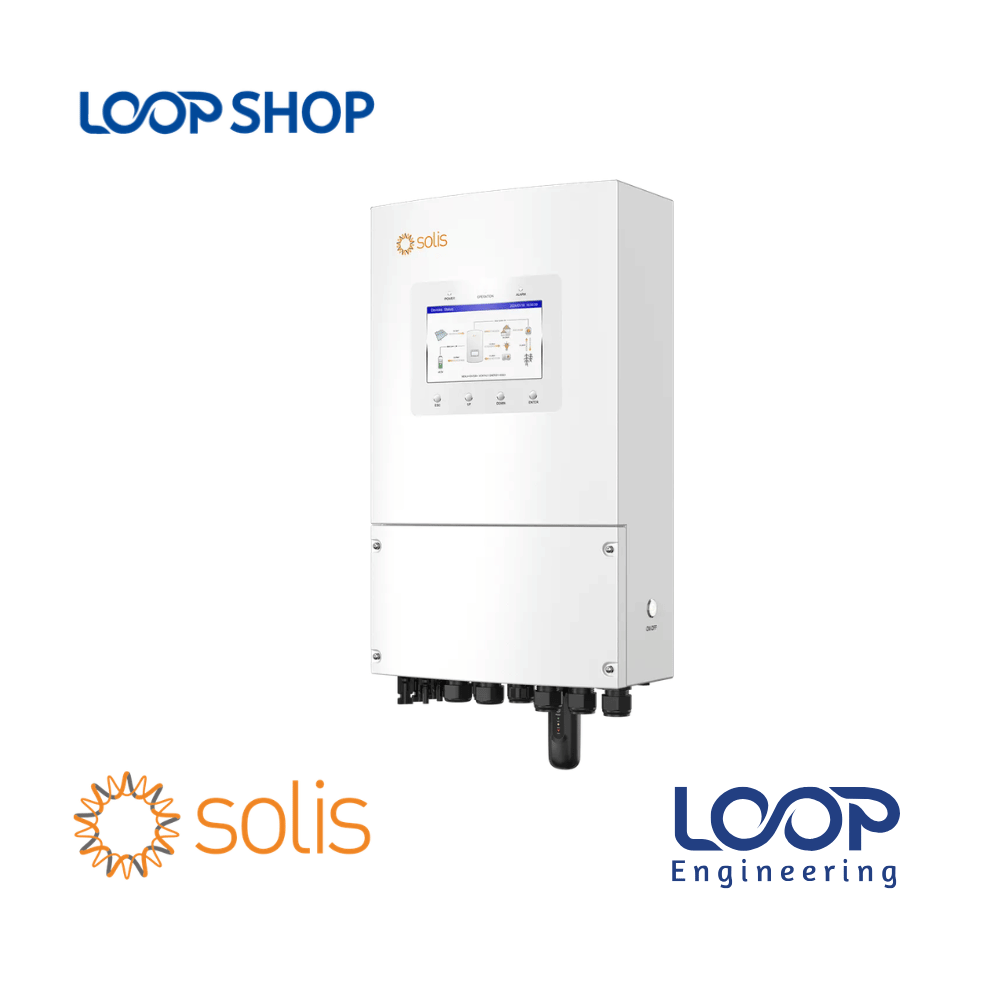

The Solis S6-EH1P5K-L-PLUS is a 5kW single-phase silent hybrid solar inverter engineered for uninterrupted power supply across homes and small commercial setups in Bangladesh. Designed to tackle frequent grid load-shedding and rising utility tariffs, it integrates dual MPPT trackers, support for 48V Lithium (LiFePO4) or Lead-acid batteries, and an automatic UPS transfer time under 20 milliseconds.
Continuous AC Output: 5000W rated power (220V / 230V single phase)
Silent & Durable: Fanless natural cooling (<30 dB) with IP65 weather-sealed enclosure
Flexible PV Input: Dual MPPT architecture supporting up to 6500W DC solar capacity
Smart Management: Zero grid export control and SolisCloud Wi-Fi monitoring
The Solis 5KW Hybrid Solar Inverter (S6-EH1P5K-L-PLUS) is an advanced energy solution. The Solis S6-EH1P5K-L-PLUS is an advanced 5kW single-phase hybrid solar inverter developed to manage decentralized energy generation and battery storage. In the context of Bangladesh’s power landscape—where grid instability, scheduled load shedding, and peak electricity tariffs pose operational challenges—this inverter unifies solar generation, battery backup, and utility grid power within a single compact device. It is designed for residential properties, medium-to-large households, and light commercial facilities seeking continuous power and lower monthly electricity bills. Solis 5KW Hybrid Solar Inverter.
5000W Rated Continuous Output: Powers essential and heavy residential loads with clean AC electricity.
Dual MPPT Tracking: Accommodates two separate solar arrays with different orientations or partial shading conditions to optimize daily energy capture.
Ultra-Quiet Operation (<30 dB): Operates without cooling fans, making it quieter than a whisper and suitable for indoor living spaces.
High Efficiency: Delivers up to 97.6% maximum efficiency, 97.0% European efficiency, and 99.9% MPPT tracking efficiency.
Sub-20ms UPS Transfer: Automatically shifts to battery backup within 20 milliseconds during a power outage to prevent computers and sensitive appliances from restarting.
Wide 48V Battery Compatibility: Works with both Lead-acid and Lithium Iron Phosphate (LiFePO4) battery banks (40V–60V) at up to 100A charge/discharge current.
IP65 Weather Resistance: Fully protected against dust ingress and high-humidity monsoons, supporting outdoor or indoor wall mounting.
Integrated Wi-Fi Connectivity: Enables plant monitoring, yield reporting, and remote diagnostics through the SolisCloud mobile app and desktop portal.
Dual Independent MPPTs (12.5A per string): Allows flexible rooftop string design, ensuring system efficiency even if roof planes face different angles.
Natural Convection Cooling: By omitting mechanical fans, the unit eliminates a primary failure point in dusty environments while ensuring silent performance.
Zero Export & Grid Support: Includes integrated export power limiting, making it straightforward to match local net-metering rules or prevent reverse feeding.
Comprehensive Fault Protection: Integrated protections include DC reverse polarity, AC short circuit, over-current, over-voltage, anti-islanding, and thermal derating.
Residential duplexes and multi-story apartment loads
Small-to-medium offices, corporate workstations, and server racks
Retail storefronts, pharmacies, and clinics requiring continuous refrigeration or lighting
Agricultural farmhouses and rural properties operating on unstable or weak utility grids
Grid-tied rooftop solar installations requiring localized battery storage
Resilience Against Load Shedding: With <20ms automatic transfer, the inverter functions as an industrial-grade IPS/UPS without flicker or manual switching.
Engineered for Tropical Weather: The IP65 enclosure and -25°C to +60°C operating window handle high ambient summer heat and seasonal monsoon humidity.
Significant Cost Reduction: Self-consumption optimization and battery peak-shaving reduce dependence on higher-tier grid tariff rates.
Low Maintenance Requirements: A sealed fanless chassis eliminates internal dust clogging, lowering routine service requirements in urban and semi-urban environments.
| Parameter | Specification |
| Brand | Solis |
| Model | S6-EH1P5K-L-PLUS |
| Max. PV Input Power | 6500 W |
| Max. PV Input Voltage | 600 V |
| MPPT Operating Voltage Range | 90 V – 520 V |
| Rated DC Input Voltage | 360 V |
| Start-up Voltage | 100 V |
| Max. Input Current per MPPT | 12.5 A |
| Max. Short-Circuit Current per MPPT | 15 A |
| Number of MPPTs / Strings per MPPT | 2 / 1 |
| Rated AC Output Power | 5000 W |
| Max. AC Backup Output Power | 5000 W |
| Max. Apparent AC Power (On-grid) | 5500 VA |
| Max. Output Current | 23.9 A |
| Nominal AC Voltage / Range | 220 V / 230 V (180 V – 270 V adjustable) |
| Nominal Grid Frequency / Range | 50 Hz / 60 Hz (45–55 Hz / 55–65 Hz) |
| Total Harmonic Distortion (THD) | < 2% (at rated power) |
| Compatible Battery Types | Lead-acid / LiFePO4 |
| Battery Voltage Range | 40 V – 60 V |
| Max. Charge / Discharge Current | 100 A |
| Max. Charge / Discharge Power | 5000 W |
| Max. Conversion Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | 99.9% |
| Dimensions (W x H x D) | 450 mm x 440 mm x 180 mm |
| Weight | 17.5 kg |
| Protection Degree | IP65 |
| Operating Temperature Range | -25°C to +60°C |
| Cooling Method | Natural Convection (Fanless) |
| Acoustic Noise Emission | < 30 dB |
| User Interface / Display | LCD Display |
| Communication Ports | Wi-Fi (Standard), LAN / GPRS (Optional) |
| Standards / Certification | Not specified |
| Warranty | 5 Years Standard (extendable) |
✓ Zero-Break Load Support: Keeps lights, computers, and medical equipment running through power outages with sub-20ms transfer.
✓ Lower Utility Bills: Uses solar power directly during daylight, stores excess energy, and cuts grid electricity usage.
✓ Whisper-Quiet Operation: Fanless chassis keeps indoor noise below 30 dB.
✓ Flexible Battery Selection: Compatible with budget-friendly 48V Lead-acid or long-life 48V LiFePO4 batteries.
✓ Resilient Construction: IP65 dust- and water-tight design performs reliably in hot, humid climates.
✓ Dual Roof Flexibility: Dual MPPT inputs let you split solar arrays across two different roof orientations.
This product is suitable for:
Residential homes and duplexes
Commercial offices and conference rooms
Medical centers, dental chambers, and pharmacies
Retail outlets, showrooms, and bakeries
Educational institutions and coaching centers
Rooftop renewable energy installations across Bangladesh
Q: What is the price of the Solis S6-EH1P5K-L-PLUS 5kW hybrid inverter in Bangladesh?
A: The price varies based on import duties, currency exchange, and warranty packages. Contact our sales engineers for an official, up-to-date quotation.
Q: Where can I buy the Solis S6-EH1P5K-L-PLUS in Bangladesh?
A: You can purchase genuine units directly through our online store, with doorstep delivery and technical engineering support across Dhaka, Chattogram, Sylhet, and other divisions.
Q: Can this 5kW Solis inverter run an air conditioner during load shedding?
A: Yes. With a 5000W continuous backup output, it can power a standard 1.5-ton inverter air conditioner alongside lights, fans, and electronics, provided your battery storage and PV capacity are sized accordingly.
Q: Does this hybrid inverter work without a battery connected?
A: It is designed primarily as a hybrid system to manage energy between solar, battery, and the grid. For dependable backup power during outages, a 48V battery bank is recommended.
Q: How does the silent cooling system function?
A: The inverter uses an oversized rear-mounted aluminum heat sink for natural convection cooling, eliminating internal fans and keeping operational noise below 30 dB.
Q: What battery voltage does this inverter require?
A: It operates on a nominal 48V DC battery system, accepting a working voltage range between 40V and 60V for both Lithium (LiFePO4) and Lead-acid battery banks.
Q: Is the Solis S6-EH1P5K-L-PLUS suitable for outdoor installation in Bangladesh?
A: Yes. Its IP65 ingress protection rating shields internal components from rain, ambient humidity, and airborne dust.
Q: What warranty comes with this inverter?
A: It includes a standard 5-year manufacturer warranty, with options to purchase an extended warranty through authorized channels.
