Description

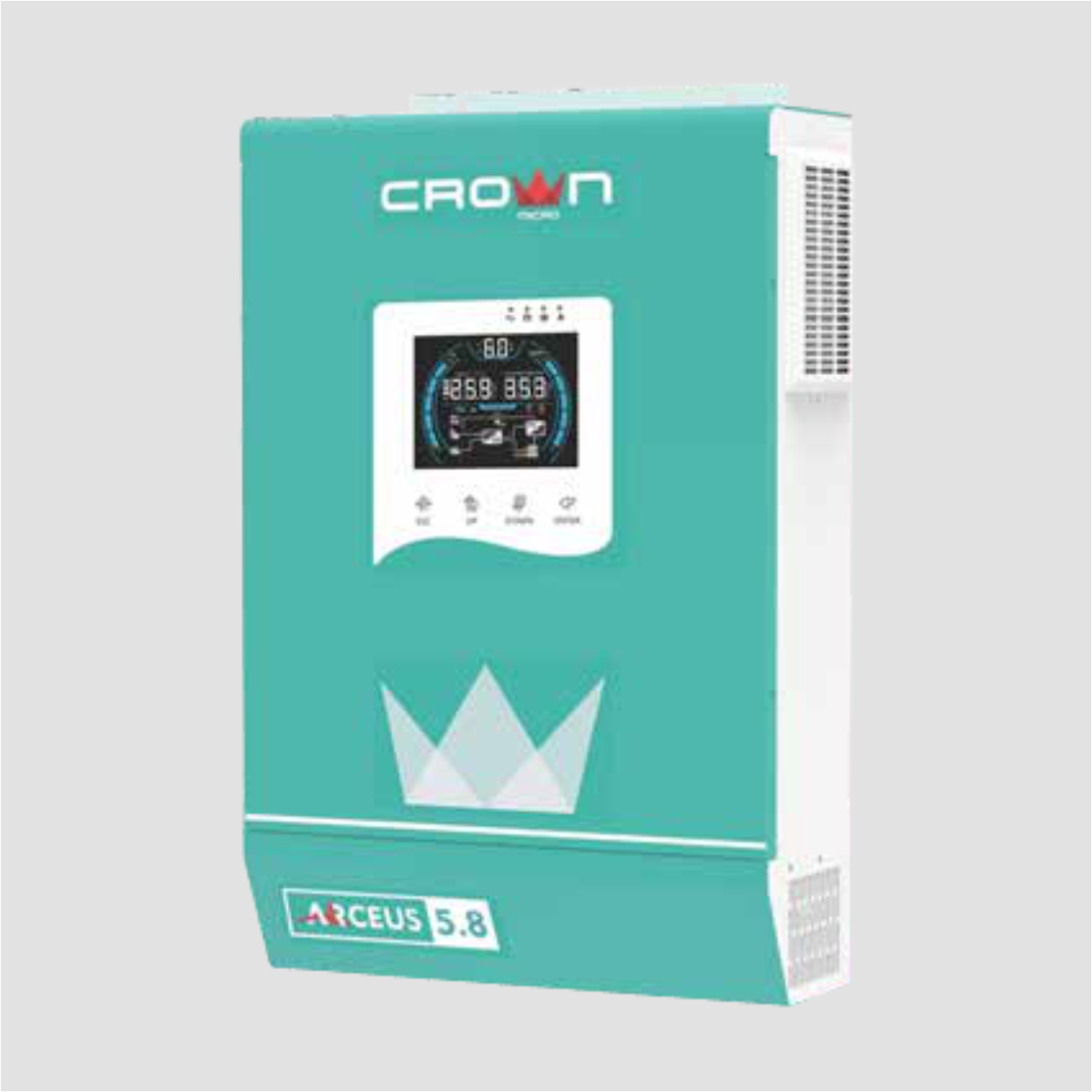

The Crown Arceus 5.8KW MPPT Solar Inverter is a high-performance solution for residential and commercial solar energy systems. It efficiently converts solar energy into usable AC power, ensuring reliable and stable electricity supply.
Key Features:
| · Pure Sine Wave Output |
| · MPPT Solar Charge Controller |
| · Output Power Factor of 1.0 |
| · Battery-Independent Operation |
| · Integrated Wi-Fi Module |
| · 5″ LCD Display |
| · Parallel Operation Capability |
| · Auto-Restart Function |
| · Configurable AC/Solar Input Priority |
Technical Specifications:
| Parameter |
Specification |
| Model |
Arceus 5.8KW-M |
| Rated Power |
5800VA / 5800W |
| Input Voltage |
230 VAC |
| Selectable Voltage Range |
170–280 VAC (for PCs) |
|
90–280 VAC (for Home Appliances) |
| Frequency Range |
50 Hz / 60 Hz (Auto sensing) |
| Surge Power |
11600VA |
| Peak Efficiency |
≥93% |
| Transfer Time |
10 ms (for PCs) |
|
20 ms (for Home Appliances) |
| Waveform |
Pure Sine Wave |
| Battery Voltage |
24 VDC |
| Floating Charge Voltage |
27 VDC |
| Overcharge Protection |
33 VDC |
| Solar Charger Type |
MPPT |
| Maximum PV Array Open Circuit Voltage |
500 VDC |
| MPPT Operating Voltage Range |
120–450 VDC |
| Maximum Solar Charge Current |
100A |
| Maximum AC Charge Current |
60A |
| Communication Interface |
USB / RS232 / Wi-Fi (Optional) |
| Operating Temperature Range |
-10°C to 50°C |
| Storage Temperature Range |
-15°C to 60°C |
| Humidity |
5% to 95% RH (Non-condensing) |
· |
