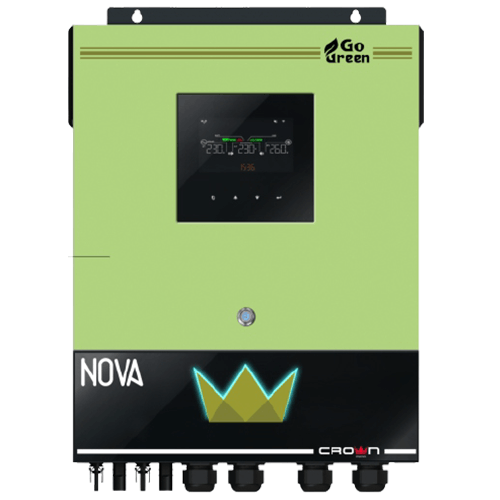

The Crown Nova 9.8KW IP21 Hybrid Solar Inverter is a robust and efficient solution designed for both residential and commercial solar energy systems. Below are its key features and technical specifications:
Key Features
| · Pure Sine Wave Output |
| · MPPT Solar Charge Controller |
| · Output Power Factor 1.0 |
| · RGB LED Status Indicator |
| · Touch Screen LCD Display |
| · Parallel Operation Capability |
| · Battery-Independent Design |
| · Built-in Wi-Fi Monitoring |
| · USB On-the-Go Support |
| · Overload & Short Circuit Protection |
Technical Specifications
| Parameter | Specification |
| Model | NV-9.8KW |
| Rated Power | 9800VA / 9800W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 90–280 VAC / 170–280 VAC |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| Surge Power | 19600VA |
| Efficiency (Peak) | ≥93% |
| Transfer Time | 10 ms / 20 ms |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 12000W |
| MPPT Operating Voltage Range | 90–450 VDC |
| Maximum PV Open Circuit Voltage | 500 VDC |
| Max PV Input Current | 27A x 2 |
| Max Solar Charge Current | 160A |
| Max AC Charge Current | 160A |
| Dimensions (D × W × H) | 158 × 504 × 531 mm |
| Weight | 21.5 kg |
| Communication Interfaces | USB, RS232, Wi-Fi |
| Operating Temp. Range | -10°C to 50°C |
| Humidity | 5% to 95% (Non-condensing) |
