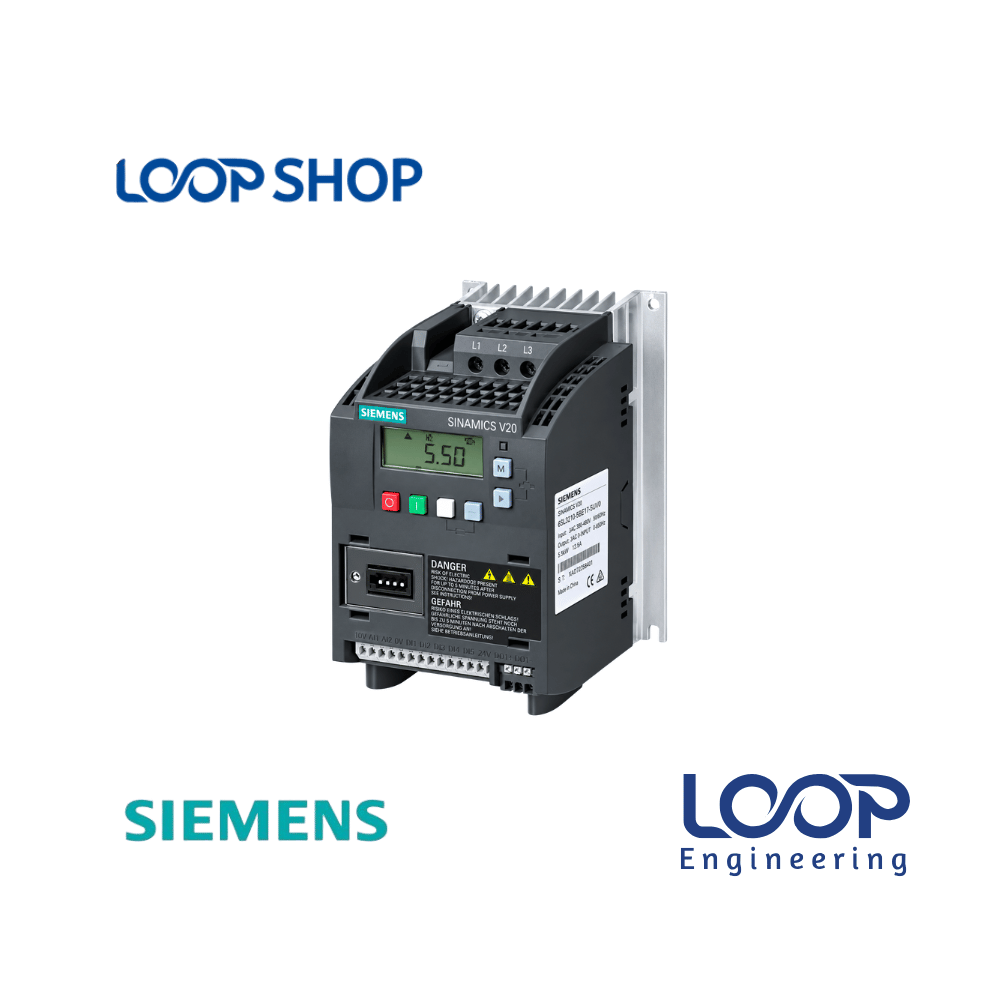

Siemens 6SL3210-5BB22-2UV1 SINAMICS V20 2.2kW VFD Industrial Drive

Description

The Siemens 6SL3210-5BB22-2UV1 SINAMICS V20 is an efficient 2.2 kW (3 HP) Variable Frequency Drive (VFD) designed to run standard 3-phase AC induction motors from a single-phase 200V–240V AC power line. By converting incoming single-phase power into adjustable three-phase variable frequency and voltage output, it allows precise motor speed modulation across diverse industrial operations.

This drive is indispensable for electrical control panel builders, workshop technicians, system integrators, and facility managers across Bangladesh. In facilities where setting up a dedicated 3-phase electrical line is expensive or unavailable, the SINAMICS V20 provides full 3-phase motor control directly from a standard single-phase power source while offering outstanding energy savings.

Key Features

• Single-phase 200V–240V AC line power input driving standard 230V 3-phase AC induction motors up to 2.2 kW (3.0 HP).
• High overload capability handling 150% rated load for 60 seconds to ensure seamless high-torque startups.
• Integrated Basic Operator Panel (BOP) built on the front interface for easy local parameter setup, tuning, and real-time monitoring.
• Native USS and Modbus RTU communication protocols for effortless connection to industrial PLCs and SCADA networks.
• Integrated braking chopper for active dynamic braking and fast deceleration cycles.
• Multi-functional I/O configuration featuring 4 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, and 1 Analog Output.
• Energy-saving Eco Mode for automatic flux adjustment to lower energy consumption during partial load runs.
• “Keep Running Mode” enabling uninterrupted machine operation during utility power fluctuations and line voltage sags.

Technical Advantages

• High Efficiency: Operates with conversion efficiency up to 98%, cutting internal power loss inside electrical enclosures to a minimum.
• Durable Construction: Features conformal-coated electronic circuit boards (Frame Size B) to withstand airborne dust, moisture, and atmospheric pollutants.
• Safety Protection: Comprehensive safety mechanisms against mains overvoltage, undervoltage, motor thermal overload, short circuits, and earth faults.
• Energy Saving: Advanced speed control modes (V/f, V2/f, FCC) adjust electrical output directly according to actual motor demand.
• Easy Maintenance: Supports rapid parameter cloning without main AC supply using optional battery-operated loaders or micro-SD memory cards.

Applications

• Residential: Central hydro-pneumatic water pumps and HVAC ventilation blowers for residential towers using single-phase mains.
• Commercial: Air Handling Units (AHU), commercial kitchen exhaust blowers, and booster pumps in commercial complexes.
• Industrial: Conveyor belts, industrial mixers, agitators, packaging machinery, and light textile processing machinery.
• Factory: Automated production lines, workshop machine tools, industrial blowers, and pneumatic compression systems.
• Office: Automated ventilation fans, facility booster pumps, and exhaust fans in commercial office buildings.
• Project Installation: Motor Control Centers (MCC), OEM custom machine panels, and municipal water pumping projects.

Why Choose This Product?

• Reliability: Engineered to Siemens stringent global manufacturing standards to provide maximum operational uptime.
• Performance: Delivers continuous, smooth dynamic motor control, exact speed retention, and soft startup performance.
• Cost Effectiveness: Eliminates the need for expensive 3-phase power installation while providing immediate electricity bill reductions.
• After-Sales Value: Supported by comprehensive documentation, widely available replacement parts, and local technical guidance across Bangladesh.

Technical Specification Table

Features List

✓ Single-phase input to 3-phase output variable speed motor drive

✓ Integrated Basic Operator Panel (BOP) for local programming

✓ Built-in USS and Modbus RTU fieldbus interfaces

✓ Energy-saving Eco Mode with automatic flux optimization

✓ Conformal coated circuit boards for environmental durability

Benefits For Customers

• Reduces Electricity Cost: Regulates motor power draw matching real-time process demand, eliminating power waste.
• Improves Operational Reliability: Soft-starting and soft-stopping eliminate mechanical jerk, belt wear, and water-hammer effects.
• Saves Maintenance Cost: Decreases physical stress on bearings, gearboxes, and motor windings, avoiding unbudgeted downtime.
• Suitable for Bangladesh Environment: Operates dependably on standard single-phase mains despite regional line voltage fluctuations and hot climates.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-flammable backplate inside an IP54 or appropriate protective electrical enclosure.
• Maintain minimum clearance space (at least 100mm above and below) for unhindered cooling airflow around the heatsink.
• Use properly shielded control cables and route signal wiring in separate conduits away from AC power lines.
• Securely connect a protective earth (PE) ground cable to the terminal block following Siemens wiring guidelines.

Maintenance Tips:

• Clean heat sinks and cooling fans periodically using dry, oil-free compressed air to clear dust accumulation.
• Periodically check and re-torque power terminal block screws to ensure tight, low-resistance electrical connections.
• Keep control panel filter pads clean and ensure internal cabinet cooling operates smoothly.

Safety Instructions:

• Disconnect and isolate all incoming electrical power sources prior to conducting inspection or wiring work.
• Wait a minimum of 5 minutes after power supply disconnection to allow internal DC bus capacitors to fully discharge.
• Ensure installation, parameter setup, and commissioning are performed solely by qualified electrical technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SINAMICS V20 2.2kW VFD (6SL3210-5BB22-2UV1) in Bangladesh?

A: The price of the Siemens SINAMICS V20 2.2kW VFD in Bangladesh depends on import stock and market conditions. Visit loopshop.com.bd or contact customer support for current pricing.

Q: Where can I buy original Siemens SINAMICS V20 2.2kW VFD in Bangladesh?

A: You can purchase genuine Siemens VFDs online at LOOP Shop (loopshop.com.bd) with fast delivery across Dhaka and all over Bangladesh.

Q: What warranty does this Siemens VFD product have?

A: This VFD comes with standard manufacturer/supplier warranty coverage against manufacturing defects. Check specific warranty terms on loopshop.com.bd at checkout.

Q: Is this Siemens VFD suitable for Bangladesh climate?

A: Yes, with conformal-coated electronic circuit boards and an operating limit up to 60°C (with derating), it is suited for warm industrial conditions in Bangladesh.

Q: How to install this Siemens 2.2kW single-phase VFD?

A: Mount vertically inside a panel, connect 1-phase 200V–240V AC line power to L1/L2 (or L/N) terminals and 230V 3-phase motor leads to U/V/W terminals, ground the unit, and configure parameters via the integrated BOP.

Q: Can this drive run a 3-phase motor on a single-phase electricity line?

A: Yes, it takes single-phase 200V–240V AC power input and provides controlled 3-phase output for 220V/230V 3-phase delta-connected motors up to 2.2 kW.

Q: What is the model number of this Siemens 2.2kW 1-phase VFD?

A: The specific Siemens part/model number is 6SL3210-5BB22-2UV1 (6SL32105BB222UV1).

Q: Does it support Modbus RTU communication protocol?

A: Yes, USS and Modbus RTU communication protocols are natively integrated into the unit.

Q: What power output and current does this VFD deliver?

A: It delivers 2.2 kW (3.0 HP) rated output power with an 11.0A output current rating.

Q: Is technical support available for setting up this VFD in Bangladesh?

A: Yes, technical assistance and guidance for product selection and parameter setup are available through LOOP Shop technical representatives.
