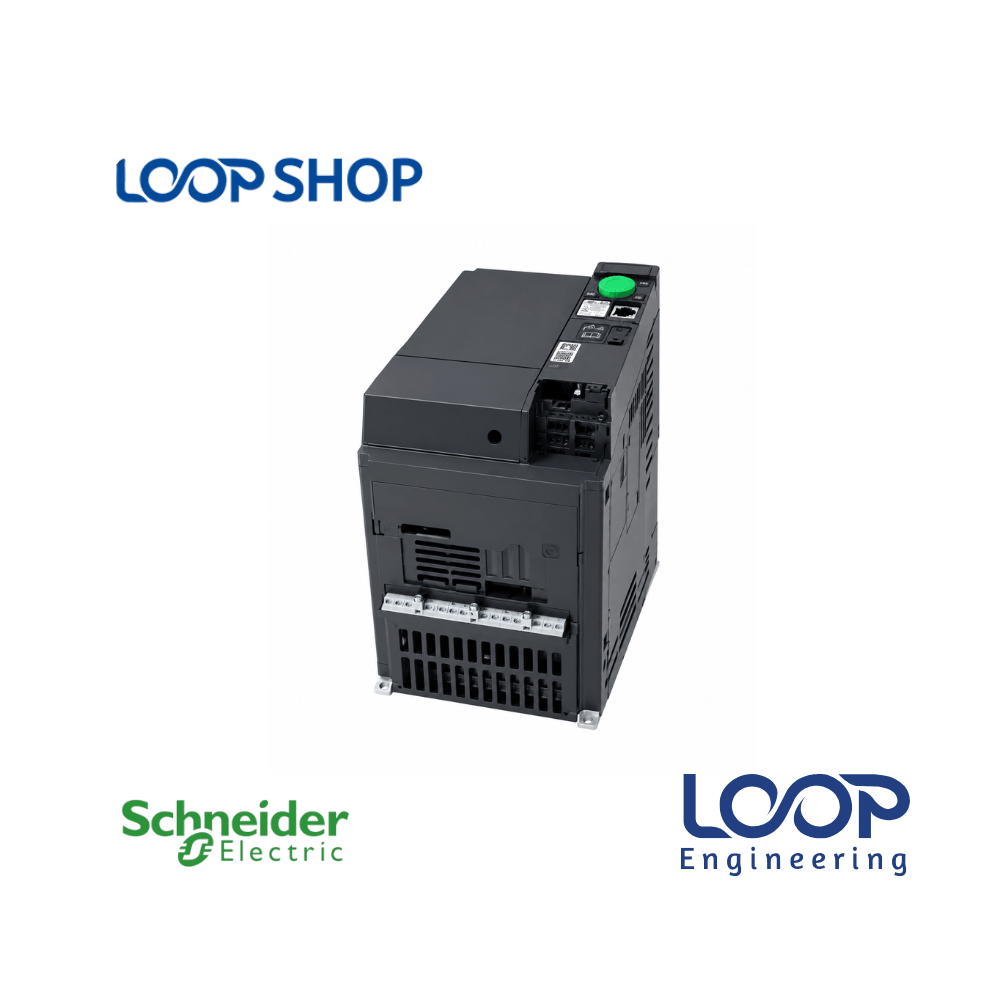

Schneider ATV320 5.5kW VFD ATV320U55N4B Variable Speed Drive

Description

The Schneider Electric Altivar Machine ATV320 5.5kW VFD (ATV320U55N4B) is a compact, heavy-duty Variable Frequency Drive designed specifically for machine builders (OEMs) and process automation lines. Operating on a 380V to 500V 3-phase AC power line, this drive converts utility electricity into variable frequency and voltage to deliver precise speed, acceleration, and dynamic torque control over electric motors.

Ideal for automation engineers, factory plant technicians, and machinery builders across Bangladesh, the ATV320U55N4B combines exceptional motor speed control with built-in safety logic, eliminating external safety relays while maximizing system uptime and energy efficiency.

Key Features

• Book Form Factor Architecture: Space-saving vertical design allows side-by-side mounting inside control cabinets without requiring thermal spacing.
• Integrated Hardware Safety: Built-in Safe Torque Off (STO) along with SS1, SLS, SMS, and GDL safety logic meets SIL 3 / PL e safety standards without extra panel hardware.
• Broad Motor Compatibility: Delivers high dynamic response for standard asynchronous induction motors as well as high-efficiency permanent magnet synchronous motors.
• Integrated Class C3 EMC Filter: Built-in line filter suppresses high-frequency noise interference to maintain signal integrity for nearby controllers and sensors.
• Flexible Communication Extensions: Native Modbus RTU and CANopen connectivity with dedicated option slots for Ethernet/IP, Profinet, EtherCAT, and Modbus TCP cards.

Technical Advantages

• High Efficiency: Maintains over 97% efficiency at nominal load, reducing heat buildup inside electrical control cabinets and saving power.
• Durable Construction: Class 3C3 (chemical protection) and 3S3 (particle protection) conformal coated circuit boards shield internal electronics against dust, humidity, and corrosive vapors.
• Safety Protection: Embedded safety functions streamline SIL 3 machinery compliance while reducing external wiring and panel component count.
• Energy Saving: Dynamic energy optimization modes automatically adjust output voltage under partial load conditions to lower electricity bills.
• Easy Maintenance: Quick parameter copying and intuitive menu structure via keypad interface ensure fast installation, commissioning, and setup times.

Applications

• Industrial Manufacturing: Textile spinning machines, dyeing apparatus, packaging lines, and conveyor drives.
• Commercial Buildings: HVAC supply/exhaust air fans, booster water pumps, and elevator hoist mechanisms.
• Factory Automation: Belt conveyors, screw feeders, industrial blowers, mixers, and agitators.
• Woodworking & Metal Processing: Saws, cutting tools, metal lathes, and bending machinery.
• Project Installation: Factory automation upgrades, OEM machine assemblies, and utility pumping schemes across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured according to Schneider Electric’s global quality standards for 24/7 continuous industrial service life.
• Performance: Superior torque regulation and smooth motor acceleration/deceleration under fluctuating mechanical loads.
• Cost Effectiveness: Narrow footprint cuts control cabinet sizing costs, while built-in safety logic eliminates external safety relays.
• After-Sales Value: Backed by original documentation, setup guidance, and local technical assistance via loopshop.com.bd.

Technical Specification Table

Features List

✓ High efficiency 5.5kW heavy-duty motor speed control

✓ Compact book form factor for space-saving panel installation

✓ Integrated STO and multi-function machine safety protection

✓ Conformal coated circuit boards (3C3/3S3) for harsh environments

✓ Built-in Class C3 EMC filter for reduced noise interference

Benefits For Customers

• Reduces Electricity Cost: Optimizes power consumption based on load demand, lowering monthly electricity expenses for manufacturing units.
• Improves Operational Reliability: Soft-start features eliminate high current surges and reduce mechanical wear on motor couplings and gearboxes.
• Saves Maintenance Cost: Comprehensive electrical safety features protect against motor winding burnout, overloads, and unexpected line shutdowns.
• Suitable for Bangladesh Environment: Tropicalized circuit board coatings safeguard sensitive electronics against high atmospheric humidity and ambient dust.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-flammable surface inside a clean, well-ventilated control cabinet.
• Ensure clear surrounding clearance of at least 50 mm on both sides and 100 mm above and below the unit for natural cooling airflow.
• Connect 380–500V 3-phase mains lines to terminals L1, L2, L3 and motor leads to output terminals U, V, W with secure earthing.
• Use shielded power and control cables to suppress high-frequency electromagnetic noise.

Maintenance Tips:

• Clean cooling fan blades and heat sink cooling fins periodically to prevent dust buildup.
• Tighten terminal block screws regularly to avoid loose connections caused by machinery vibration.
• Inspect real-time operational logs and internal drive temperature via the keypad terminal.

Safety Instructions:

• Always disconnect main AC power and wait at least 15 minutes for internal DC bus capacitors to discharge fully before touching wiring terminals.
• Ensure protective ground wires are connected tightly before turning power ON.
• Installation, wiring, and parameter setup must strictly be performed by qualified electrical technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Schneider ATV320 Series 5.5kW VFD ATV320U55N4B in Bangladesh?

A: The price of the Schneider ATV320 5.5kW VFD in Bangladesh depends on market availability and import rates. Please check live prices or request a quote directly on loopshop.com.bd.

Q: Where can I buy original Schneider ATV320U55N4B VFD in Bangladesh?

A: You can purchase genuine Schneider Electric ATV320 series VFDs directly online from loopshop.com.bd with reliable delivery across Bangladesh.

Q: What warranty does the Schneider ATV320U55N4B product have?

A: This product comes with standard warranty coverage against factory defects. Complete warranty policies are provided upon purchase at loopshop.com.bd.

Q: Is the Schneider ATV320 5.5kW VFD suitable for Bangladesh climate conditions?

A: Yes, it features 3C3 and 3S3 conformal coated circuit boards designed to resist atmospheric humidity, dust, and continuous high ambient temperatures in Bangladesh.

Q: How do I install the Schneider ATV320U55N4B 5.5kW VFD?

A: Installation requires vertical cabinet mounting, wiring a 380-500V 3-phase AC input, connecting output motor leads, grounding properly, and setting up basic parameters via keypad.

Q: What power supply voltage does the ATV320U55N4B support?

A: The drive operates on a 3-phase 380V to 500V AC power supply at 50/60 Hz.

Q: What is the advantage of the “Book” format in the ATV320 series?

A: The “Book” form factor is tall and narrow, allowing side-by-side mounting inside electrical panels to minimize overall cabinet width and lower panel costs.

Q: Does this 5.5kW drive support synchronous permanent magnet motors?

A: Yes, the Altivar Machine ATV320 series is engineered to control both standard asynchronous induction motors and permanent magnet synchronous motors.

Q: What safety functions are embedded in the ATV320U55N4B drive?

A: It includes built-in Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), and Guard Door Locking (GDL) safety logic.

Q: Can I get technical support for setting up Schneider VFDs in Bangladesh?

A: Yes, loopshop.com.bd provides technical assistance, parameter documentation, and setup guidance for industrial automation customers across Bangladesh.
