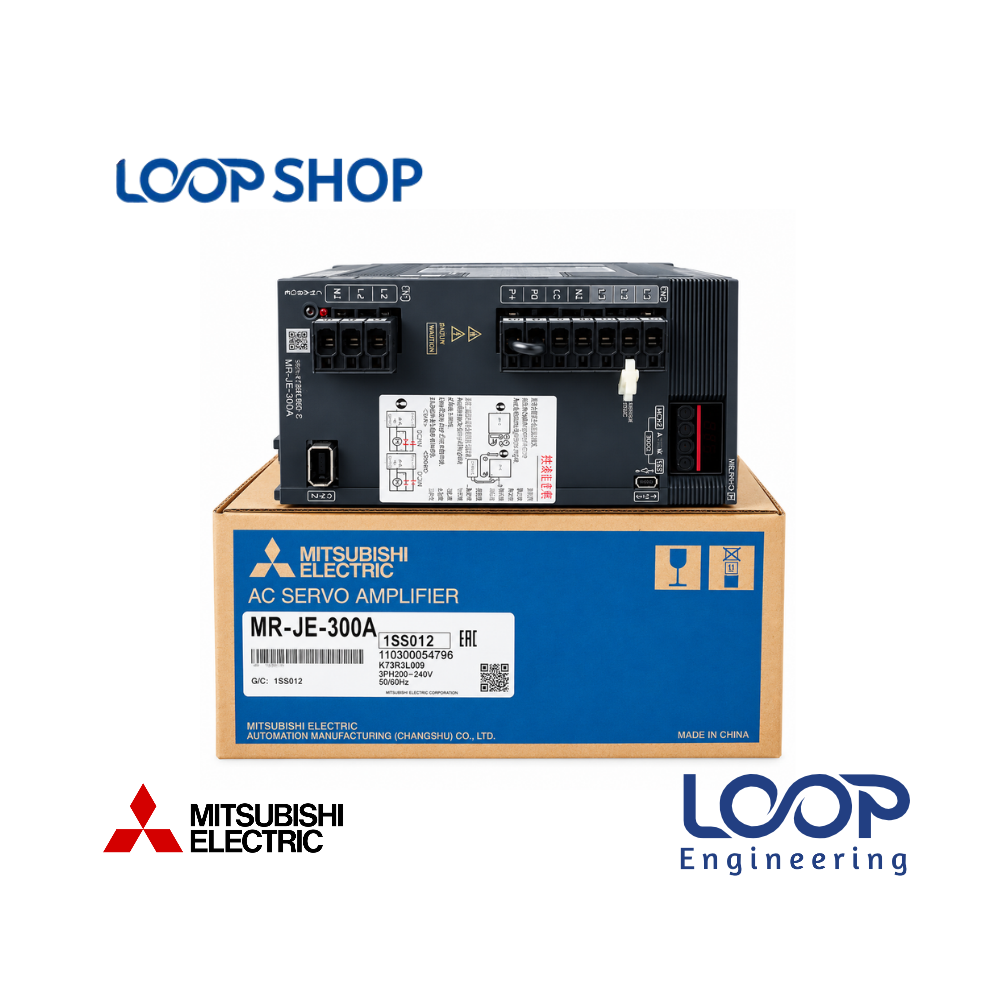

Mitsubishi MR-JE-300A 3000W 3kW AC Servo Drive High Precision Industrial

Description

The Mitsubishi MR-JE-300A 3000W AC Servo Drive is an industrial-grade AC motion control amplifier engineered by Mitsubishi Electric. Belonging to the renowned MELSERVO-JE series, this 3.0kW general-purpose drive converts command signals into ultra-precise electrical currents to govern motor speed, positioning, and output torque.

Engineered for machine builders, panel integrators, and industrial maintenance technicians across Bangladesh, the MR-JE-300A provides high dynamic response and operational stability. With its built-in positioning functionality, Advanced One-Touch Auto-Tuning, and real-time vibration suppression filters, this drive allows easy setup while handling heavy workloads in packaging lines, textile machinery, CNC axes, and automated material handling equipment.

Key Features

• 3000W (3kW) output capacity engineered for 3-phase 200V–240V AC power grids
• Multi-mode control: Position command (pulse train), Speed control (analog voltage), and Torque control
• Integrated RS-422 / RS-485 serial communication protocols supporting multi-axis networking
• Advanced One-Touch Auto-Tuning to automatically optimize servo gains for connected mechanical loads
• Built-in machine resonance suppression filters to eliminate mechanical chatter
• Simplified configuration and real-time diagnostics using Mitsubishi MR Configurator2 software
• Compact IP20 metal enclosure layout designed for space-saving control cabinet mounting

Technical Advantages

• High Efficiency Engine: Digital sine-wave PWM control minimizes internal power loss and coil heat generation during rapid dynamic cycles.
• Durable Construction: Industrial-grade components, aluminum thermal heatsinks, and IP20-rated casing ensure reliable performance.
• Safety & Hardware Protection: Built-in multi-layer protection guards internal circuits against overcurrent, overvoltage, undervoltage, thermal overload, and phase errors.
• Energy Saving Operation: Advanced power management draws electrical current strictly in proportion to dynamic mechanical load demand.
• Easy Maintenance & Diagnostics: USB setup port, digital LED diagnostic display, and removable plug connectors streamline maintenance.

Applications

• Industrial: CNC cutting and milling machines, heavy-duty robotic arms, wire drawing machinery, and automated assembly cells.
• Factory: High-speed packaging systems, printing presses, converting equipment, and textile spinning/knitting machines.
• Project Installation: Automated storage and retrieval systems (ASRS), material transfer gantries, and custom plant automation lines.

Why Choose This Product?

• Proven Japanese Quality: Built by Mitsubishi Electric, setting global standards for motion drive reliability and performance.
• Unmatched Dynamic Response: Rapid dynamic bandwidth and high encoder resolution prevent positioning lag and production scrap.
• Cost Effectiveness: Built-in positioning features eliminate external motion modules, cutting controller hardware and panel wiring expenses.
• After-Sales Value: Available via loopshop.com.bd with localized customer assistance, technical documentation, and fast delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-power 3000W 3-phase AC servo drive

✓ Advanced One-Touch Auto-Tuning for fast setup

✓ Built-in position, speed, and torque control modes

✓ Real-time mechanical resonance suppression filters

✓ RS-422 / RS-485 communication and USB commissioning port

Benefits For Customers

• Reduces Electricity Cost: Sine-wave PWM vector control limits unnecessary reactive energy consumption during continuous operation.
• Improves Operational Reliability: Precise speed and closed-loop positioning eliminate machine drift and product flaws.
• Saves Maintenance Cost: Auto-tuning and resonance suppression reduce mechanical wear on motor couplings and gears.
• Suitable for Bangladesh Environment: Thermally engineered enclosure operates reliably inside warm factory panels in BD.

Installation & Maintenance Guide

Installation Requirements:

• Mount the drive unit vertically inside a clean, well-ventilated metal control cabinet to allow proper convective heat flow.
• Maintain standard clearance margins above, below, and on both sides of the amplifier unit as specified by Mitsubishi guidelines.
• Connect 3-phase 200V AC power lines using recommended circuit breakers and bond the Protective Earth (PE) terminal securely.
• Use shielded twisted-pair cables for pulse input, analog signals, and encoder communication to mitigate electrical noise.

Maintenance Tips:

• Periodically clean drive heat sinks and cabinet intake filters to prevent dust buildup from impairing cooling efficiency.
• Routinely check screw terminal blocks and quick-connect plugs for firm physical contact.
• Verify cabinet exhaust fans operate properly to keep ambient enclosure temperatures below 55 °C.

Safety Instructions:

• Always disconnect main line AC power before conducting wiring, inspection, or terminal maintenance.
• Wait a minimum of 15 minutes post power-off to ensure internal high-voltage storage capacitors have fully discharged before handling terminals.
• Never connect main AC power directly to motor output terminals U, V, and W, as this will permanently damage internal power modules.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi MR-JE-300A 3000W Servo Drive in Bangladesh?

A: Pricing depends on import tariff rates and live stock availability. Please check loopshop.com.bd or contact our customer support team for an updated quote.

Q: Where can I buy Mitsubishi 3kW Servo Drive MR-JE-300A in Bangladesh?

A: You can purchase original Mitsubishi MR-JE-300A servo drives online directly through loopshop.com.bd with nationwide delivery in BD.

Q: What power input voltage is required for the MR-JE-300A drive?

A: It requires a 3-Phase 200V to 240V AC main line electrical supply (50/60 Hz).

Q: What warranty does this product have?

A: It includes a standard manufacturer warranty covering defects in materials and craftsmanship. Check loopshop.com.bd for specific terms.

Q: Is this servo drive suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial thermal design handle ambient temperatures up to 55 °C inside factory control panels.

Q: What servo motors work with the MR-JE-300A amplifier?

A: It is designed to drive matching Mitsubishi 3.0kW HG series AC servo motors (such as model HG-KN302J-S100 / HG-KN302BJ-S100).

Q: What control interfaces are available on the MR-JE-300A?

A: It features pulse train input for position control, analog voltage input for speed/torque control, and RS-422/RS-485 serial communication.

Q: How to install this product?

A: Mount vertically in a metal cabinet, connect 3-phase AC power, ground PE terminal, motor phases (U, V, W), and encoder lines. Commission using Mitsubishi MR Configurator2 software.

Q: Does MR-JE-300A feature built-in auto-tuning?

A: Yes, it includes Mitsubishi’s Advanced One-Touch Auto-Tuning function for automatic gain adjustment.

Q: Is post-purchase technical support available in BD?

A: Yes, loopshop.com.bd provides sales verification, technical datasheets, and guidance for industrial products purchased through our store.
