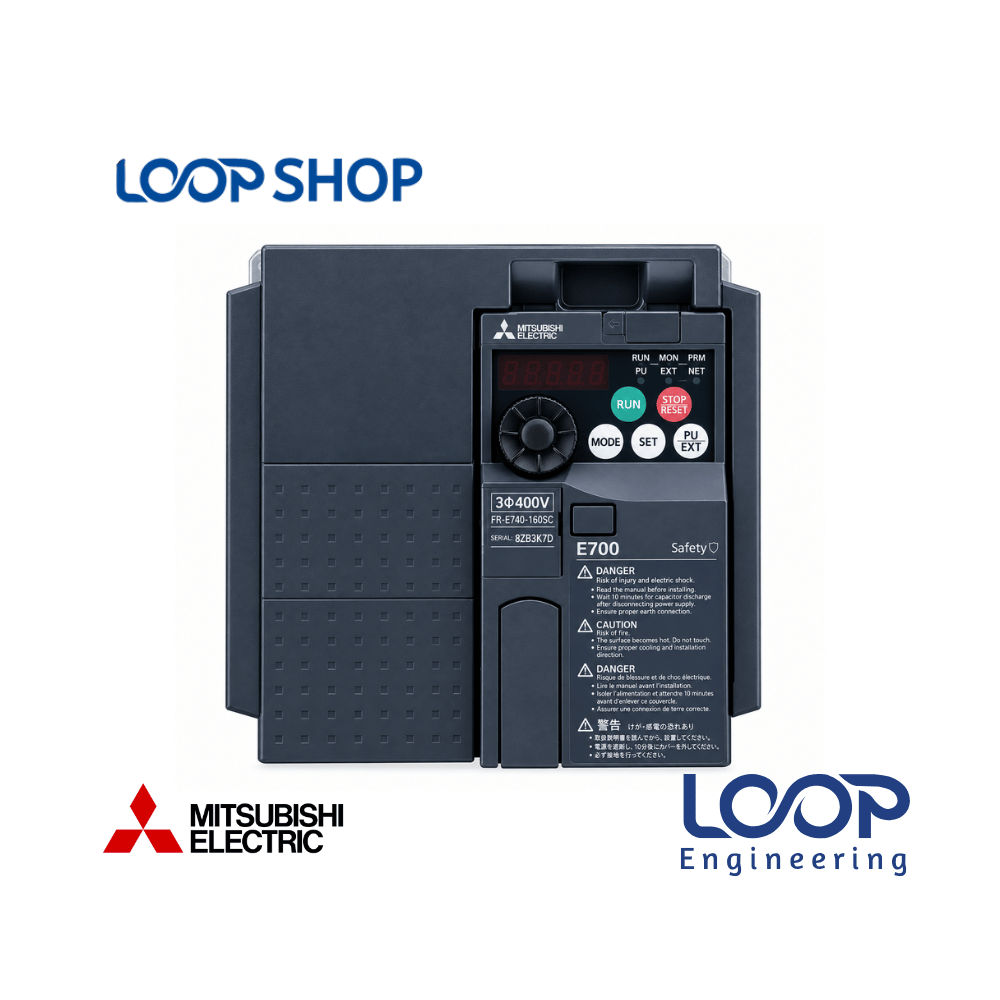

Mitsubishi FR-E740-2.2K E700 Series 2.2kW VFD Industrial Motor Control

Description

The Mitsubishi FR-E740-2.2K is a compact, high-performance 2.2kW (3 HP) Variable Frequency Drive (VFD) from Mitsubishi Electric’s renowned E700 Series. Built to regulate the speed and torque of 3-phase AC induction motors, it packs advanced control algorithms into a space-saving housing designed to optimize electrical panel space.

Driven by Mitsubishi’s proprietary Advanced Magnetic Flux Vector Control, the FR-E740-2.2K provides robust starting torque and smooth velocity control even under variable load conditions. For textile mills, packaging lines, small manufacturing setups, and HVAC installations across Bangladesh, this drive delivers improved process control, lower energy consumption, and maximum protection against mechanical wear.

Key Features

• Advanced Magnetic Flux Vector Control: Delivers up to 200% torque output at ultra-low speeds (0.5Hz) for heavy starting loads without needing encoder feedback.
• Compact Footprint: Offers high power density in a small housing, saving valuable electrical panel real estate.
• Integrated Safety Functionality: Features Safe Torque Off (STO) hardware inputs for reliable emergency stop safety compliance.
• Built-in Modbus-RTU & USB Connectivity: Includes an RS-485 Modbus-RTU port and a mini-USB port for rapid parameter configuration via Mitsubishi FR Configurator software.
• High Overload Capability: Supports heavy-duty overload ratings (150% for 60 seconds, 200% for 0.5 seconds) to handle peak startup surges effortlessly.

Technical Advantages

• High Efficiency: Modern power switching electronics minimize heat generation and internal power losses during continuous operation.
• Durable Construction: Conformal PCB coating protects internal micro-components against moisture, high humidity, and atmospheric dust.
• Safety Protection: Comprehensive protective features guard against overcurrent, overvoltage, short circuits, earth faults, phase loss, and thermal overload.
• Energy Saving: Dynamic excitation control automatically optimizes output voltage under light motor loads to lower overall electricity usage.
• Easy Maintenance: Quick-release cooling fans and removable terminal blocks ensure fast maintenance and minimal production downtime.

Applications

• Industrial & Manufacturing: Small conveyor systems, packaging machines, mixers, agitators, and labeling equipment.
• Factory Automation: Textile spinning and weaving machines, food processing lines, and plastic processing units.
• Commercial Facilities: HVAC supply/exhaust fans, booster pumps, and small centrifugal blowers.
• Project Installation: Machine control panel building and automation retrofitting projects by engineering contractors in Bangladesh.

Why Choose This Product?

• Reliability: Manufactured according to Mitsubishi Electric’s strict engineering standards for long-term 24/7 industrial service.
• Performance: Exceptional torque response prevents motor stalling during sudden mechanical load shifts.
• Cost Effectiveness: Delivers high precision motor control at an accessible price point while reducing monthly energy expenses.
• After-Sales Value: Supported in Bangladesh by Loop Shop with technical parameter assistance and verified product sourcing.

Technical Specification Table

Features List

✓ Advanced Magnetic Flux Vector Control

✓ Integrated Safe Torque Off (STO) safety circuit

✓ Conformal-coated PCBs for humid industrial environments

✓ Compact design for space-saving panel installation

✓ USB & RS-485 Modbus-RTU communication support

Benefits For Customers

• Reduces Electricity Cost: Dynamic excitation control optimizes motor power consumption under partial load conditions.
• Improves Operational Reliability: Soft-starting eliminates abrupt mechanical starting shocks, extending belt, gear, and coupling service life.
• Saves Maintenance Cost: Early diagnostic warnings alert technical crews to electrical anomalies before critical motor failure occurs.
• Suitable for Bangladesh Environment: Conformal-coated electronics withstand high room ambient temperatures and atmospheric humidity across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside an IP54-rated, well-ventilated electrical control panel to protect from airborne dust, oil mist, and lint.
• Maintain recommended vertical and horizontal clearances around the drive chassis for unrestricted cooling airflow.
• Connect a dedicated 3-phase earth ground and use shielded control cables to avoid electromagnetic interference (EMI).

Maintenance Tips:

• Clean heat sink fins and cooling fans regularly using dry, low-pressure compressed air.
• Check electrical terminal block screw tightness at scheduled intervals to prevent loose connections caused by machine vibration.
• Monitor diagnostic alarm codes on the digital keypad display or software tools during routine plant maintenance checks.

Safety Instructions:

• Always disconnect incoming 3-phase AC power lines and wait at least 10 minutes for internal DC capacitors to discharge completely before touching terminal screws.
• Electrical installation, parameter tuning, and commissioning must be carried out by qualified electrical engineers or technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi FR-E740-2.2K 2.2kW VFD in Bangladesh?

A: Product prices vary depending on stock availability and import logistics. Please check the current price directly on loopshop.com.bd or contact our customer support team.

Q: Where can I buy original Mitsubishi FR-E740-2.2K VFD in Bangladesh?

A: You can purchase genuine Mitsubishi industrial automation products online directly from Loop Shop Bangladesh at loopshop.com.bd.

Q: What warranty does this product have?

A: It carries a standard supplier/manufacturer warranty. Detailed terms are available on the Loop Shop policy page during checkout.

Q: Is this VFD suitable for Bangladesh climate conditions?

A: Yes, the FR-E740 series features coated PCBs specifically engineered to resist humidity and high ambient factory temperatures.

Q: How to install this product?

A: Mount vertically inside a protective electrical enclosure. Connect 3-phase AC input power, motor output lines, and ground wiring following the official Mitsubishi manual.

Q: What motor horsepower is compatible with this 2.2kW VFD?

A: This 2.2kW inverter is rated to drive standard 3 HP 3-phase AC induction motors.

Q: Can this drive be used for high starting torque loads?

A: Yes, Advanced Magnetic Flux Vector Control provides up to 200% starting torque at 0.5Hz, making it suitable for heavy starting loads.

Q: Does Loop Shop supply VFDs across all districts in Bangladesh?

A: Yes, Loop Shop delivers industrial automation equipment nationwide, including Dhaka, Chittagong, Gazipur, Narayanganj, and Sylhet.

Q: Does this drive support RS-485 Modbus communication?

A: Yes, it includes built-in RS-485 Modbus-RTU and mini-USB communication ports for system integration and parameter setup.

Q: Can I get parameter configuration support from Loop Shop?

A: Yes, Loop Shop provides basic parameter guidance and technical support for industrial customers in Bangladesh.
