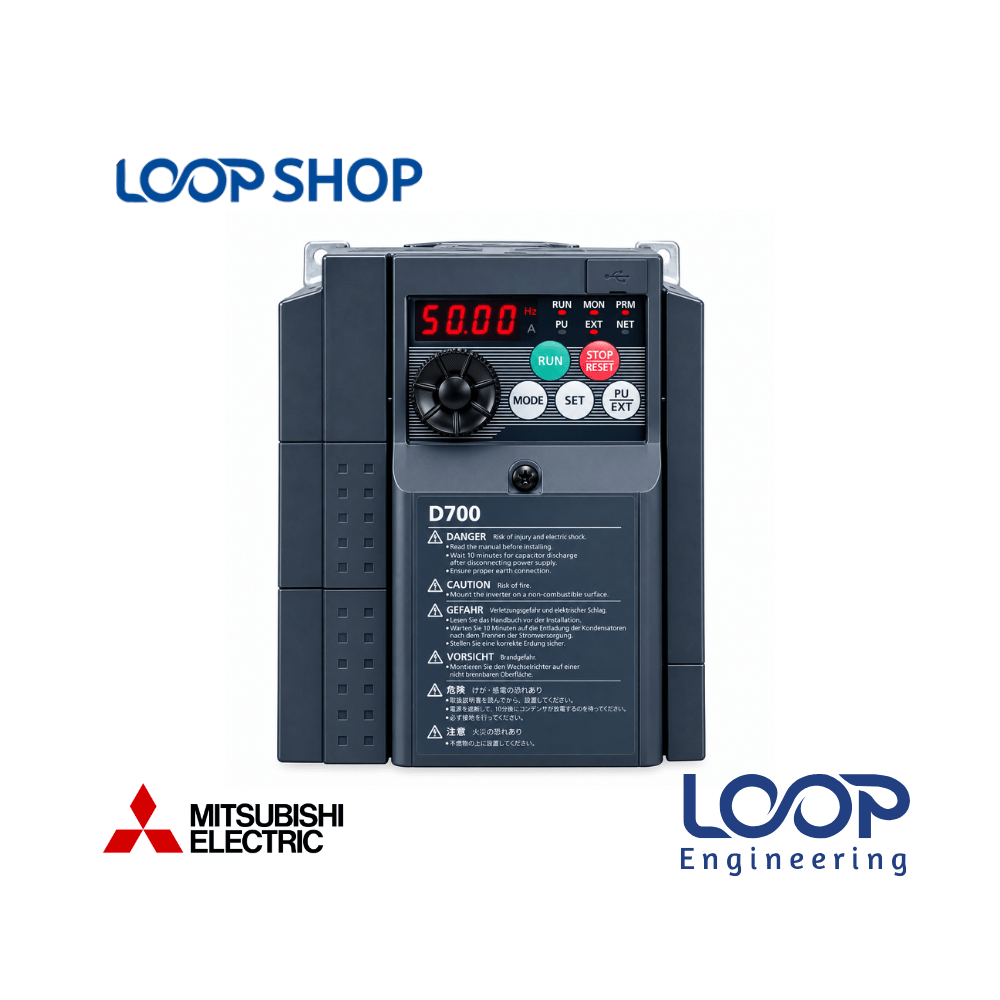

Mitsubishi FR-D740-7.5K D700 Series 7.5kW VFD Industrial Motor Drive

Description

The Mitsubishi FR-D740-7.5K is a compact and highly reliable 7.5kW (10 HP) Variable Frequency Drive (VFD) from Mitsubishi Electric’s popular FREQROL-D700 Series. It is engineered to accurately modulate the speed, acceleration, and torque of 3-phase AC induction and synchronous motors across various industrial environments.

The drive operates by rectifying incoming 3-phase AC current into DC voltage and utilizing high-frequency Pulse-Width Modulation (PWM) to generate a synthesized, variable-frequency AC output waveform. For manufacturing facilities, textile mills, commercial HVAC setups, and water supply projects in Bangladesh, the FR-D740-7.5K delivers optimized energy efficiency, precise speed regulation, and maximum equipment service life.

Key Features

• PWM Frequency Modulation: Converts AC to DC and uses voltage pulse-width modulation to recreate a precise output waveform for motor speed control.
• General-Purpose Magnetic Flux Vector Control: Delivers strong starting torque (up to 150% at 1Hz) to start heavy mechanical loads smoothly.
• Integrated Safety Stop Function: Complies with EU Machinery Directives to shut down output to the motor immediately upon emergency signal activation.
• Compact Footprint: High-density structural layout saves valuable space inside electrical control cabinets.
• Digital Dial Keypad: Feature-rich integrated control knob and LED display allow quick parameter configuration and operational monitoring.

Technical Advantages

• High Efficiency: Solid-state switching topology reduces internal power dissipation and heat build-up.
• Durable Construction: Industrial-grade physical assembly with coated circuit boards guards internal electronics against airborne dust, lint, and humidity.
• Safety Protection: Comprehensive electronic safeguards guard against overcurrent, overvoltage, short circuits, ground faults, phase loss, and thermal overload.
• Energy Saving: Dynamic excitation voltage tuning reduces power consumption during partial motor load conditions.
• Easy Maintenance: Removable terminal blocks and long-life cooling fan design streamline routine maintenance and reduce facility downtime.

Applications

• Industrial & Manufacturing: Industrial conveyors, extruders, mixers, agitators, and automatic packaging machinery.
• Factory Automation: Textile spinning/weaving equipment, paper processing machines, and plastic processing units.
• Commercial Facilities: HVAC supply and exhaust fans, cooling tower fans, and booster pump panels.
• Project Installation: Industrial control panels, motor control centers (MCC), and machinery retrofitting projects built by integrators across Bangladesh.

Why Choose This Product?

• Reliability: Engineered by Mitsubishi Electric to rigorous international standards for long-term 24/7 continuous industrial duty.
• Performance: Smooth speed control and immediate torque response prevent motor stalling during sudden load changes.
• Cost Effectiveness: Delivers precise speed modulation while significantly reducing monthly electricity usage.
• After-Sales Value: Supported in Bangladesh by Loop Shop with technical parameter guidance, verified sourcing, and reliable customer service.

Technical Specification Table

Features List

✓ Pulse-Width Modulation (PWM) frequency synthesis

✓ General-Purpose Magnetic Flux Vector Control

✓ Integrated safety stop hardware function

✓ Conformal-coated PCBs for humid industrial environments

✓ Intuitive digital dial panel for rapid setup

Benefits For Customers

• Reduces Electricity Cost: Dynamic PWM output control optimizes energy consumption during variable dynamic load cycles.
• Improves Operational Reliability: Soft-starting eliminates abrupt mechanical starting shocks, extending belt, gear, and coupling service life.
• Saves Maintenance Cost: Early diagnostic warnings alert technical crews to power anomalies before critical motor failure occurs.
• Suitable for Bangladesh Environment: Coated electronics withstand high room ambient temperatures and local atmospheric humidity across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically inside an IP54-rated, well-ventilated electrical control panel to shield against airborne dust, lint, and oil mist.
• Maintain recommended vertical and horizontal clearances around the drive housing for unrestricted cooling airflow.
• Ground the unit using a dedicated 3-phase earth ground wire and use shielded control cabling to prevent electromagnetic interference (EMI).

Maintenance Tips:

• Clean heat sink fins and cooling fans regularly using dry, low-pressure compressed air.
• Inspect electrical terminal block screw tightness at scheduled intervals to prevent loose wiring caused by machine vibration.
• Monitor diagnostic alarm codes on the digital keypad display or software tools during routine plant maintenance checks.

Safety Instructions:

• Always disconnect incoming 3-phase AC power lines and wait at least 10 minutes for internal DC capacitors to discharge completely before touching terminal screws.
• Electrical installation, parameter tuning, and commissioning must be carried out by qualified electrical engineers or technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi FR-D740-7.5K 7.5kW VFD in Bangladesh?

A: Product prices vary depending on stock availability and import logistics. Please check the current updated price directly on loopshop.com.bd or contact our customer support team.

Q: Where can I buy original Mitsubishi FR-D740-7.5K VFD in Bangladesh?

A: You can purchase genuine Mitsubishi industrial automation products online directly from Loop Shop Bangladesh at loopshop.com.bd.

Q: What warranty does this product have?

A: It carries a standard supplier/manufacturer warranty. Detailed terms are available on the Loop Shop policy page during checkout.

Q: Is this VFD suitable for Bangladesh climate conditions?

A: Yes, the FR-D740 series features coated PCBs and robust heat management designed to handle local elevated ambient temperatures and high humidity.

Q: How to install this product?

A: Mount vertically inside a protective electrical enclosure. Connect 3-phase AC input power, motor output lines, and ground wiring following the official Mitsubishi manual.

Q: What motor horsepower is compatible with this 7.5kW VFD?

A: This 7.5kW inverter is rated to drive standard 10 HP 3-phase AC induction or synchronous motors.

Q: How does this VFD control motor speed?

A: It converts incoming AC power to DC and uses pulse-width modulation (PWM) to vary the output frequency and voltage waveform sent to the motor.

Q: Does Loop Shop supply VFDs across all districts in Bangladesh?

A: Yes, Loop Shop delivers industrial automation equipment nationwide, including Dhaka, Chittagong, Gazipur, Narayanganj, and Sylhet.

Q: Does this drive include a safety stop feature?

A: Yes, it includes an integrated safety stop function complying with EU directives for fast, reliable output shutdown.

Q: Can I get parameter configuration support from Loop Shop?

A: Yes, Loop Shop provides basic parameter guidance and technical support for industrial customers in Bangladesh.
