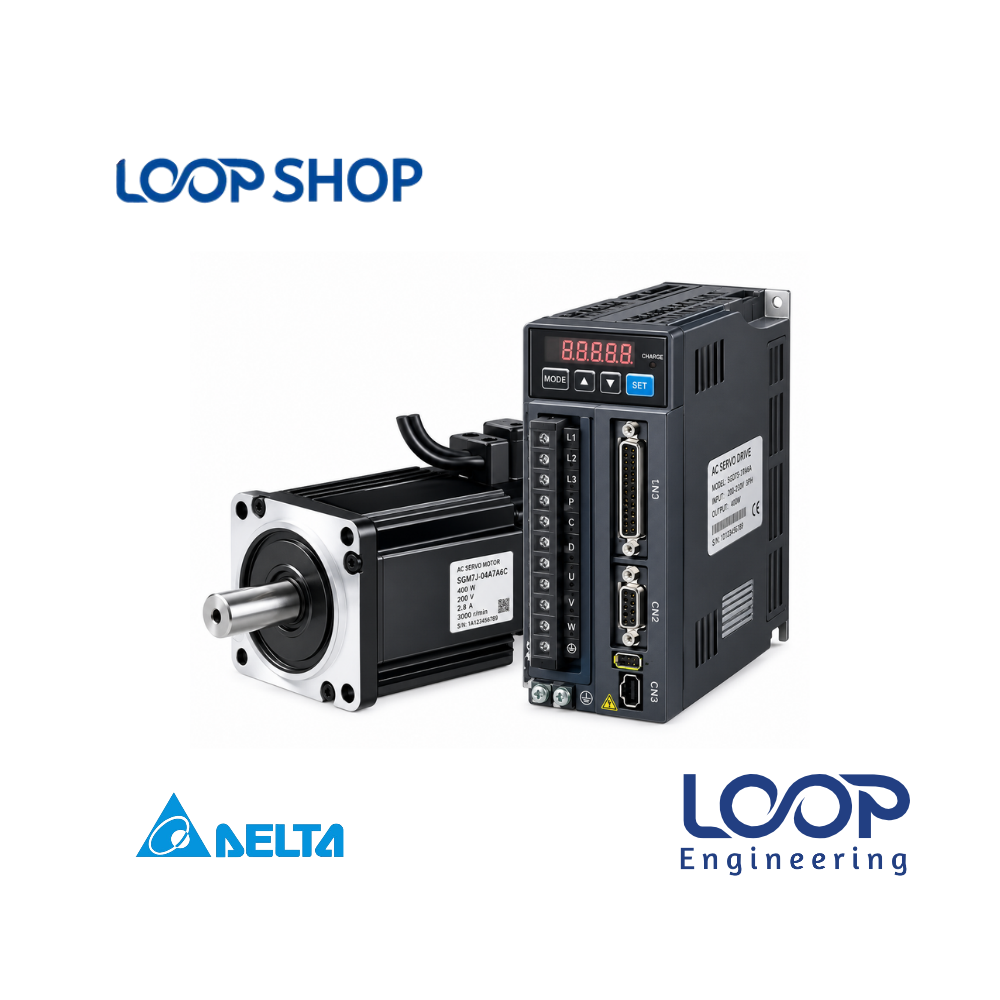

Delta B2 Series 0.75kW to 3kW AC Servo Drive Motor Set Industrial

Description

The Delta B2 Series 0.75kW to 3kW AC Servo Drive and Motor System is a versatile, high-performance motion control series engineered for demanding factory processing machinery. Spanning a output power range from 750W (0.75kW) up to 3000W (3.0kW), this ASDA-B2 series drive and ECMA motor combination converts digital controller commands into precise mechanical rotation, exact positioning, and smooth torque execution.

Designed for machine builders, panel integrators, and industrial maintenance technicians across Bangladesh, the Delta B2 series offers high closed-loop control capability with an integrated 17-bit optical encoder. Featuring built-in mechanical resonance notch filters, flexible pulse/analog input interfaces, and digital tuning capabilities, this series provides a cost-effective, high-reliability solution for CNC tools, packaging machinery, textile equipment, and automated production lines in BD.

Key Features

• Broad power selection covering 0.75kW, 1.0kW, 1.5kW, 2.0kW, and 3.0kW capacities
• Integrated 17-bit high-resolution incremental optical encoder (160,000 pulses per revolution)
• Supports 3 selectable control modes: Built-in Position (Pt), Speed, and Torque control
• High-speed differential pulse input command interface up to 4Mpps for high-precision motion
• Built-in mechanical resonance notch filters to suppress structural machine vibration
• Separated power terminals for control circuits and main power lines for safe and simplified maintenance
• RS-485 communication port supporting standard Modbus RTU protocol

Technical Advantages

• High Efficiency Engine: Closed-loop SVPWM vector control limits electrical power losses and thermal rise during continuous duty cycles.
• Durable Construction: Industrial-grade housing, heavy-duty aluminum heatsinks, and IP-rated motor casing ensure extended operational life.
• Safety Protection: Integrated protective hardware shields against main circuit overcurrent, overvoltage, undervoltage, thermal overload, and short circuit faults.
• Energy Saving Operation: Dynamic current management draws electrical power strictly relative to mechanical load resistance.
• Easy Maintenance: Commissioning and parameter configuration are simplified using ASDA-Soft PC software or front-panel digital LED controls.

Applications

• Industrial: CNC milling machines, automated lathes, cutting equipment, metal processing, and robotic automation cells.
• Factory: High-speed packaging machinery, textile spinning and weaving systems, labeling heads, and printing presses.
• Project Installation: Automated material handling systems, linear slide gantries, sorting conveyors, and custom factory automation lines.

Why Choose This Product?

• Proven Reliability: Manufactured by Delta Electronics, a global leader in power electronics and industrial motion control.
• High Performance: Speed frequency response bandwidth up to 550Hz ensures rapid settling times and reduces positioning errors.
• Cost Effectiveness: Delivers high-precision closed-loop performance at a competitive price point for factory retrofits and new builds.
• After-Sales Value: Localized availability via loopshop.com.bd with technical documentation, customer care, and prompt delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-performance AC servo drive and motor system (0.75kW–3kW)

✓ 17-bit high-resolution optical encoder feedback

✓ Supports position, speed, and torque control modes

✓ Mechanical resonance notch filters for smooth motion stability

✓ High-speed pulse input command interface up to 4Mpps

Benefits For Customers

• Reduces Electricity Cost: Vector closed-loop control limits unnecessary power consumption during dynamic acceleration and deceleration cycles.
• Improves Operational Reliability: Precise closed-loop positioning eliminates position drift and product quality defects.
• Saves Maintenance Cost: Brushless motor design and digital tuning software reduce regular mechanical maintenance expenses.
• Suitable for Bangladesh Environment: Thermally stable design and rugged casing perform dependably in warm BD factory panels.

Installation & Maintenance Guide

Installation Requirements:

• Mount the servo drive vertically inside a clean, well-ventilated enclosure to ensure natural convective airflow over heatsinks.
• Secure the motor flange firmly to a rigid mechanical mounting base to mitigate operational vibration during rapid start-stop cycles.
• Route encoder feedback wiring through separate conduits away from high-voltage main motor power cables (minimum 30 cm clearance).
• Use shielded twisted-pair cables for pulse and analog control signal connections, ensuring proper ground bonding to mitigate noise.

Maintenance Tips:

• Periodically clean drive heatsink fins and motor housing to remove ambient industrial dust buildup.
• Check terminal block screws, power line terminals, and connector plugs routinely for firm electrical contact.
• Verify panel cooling fan operation to ensure ambient enclosure temperatures remain within safe rated limits.

Safety Instructions:

• Always isolate main line AC power before touching terminal wiring, connections, or conducting maintenance.
• Wait a minimum of 10 minutes post power-off to ensure internal high-voltage storage capacitors have fully discharged before handling terminals.
• Never apply AC main line power directly to motor output terminals U, V, and W, as this will permanently destroy internal drive modules.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta B2 Series 0.75kw to 3kw AC Servo Drive Motor in Bangladesh?

A: Prices depend on the specific power rating (e.g., 0.75kW, 1.5kW, 2kW, or 3kW) and current stock status. Please check loopshop.com.bd or contact our sales team for an updated live quotation.

Q: Where can I buy Delta B2 Series Servo Drive and Motor in Bangladesh?

A: You can purchase genuine Delta B2 series servo drives and motors online directly through loopshop.com.bd with nationwide delivery in BD.

Q: What power options are available in the Delta B2 servo series?

A: The B2 series covers power capacity ratings ranging from 0.75kW (750W) up to 3.0kW (3000W) operating on 220V AC input.

Q: What warranty does this product have?

A: The product includes a standard manufacturer warranty covering defects in materials and craftsmanship. Check loopshop.com.bd for specific warranty terms.

Q: Is this servo set suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial thermal design allow it to perform reliably in factory panel environments across BD.

Q: What encoder resolution does the Delta B2 series servo motor feature?

A: It incorporates a 17-bit incremental optical encoder delivering 160,000 pulses per revolution.

Q: What control modes are supported on the Delta ASDA-B2 drive?

A: It supports Built-in Position (Pt), Speed, and Torque control modes.

Q: Does the Delta B2 drive support communication protocols?

A: Yes, it includes RS-485 Modbus serial communication for parameter tuning and monitoring via PLC or HMI.

Q: How to install this product?

A: Mount the drive vertically, bolt the motor flange to your assembly, connect 220V AC input power, ground terminals, motor power phases (U, V, W), and encoder feedback connectors. Parameters can be configured via ASDA-Soft software.

Q: Is post-purchase technical support available in BD?

A: Yes, loopshop.com.bd provides sales verification, datasheets, and technical guidance for industrial automation hardware bought from our platform.
