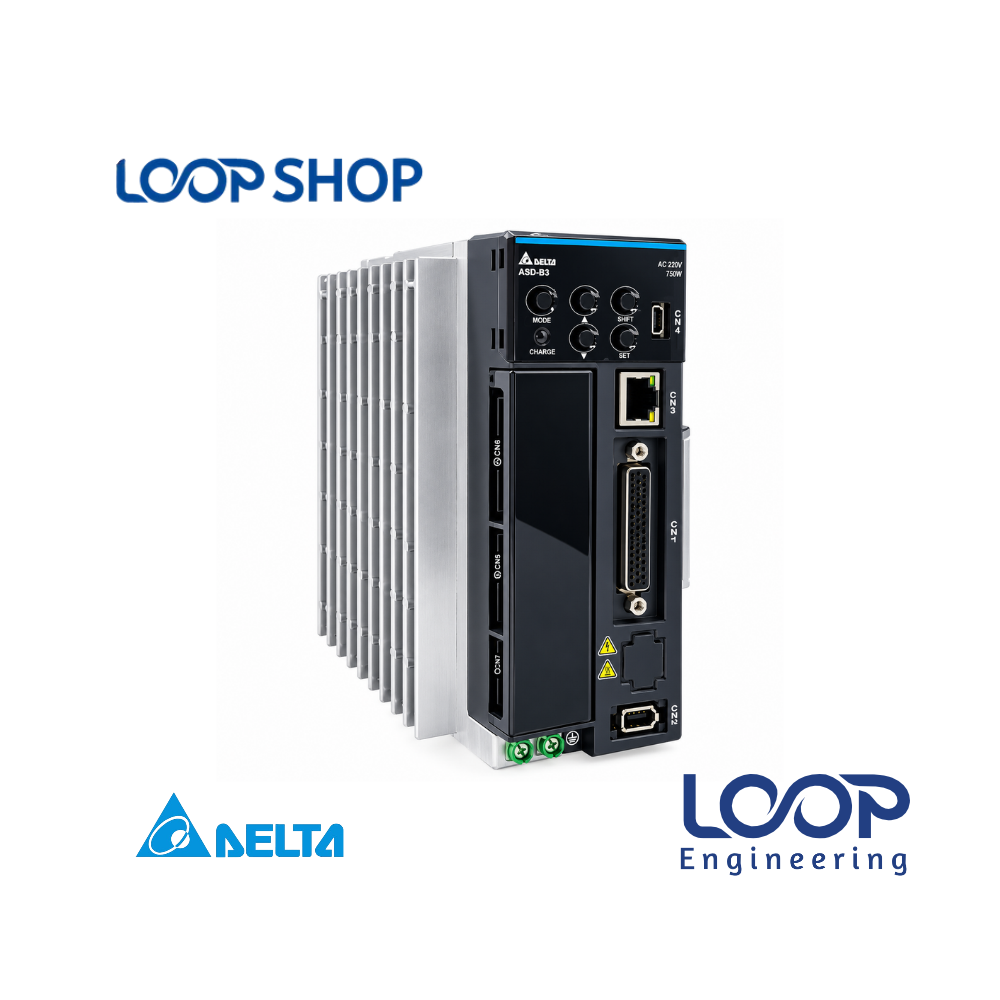

Delta ASD-B3-0721-L 750W B3 AC Servo Drive High Precision Industrial

Description

The Delta 750W B3 Series AC Servo Drive (ASD-B3-0721-L) represents Delta’s flagship next-generation motion control technology. Delivering a dramatic leap over previous generations, this 0.75kW drive increases response bandwidth from 0.5 kHz to 3.1 kHz, drastically shortening machine settling times and maximizing throughput in demanding automated production environments.

Engineered for machine builders, panel integrators, and plant engineers across Bangladesh, the ASD-B3-0721-L handles complex motion tasks with exceptional accuracy. Incorporating a 24-bit encoder interface, 99 programmable internal PR motion paths, RS-485 Modbus communication, and advanced auto-tuning vibration suppression, this driver ensures smooth speed and torque performance for automated lines operating under continuous factory workloads.

Key Features

• High-power 750W (0.75kW) output capacity with 5.10 Arms continuous output current
• 3.1 kHz high response bandwidth for lightning-fast dynamic acceleration and positioning loops
• Supports 24-bit optical/absolute feedback encoders for smooth rotation at low speeds
• Standard ‘L’ variant featuring Pulse Train input, Analog Voltage control, and RS-485 Modbus connectivity
• Built-in PR Mode with up to 99 motion command paths for flexible positioning sequences
• 5 sets of high-frequency resonance suppression notch filters up to 5,000 Hz for vibration reduction
• Compact drive enclosure frame size saving up to 20% panel space compared to previous models

Technical Advantages

• High Efficiency Motion Processing: Ultra-fast calculation cycle and 3.1 kHz response bandwidth optimize machine yield and reduce unit cycle times.
• Durable Construction: Heavy-duty aluminum thermal heatsink and IP20-rated enclosure housing maintain operational stability.
• Safety & Circuit Protection: Built-in multi-stage protection guards internal circuits against overcurrent, overvoltage, overheat, and short circuits.
• Energy Saving Operation: Supports DC bus power sharing and optimized PWM control algorithms to minimize energy consumption.
• Easy Maintenance & Commissioning: Features a front Mini USB programming port, one-parameter stiffness auto-tuning, and software system diagnostics via ASDA-Soft.

Applications

• Industrial: CNC auxiliary axes, SMT pick-and-place equipment, automated assembly cells, and robotic gantries.
• Factory: High-speed packaging and labeling machinery, printing presses, converting machinery, and textile equipment.
• Project Installation: Automated sorting lines, conveyer systems, and custom industrial automation projects.

Why Choose This Product?

• Proven Next-Gen Technology: Built by Delta Electronics, offering superior speed, precision, and reliability over legacy B2 series drives.
• Unmatched Speed & Precision: 24-bit encoder resolution combined with 3.1 kHz bandwidth eliminates position lag and mechanical chatter.
• Cost Effectiveness: Compact footprint and integrated 99-path PR mode save control panel space and reduce external PLC module requirements.
• After-Sales Value: Available through loopshop.com.bd with localized technical support, documentation, and prompt delivery across Bangladesh.

Technical Specification Table

Features List

✓ Next-generation 750W 220V AC industrial servo drive

✓ High response bandwidth (3.1 kHz) for faster speed loop calculations

✓ 24-bit encoder feedback support for micro-positioning precision

✓ Built-in PR mode with 99 programmable position paths

✓ RS-485 Modbus communication and Mini USB configuration port

Benefits For Customers

• Reduces Electricity Cost: High-efficiency drive execution and DC bus power sharing lower overall panel power usage.
• Improves Operational Reliability: Advanced 5-set notch filters suppress mechanical resonance and vibration.
• Saves Maintenance Cost: One-parameter stiffness auto-tuning and reduced mechanical chatter prolong equipment service life.
• Suitable for Bangladesh Environment: Thermal cabinet enclosure design ensures consistent performance in warm BD factory panels.

Installation & Maintenance Guide

Installation Requirements:

• Mount the drive vertically on a flat panel inside a clean, well-ventilated enclosure to ensure natural convective airflow.
• Maintain standard clearance gaps above, below, and on both sides of the drive unit for adequate air circulation.
• Connect power lines using recommended input fuses and ground terminals firmly to mitigate electrical noise.
• Use shielded twisted-pair wiring for pulse command, analog voltage, and encoder communication terminals.

Maintenance Tips:

• Periodically clean heat sink cooling channels to prevent dust accumulation from impairing thermal dissipation.
• Regularly inspect terminal screws and quick-connect plugs (CN1, CN2, power) for firm contact.
• Monitor panel fan operation to ensure ambient temperature remains within recommended operating limits.

Safety Instructions:

• Always disconnect main power input before handling terminal wiring, connections, or internal fuses.
• Wait at least 10 minutes post power-off to ensure high-voltage internal capacitors have completely discharged.
• Never apply AC power directly to motor output terminals U, V, and W, as this will permanently damage internal IGBTs.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta 750W B3 Servo Drive ASD-B3-0721-L in Bangladesh?

A: Pricing depends on import tariffs and live stock availability. Please check the current price on loopshop.com.bd or contact our customer support team for an instant quote.

Q: Where can I buy Delta 750W Servo Drive ASD-B3-0721-L in Bangladesh?

A: You can order original Delta ASD-B3-0721-L servo drives online directly through loopshop.com.bd with reliable nationwide delivery in BD.

Q: What is the main difference between Delta B2 and B3 series servo drives?

A: The B3 series features an upgraded 3.1 kHz bandwidth (vs 0.5 kHz on B2), 24-bit encoder feedback (vs 17-bit), 99 internal PR paths, and a 20% smaller panel footprint.

Q: What supply voltage does the ASD-B3-0721-L require?

A: It operates on Single-Phase or 3-Phase 200V to 230V AC main line supply.

Q: What motors pair with the ASD-B3-0721-L servo drive?

A: It is designed to drive matching Delta 750W ECM-B3 series servo motors (such as model ECM-B3M-C20807).

Q: What warranty does this product have?

A: It includes a standard manufacturer warranty covering defects in materials and workmanship. Check loopshop.com.bd for specific warranty terms.

Q: Is this drive suitable for the Bangladesh industrial climate?

A: Yes, its advanced heat sink design and thermal protection circuits make it well suited for hot industrial panels in BD.

Q: What does the “L” suffix in ASD-B3-0721-L mean?

A: The “L” variant indicates the standard model supporting Pulse Train input, Analog command, and RS-485 Modbus communication.

Q: Can this drive perform positioning without an external motion controller?

A: Yes, the integrated PR mode supports up to 99 programmable path commands for independent positioning tasks.

Q: Is technical guidance available after purchasing from loopshop.com.bd?

A: Yes, loopshop.com.bd provides customer service, datasheets, and basic technical support for industrial products bought through our platform.
