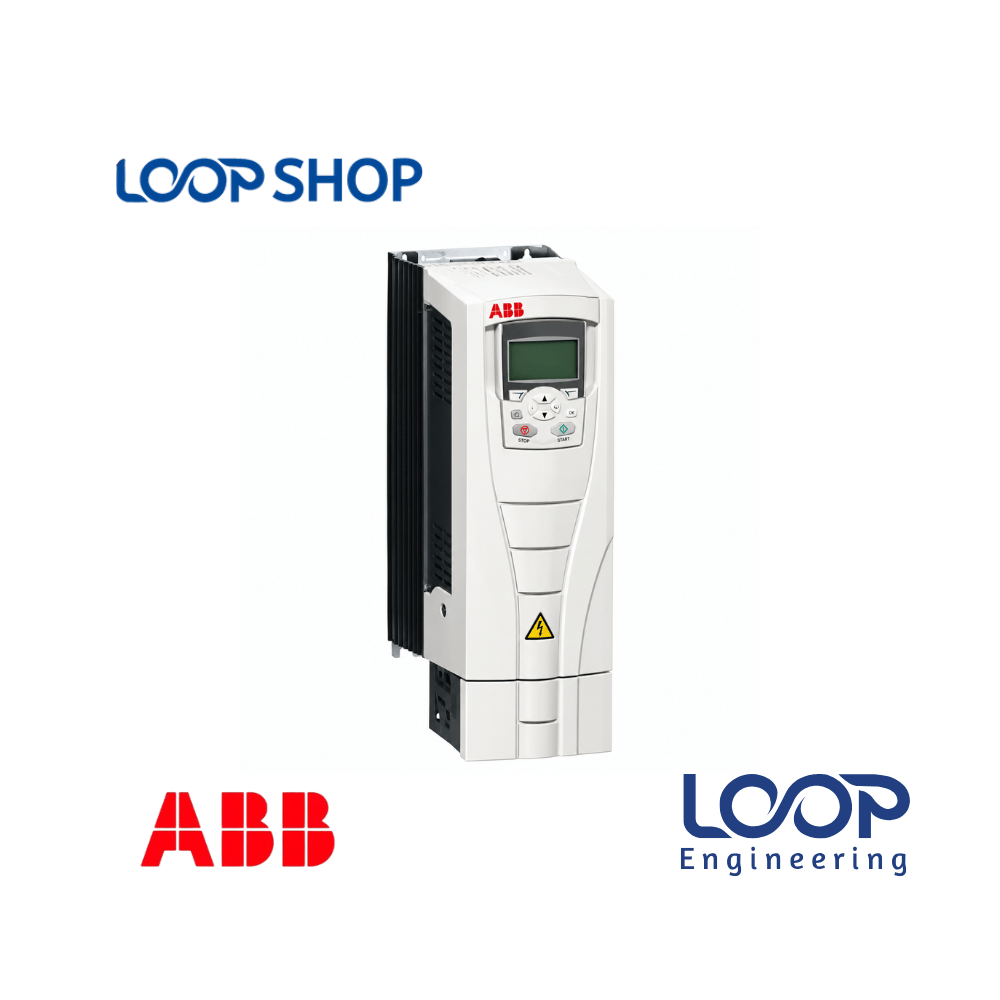

ABB ACS580 15kW VFD Inverter ACS580-01-032A-4+J404 380V-480V Industrial Drive

Description

The ABB ACS580-01-032A-4+J404 is an all-compatible, wall-mounted general-purpose variable frequency drive (VFD) engineered to simplify process control, improve energy efficiency, and protect industrial electric motors. Operating at a 15kW heavy-duty / 20HP light-overload capacity, this drive converts fixed-frequency utility power into variable frequency output, precise control over AC induction and permanent magnet motors.

Designed for engineers, automation integrators, and facility managers across Bangladesh, the ACS580 drive simplifies operations with built-in features including a choke for harmonic control, standard Modbus RTU interface, and high-level safety function (STO SIL3). It eliminates complex external component installation, ensuring rapid commissioning and smooth operation in diverse applications.

Key Features

• Integrated Safety & Protection: Certified Safe Torque Off (STO) function meeting SIL3/PLe standards according to IEC 61511, IEC 62061, and ISO 13849-1.
• Built-In Harmonics Mitigation: Features integrated choke technology to significantly reduce line harmonics and comply with strict electrical quality demands.
• Comprehensive Standard Hardware: Equipped with built-in EMC filter, brake chopper, and user-friendly auxiliary control panel out of the box (+J404 option).
• Flexible Communication Protocols: Embedded Modbus RTU protocol for effortless fieldbus networking and central SCADA or PLC monitoring.
• Rugged Enclosure: IP21 / UL Type 1 protection rating in a compact R3 frame size suitable for wall mounting.

Technical Advantages

• Energy Savings: Optimizes motor speed according to real-time load requirements, minimizing overall plant electricity usage.
• Reduced Mechanical Wear: Soft-start and soft-stop capabilities eliminate current spikes and reduce mechanical stress on couplings, belts, and gearboxes.
• Safety Protection: Advanced thermal protection, overcurrent limits, over/under-voltage safeguards, and STO prevent catastrophic equipment failures.
• Durable & Compact Construction: Built using high-grade industrial components designed to sustain elevated ambient operating temperatures and dusty factory environments.
• Easy Maintenance & Parameter Setup: Intelligent assistant control panel enables simple backup, restore, and quick parameter setup.

Applications

• Industrial Factories: Textile mills, garment processing plants, pharmaceutical production lines, plastic injection molding, and packaging units.
• Commercial Buildings: HVAC supply/return fans, cooling towers, continuous chillers, and large water booster systems.
• Pumping Systems: Municipal water supply, effluent treatment plants (ETP), sewage treatment plants (STP), and agricultural irrigation pumps.
• Material Handling & Processing: Conveyor belts, mixers, agitators, extruders, and general machinery drive controls.

Why Choose This Product?

• Unmatched Swiss-Swedish Reliability: ABB is global leader in drive technology, renowned for zero-compromise manufacturing quality and operational longevity.
• Maximum Cost-Effectiveness: Integrates internal chokes, filters, and safety features into a single drive body, reducing external panel wiring and panel space requirements.
• Superior After-Sales Value: Widely supported technology with globally standard parameter structures, making maintenance straightforward and spare parts easily accessible in Bangladesh.

Technical Specification Table

Features List

✓ Built-in choke technology for harmonic reduction

✓ Safe Torque Off (STO) certified to SIL3 / PLe

✓ Integrated EMC filter and brake chopper

✓ Native Modbus RTU communication interface

✓ Clear display with auxiliary control panel

✓ IP21 / UL Type 1 wall-mountable enclosure

Benefits For Customers

• Reduces Electricity Costs: Adjusts motor speed to demand, drastically cutting power bills in variable-load pump and fan operations.
• Improves Operational Reliability: Prevents electrical overloads and mitigates sudden voltage spikes common in regional power grids.
• Saves Maintenance Cost: Reduces shock loads during startup, extending motor bearing, coupling, and machinery service lifespans.
• Suitable for Bangladesh Environment: Designed for rugged industrial utility settings, withstands voltage variations and industrial dust.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-combustible surface (wall or backplate inside an enclosure) with sufficient airflow clearance around Frame R3.
• Ensure reliable 3-phase earth/grounding connection according to national electrical standards.
• Connect input AC supply cables (380V-480V) and motor output cables following correct phase sequences; keep power cables strictly separated from control wiring.

Maintenance Tips:

• Routinely inspect cooling heatsink fins and internal fans for dust or lint build-up; blow clean with dry compressed air periodically.
• Inspect wiring terminal connections annually to ensure screws remain tightened under vibration-prone environments.
• Monitor control display history logs for warning signals or ambient over-temperature alerts.

Safety Instructions:

• Warning: High voltage remains present in internal DC bus capacitors even after disconnecting power. Wait at least 5 minutes after switching off mains power before touching internal terminals.
• Only trained electrical personnel should perform installation, commissioning, and wiring adjustments.

Frequently Asked Questions (FAQ)

Q: What is the price of ABB ACS580 15kW VFD ACS580-01-032A-4+J404 in Bangladesh?

A: The price of the ABB ACS580 15kW VFD in Bangladesh varies according to current import tariffs, stock availability, and exchange rates. Please contact LOOP Shop (loopshop.com.bd) directly for the official live quotation.

Q: Where can I buy original ABB ACS580 VFD drives in Bangladesh?

A: You can purchase genuine ABB ACS580 series VFDs directly online from LOOP Shop (loopshop.com.bd) with authentic product assurances and fast island-wide shipping across Bangladesh.

Q: What warranty does this ABB ACS580-01-032A-4 VFD have?

A: This product carries standard manufacturer/distributor warranty against manufacturing defects in Bangladesh. Check product documentation or contact LOOP Shop customer support for exact warranty duration.

Q: Is this VFD suitable for the electricity grid and climate in Bangladesh?

A: Yes, the wide 380V-480V input voltage range withstands standard utility grid variations, and its robust IP21 industrial construction operates reliably under industrial environment conditions across Bangladesh.

Q: How do I install and configure the ABB ACS580-01-032A-4 VFD drive?

A: The unit comes with wall-mounting brackets and an auxiliary control panel (+J404) with parameter menus. Installation should be performed by qualified engineers according to the included user manual.

Q: Does this drive include a built-in brake chopper and EMC filter?

A: Yes, the ACS580-01-032A-4+J404 comes fully equipped with an integrated brake chopper, built-in EMC filter, and line choke out of the box.

Q: Can this drive communicate with standard industrial PLCs?

A: Absolutely. It features native Modbus RTU fieldbus communication capability, allowing effortless connection to Siemens, Delta, Mitsubishi, or Schneider PLCs.

Q: What safety standards does the Safe Torque Off (STO) function meet?

A: The integrated STO safety feature is certified up to SIL3 according to IEC 61511 / IEC 62061 and PLe according to ISO 13849-1 standards.

Q: Can I use this 15kW drive for heavy motor loads?

A: Yes, it is rated at 15kW nominal power for heavy-duty industrial application loads and up to 20HP for light-overload applications.

Q: How does this drive help lower utility electricity bills for factories in Bangladesh?

A: By lowering motor operating frequency/RPM during partial load demand, energy consumption decreases exponentially compared to direct-on-line (DOL) motor starters.
