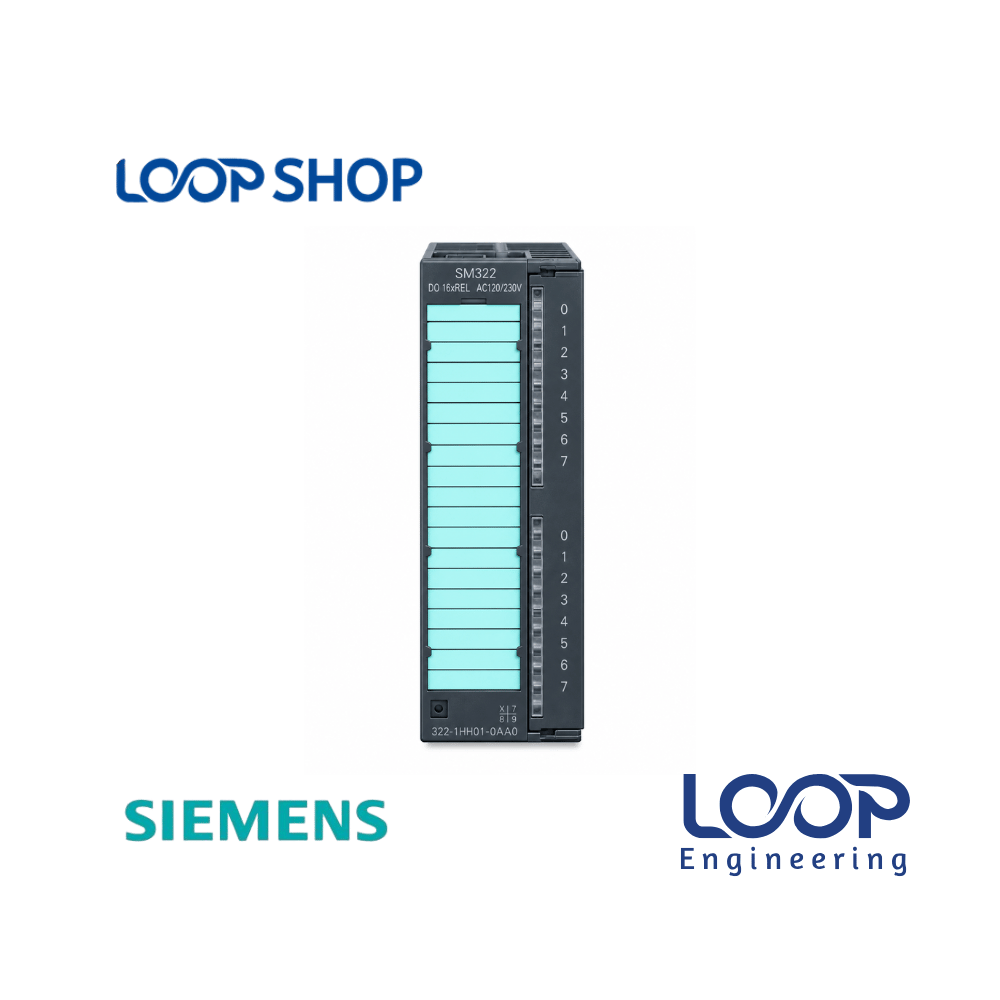

Siemens SM 322 Digital Output Relay Module 6ES7322-1HH01-0AA0 Control

Description

The Siemens SIMATIC S7-300 SM 322 Relay Output Module (Part Number: 6ES7322-1HH01-0AA0) is a digital output expansion module designed to drive field actuators directly from an S7-300 PLC rack. Operating as an interface between internal controller logic and external electrical equipment, it converts lower-level PLC control signals into robust relay contact closures.

Equipped with 16 isolated relay output channels, this module handles both AC and DC switching duties up to 230V AC or 120V DC. For electrical panel builders, factory engineers, and maintenance teams in Bangladesh, it offers a space-saving and cost-effective method to drive solenoid valves, motor starters, alarm horns, and power contactors without requiring intermediate external relay blocks.

Key Features

• 16 Digital Relay Outputs: Provides 16 independent relay channels grouped for flexible load isolation across multi-voltage control systems.
• Versatile Switching Capability: Handles AC loads up to 230V AC and DC loads up to 120V DC, making it ideal for mixed voltage control panels.
• High Load Capacity: Delivers higher current switching performance compared to standard transistor output modules.
• Galvanic Isolation: Features internal optical and physical isolation between the S7-300 backplane bus and high-voltage field wiring.
• Front Diagnostic LED Indicators: Channel status LEDs provide instant visual confirmation of active output signals for quick maintenance verification.

Technical Advantages

• High Efficiency: Directly drives high-power field actuators, eliminating additional intermediate relays and cutting panel wiring time.
• Durable Construction: Rugged IP20 housing engineered to withstand harsh factory vibration, electrical noise, and industrial thermal fluctuations.
• Safety & Electrical Protection: Potential-free contact isolation guards CPU backplane electronics against field voltage spikes and short-circuit faults.
• Energy Saving: Efficient coil actuation limits internal power loss (typ. 3.2 W), reducing total heat dissipation inside sealed cabinets.
• Easy Maintenance: Supports a removable 20-pin front connector block, enabling swift module replacement without disconnecting individual terminal wires.

Applications

• Industrial: Automated material handling, conveyor drives, heavy hydraulic systems, and industrial mixer controls.
• Factory: Textile dyeing and spinning machinery, garment washing plants, packaging lines, and plastic processing machinery.
• Commercial: HVAC air handling units, central boiler controls, water treatment plant valves, and pump panels.
• Project Installation: Control panel fabrication, expansion of existing S7-300 racks, and machinery retrofits in Bangladesh.

Why Choose This Product?

• Direct Load Switching: Eliminates extra interposing relay panels, reducing total panel build footprint and material cost.
• Proven Reliability: Field-tested across thousands of industrial facilities worldwide and throughout Bangladesh for continuous 24/7 operations.
• Cost Effectiveness: High channel density (16 DO) maximizes the value per module slot on the S7-300 mounting rail.
• After-Sales Support in BD: Broad availability of local engineering expertise ensures fast integration, troubleshooting, and replacement in Bangladesh.

Technical Specification Table

Features List

✓ 16 digital relay output channels for AC/DC switching

✓ Galvanic isolation between backplane bus and field contacts

✓ Supports up to 230V AC and 120V DC load voltages

✓ Direct actuation of solenoids, contactors, and motor starters

✓ Compact 40 mm width for space-saving DIN rail installation

✓ LED channel indicators for quick field diagnostics

Benefits For Customers

• Reduces Panel Component Count: Direct relay switching eliminates the need for separate relay boards and external bases.
• Improves Operational Reliability: Galvanic isolation shields sensitive PLC hardware from high-voltage field spikes.
• Saves Maintenance Cost: Removable front connector block enables quick swaps during emergency panel servicing.
• Suitable for Bangladesh Environment: Performs reliably up to 60 °C inside ventilated industrial control cabinets.

Installation & Maintenance Guide

Installation Requirements:

1. De-energize all main control panel power sources prior to inserting or removing expansion modules.
2. Snap the SM 322 relay module onto the S7-300 rail and slide the backplane bus connector into position.
3. Wire field output loads using a standard 20-pin front connector block.
4. Ensure appropriate external fuses are installed on power feed lines to protect relay contacts against short-circuit overloads.

Maintenance Tips:

1. Regularly inspect terminal block screws for tightness, especially in high-vibration factory environments.
2. Keep control cabinet filter pads clean to maintain adequate ventilation across module slots.
3. Monitor channel LED indicators during testing to identify failing load circuits or stuck contact states.

Safety Instructions:

1. Wiring must be carried out by qualified industrial electricians or automation technicians.
2. Observe proper terminal grouping and voltage insulation limits when mixing AC and DC control voltages on adjacent groups.
3. Never remove the module front connector while high-voltage AC loads are actively energized.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SM 322 Relay Output Module 6ES7322-1HH01-0AA0 in Bangladesh?

A: Prices vary according to import rates, stock availability, and market conditions. Please visit loopshop.com.bd or contact our sales hotline for an instant quote in BDT.

Q: Where can I buy Siemens SM 322 Relay Output Module 6ES7322-1HH01-0AA0 in Bangladesh?

A: You can order online directly from loopshop.com.bd with express delivery options to Dhaka, Chattogram, Gazipur, Narayanganj, and industrial zones nationwide.

Q: What warranty does this product have?

A: loopshop.com.bd offers standard seller warranty against manufacturing and technical defects. Specific details are provided at checkout.

Q: Is this suitable for Bangladesh climate?

A: Yes, the module supports operating temperatures up to 60 °C inside ventilated enclosures, making it well-suited for industrial plants in Bangladesh.

Q: How to install this product?

A: Attach the bus connector, mount the module on the S7-300 rail, secure the 20-pin front connector block, connect field output loads, and apply panel power.

Q: Can this module switch both AC and DC voltages?

A: Yes, the relay contacts can switch both AC voltages up to 230V AC and DC voltages up to 120V DC.

Q: Does this module require an external power supply for relay coils?

A: The relay coils derive their operational power from the internal S7-300 backplane bus or internal supply pin depending on module configuration.

Q: What front connector is required for 6ES7322-1HH01-0AA0?

A: This module requires a standard Siemens S7-300 20-pin front connector for wiring field devices.

Q: What is the benefit of relay outputs over transistor outputs?

A: Relay outputs provide potential-free contact isolation and can switch higher current and higher voltage AC/DC loads directly without interposing relays.

Q: Does loopshop.com.bd stock original Siemens PLC modules in Bangladesh?

A: Yes, loopshop.com.bd supplies genuine Siemens industrial automation parts sourced directly from verified distribution networks.
