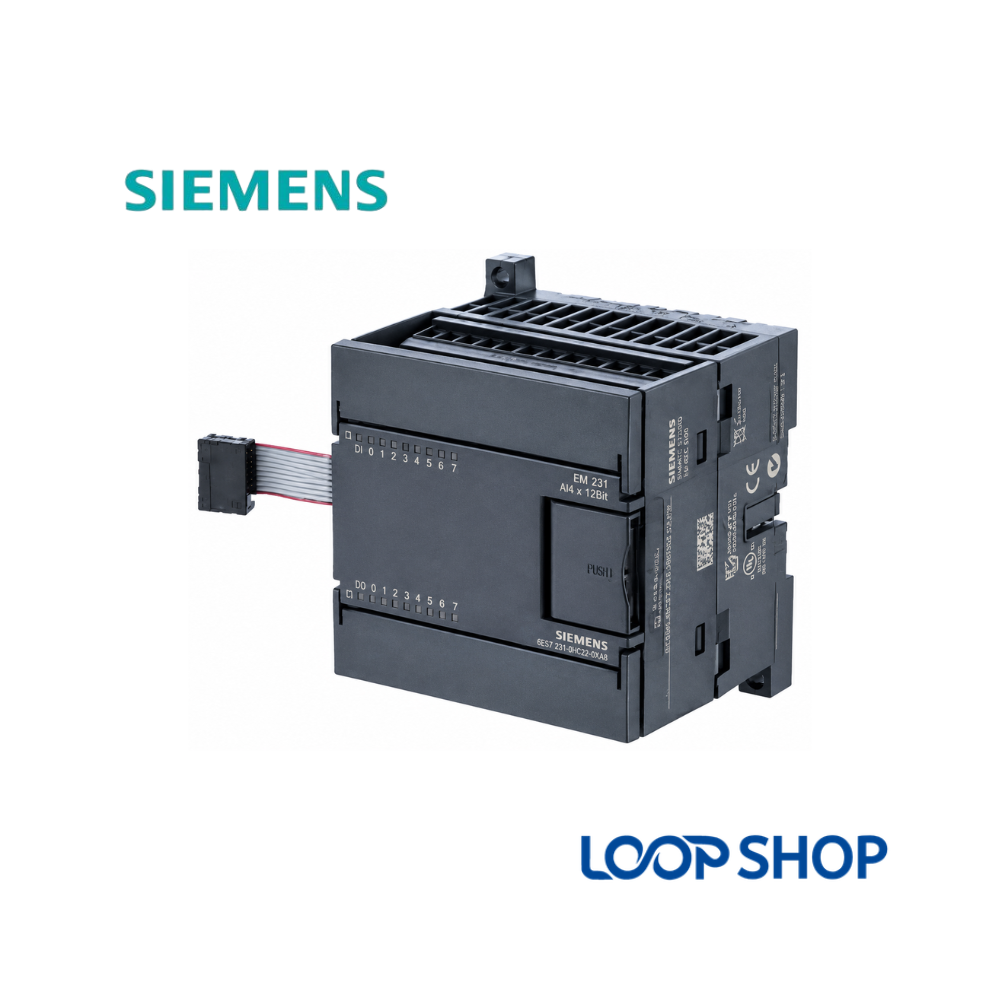

Siemens SIMATIC S7-200 Analog Expansion Modules EM231 / EM232 / EM235

Description

The Siemens SIMATIC S7-200 EM231, EM232, and EM235 series analog expansion modules extend the functional reach of SIMATIC S7-200 PLCs by integrating standard analog signals into the control logic. The EM231 provides multi-channel analog inputs, the EM232 delivers analog outputs (such as 232-0HB32 with 2 outputs at 12-bit resolution), and the EM235 combines both analog inputs and outputs onto a single expansion block. These modules convert real-world analog voltage and current signals into precise digital data for central controller processing.

Main Features

• High-Resolution Signal Conversion: High 12-bit resolution provides accurate measurement and fine output control for process variables.
• Flexible Signal Support: Selectable input/output ranges accommodating standard voltage (0–10V, ±5V) and current (0–20mA, 4–20mA) signals.
• Compact Expansion Architecture: Connects directly to S7-200 CPUs via standard ribbon cables, saving enclosure space.
• Optocoupler Isolation: Galvanic isolation between field signals and internal PLC backplane bus prevents signal corruption and electrical noise interference.

Benefits

• Tailored System Scaling: Allows engineers to add exact analog channel counts without replacing the primary CPU controller.
• High Measurement Accuracy: Ensures precise tracking of critical process parameters like temperature, pressure, flow, and speed.
• Simple Integration: Seamlessly configured and programmed using Siemens STEP 7-Micro/WIN software.
• Robust Industrial Reliability: Engineeered to perform reliably in demanding power and manufacturing environments.

Applications

Widely deployed in automated manufacturing, process control loops, HVAC control systems, pumping stations, variable speed drive interfacing, and industrial instrumentation setups.

Key Features

• Compatible with Siemens SIMATIC S7-200 CPU controllers.
• Available configurations: EM231 (Analog Input), EM232 (Analog Output), and EM235 (Mixed Analog I/O).
• 12-bit analog-to-digital (A/D) and digital-to-analog (D/A) conversion resolution.
• Supports standard voltage (0–10V, ±10V) and current (0–20mA, 4–20mA) ranges.
• Compact form factor with direct bus ribbon connection.
• Integrated status LEDs for operational diagnostic monitoring.
• Removable terminal blocks for straightforward field wiring and maintenance.
• Standard 35 mm DIN-rail or panel mounting design.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between EM231, EM232, and EM235 modules?

A: The EM231 provides analog inputs only, the EM232 offers analog outputs only (e.g., AQ2x12bit), and the EM235 is a combination module featuring both analog inputs and outputs on a single device.

Q2: Which PLC series are these expansion modules compatible with?

A: They are designed specifically for use with the Siemens SIMATIC S7-200 PLC family.

Q3: What resolution do these analog modules offer?

A: The modules feature 12-bit conversion resolution for precise analog signal processing.

Q4: Can these modules handle both voltage and current analog signals?

A: Yes, they support standard industrial ranges including 0–10V voltage signals and 4–20mA / 0–20mA current signals.

Q5: How are the modules connected to the main CPU?

A: They connect directly to the side of the S7-200 CPU or adjacent expansion module using the integrated expansion bus ribbon cable.

Q6: Is an external power supply required for operation?

A: Yes, these modules typically require an external 24 VDC power supply connection for sensor excitation and internal analog circuitry.
