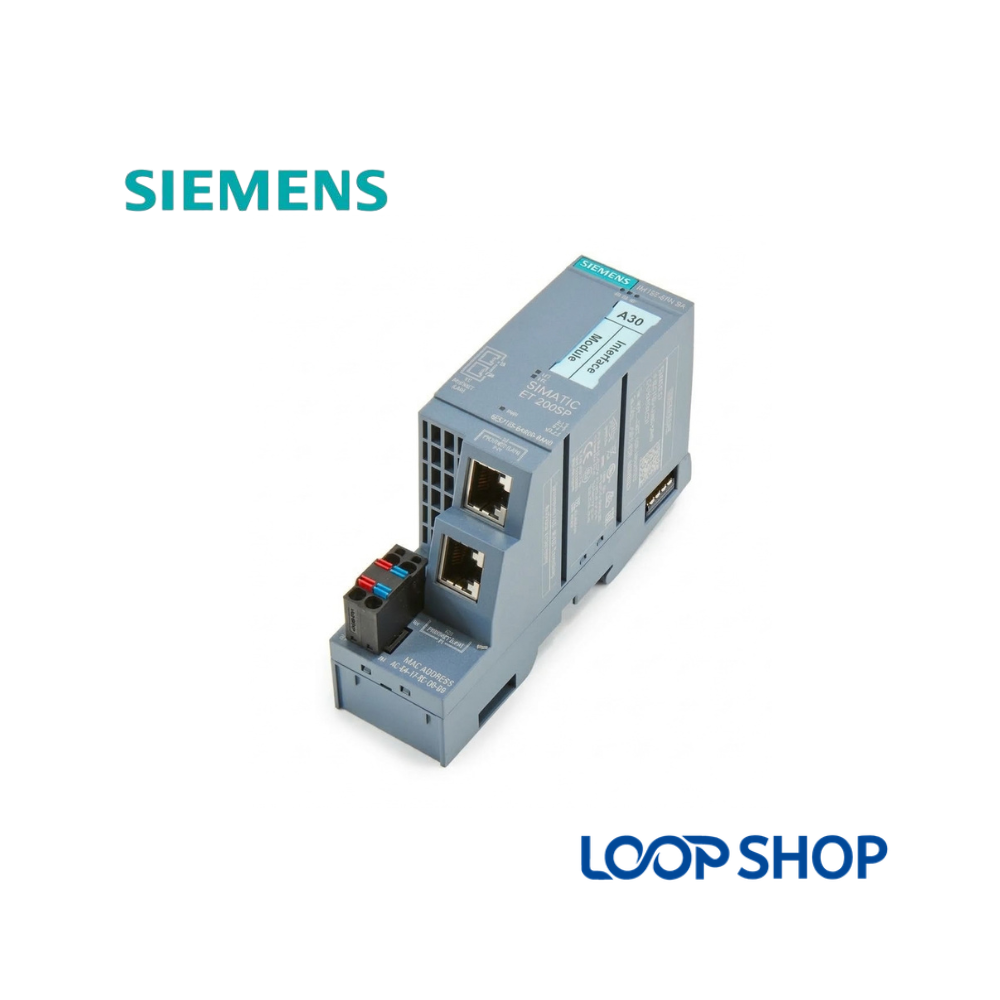

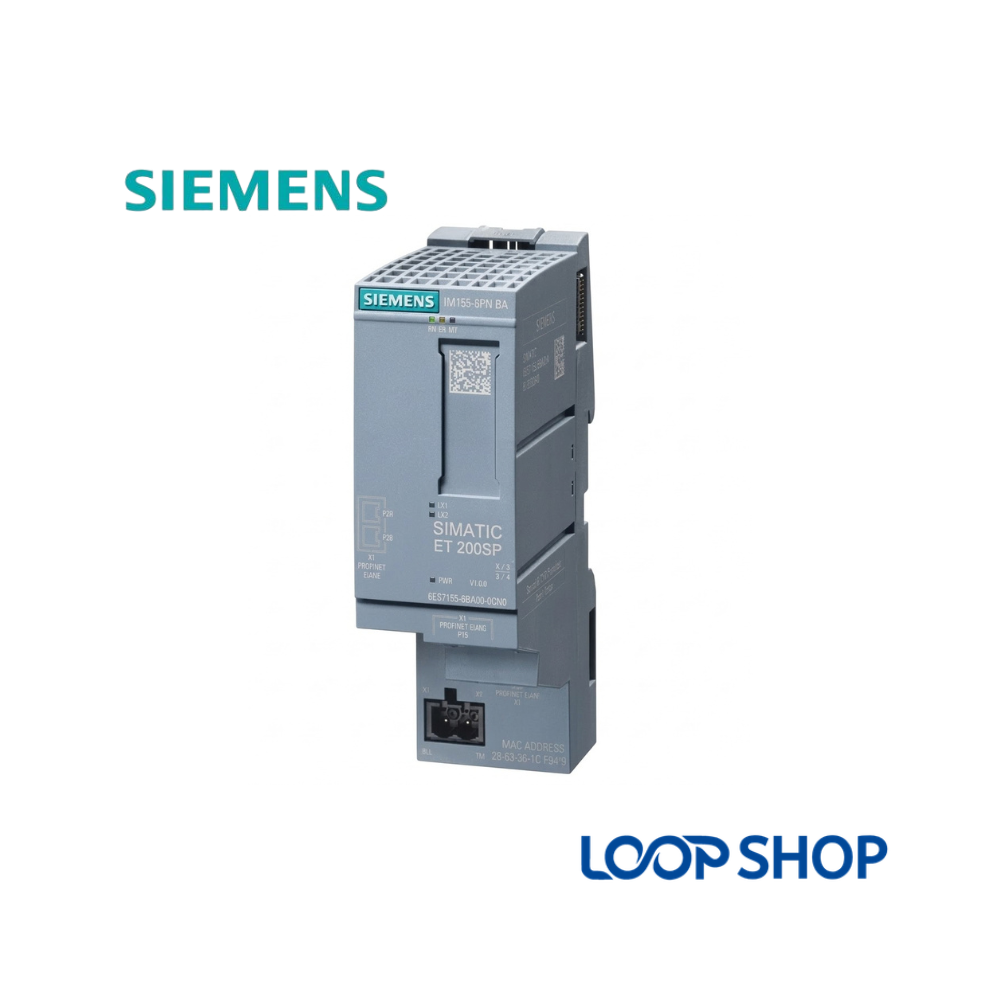

The Siemens SIMATIC ET 200SP IM 155-6PN Basic (6ES7155-6AR00-0AN0) is a compact PROFINET interface module designed to connect up to 12 I/O peripheral modules to a PROFINET controller. It features two integrated RJ45 sockets with an embedded 2-port switch for easy line-topology network wiring. Manufactured in Germany, this module ensures reliable real-time communication for distributed I/O systems in industrial environments.
The Siemens 6ES7155-6AR00-0AN0 IM 155-6PN Basic interface module connects SIMATIC ET 200SP distributed I/O systems to PROFINET network controllers. It functions as a communication gateway, collecting field signals from peripheral I/O modules and transmitting them efficiently to a central PLC or control system.
Main Features
The IM 155-6PN Basic module handles up to 12 I/O modules along with a required server module (6ES7193-6PA00-0AA0) to complete the internal backplane bus. It includes an integrated 2-port switch with dual RJ45 ports, supporting 100 Mbps full-duplex communication and PROFINET real-time (RT) data exchange.
Benefits
Its compact footprint saves panel space while supporting flexible decentralized control layouts. Dual RJ45 connections eliminate the need for external network switches when daisy-chaining field devices. The push-in terminal system and modular backplane architecture simplify installation, maintenance, and system expansion.
Applications
This interface module is used across modern manufacturing and processing plants to connect remote sensors, actuators, and I/O modules to central PLCs (such as S7-1200, S7-1500, or S7-300). It is suited for factory automation, packaging machinery, conveyor systems, and water treatment operations.
| Specification | Details |
| Brand | Siemens |
| Model | 6ES7155-6AR00-0AN0 |
| Product Type | SIMATIC ET 200SP Interface Module (IM 155-6PN BA) |
| Rated Voltage | 24V DC (19.2 to 28.8 V DC) |
| Rated Current | Max. 450 mA |
| Power/Capacity | Power loss approx. 1.9 W |
| Interface Ports | 2 x RJ45 (Integrated 2-port switch) |
| Max. Modules Supported | Up to 12 peripheral I/O modules |
| Dimensions (W x H x D) | 35 x 117 x 74 mm |
| Weight | Approx. 0.12 kg |
| Standards/Certification | CE, UL, cULus, RCM, KC |
| Country of Origin | Germany |
| Warranty | Standard Manufacturer Warranty |
A: It links up to 12 ET 200SP peripheral I/O modules to a PROFINET industrial network for data communication with a central controller.
Q: Does this module require a server module to function?
A: Yes, it operates together with an ET 200SP server module (such as 6ES7193-6PA00-0AA0) to close the internal backplane bus loop.
Q: How many RJ45 network ports are built into the module?
A: It comes with 2 integrated RJ45 sockets configured as an internal 2-port switch for easy linear network topology wiring.
Q: What is the maximum number of I/O modules supported by the IM 155-6PN Basic?
A: The Basic version supports a maximum of 12 ET 200SP peripheral modules per rack.
Q: What supply voltage does the module require?
A: It operates on a standard 24V DC power supply input.
Q: What IP rating does this interface module carry?
A: It carries an IP20 rating and is intended for installation inside an industrial control cabinet or enclosure.
