Siemens S7-300 6ES7332-5HD01-0AB0 Analog Output Module SM 332 4AO U/I

Description

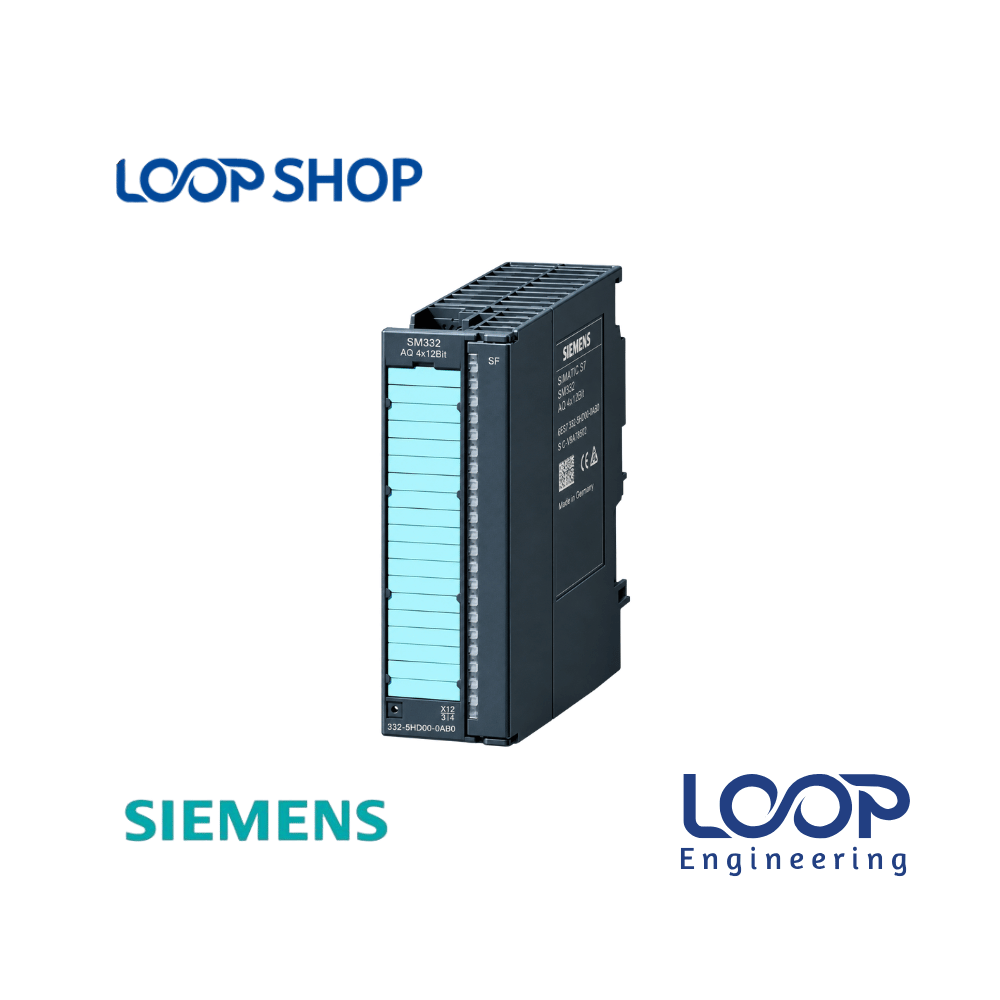

The Siemens SIMATIC S7-300 SM 332 Analog Output Module (6ES7332-5HD01-0AB0 / 6ES7 332-5HD01-0AB0) is a 4-channel isolated signal conversion card designed for the S7-300 PLC framework. It translates internal digital values processed by the central processing unit into proportional analog voltage (e.g., 0–10V, ±10V) or analog current (e.g., 0–20mA, 4–20mA) outputs. These signals drive field actuators with high precision.

While the S7-300 automation series has entered its legacy spare parts phase, hundreds of automated factories across Bangladesh rely on continuous S7-300 panel operations. This SM 332 card provides plant managers, automation engineers, and panel builders with a direct-replacement module to sustain line productivity without needing an expensive total system overhaul.

Key Features

• 4 Configurable Analog Output Channels: Supports independent channel parameterization for voltage or current loop outputs.
• 11/12-Bit Signal Resolution: Delivers accurate digital-to-analog signal conversion for fine-tuned process variable adjustments.
• Optical Isolation: Galvanic isolation between channels and the internal S7-300 backplane bus guards against ground loops and field transients.
• Integrated Hardware Diagnostics: Built-in fault detection reports short circuits, open circuits, and wire breaks directly to the CPU diagnostic buffer.
• Hot-Swap Capability: Supports removal and insertion during active operation when paired with an active backplane bus module rack.

Technical Advantages

• High Process Accuracy: Stable signal reproduction ensures smooth speed control on VFDs and precise positioning on control valves.
• Durable Construction: Industrial-grade housing designed to operate reliably in ambient temperatures from 0 °C to +60 °C.
• Advanced Safety & Protection: Short-circuit protection on voltage outputs and open-circuit monitoring on current loops prevent field driver damage.
• Low Thermal Dissipation: Compact 40mm width design keeps power loss low, reducing cabinet heat buildup.
• Easy Maintenance: Utilizes a standard 20-pole front connector, allowing fast module replacement without rewiring individual terminal terminals.

Applications

• Industrial Process Control: Direct speed regulation of Variable Frequency Drives (VFDs) and modulating steam/water valves.
• Factory Operations: Temperature, pressure, and fluid flow rate regulation in textile processing, chemical dosing, and paper mills.
• Commercial & Infrastructure: Centralized HVAC damper control, water treatment pumping stations, and automated boiler plants.
• Project Installation & Maintenance: Control panel expansions, retrofits, and critical spare parts replacement across industrial hubs in Bangladesh.

Why Choose This Product?

• Proven Siemens Reliability: Engineered to high German quality standards for 24/7 continuous industrial operation.
• High Control Performance: Fast response times and low conversion drift maintain steady process limits.
• Cost Effectiveness: Replacing a single failed analog module restores operational efficiency at a fraction of the cost of migration.
• After-Sales Support: Backed by loopshop.com.bd’s supply network with fast delivery across Bangladesh industrial zones.

Technical Specification Table

Features List

✓ 4 Analog Output channels configurable for Voltage or Current signals

✓ High-precision 11/12-bit digital-to-analog conversion

✓ Galvanic optical isolation protecting backplane bus electronics

✓ Supports hot-swapping with active backplane bus setups

✓ Built-in channel diagnostics for wire-break and short-circuit monitoring

✓ Compact 40mm DIN-rail mountable module housing

Benefits For Customers

• Protects Master PLC Infrastructure: Optocoupler isolation prevents external field spikes from reaching the core CPU rack.
• Improves Process Consistency: Precise analog outputs keep motor speeds and valve positions locked to setpoint values.
• Saves Maintenance Cost: Diagnostic features pinpoint field wiring faults quickly, cutting down technician troubleshooting time.
• Suitable for Bangladesh Climate: Rated to operate up to 60 °C, ensuring stable performance in hot, humid control cabinets.

Installation & Maintenance Guide

Installation Requirements:

• Always turn off system supply power (24 V DC and main rack power) before installing or removing non-hot-swap components.
• Hook the SM 332 card onto the standard S7-300 DIN mounting rail and secure the top retaining screw.
• Connect the backplane bus connector firmly to the adjacent module on the left side of the rack.
• Wire your analog field actuators to a standard 20-pin front connector (sold separately/reused) and attach it to the front panel.

Maintenance Tips:

• Periodically check terminal screws on the 20-pin connector to ensure machine vibration has not loosened connections.
• Keep control cabinet cooling fans and filter mats clean to prevent dust buildup inside the module ventilation slots.
• Use STEP 7 or TIA Portal software to monitor diagnostic buffer messages when analog signals drop unexpected values.

Safety Instructions:

• Ensure field wiring does not exceed maximum allowable voltage/current parameters.
• Connect protective earth (PE) grounding directly to the S7-300 rail to discharge static and electromagnetic interference.
• Installation and configuration should be performed by qualified electrical and automation personnel.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6ES7332-5HD01-0AB0 in Bangladesh?

A: Live pricing for the Siemens 6ES7332-5HD01-0AB0 analog output module depends on stock availability and import duties. Please check loopshop.com.bd or contact our sales team for an instant quote.

Q: Where can I buy Siemens 6ES7332-5HD01-0AB0 in Bangladesh?

A: You can purchase genuine Siemens PLC modules online from loopshop.com.bd with delivery across Dhaka, Chittagong, Gazipur, Narayanganj, and all industrial districts in Bangladesh.

Q: What warranty does this product have?

A: Warranty coverage depends on stock type (new/refurbished). Please review product terms on loopshop.com.bd or contact customer support for specific details.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an operating temperature tolerance of up to +60 °C, it is built to operate reliably in tropical industrial environments.

Q: How to install this product?

A: Power down the rack, mount the module to the S7-300 DIN rail, attach the backplane connector, insert the pre-wired 20-pin front connector, lock the screw, and restore power.

Q: How many analog outputs does the 6ES7332-5HD01-0AB0 module provide?

A: It provides 4 individual analog output channels (U/I configurable).

Q: What output signal types are supported by this module?

A: It supports both Voltage (e.g., 0–10V, ±10V) and Current (e.g., 0–20mA, 4–20mA) outputs.

Q: Does this module require a 20-pin or 40-pin front connector?

A: It requires a standard 20-pin front connector for field wiring.

Q: Can this module be hot-swapped during active operation?

A: Yes, removing and inserting is supported when used with an active backplane bus arrangement.

Q: What software is used to configure the 6ES7332-5HD01-0AB0?

A: It is configured using Siemens STEP 7 (V5.x) or TIA Portal software packages.
