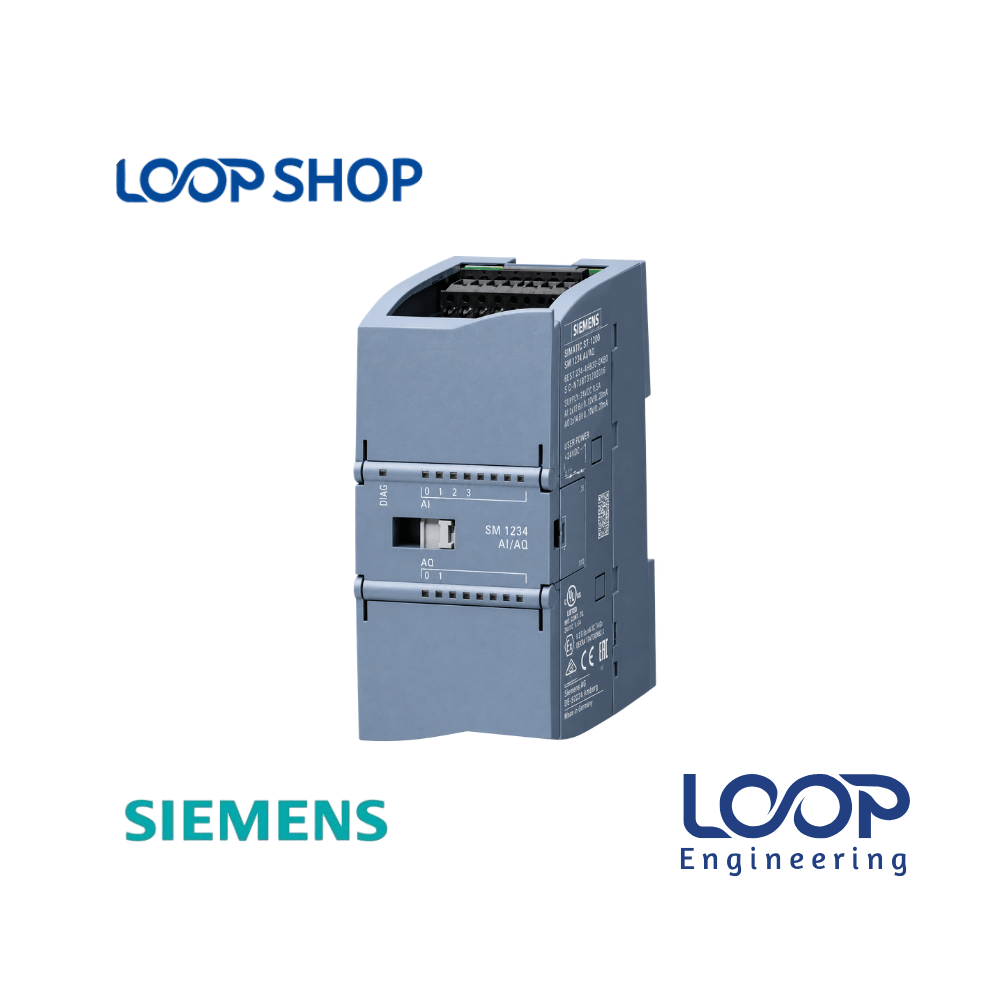

Siemens S7-1200 SM 1234 Analog I/O 4AI 2AO Module 6ES7234-4HE30-0XB0 PLC

Description

The Siemens SIMATIC S7-1200 SM 1234 Analog Input/Output Module (6ES7234-4HE30-0XB0) is a high-performance mixed analog signal module designed to expand the control capabilities of SIMATIC S7-1200 PLC systems. By providing 4 analog input channels and 2 analog output channels on a single module, it enables simultaneous acquisition of field measurements (such as pressure, level, or flow) and driving of field actuators (such as control valves or VFD speed references).

PLC-City+ 1

This module converts continuous field signals into precise digital data for the CPU and translates digital control commands back into analog control signals. Industrial plants, machine builders, and system integrators across Bangladesh utilize the SM 1234 module to implement closed-loop PID control and reduce hardware panel costs.

Key Features

• Mixed Analog I/O Combination: Features 4 Analog Inputs (AI) and 2 Analog Outputs (AO) in a single module enclosure.

PLC-City

• Selectable Voltage & Current Ranges: Configurable for ±10V voltage signals or 0−20mA / 4−20mA standard industrial current loops.
• High Analog Resolution: Offers 14-bit resolution for voltage signals and 13-bit resolution for current signals for fine control sensitivity.

PLC-City

• Integrated Hardware Diagnostics: Built-in LED status lights and software alerts report wire breaks, short circuits, and out-of-range signal limits.
• DIN Rail Mounting: Easily clips onto standard 35 mm DIN rails and connects directly to the S7-1200 CPU backplane bus.
• TIA Portal Configuration: Parametrized effortlessly within Siemens TIA Portal software without complex manual dip-switch settings.

Technical Advantages

• High System Efficiency: Combining inputs and outputs into a single module reduces backplane bus load and total panel space.
• Durable Construction: Industrial-grade enclosure provides high noise immunity against severe electromagnetic interference (EMI).
• Safety Protection: Built-in current limiting and overvoltage protection shield internal electronics against accidental wiring faults.
• Energy Saving: Draws low operating power directly from the S7-1200 backplane bus and 24V DC supply.
• Easy Maintenance: Removable terminal block connectors allow rapid replacement without re-wiring individual field leads.

Applications

• Residential: Centralized water level management and automated building environmental monitoring.
• Commercial: Commercial HVAC chillers, air handling unit (AHU) speed control, and building management systems (BMS).
• Industrial: Continuous process control systems, boiler level controls, and chemical dosing equipment.
• Factory: Textile dyeing machines, paper mills, plastic extrusion machinery, and automated packaging lines.
• Office: Automated server room climate control and facility power consumption monitoring.
• Project Installation: Municipal water treatment plants, pumping stations, and solar power monitoring projects.

Why Choose This Product?

• Siemens Reliability: Built according to rigorous German engineering standards to guarantee continuous operational uptime in demanding industrial environments.
• High Performance: Precise signal processing ensures fast response times and stable closed-loop control loops.
• Cost Effectiveness: Reduces total procurement costs by combining AI and AO hardware into a single module rather than purchasing two separate modules.
• After-Sales Value: Purchased from loopshop.com.bd with genuine product assurance, fast delivery across Bangladesh, and dedicated technical assistance.

Technical Specification Table

Features List

✓ Combined 4 Analog Inputs & 2 Analog Outputs

✓ Voltage (±10V) and Current (0−20mA / 4−20mA) Modes

✓ High Resolution (14-bit Voltage / 13-bit Current)

PLC-City

✓ Built-in Wire Break and Short Circuit Diagnostic Alerts

✓ Compact 45 mm Wide DIN Rail Enclosure

TIA Portal

✓ Full Integration with Siemens TIA Portal Software

Benefits For Customers

• Reduces Overall Hardware Costs: Replaces two separate modules with one combined AI/AO module, lowering overall project expense.
• Improves Operational Reliability: Precise signal processing prevents process loop oscillations and keeps production consistent.
• Saves Panel Space: Takes up only 45 mm of DIN rail space, leaving room for additional expansion modules.
• Suitable for Bangladesh Environment: Standardized to operate inside hot, humid electrical control cabinets common across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Always turn off main power to the S7-1200 rack prior to attaching or detaching expansion modules.
• Clip the module onto a clean, grounded 35 mm DIN rail inside an IP54 or higher rated cabinet.
• Slide the module securely into the side backplane bus connector of the adjacent S7-1200 CPU or signal module.
• Use shielded twisted-pair cables for all analog signal lines and ground cable shields at the panel entry point.

Maintenance Tips:

• Periodically inspect terminal screw connections to ensure secure wiring contacts.
• Maintain clean air filters and functional cooling fans in control cabinets to prevent thermal stress.
• Check diagnostic logs in TIA Portal regularly to verify signal integrity and catch field sensor wear early.

Safety Instructions:

• Ensure all high-voltage lines are isolated before touching low-voltage analog wiring terminal blocks.
• Do not expose internal module electronics to conductive dust, corrosive gases, or direct moisture.
• Connect all earthing points properly in accordance with Bangladesh national electrical standards.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens S7-1200 SM 1234 4AI 2AO Module (6ES7234-4HE30-0XB0) in Bangladesh?

A: The price of the Siemens S7-1200 SM 1234 Analog I/O Module in Bangladesh varies based on stock availability and import duties. Please check loopshop.com.bd for updated live pricing or request a quotation directly.

Q: Where can I buy original Siemens 6ES7234-4HE30-0XB0 in Bangladesh?

A: You can purchase genuine Siemens PLC expansion modules online from loopshop.com.bd with reliable nationwide delivery across Bangladesh.

Q: What warranty does this product have?

A: The module comes with a 1-year standard manufacturer warranty covering manufacturing defects under normal operating conditions.

Q: Is this suitable for Bangladesh climate?

A: Yes, it is rated for operating temperatures from −20 ∘C to +60 ∘C and functions reliably in industrial control panels across Bangladesh.

Q: How to install this product onto an S7-1200 CPU?

A: Turn off system power, latch the SM 1234 module onto the DIN rail next to the CPU, slide the backplane bus connector to engage, wire your analog inputs and outputs, and add the module in TIA Portal device configuration.

Q: Can I connect both 4−20mA sensors and 0−10V actuators to this module?

A: Yes, each channel can be independently configured in TIA Portal for either voltage or current signals.

Q: Does 6ES7234-4HE30-0XB0 require external 24V DC auxiliary power?

A: Yes, it requires an external 24V DC supply connected to its power terminals to drive the analog output circuitry.

TIA Portal

Q: What is the difference between 6ES7234-4HE30-0XB0 and 6ES7234-4HE32-0XB0?

A: 6ES7234-4HE32-0XB0 is the direct successor model updated by Siemens, offering fully compatible functional features and hardware pinout.

Q: How many analog inputs and outputs are available on this module?

A: It features 4 Analog Inputs (AI) and 2 Analog Outputs (AO).

PLC-City

Q: Does loopshop.com.bd offer technical assistance for Siemens PLCs in Bangladesh?

A: Yes, loopshop.com.bd provides pre-sales technical consultation and procurement guidance for industrial automation projects.
