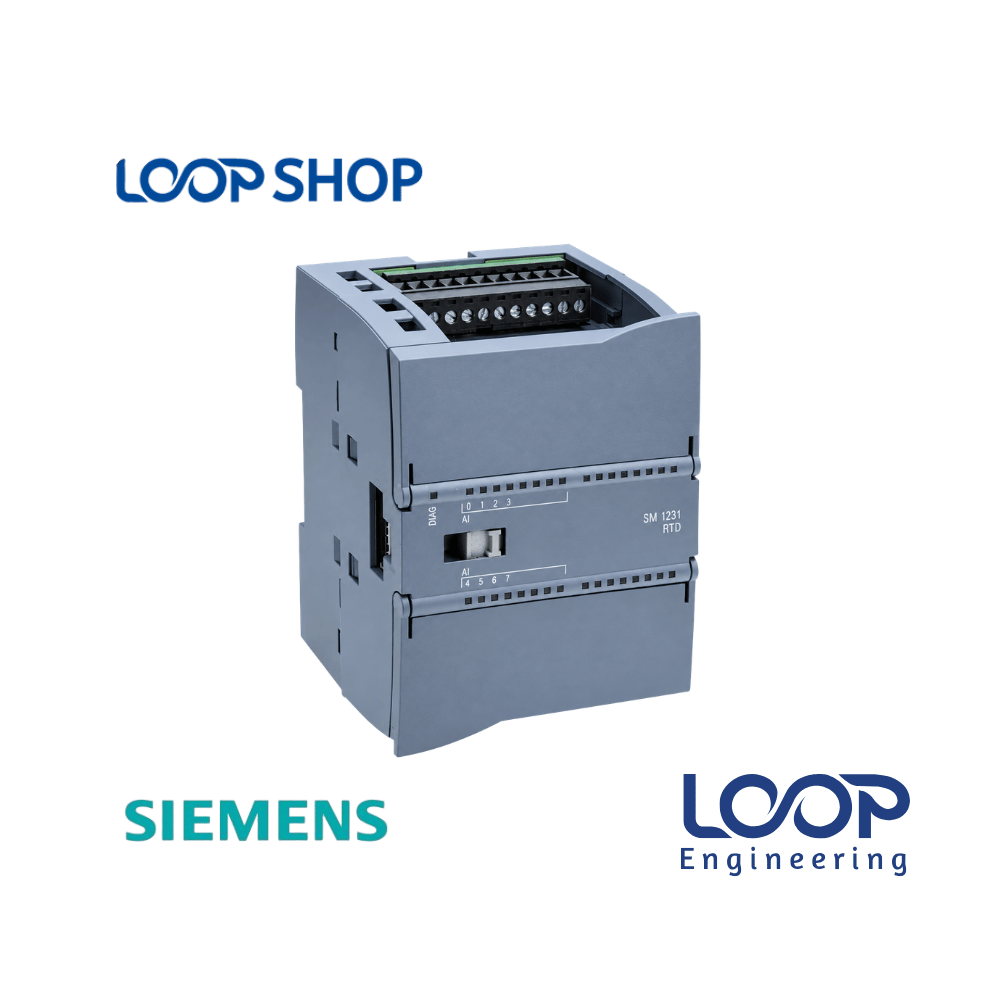

Siemens S7-1200 SM 1231 8 AI RTD Module 6ES7231-5PF32-0XB0 PLC

Description

The Siemens SIMATIC S7-1200 SM 1231 RTD Module (6ES7231-5PF32-0XB0) is an expansion signal module engineered to expand the analog input capabilities of SIMATIC S7-1200 PLCs. It provides 8 high-precision analog input channels specifically designed to interface directly with Resistance Temperature Detectors (RTD).

By converting variable resistance signals from RTD sensors into digital values for the CPU, this module allows process controllers to accurately monitor temperature across multiple points. Industrial plants, process engineers, and automation panel builders in Bangladesh require this module to maintain rigorous thermal management, improve energy management, and protect sensitive equipment from overheating.

Key Features

• 8 Independent Analog RTD Inputs: Allows simultaneous connection of up to 8 RTD temperature sensors.
• Broad Sensor Support: Integrates seamlessly with Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, and Cu10 sensors.
• High Measurement Accuracy: Features 15-bit resolution plus sign for ultra-fine temperature tracking.
• Integrated Diagnostics: Built-in LED indicators and software diagnostics report wire breaks, short circuits, and parameter errors instantly.
• Compact DIN Rail Mounting: Fits directly onto standard 35 mm DIN rails, saving space inside control cabinets.
• TIA Portal Integration: Fully supported in Siemens TIA Portal for fast configuration, calibration, and troubleshooting.

Technical Advantages

• No External Transmitters Required: Direct RTD connection reduces wiring complexity, panel space, and external hardware costs.
• High Electromagnetic Interference (EMI) Shielding: Robust noise suppression prevents signal distortion from nearby heavy industrial equipment.
• Fast Cycle Times: Enables real-time temperature updates for time-sensitive closed-loop control systems.
• Low Power Consumption: Operates efficiently from the S7-1200 backplane bus with minimal power draw.
• Easy Maintenance: Removable terminal blocks simplify module swapping without disconnecting individual field wires.

Applications

• Industrial: Factory automation panels, process plants, and boiler monitoring systems.
• Factory: Textile mills, plastic extrusion, injection molding, and packaging machinery.
• Commercial: Centralized HVAC chillers, cold storage rooms, and commercial building management systems (BMS).
• Project Installation: Large-scale infrastructure projects, water treatment facilities, and pharmaceutical processing units.

Why Choose This Product?

• Siemens Reliability: Built to global German engineering standards, providing long-term operational uptime and consistency.
• High Performance: Excellent noise immunity and fast signal processing keep process loops accurate.
• Cost Effectiveness: Expands system capacity up to 8 channels in a single compact module, lowering per-channel expansion costs.
• After-Sales Value: Supported by loopshop.com.bd with genuine product assurance, fast local shipping in Bangladesh, and dedicated technical assistance.

Technical Specification Table

Features List

✓ 8 Analog RTD Input Channels

✓ Supports Pt100, Pt1000, Ni100, and Resistance Types

✓ 15-Bit + Sign High Resolution Accuracy

✓ Integrated Wire-Break and Short-Circuit Diagnostics

✓ Compact DIN Rail Mountable Enclosure

✓ Seamless Setup via Siemens TIA Portal

Benefits For Customers

• Eliminates Signal Converters: Direct sensor connection eliminates the cost and failure points of external transmitters.
• Improves Operational Reliability: Precise thermal data prevents process overheating and unscheduled machinery downtime.
• Saves Maintenance Cost: Diagnostic LEDs and software alerts pinpoint faulty sensor wiring immediately.
• Suitable for Bangladesh Environment: Performs reliably in high ambient temperatures and humid industrial enclosures typical in Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically or horizontally on a standard 35 mm DIN rail inside an IP54 or higher industrial control enclosure.
• Ensure the power supply to the S7-1200 rack is turned off before sliding the module into the backplane bus.
• Use shielded twisted-pair cables for all RTD connections to minimize electrical noise interference.
• Ground cable shields securely at the panel entry point using proper grounding clamps.

Maintenance Tips:

• Periodically check terminal connections for tightness to prevent high resistance contacts.
• Keep cabinet cooling vents clean to avoid exceeding maximum operating temperature limits.
• Perform routine calibration checks in TIA Portal to ensure thermal accuracy over long-term operation.

Safety Instructions:

• Always isolate all power sources before working on terminal connections.
• Do not expose the internal module circuits to conductive dust, liquids, or excessive humidity.
• Ensure proper earthing/grounding according to local Bangladesh electrical safety standards.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens S7-1200 8 AI RTD Module (6ES7231-5PF32-0XB0) in Bangladesh?

A: The price of the Siemens S7-1200 8 AI RTD Module in Bangladesh depends on current stock availability and import rates. Please check loopshop.com.bd for the latest updated price or request a quotation directly.

Q: Where can I buy genuine Siemens S7-1200 6ES7231-5PF32-0XB0 in Bangladesh?

A: You can purchase 100% authentic Siemens PLC modules online from loopshop.com.bd with reliable island-wide and local delivery across Bangladesh.

Q: What warranty does this Siemens RTD module have?

A: It comes with a 1-year standard manufacturer warranty covering technical defects under normal operating conditions.

Q: Is this module suitable for the Bangladesh climate?

A: Yes, the module operates within a wide temperature range of -20 °C to +60 °C and handles industrial cabinet environments in Bangladesh effectively when installed in ventilated enclosures.

Q: How to install this product onto an S7-1200 PLC?

A: Disconnect power from the CPU, clip the SM 1231 module onto the DIN rail next to the CPU/previous module, slide the backplane connector into position, wired your RTD sensors to the terminal blocks, and configure the module in TIA Portal.

Q: What RTD sensors are supported by 6ES7231-5PF32-0XB0?

A: It supports common temperature sensors such as Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Cu10, as well as standard resistance sensors.

Q: Does this module require an external transmitter for Pt100 sensors?

A: No, RTD sensors connect directly to the terminal points on the module without needing separate 4-20mA signal transmitters.

Q: Can I use this with any SIMATIC S7-1200 CPU?

A: Yes, it is fully compatible with all Siemens S7-1200 CPU controllers running compatible firmware versions.

Q: Does loopshop.com.bd provide technical assistance in Bangladesh?

A: Yes, loopshop.com.bd offers technical guidance regarding product selection, procurement, and compatibility for industrial projects.

Q: How many RTD sensors can I connect to one module?

A: You can connect up to 8 RTD sensors simultaneously using the 8 analog input channels.
