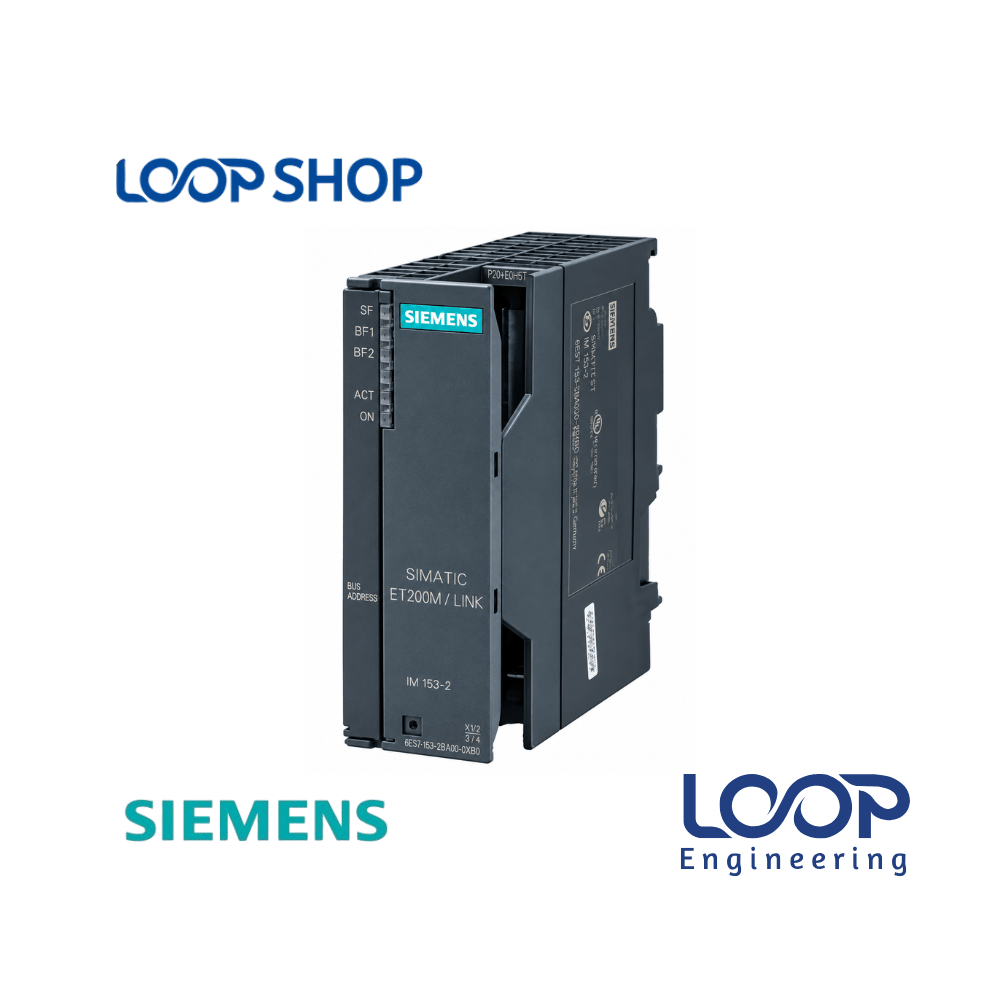

Siemens IM 153-2 High Feature Interface Module 6ES7153-2BA02-0XB0 PLC

Description

The Siemens SIMATIC DP ET 200M Interface Module IM 153-2 High Feature (Part Number: 6ES7153-2BA02-0XB0) is a industrial communication head station for ET 200M modular distributed I/O systems. It acts as the intelligent bridge between a central PROFIBUS DP master controller (such as S7-300, S7-400, or S7-1500 CPUs) and up to 12 local S7-300 input, output, or function modules.

Operating on a standard 24V DC power input, the IM 153-2 processes high-speed fieldbus data transfers up to 12 Mbps across PROFIBUS DP networks. For system integrators, electrical engineers, and factory maintenance managers in Bangladesh, this High Feature interface module provides a robust, fail-safe solution to extend PLC field I/O reach without requiring complex central cabinet re-wiring.

Key Features

• 12 S7-300 Module Capacity: Connects and manages up to 12 SIMATIC S7-300 I/O modules on a single ET 200M station rack.
• PROFIBUS DP High-Speed Communication: Delivers reliable data transmission rates up to 12 Mbps over RS-485 fieldbus lines.
• Hot-Swapping (Configuration in Run): Supports module removal and insertion during operational power when mounted on active bus modules.
• Redundancy Capability: Can be deployed in redundant PROFIBUS configurations for high-reliability process control applications.
• Time Stamping & Diagnostics: Features precise signal time stamping and comprehensive diagnostic sensing for field faults and communication loss.

Technical Advantages

• High Efficiency: Low internal power consumption minimizes thermal accumulation in closed remote junction boxes.
• Durable Construction: Industrial-grade housing withstands electromagnetic interference (EMI), ambient vibration, and harsh environment switching noise.
• Safety & System Protection: Reverse-polarity protection on 24V DC input and galvanic isolation protect internal backplane communications.
• Energy Saving: Efficient bus transmission reduces fieldbus communication cycles and system power demand.
• Easy Maintenance: Front-facing status LEDs (SF, BF, ACT, ON) allow technicians to perform rapid onsite troubleshooting.

Applications

• Industrial: Automated process networks, water treatment infrastructure, continuous chemical processing, and material transport networks.
• Factory: Textile spinning and dyeing control systems, paper mills, food processing lines, and steel rolling plants across Bangladesh.
• Commercial: Centralized HVAC plant management, large-scale pumping stations, and building management networks.
• Project Installation: Control panel expansion, legacy S7-300 system retrofits, and PROFIBUS DP distributed I/O integration.

Why Choose This Product?

• High System Scalability: Accommodates up to 12 signal modules per node, reducing total interface module costs in large control architectures.
• Proven Field Reliability: Decades of tested operational performance in demanding industrial manufacturing environments globally and across BD.
• Cost-Effective System Extension: Allows remote I/O placement close to field sensors, saving miles of expensive multi-core copper cabling.
• Local After-Sales Support: Backed by loopshop.com.bd with direct availability, quick delivery across Bangladesh, and technical product verification.

Technical Specification Table

Features List

✓ High Feature interface for SIMATIC ET 200M distributed I/O

✓ Connects up to 12 S7-300 signal/function modules per rack

✓ High-speed PROFIBUS DP transmission up to 12 Mbps

✓ Supports hot-swapping under power (with active bus modules)

✓ Integrated time stamping and expanded channel diagnostics

✓ Supports redundant PROFIBUS DP configuration setups

Benefits For Customers

• Reduces Cabling Costs: Consolidates field I/O connections into a single PROFIBUS DP trunk line.
• Improves Operational Reliability: Redundancy options and hot-swapping prevent unplanned production shutdowns during repairs.
• Saves Maintenance Cost: Clear LED fault indicators streamline diagnostics, reducing plant downtime.
• Suitable for Bangladesh Environment: Operates smoothly in industrial ambient temperatures up to +60 °C inside ventilated enclosures.

Installation & Maintenance Guide

Installation Requirements:

1. Mount the S7-300 DIN rail horizontally inside an IP54 or ventilated control panel enclosure.
2. Install the IM 153-2 interface module on the leftmost slot of the ET 200M rack structure.
3. Wire the 24V DC power supply to the front terminal block using correctly rated copper conductors.
4. Plug in the standard PROFIBUS DB9 connector with built-in terminating resistors set correctly for end-of-line nodes.

Maintenance Tips:

1. Regularly inspect PROFIBUS cable bend radiuses and connector tightness to maintain signal integrity without data drops.
2. Monitor front status LEDs (BF for Bus Fault, SF for System Fault) during routine panel inspections.
3. Keep control panel dust filters clean to maintain heat dissipation across the ET 200M rack assembly.

Safety Instructions:

1. Installation and wiring must be carried out by qualified industrial electricians or automation engineers.
2. Always verify that 24V DC polarity is correct before applying power to prevent module input stage damage.
3. Do not exceed the maximum allowable bus node addresses configured in STEP 7 or TIA Portal.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens IM 153-2 6ES7153-2BA02-0XB0 in Bangladesh?

A: Prices vary based on global import rates, duties, and stock availability. Visit loopshop.com.bd or contact our sales desk for an up-to-date quote in BDT.

Q: Where can I buy Siemens IM 153-2 6ES7153-2BA02-0XB0 in Bangladesh?

A: You can order online at loopshop.com.bd with fast delivery across Dhaka, Chattogram, Gazipur, Narayanganj, and industrial zones nationwide.

Q: What warranty does this product have?

A: loopshop.com.bd provides standard vendor/seller warranty coverage against manufacturing defects upon purchase.

Q: Is this suitable for Bangladesh climate?

A: Yes, the module is engineered to operate in panel temperatures from 0 °C to +60 °C, suitable for Bangladesh industrial environments.

Q: How to install this product?

A: Mount the module on an S7 DIN rail, connect the 24V DC power supply, plug in the PROFIBUS DP RS-485 line, and configure the node address via DIP switches.

Q: How many S7-300 modules can be connected to 6ES7153-2BA02-0XB0?

A: This High Feature module supports up to 12 S7-300 expansion modules on a single ET 200M station.

Q: What communication protocol does this interface module use?

A: It uses standard PROFIBUS DP (RS-485) fieldbus protocol supporting transfer rates up to 12 Mbps.

Q: Does 6ES7153-2BA02-0XB0 support module hot-swapping?

A: Yes, when mounted on active bus modules, it allows replacing I/O modules while the station remains powered and operating.

Q: Can this module be used in a redundant PROFIBUS system?

A: Yes, the IM 153-2 High Feature supports redundant interface setups for critical high-availability systems.

Q: Does loopshop.com.bd sell original Siemens automation products in BD?

A: Yes, loopshop.com.bd supplies 100% genuine Siemens automation hardware sourced through verified international channels.
