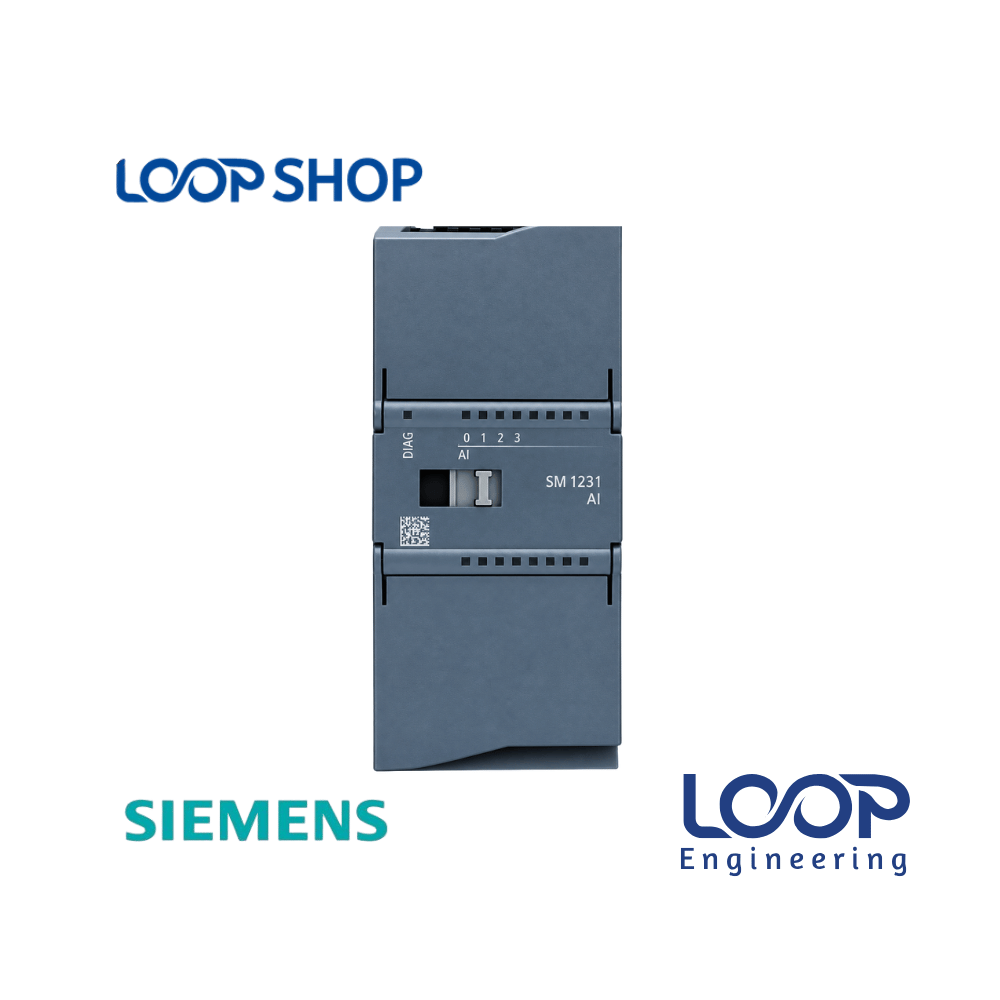

Siemens 6ES7231-4HD32-0XB0 S7-1200 SM1231 4 AI Analog Input Module

Description

The Siemens 6ES7231-4HD32-0XB0 (SM 1231) is a 4-channel analog input module engineered for the SIMATIC S7-1200 PLC family. It acts as an accurate data acquisition interface between analog field sensors—such as transmitter probes, pressure transducers, flowmeters, and level sensors—and the main CPU. By converting continuous voltage ($\pm10\text{ V}$, $\pm5\text{ V}$, $\pm2.5\text{ V}$) or current ($0\text{–}20\text{ mA}$ / $4\text{–}20\text{ mA}$) signals into 12-bit + sign digital resolution, it allows the controller to execute precise closed-loop automation tasks.

Plant managers, automation engineers, and system integrators require this expansion card to scale the analog processing capabilities of S7-1200 controllers. In Bangladesh’s expanding industrial sector—where process accuracy in textile dyeing, chemical processing, pharmaceutical manufacturing, and water management directly impacts product quality—the SM 1231 provides dependable signal conversion and noise rejection.

Key Features

• 4 high-accuracy analog input channels for voltage and current loop measurement.
• Flexible input ranges: Voltage ($\pm10\text{ V}$, $\pm5\text{ V}$, $\pm2.5\text{ V}$) and Current ($0\text{–}20\text{ mA}$ / $4\text{–}20\text{ mA}$).
• 12-bit + sign bit resolution for fine process signal differentiation.
• Compact expansion housing that snaps directly to the right side of any S7-1200 CPU.
• Built-in diagnostic LED indicators for module status and power monitoring.
• Integrated integration time filtering to smooth out electrical field noise.

Technical Advantages

• High Efficiency: Provides rapid analog sampling rates with minimal load on the main CPU cycle time.
• Durable Construction: Industrial-grade enclosure engineered to shield internal signal processing circuits from high electromagnetic interference (EMI).
• Safety Protection: Integrated optical isolation protects the main S7-200/S7-1200 backplane bus against field line surges and ground loops.
• Easy Maintenance: Removable terminal block connectors enable simple field wiring and fast module replacement without disturbing terminal wiring.

Applications

• Industrial: Process control systems, continuous temperature monitoring, pressure regulation loops, and fluid flow tracking.
• Factory: Textile dyeing and washing control, chemical batching, plastics extrusion, and pharmaceutical packaging.
• Project Installation: Effluent Treatment Plants (ETP), Water Treatment Plants (WTP), HVAC automation, and boiler feed control.
• Commercial: Energy management systems and building automation monitoring.

Why Choose This Product?

• Reliability: Built to Siemens’ global engineering standards to ensure long-term measuring stability without signal drift.
• Performance: Exceptional 12-bit resolution delivers accurate sensor feedback for critical process loops.
• Cost Effectiveness: Expands system capacity affordably using existing S7-1200 infrastructure without requiring larger PLC racks.
• After-Sales Value: Supported by widespread technical expertise, STEP 7 / TIA Portal integration, and local supplier backup in Bangladesh.

Technical Specification Table

Features List

✓ 4-channel analog input expansion card for SIMATIC S7-1200

✓ Selectable voltage ($\pm10\text{ V}$, $\pm5\text{ V}$, $\pm2.5\text{ V}$) and current ($0/4\text{–}20\text{ mA}$) inputs

✓ High-resolution 12-bit + sign bit conversion accuracy

✓ Direct backplane bus connection on S7-1200 CPU

✓ Removable terminal block connectors for easy field wiring

✓ Diagnostic LEDs for diagnostic error and supply voltage monitoring

Benefits For Customers

• Enhances Process Precision: Fine 12-bit resolution ensures exact control over temperature, pressure, and fluid flow variables.
• Improves Operational Reliability: Galvanic isolation between inputs and backplane bus protects central PLC hardware from signal surges.
• Saves Maintenance Cost: Removable terminal blocks make module swaps quick, minimizing factory downtime during servicing.
• Suitable for Bangladesh Environment: Certified for industrial operating temperatures up to 60 °C inside control enclosures.

Installation & Maintenance Guide

Installation Requirements:

• Mount onto a standard 35mm DIN rail directly adjacent to the right side of the S7-1200 CPU or preceding expansion module.
• Slide the module left until the bus connector firmly latches into the CPU backplane bus interface.
• Wire the external 24 V DC supply to the module’s supply terminals.
• Connect analog sensor wires (shielded twisted pair recommended) to the removable terminal block following correct polarity.

Maintenance Tips:

• Periodically check that terminal block wiring screws remain tight to prevent signal loss from machine vibrations.
• Maintain clean control cabinet air filters to prevent dust accumulation on the module ventilation slots.
• Ensure shield grounding clamps are securely bonded to earth ground to minimize ambient electrical noise.

Safety Instructions:

• Always shut off 24 V DC power and main cabinet breakers prior to attaching or disconnecting expansion modules.
• Wiring adjustments should be carried out by qualified electrical technicians or automation engineers using ESD precautions.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6ES7231-4HD32-0XB0 in Bangladesh?

A: Prices vary based on stock availability and import exchange rates. Please check loopshop.com.bd or contact our sales team for the latest real-time quotation.

Q: Where can I buy original Siemens 6ES7231-4HD32-0XB0 in Bangladesh?

A: You can purchase genuine Siemens modules online directly from loopshop.com.bd with fast delivery across Bangladesh.

Q: What warranty does this product carry?

A: It comes with a standard supplier warranty covering manufacturing defects upon purchase from LoopShop.

Q: Is this suitable for Bangladesh climate conditions?

A: Yes, its industrial operating rating of up to 60 °C allows reliable performance inside control cabinets across Bangladesh.

Q: How do I install this module onto an S7-1200 PLC?

A: Snap the module onto the 35mm DIN rail next to the CPU and slide it into the CPU’s right-side backplane expansion connector.

Q: What signal types can this analog input module measure?

A: It measures both voltage signals ($\pm10\text{ V}$, $\pm5\text{ V}$, $\pm2.5\text{ V}$) and current signals ($0\text{–}20\text{ mA}$ or $4\text{–}20\text{ mA}$).

Q: Does this module require external 24 V DC power?

A: Yes, it requires a 24 V DC power supply connected to its power terminal block.

Q: Which software is used to configure the SM 1231 AI module?

A: It is configured easily within Siemens TIA Portal (STEP 7 Basic or Professional).

Q: Are the terminal blocks removable?

A: Yes, it features removable terminal blocks which allow quick replacement without rewiring individual sensor lines.

Q: Does it support RTD temperature sensors directly?

A: No, for direct RTD (Pt100/Pt1000) sensor connections, the dedicated SM 1231 RTD module (e.g., 6ES7231-5PD32-0XB0) should be used, or a temperature transmitter should be used to convert the RTD signal to 4–20mA.
