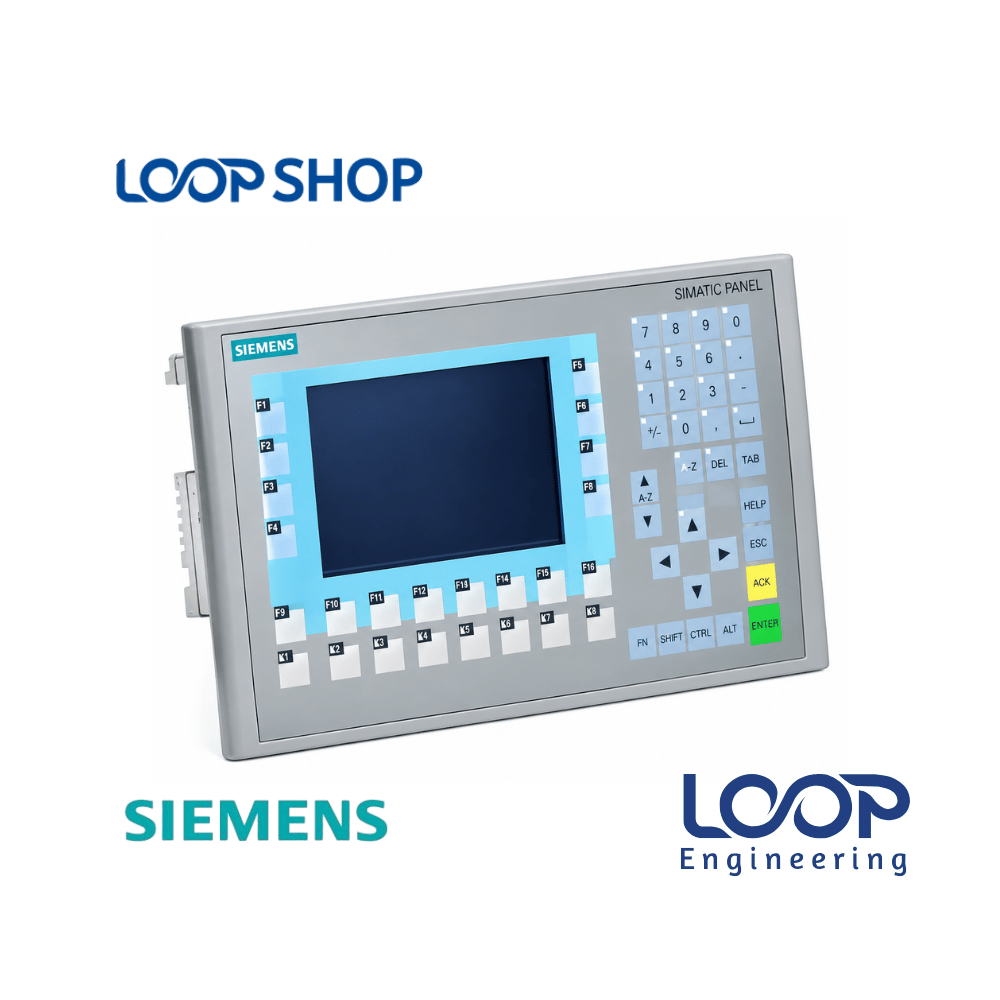

Siemens 6AV6643-0BA01-1AX0 SIMATIC OP 277 6 Inch HMI Operator Panel

Description

The Siemens 6AV6643-0BA01-1AX0 SIMATIC OP 277 is an industrial-grade 6-inch class Operator Panel (OP) designed for advanced human-machine interface (HMI) tasks. Featuring a 5.7-inch TFT display, this panel translates machine metrics, alarm states, and operational sequences into clear graphical visual representations. Built for reliability in demanding factory environments, it allows operators to manage plant parameters accurately via membrane function keys. Configured using Siemens WinCC Flexible 2005 Standard SP1 (or TIA Portal), the OP 277 is essential for factory engineers, system integrators, and maintenance technicians in Bangladesh running automated production lines.

Key Features

• Clear TFT Visuals: 5.7-inch TFT color screen displaying crisp process graphics, system menus, and real-time trend alarms.
• 4 MB Configuration Memory: Onboard memory space to hold complex graphics, recipe management systems, and historical alarm logs.
• Tactile Keypad Navigation: Durable membrane function keys provide precise physical input feedback even when operators wear protective industrial gloves.
• Industrial Communication Protocols: Equipped with integrated interfaces for direct connection with Siemens SIMATIC S7 PLCs and legacy industrial buses.
• Proven Software Integration: Fully configurable using WinCC Flexible 2005 Standard SP1 and compatible higher Siemens software suits.

Technical Advantages

• Durable Construction: Heavy-duty front panel housing built to resist vibration, ambient mechanical stress, and dust ingress inside control enclosures.
• Easy Maintenance: Quick project downloading and straightforward backup capability allow effortless panel replacement without losing project parameters.
• Safety Protection: Integrated alarm handling and diagnostic messages allow operators to react quickly to machine faults, protecting equipment from severe failure.
• Energy Saving: Optimized power consumption extends internal component service life and lowers overall panel operating costs.

Applications

• Industrial & Factory Automation: Machine control units, automated assembly lines, packaging skids, and material handling systems.
• Textile & Garment Mills: Spinning machines, dyeing vessel controllers, and automated fabric processing lines across Bangladesh.
• Project Installation: Ideal for panel builders and system integrators assembling industrial control cabinets or modernizing legacy equipment.

Why Choose This Product?

• Unmatched Reliability: Siemens engineering ensures 24/7 continuous operation under rigorous industrial plant conditions.
• High Operational Efficiency: Fast processing times and clear screen updates minimize operational delay and operator errors.
• Cost Effectiveness: Extending the lifespan of existing machinery with an original OP 277 avoids the massive capital expense of full control system replacement.
• After-Sales Value: Sourced through loopshop.com.bd with complete assurance of product authenticity, technical guidance, and swift local delivery inside Bangladesh.

Technical Specification Table

Features List

✓ High-contrast 5.7-inch TFT color operator display

✓ Generous 4 MB internal configuration memory

✓ Ergonomic membrane keypad for reliable tactile operation

✓ Configurable via WinCC Flexible 2005 Standard SP1

✓ Rugged front bezel engineered for harsh factory environments

Benefits For Customers

• Improves Operational Reliability: Real-time visibility over critical machine status prevents costly process errors and unexpected stops.
• Saves Maintenance Cost: Diagnostic functions pinpoint machine faults quickly, reducing troubleshooting time for factory technicians.
• Long Service Life: Robust internal electronics ensure years of reliable operation in tropical factory settings.
• Suitable for Bangladesh Environment: Designed with an IP65 front protection rating to resist industrial humidity and dusty factory conditions in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Ensure the control cabinet cutout strictly matches Siemens SIMATIC OP 277 mounting dimensions.
2. Supply a regulated 24V DC power source with clean grounding to protect sensitive internal circuitry.
3. Maintain recommended enclosure ventilation clearances behind the panel to avoid thermal buildup inside the panel frame.

Maintenance Tips:

1. Periodically wipe the front keypad bezel with a clean, dry, or slightly damp microfiber cloth; do not apply harsh liquid solvents.
2. Check terminal screw tightness and communication cable latching regularly during routine maintenance shutdowns.
3. Keep an up-to-date offline project backup file on a local computer for fast recovery during emergency swaps.

Safety Instructions:

1. Turn off main power to the control cabinet prior to wiring, mounting, or physical maintenance.
2. Installation and technical setup must be carried out by qualified electrical or automation personnel.
