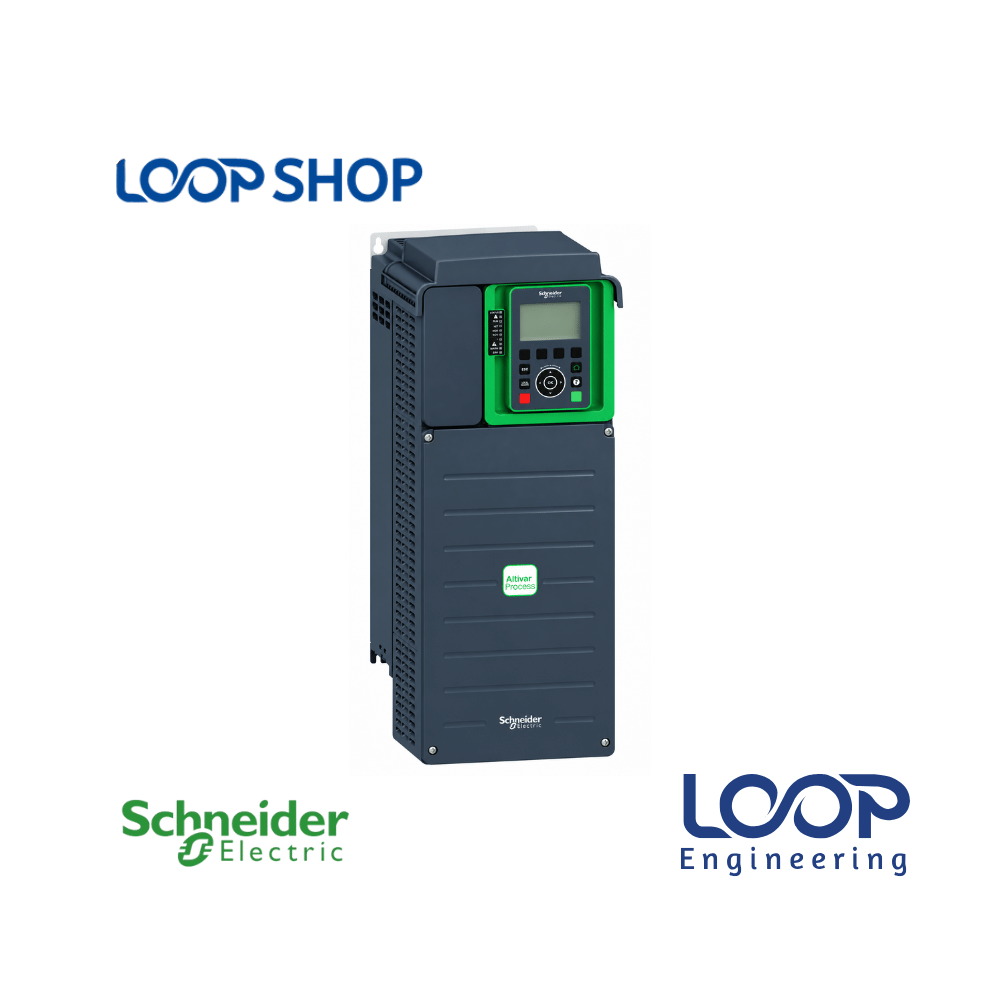

Schneider ATV630 22KW VFD ATV630D22N4 Variable Speed Drive

Description

The Schneider Electric Altivar Process ATV630 22KW VFD (ATV630D22N4) is an advanced Variable Frequency Drive designed for continuous process optimization and heavy-duty fluid management. Operating on a standard 380V to 480V 3-phase power supply, this drive converts fixed-frequency mains power into variable AC voltage and frequency to precisely control motor speed and torque.

Ideal for plant engineers, OEM system integrators, and facility managers across Bangladesh, the ATV630 service-oriented drive integrates real-time power measurement, dynamic performance monitoring, and asset management functions without requiring external meters.

Key Features

• Embedded Web Server & Ethernet: Built-in Modbus TCP/IP and Ethernet/IP ports enable real-time parameter configuration, diagnostic tracking, and remote monitoring.
• Integrated Power Metering: Offers accurate measurement of motor energy consumption (error margin < 5%) to help calculate operational efficiency and ROI.
• Dynamic Process Control: Features pump and fan specific curves, pipe clean sequences, and pump monitoring functions to eliminate water hammer and mechanical shock.
• Graphic Display Terminal: Standard high-resolution keypad interface supports multiple languages, real-time bar graphs, and easy menu navigation.
• EMC Filter Built-In: Integrated Class C3 EMC filter reduces electromagnetic interference with nearby electronic systems and sensors.

Technical Advantages

• High Efficiency: Delivers over 97% drive efficiency at rated load, significantly reducing internal heat generation and electrical losses.
• Durable Construction: Class 3C3 and 3S3 printed circuit board (PCB) coating protects internal electronics against corrosive gas environments and atmospheric humidity.
• Safety Protection: Integrated STO (Safe Torque Off) SIL 3 / PL e safety input prevents unexpected motor startup during routine maintenance.
• Energy Saving: Dynamic energy saving control mode adjusts output voltage based on load conditions to minimize energy usage during light-load operations.
• Easy Maintenance: QR-code display generation enables rapid diagnostic troubleshooting directly through smartphones or tablets.

Applications

• Industrial Manufacturing: Textile dyeing machinery, paper manufacturing, chemical processing, and plastic extrusion plants.
• Commercial Buildings: HVAC supply/return fans, cooling tower fans, and central air handling units (AHU).
• Water & Wastewater: Submersible pumps, booster pump stations, lift stations, and irrigation systems.
• Factory Automation: Conveyor belt drives, mixers, agitators, and blower systems.
• Project Installation: Infrastructure projects, municipal water distribution schemes, and industrial park utility systems.

Why Choose This Product?

• • Reliability: Built to Schneider Electric’s global quality standards, ensuring uninterrupted 24/7 industrial performance.
  • Performance: Exceptional torque response, smooth acceleration/deceleration ramps, and precise speed regulation under varying mechanical loads.
  • Cost Effectiveness: Lowers motor wear and tear while reducing electricity bills through intelligent energy optimization.
  • After-Sales Value: Backed by local technical support, complete documentation, and long-term spare part availability in Bangladesh via loopshop.com.bd.

Technical Specification Table

Features List

✓ High efficiency 22KW motor speed control

✓ Integrated dual-port Modbus TCP & Ethernet/IP

✓ Embedded STO (Safe Torque Off) safety input

✓ Conformal coated PCBs for high humidity resistance

✓ Real-time energy monitoring and reporting

Benefits For Customers

• Reduces Electricity Cost: Optimizes energy consumption based on real-time load requirements, cutting operating expenses.
• Improves Operational Reliability: Soft-starting capability prevents sudden current spikes and mechanical stress on pumps and motors.
• Saves Maintenance Cost: Early diagnostic warnings and protective shutdowns prevent motor burnouts and process downtime.
• Suitable for Bangladesh Environment: Designed with thermal resilience and protective board coatings to withstand tropical climate conditions.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-combustible surface in a well-ventilated enclosure or control room.
• Ensure clear spacing of at least 50 mm on both sides and 100 mm above and below the drive for proper cooling airflow.
• Connect input mains power (380-480V AC, 3-Phase) to terminals L1, L2, L3, and motor leads to terminals U, V, W with proper grounding.
• Use shielded motor cables to minimize high-frequency electromagnetic interference.

Maintenance Tips:

• Inspect cooling fans regularly and keep heat sink fins free from dust or particulate buildup.
• Periodically verify terminal screw torque to prevent loose connections caused by mechanical vibration.
• Monitor real-time operating temperature and history logs using the graphic display terminal.

Safety Instructions:

• Always disconnect input AC power and wait at least 15 minutes for internal DC bus capacitors to discharge before touching internal components.
• Ensure protective earthing (grounding) conductors are securely attached before turning power ON.
• Installation and wiring must only be carried out by qualified electrical personnel following national electrical standards.

Frequently Asked Questions (FAQ)

Q: What is the price of Schneider ATV630 Series 22KW VFD ATV630D22N4 in Bangladesh?

A: The price of the Schneider ATV630 22KW VFD in Bangladesh varies based on import duties and availability. Please check current live pricing or contact our sales team on loopshop.com.bd.

Q: Where can I buy original Schneider ATV630D22N4 VFD in Bangladesh?

A: You can purchase genuine Schneider Electric ATV630 series VFDs directly online from loopshop.com.bd with reliable delivery options across Bangladesh.

Q: What warranty does the Schneider ATV630D22N4 product have?

A: This product comes with standard warranty coverage against manufacturing defects. Detailed warranty terms are provided at the time of purchase on loopshop.com.bd.

Q: Is the Schneider ATV630 22KW VFD suitable for Bangladesh’s industrial climate?

A: Yes, it features 3C3/3S3 conformal coated printed circuit boards, making it highly resistant to high ambient humidity, dust, and continuous elevated temperatures common in Bangladesh.

Q: How do I install the Schneider ATV630D22N4 22KW VFD?

A: Installation involves vertical panel mounting, connecting standard 380-480V 3-phase AC power, wiring motor leads, grounding, and configuring basic motor parameters via the graphic terminal.

Q: What is the power rating of the Schneider ATV630D22N4 drive?

A: The ATV630D22N4 model is rated for 22 kW (30 HP) in normal duty applications and 18.5 kW (25 HP) in heavy-duty applications.

Q: Does the ATV630D22N4 drive support Ethernet communication?

A: Yes, it comes standard with embedded Modbus TCP and Ethernet/IP protocols for seamless integration into factory control networks.

Q: Can this 22KW drive be used with centrifugal water pumps?

A: Absolutely. The Altivar Process ATV630 series includes specialized pump curves, dynamic monitoring, and pipe cleaning features designed for pump and fan management.

Q: What safety features are integrated into the ATV630 series?

A: It features built-in Safe Torque Off (STO) SIL 3 along with overcurrent, overvoltage, undervoltage, phase imbalance, and thermal motor protection.

Q: Can I get technical support for setting up Schneider VFDs in Bangladesh?

A: Yes, loopshop.com.bd provides technical assistance and parameter guidance for customers purchasing Schneider automation equipment in Bangladesh.
