Schneider ATV320 7.5kW VFD ATV320U75N4B Variable Speed Drive

Description

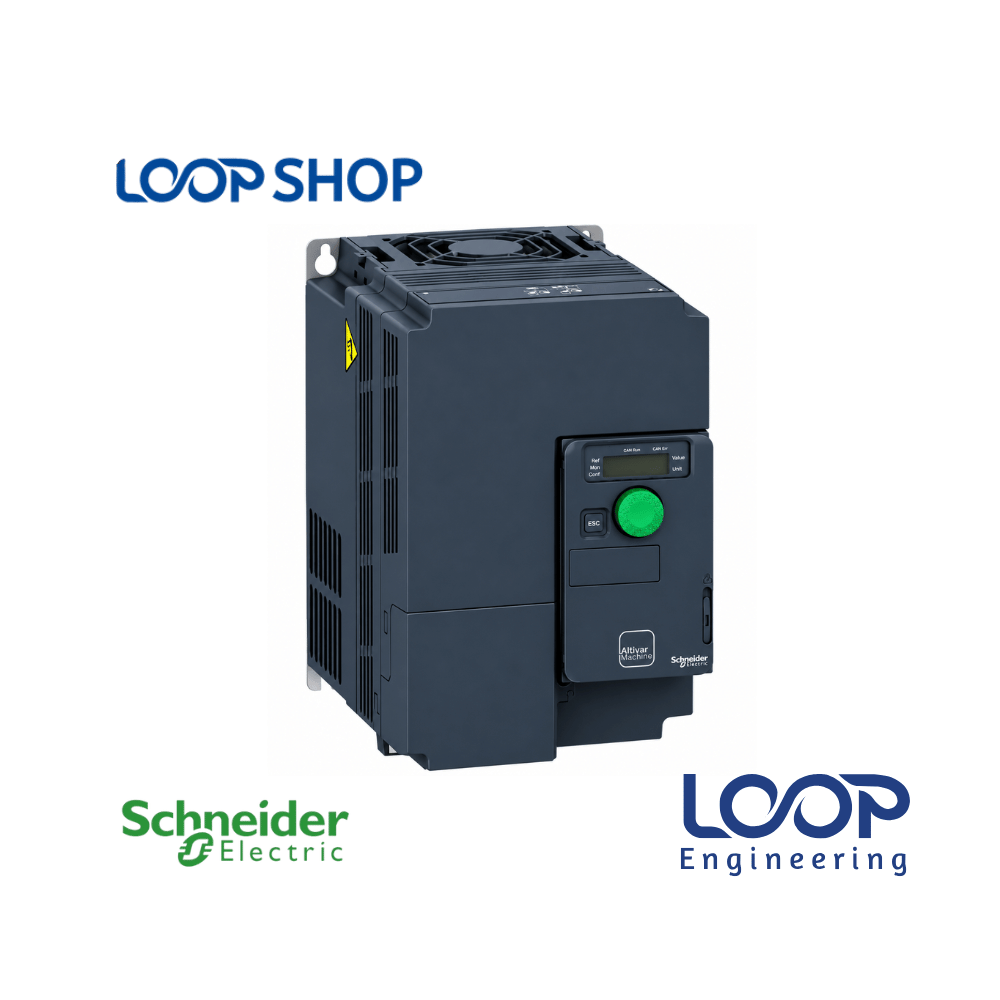

The Schneider Electric Altivar Machine ATV320 7.5kW VFD (ATV320U75N4B) is a versatile, heavy-duty Variable Frequency Drive engineered specifically for machine builders (OEMs) and process control lines. Operating across a standard 380V to 500V 3-phase AC power supply, it converts fixed utility power into variable frequency and voltage to deliver precise control over motor speed, acceleration ramps, and torque output.

Ideal for factory automation managers, maintenance engineers, and control system integrators across Bangladesh, the ATV320U75N4B combines exceptional motor control accuracy with integrated safety logic, helping streamline control cabinet designs while increasing operational efficiency.

Key Features

• Compact Book Form Factor: Narrow physical footprint allows direct side-by-side mounting in control panels without thermal derating, saving valuable enclosure space.
• Embedded Machine Safety: Integrated Safe Torque Off (STO) alongside SS1, SLS, SMS, and GDL safety logic complies with SIL 3 / PL e standards without external relays.
• Versatile Motor Control: Delivers precise vector speed control for both standard asynchronous induction motors and high-efficiency permanent magnet synchronous motors.
• Integrated Class C3 EMC Filter: Built-in noise filter suppresses high-frequency electromagnetic interference, protecting sensitive sensors and control instrumentation.
• Multi-Fieldbus Connectivity: Embedded Modbus RTU and CANopen interfaces with optional snap-in fieldbus modules for Ethernet/IP, Profinet, EtherCAT, and Modbus TCP.

Technical Advantages

• High Efficiency: Operates at over 97% drive efficiency at rated load, reducing heat dissipation inside control panels and lowering electrical loss.
• Durable Construction: Class 3C3 and 3S3 conformal coated printed circuit boards (PCBs) safeguard electronics against dust accumulation, high humidity, and atmospheric vapors.
• Safety Protection: Built-in functional safety logic eliminates secondary safety contactors, lowering wiring complexity and total component costs.
• Energy Saving: Dynamic energy optimization algorithms dynamically adjust output voltage under partial load conditions to lower operating expenses.
• Easy Maintenance: Quick parameter copying and configuration via intuitive keypad navigation or software tools shorten startup and setup times.

Applications

• Industrial Manufacturing: Textile spinning frames, dyeing machinery, packaging equipment, and material handling systems.
• Commercial Buildings: HVAC supply/exhaust fans, booster water pumps, and elevator hoist control.
• Factory Automation: Belt conveyors, screw feeders, industrial blowers, mixers, and agitators.
• Woodworking & Metal Processing: Saws, metal lathes, bending machines, and cutting tools.
• Project Installation: Industrial zone utility upgrades, OEM machinery builds, and municipal water management projects across Bangladesh.

Why Choose This Product?

• Reliability: Built to Schneider Electric’s global industrial standards for 24/7 continuous industrial duty cycles.
• Performance: High dynamic torque response and smooth speed regulation under heavy mechanical loads.
• Cost Effectiveness: Compact footprint cuts panel enclosure costs while embedded safety logic eliminates extra relays and contactors.
• After-Sales Value: Backed by complete technical documentation, parameter guidance, and reliable local support via loopshop.com.bd.

Technical Specification Table

Features List

✓ High efficiency 7.5kW heavy-duty motor speed control

✓ Compact book form factor for space-saving panel installation

✓ Integrated STO and multi-function machine safety protection

✓ Conformal coated circuit boards (3C3/3S3) for harsh environments

✓ Built-in Class C3 EMC filter for reduced noise interference

Benefits For Customers

• Reduces Electricity Cost: Adjusts power consumption dynamically according to real-time load demands, cutting operating bills.
• Improves Operational Reliability: Soft-starting capabilities eliminate high inrush current spikes and reduce mechanical wear on motor drives.
• Saves Maintenance Cost: Comprehensive electrical protection features guard against motor winding burnout and sudden line shutdowns.
• Suitable for Bangladesh Environment: Tropicalized conformal board coatings protect internal electronics against high atmospheric humidity and ambient dust.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-flammable surface inside a clean, ventilated control panel enclosure.
• Maintain clear surrounding space of at least 50 mm on both sides and 100 mm above and below the unit for proper cooling airflow.
• Connect incoming 380–500V 3-phase AC lines to terminals L1, L2, L3 and motor leads to terminals U, V, W with secure earthing.
• Use shielded power and signal cables to suppress electromagnetic interference (EMI).

Maintenance Tips:

• Clean cooling fan blades and heat sink cooling fins regularly to prevent dust accumulation.
• Periodically verify power and control terminal tightness to prevent high-resistance loose connections caused by machinery vibration.
• Track operational log history and internal drive temperature using the keypad terminal interface.

Safety Instructions:

• Always disconnect main AC power and wait at least 15 minutes for internal DC capacitors to discharge completely before servicing.
• Ensure protective ground wiring is tightly fastened before applying power to the unit.
• Installation, wiring, and parameter setup must strictly be performed by qualified electrical technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Schneider ATV320 Series 7.5kW VFD ATV320U75N4B in Bangladesh?

A: The price of the Schneider ATV320 7.5kW VFD in Bangladesh depends on market availability and import rates. Please check live prices or request a quote directly on loopshop.com.bd.

Q: Where can I buy original Schneider ATV320U75N4B VFD in Bangladesh?

A: You can purchase genuine Schneider Electric ATV320 series VFDs online from loopshop.com.bd with reliable delivery across Bangladesh.

Q: What warranty does the Schneider ATV320U75N4B product have?

A: This product is covered by standard warranty terms against manufacturing defects. Complete warranty policies are provided upon purchase at loopshop.com.bd.

Q: Is the Schneider ATV320 7.5kW VFD suitable for Bangladesh climate conditions?

A: Yes, it features 3C3 and 3S3 conformal coated circuit boards designed to resist high ambient humidity, atmospheric dust, and continuous heat in Bangladesh.

Q: How do I install the Schneider ATV320U75N4B 7.5kW VFD?

A: Installation involves vertical cabinet mounting, wiring a 380-500V 3-phase AC power input, connecting output motor cables, proper grounding, and configuring motor parameters using the keypad.

Q: What power supply voltage does the ATV320U75N4B support?

A: The drive operates on a 3-phase 380V to 500V AC power supply at 50/60 Hz.

Q: What is the advantage of the “Book” format in the ATV320 series?

A: The “Book” form factor features a tall, narrow physical design, allowing side-by-side mounting inside electrical panels to minimize overall enclosure width.

Q: Does this 7.5kW drive support synchronous permanent magnet motors?

A: Yes, the Altivar Machine ATV320 range is engineered to control both standard asynchronous induction motors and permanent magnet synchronous motors.

Q: What safety functions are built into this Schneider VFD?

A: It includes built-in Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), and Guard Door Locking (GDL) safety logic.

Q: Can I get technical support for setting up Schneider VFDs in Bangladesh?

A: Yes, loopshop.com.bd provides technical guidance, wiring documentation, and parameter setup advice for industrial automation customers in Bangladesh.
