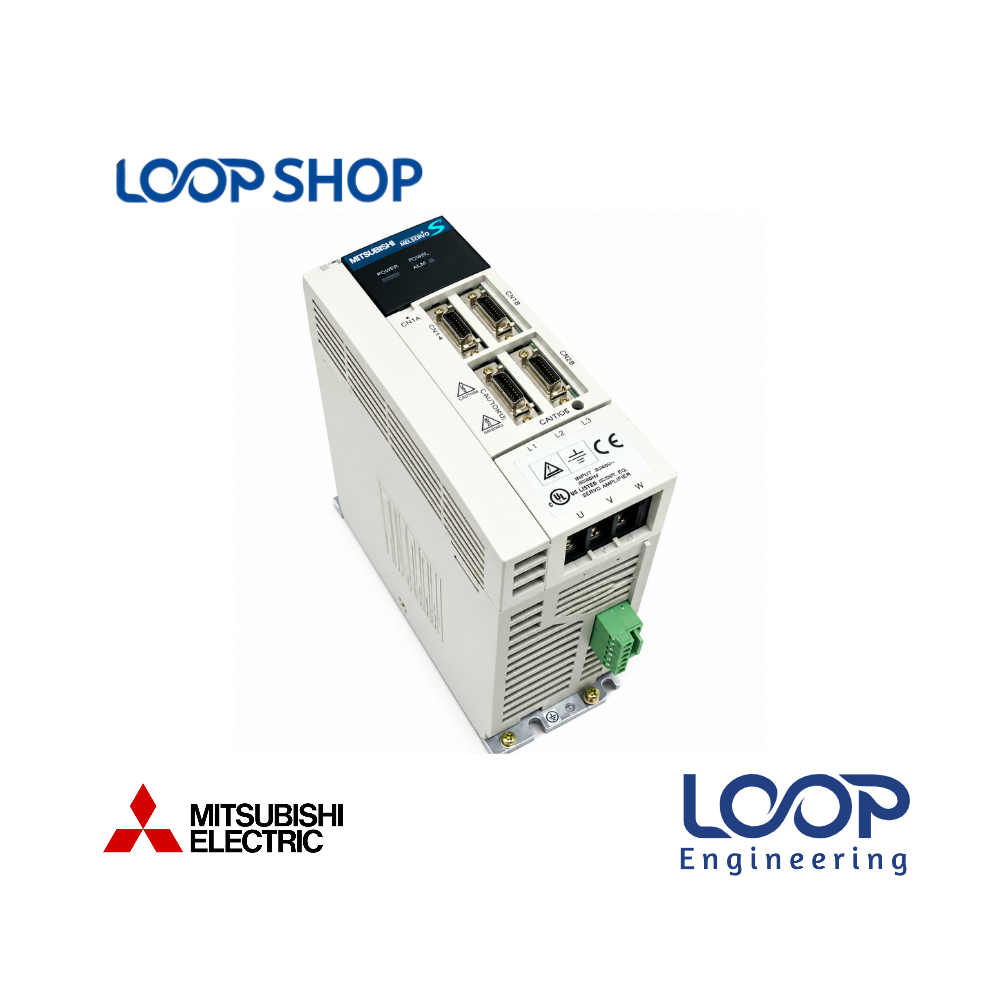

Mitsubishi MR-J2S-100A 1kW AC Servo Drive High Precision Industrial

Description

The Mitsubishi MR-J2S-100A 1kW AC Servo Drive is an industrial-grade AC motion control amplifier manufactured by Mitsubishi Electric. Belonging to the proven MELSERVO J2-Super series, this 1.0kW general-purpose drive converts controller commands into precise electrical outputs to govern motor speed, positioning, and output torque.

Designed for machinery manufacturers, panel integrators, and factory maintenance engineers across Bangladesh, the MR-J2S-100A delivers high dynamic response and operational stability. Featuring advanced real-time automatic tuning, mechanical resonance suppression filters, and 17-bit high-resolution optical encoder feedback support (131,072 pulses/rev), this driver simplifies setup while maintaining high productivity under continuous industrial workloads.

Key Features

• 1000W (1.0kW) rated output power capacity operating on 200V–230V AC power supply networks.
• Universal interface (“A” version) supporting Pulse Train, Analog Voltage, and RS-422 serial communications.
• Speed loop frequency response exceeding 550 Hz for rapid dynamic positioning.
• Advanced Real-Time Automatic Tuning automatically adjusts gain values according to mechanical load variations.
• Adaptive vibration suppression control and mechanical analysis functions to suppress machine resonance.
• Supports 17-bit high-resolution absolute/incremental encoder feedback (131,072 pulses/rev) for micro-positioning accuracy.
• Compact panel-mount design with front-panel 5-digit LED status display and programming keys.

Technical Advantages

• High Efficiency Engine: Sine-wave PWM current control minimizes electrical losses and internal thermal buildup during continuous dynamic duty cycles.
• Durable Construction: Built with heavy-duty aluminum thermal heatsinks and rugged industrial housing for long operational service life.
• Safety & Circuit Protection: Comprehensive built-in protection guards against overcurrent, overvoltage, undervoltage, overload, overspeed, and motor overheat.
• Energy Saving Operation: Power-saving vector management modulates electrical power consumption strictly relative to real-time load resistance.
• Easy Maintenance & Diagnostics: Front connector layout, USB/serial software diagnostics, and simple terminal wiring reduce setup and maintenance overhead.

Applications

• Industrial: CNC milling and routing machinery, automated assembly cells, material transfer units, and robotic gantries.
• Factory: High-speed packaging equipment, textile spinning and weaving machinery, printing presses, and automated labeling heads.
• Project Installation: Automated sorting conveyors, linear positioning tables, and custom plant automation gantries.

Why Choose This Product?

• Proven Japanese Quality: Manufactured by Mitsubishi Electric, setting global industry standards for motion control accuracy and reliability.
• Unmatched Dynamic Response: 550 Hz frequency response bandwidth eliminates position tracking lag and machinery chatter.
• Cost Effectiveness: Compact footprint and real-time auto-tuning reduce panel space requirements and commissioning costs.
• After-Sales Value: Available via loopshop.com.bd with localized customer support, technical documentation, and fast delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-performance 1000W AC servo drive amplifier

✓ Advanced Real-Time Automatic Tuning for quick setup

✓ Supports position, speed, and torque control modes

✓ Built-in adaptive vibration suppression control filters

✓ RS-422 serial communication and front setup interface

Benefits For Customers

• Reduces Electricity Cost: Closed-loop sine-wave PWM vector execution limits unnecessary reactive energy draw.
• Improves Operational Reliability: 17-bit high-resolution encoder feedback eliminates positioning drift and product quality flaws.
• Saves Maintenance Cost: Automated gain tuning and adaptive notch filtering reduce mechanical stress on gearboxes and couplings.
• Suitable for Bangladesh Environment: Rugged IP20 metal housing operates reliably in ambient temperatures up to 55 °C inside BD factory panels.

Installation & Maintenance Guide

Installation Requirements:

• Mount the drive unit vertically inside a clean, well-ventilated metal control cabinet to ensure adequate natural convective cooling airflow.
• Maintain recommended clearance margins above, below, and on both sides of the drive unit as specified by Mitsubishi layout guidelines.
• Connect AC line supply power using proper protective circuit breakers and bond the Protective Earth (PE) terminal firmly.
• Use shielded twisted-pair cables for pulse command inputs, analog signals, and encoder feedback to mitigate electrical noise.

Maintenance Tips:

• Periodically clean drive heat sink fins and cabinet intake filters to prevent industrial dust buildup from impairing heat dissipation.
• Routinely check screw terminal block connections and front plug connectors to ensure firm physical contact.
• Verify control cabinet exhaust fans operate properly to keep ambient enclosure temperatures below 55 °C.

Safety Instructions:

• Always disconnect main line AC power before conducting wiring, inspection, or terminal maintenance work.
• Wait a minimum of 15 minutes post power-off to allow internal high-voltage storage capacitors to fully discharge before touching connections.
• Never apply main AC power directly to motor output terminals U, V, and W, as doing so will cause catastrophic damage to the drive.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi MR-J2S-100A 1kW Servo Drive in Bangladesh?

A: Pricing depends on import tariff rates and live stock availability. Please check loopshop.com.bd or contact our customer support team for an updated live quotation.

Q: Where can I buy Mitsubishi 1kW Servo Drive MR-J2S-100A in Bangladesh?

A: You can purchase genuine Mitsubishi MR-J2S-100A servo drives online directly through loopshop.com.bd with nationwide delivery across BD.

Q: What power input supply is required for the MR-J2S-100A drive?

A: It accepts 200V to 230V AC line power on either single-phase or 3-phase inputs (50/60 Hz).

Q: What warranty does this product have?

A: It includes a standard manufacturer warranty covering technical and manufacturing defects. Check loopshop.com.bd for specific warranty terms.

Q: Is this servo drive suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial thermal engineering allow it to perform reliably in factory panel conditions up to 55 °C.

Q: Which servo motor series pair with the MR-J2S-100A amplifier?

A: It is designed to drive matching 1.0kW Mitsubishi HC and HF series AC servo motors (such as model HC-SFS102 / HC-KFS73).

Q: What control interfaces are available on the MR-J2S-100A?

A: It features pulse train input for position control, analog voltage input for speed/torque control, and RS-422 serial communication.

Q: How to install this product?

A: Mount vertically inside a metal cabinet, connect 200V AC power, ground PE terminal, motor power phases (U, V, W), and encoder lines. Commission using Mitsubishi setup software.

Q: What encoder resolution does the MR-J2S-100A support?

A: It supports 17-bit high-resolution optical encoders delivering 131,072 pulses per revolution.

Q: Is post-purchase technical support available in BD?

A: Yes, loopshop.com.bd provides sales verification, technical datasheets, and guidance for industrial products purchased through our store.
