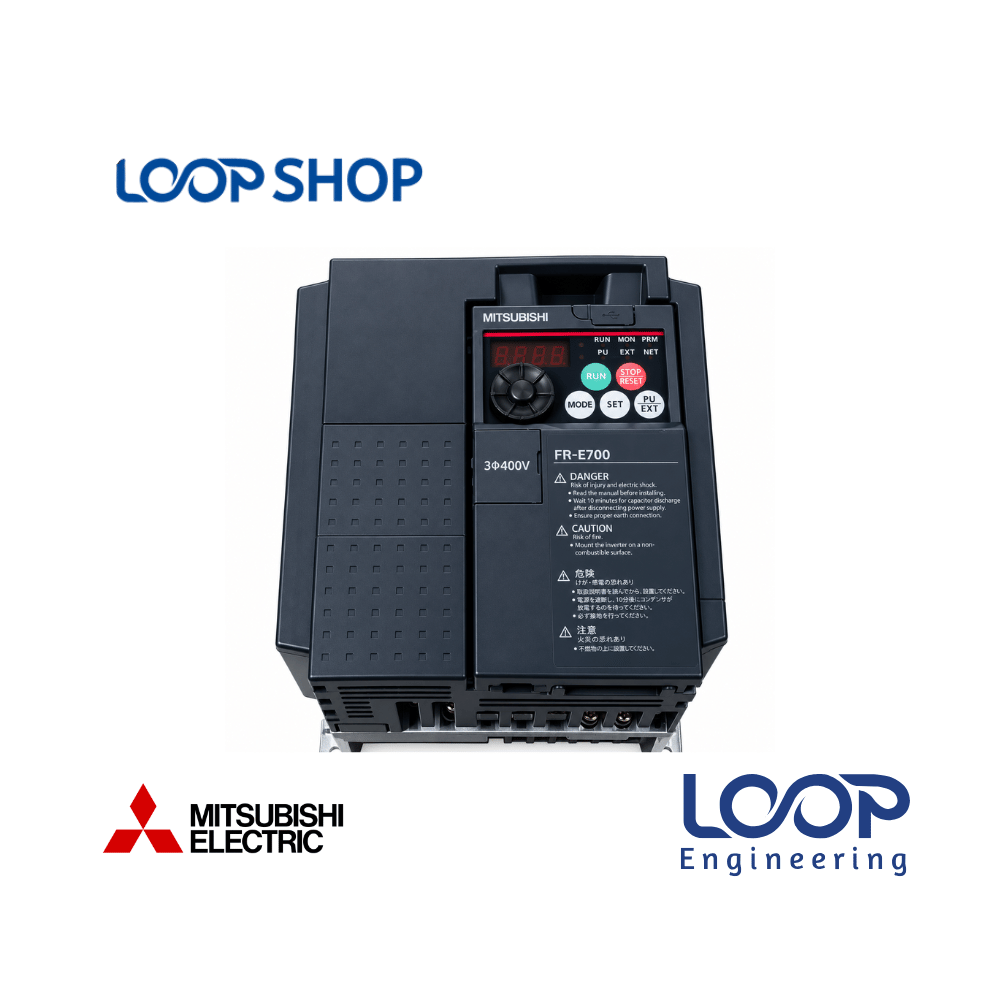

Mitsubishi FR-E740-3.7K E700 Series 3.7kW VFD Industrial Motor Drive

Description

The Mitsubishi FR-E740-3.7K is a versatile and compact 3.7kW (5 HP) Variable Frequency Drive (VFD) from Mitsubishi Electric’s widely popular E700 Series. Built to regulate the speed, torque, and power output of 3-phase AC induction motors, it delivers high performance in a compact footprint that saves panel installation space.

Utilizing Mitsubishi’s Advanced Magnetic Flux Vector Control, the FR-E740-3.7K provides reliable torque and steady speed response across varying load conditions. For textile mills, automated manufacturing plants, commercial HVAC, and agricultural processing facilities across Bangladesh, this drive ensures improved process accuracy, lower utility power expenses, and reduced wear on motor drive assemblies.

Key Features

• Advanced Magnetic Flux Vector Control: Achieves outstanding low-speed starting torque (up to 200% at 0.5Hz) for high-demand loads without needing encoder feedback.
• Compact Enclosure Footprint: Delivers maximum power density in a small housing, saving valuable electrical panel space.
• Integrated Safety Functionality: Incorporates Safe Torque Off (STO) hardware inputs for reliable emergency stop safety compliance.
• Modbus-RTU & USB Communication: Built-in RS-485 Modbus-RTU port and mini-USB terminal facilitate quick parameter setup via Mitsubishi FR Configurator software.
• Heavy-Duty Overload Capacity: Supports heavy overload margins (150% for 60 seconds, 200% for 0.5 seconds) to absorb peak motor starting surges smoothly.

Technical Advantages

• High Efficiency: Modern power switching circuitry minimizes heat generation and internal power losses during continuous operation.
• Durable Construction: Industrial-grade PCB coating protects delicate micro-components from moisture, high humidity, and atmospheric dust.
• Safety Protection: Comprehensive protective logic guards against overcurrent, overvoltage, short circuits, earth faults, phase loss, and thermal overload.
• Energy Saving: Dynamic excitation control automatically optimizes output voltage under partial motor loads to lower electricity costs.
• Easy Maintenance: Quick-release cooling fan assemblies and removable terminal blocks ensure simple servicing with minimal operational downtime.

Applications

• Industrial & Manufacturing: Conveyor systems, packaging machinery, mixers, agitators, and material handling systems.
• Factory Automation: Textile spinning and weaving equipment, paper processing lines, and plastic processing machinery.
• Commercial Facilities: HVAC supply and exhaust fans, cooling tower fans, water booster pumps, and industrial blowers.
• Project Installation: Industrial control panels, motor control centers (MCC), and retrofitting projects built by system integrators across Bangladesh.

Why Choose This Product?

• Reliability: Built to Mitsubishi Electric’s world-class engineering standards for long-term 24/7 continuous industrial duty.
• Performance: Exceptional dynamic torque regulation prevents motor stalling during sudden mechanical load changes.
• Cost Effectiveness: Delivers high power control performance at a competitive price while cutting operational electricity costs.
• After-Sales Value: Supported in Bangladesh by Loop Shop with technical parameter guidance, verified sourcing, and reliable customer service.

Technical Specification Table

Features List

✓ Advanced Magnetic Flux Vector Control

✓ Integrated Safe Torque Off (STO) safety circuit

✓ Conformal-coated PCBs for humid industrial environments

✓ Space-saving compact housing layout

✓ USB & RS-485 Modbus-RTU communication support

Benefits For Customers

• Reduces Electricity Cost: Dynamic excitation control optimizes motor power consumption under partial load conditions.
• Improves Operational Reliability: Soft-starting eliminates abrupt mechanical starting shocks, extending belt, gear, and coupling service life.
• Saves Maintenance Cost: Early diagnostic warnings alert technical crews to electrical anomalies before critical motor failure occurs.
• Suitable for Bangladesh Environment: Conformal-coated electronics withstand high room ambient temperatures and atmospheric humidity across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside an IP54-rated, well-ventilated electrical control panel to shield against airborne dust, oil mist, and lint.
• Maintain recommended top, bottom, and side clearances around the drive chassis for unrestricted cooling airflow.
• Connect a dedicated 3-phase earth ground and use shielded control cables to prevent electromagnetic interference (EMI).

Maintenance Tips:

• Clean heat sink fins and cooling fans regularly using dry, low-pressure compressed air.
• Inspect electrical terminal block screw tightness at scheduled intervals to prevent loose wiring caused by machine vibration.
• Monitor diagnostic alarm codes on the digital keypad display or software tools during routine plant maintenance checks.

Safety Instructions:

• Always disconnect incoming 3-phase AC power lines and wait at least 10 minutes for internal DC capacitors to discharge completely before touching terminal screws.
• Electrical installation, parameter tuning, and commissioning must be carried out by qualified electrical engineers or technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi FR-E740-3.7K 3.7kW VFD in Bangladesh?

A: Product prices vary depending on stock availability and import logistics. Please check the current updated price directly on loopshop.com.bd or contact our customer support team.

Q: Where can I buy original Mitsubishi FR-E740-3.7K VFD in Bangladesh?

A: You can purchase genuine Mitsubishi industrial automation products online directly from Loop Shop Bangladesh at loopshop.com.bd.

Q: What warranty does this product have?

A: It carries a standard supplier/manufacturer warranty. Detailed terms are available on the Loop Shop policy page during checkout.

Q: Is this VFD suitable for Bangladesh climate conditions?

A: Yes, the FR-E740 series features coated PCBs specifically engineered to resist high ambient temperatures and local factory humidity.

Q: How to install this product?

A: Mount vertically inside a protective electrical enclosure. Connect 3-phase AC input power, motor output lines, and ground wiring following the official Mitsubishi installation manual.

Q: What motor horsepower is compatible with this 3.7kW VFD?

A: This 3.7kW inverter is rated to drive standard 5 HP 3-phase AC induction motors.

Q: Can this drive be used for high starting torque loads?

A: Yes, Advanced Magnetic Flux Vector Control provides up to 200% starting torque at 0.5Hz, making it ideal for heavy starting loads.

Q: Does Loop Shop supply VFDs across all districts in Bangladesh?

A: Yes, Loop Shop delivers industrial automation equipment nationwide, including Dhaka, Chittagong, Gazipur, Narayanganj, and Sylhet.

Q: Does this drive support RS-485 Modbus communication?

A: Yes, it includes built-in RS-485 Modbus-RTU and mini-USB communication ports for system integration and parameter setup.

Q: Can I get parameter configuration support from Loop Shop?

A: Yes, Loop Shop provides basic parameter guidance and technical support for industrial customers in Bangladesh.
