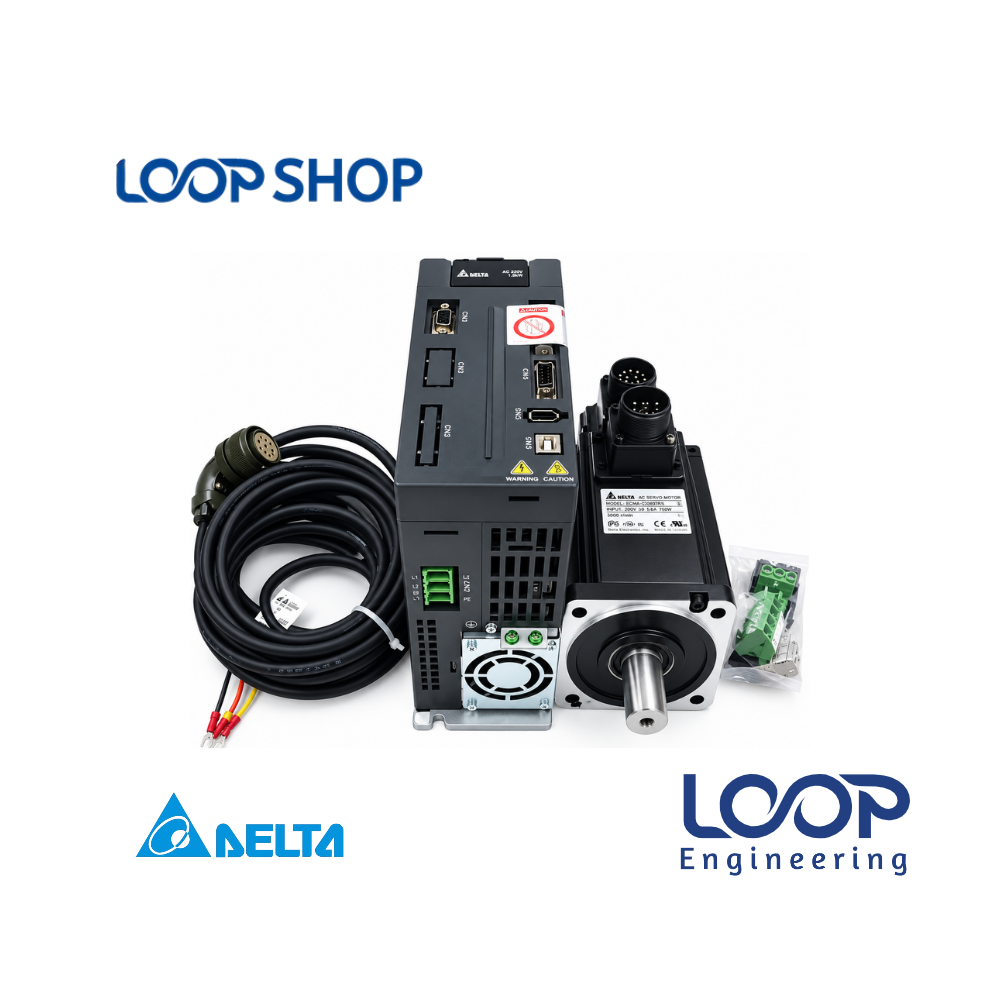

Delta ASDA-B2 ECMA 750W B2 Servo Drive Motor Set Industrial

Description

The Delta 750W ASDA ECMA B2 Series AC Servo Drive Motor Set is a high-performance, cost-effective motion control package engineered for demanding industrial equipment. Combining Delta’s ASDA-B2 digital servo drive with a matching 0.75kW ECMA AC servo motor, this system converts digital pulse and analog commands into precise rotational velocity, exact position outputs, and stable torque.

Designed for machinery manufacturers, panel builders, and industrial automation technicians in Bangladesh, this 750W servo set offers a 17-bit high-resolution optical encoder and built-in mechanical resonance notch filters. Whether retrofitting existing textile machinery, equipping high-speed packaging lines, or assembling CNC axes, the ASDA-B2 / ECMA system delivers reliable dynamic response and operational efficiency under continuous production workloads.

Key Features

• Matched 750W (0.75kW) ASDA-B2 series AC drive and ECMA AC servo motor set
• Integrated 17-bit high-resolution optical encoder providing 160,000 pulses per revolution
• Rated operational speed of 3000 RPM with 2.39 N·m rated output torque
• Flexible control options: Built-in Position (Pt), Speed, and Torque control modes
• Supports high-speed differential command inputs up to 4Mpps
• Built-in mechanical resonance notch filters to minimize structural machine vibration
• Separated power terminal arrangement for control circuits and main power lines to streamline setup and safety

Technical Advantages

• High Efficiency Engine: Advanced closed-loop vector control algorithm minimizes electrical energy losses during continuous dynamic operation.
• Durable Construction: Industrial-grade housing, heavy-duty aluminum heatsinks, and robust motor construction ensure long service life.
• Safety Protection: Integrated hardware protection guards against main circuit overcurrent, overvoltage, undervoltage, thermal overload, and short circuits.
• Energy Saving Operation: Dynamic current modulation optimizes power consumption strictly in response to real-time load demand.
• Easy Maintenance: Commissioning and parameter configuration are simplified via ASDA-Soft PC software or front-panel digital LED status controls.

Applications

• Industrial: CNC routing axes, automated pick-and-place gantries, linear positioners, and robotic automation cells.
• Factory: High-speed packaging machinery, textile spinning and weaving systems, labeling heads, and printing presses.
• Project Installation: Automated sorting mechanisms, material handling conveyors, and custom factory automation lines.

Why Choose This Product?

• Proven Reliability: Engineered by Delta Electronics, a worldwide benchmark in power electronics and motion control.
• High Performance: Up to 550Hz speed frequency bandwidth ensures rapid settling times and reduces positioning errors.
• Cost Effectiveness: Combines high-resolution feedback and robust drive electronics into an economical industrial package.
• After-Sales Value: Localized availability through loopshop.com.bd with technical documentation and fast delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-performance 750W AC servo drive and motor kit

✓ 17-bit high-resolution optical encoder feedback

✓ Supports position, speed, and torque control modes

✓ Mechanical resonance notch filters for smooth stability

✓ High-speed pulse command capability up to 4Mpps

Benefits For Customers

• Reduces Electricity Cost: High-efficiency vector control limits reactive power consumption during continuous dynamic motion.
• Improves Operational Reliability: Precise closed-loop positioning eliminates position drift and product quality flaws.
• Saves Maintenance Cost: Brushless motor construction and digital tuning software minimize regular mechanical maintenance.
• Suitable for Bangladesh Environment: Thermally stable design and rugged housing operate dependably in warm BD factory panels.

Installation & Maintenance Guide

Installation Requirements:

• Mount the servo drive vertically inside a clean, well-ventilated enclosure to allow proper convective heat dissipation.
• Secure the 80mm motor flange firmly to a rigid mechanical frame to prevent vibration during rapid start-stop cycles.
• Route encoder feedback wiring through separate conduits away from high-voltage main motor power cables.
• Use shielded twisted-pair cables for pulse and analog control signals, ensuring class-3 ground bonding to reduce noise.

Maintenance Tips:

• Periodically inspect drive heatsink fins and motor housing to clean away ambient industrial dust.
• Check terminal block screws, power line terminals, and connector plugs routinely for firm contact.
• Ensure control panel cooling fans function correctly to keep enclosure temperatures within safe operating limits.

Safety Instructions:

• Always disconnect main line AC power before touching terminal wiring, connections, or conducting maintenance.
• Wait a minimum of 10 minutes post power-off to ensure internal high-voltage capacitors have fully discharged.
• Never apply AC main line power directly to motor output terminals U, V, and W, as this will permanently destroy internal drive modules.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta 750W ASDA ECMA B2 Series AC Servo Drive Motor in Bangladesh?

A: Pricing depends on import tariffs and live stock availability. Please check loopshop.com.bd or contact our sales team for an updated live quotation.

Q: Where can I buy Delta 750W B2 Servo Drive Motor Set in Bangladesh?

A: You can purchase genuine Delta 750W B2 servo kits online directly through loopshop.com.bd with reliable nationwide delivery in BD.

Q: What supply voltage does the Delta 750W B2 servo system require?

A: It operates on 200V to 230V AC line power, accepting either single-phase or 3-phase inputs.

Q: What warranty does this product have?

A: The kit includes a standard manufacturer warranty covering defects in materials and craftsmanship. Check loopshop.com.bd for specific warranty terms.

Q: Is this servo set suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial thermal design allow it to perform reliably in factory panel environments across BD.

Q: What encoder resolution does this 750W B2 motor feature?

A: It incorporates a 17-bit incremental optical encoder delivering 160,000 pulses per revolution.

Q: What control modes are available on the ASDA-B2 drive?

A: It supports Built-in Position (Pt), Speed, and Torque control modes.

Q: What is the rated speed of the 750W ECMA B2 servo motor?

A: The motor operates at a rated speed of 3000 RPM with a rated torque of 2.39 N·m.

Q: How to install this product?

A: Mount the drive vertically, bolt the motor flange to your assembly, connect 220V AC input power, ground terminals, motor power phases (U, V, W), and encoder feedback connectors. Parameters can be set via ASDA-Soft software.

Q: Is post-purchase technical support available in BD?

A: Yes, loopshop.com.bd provides sales verification, datasheets, and technical guidance for industrial automation hardware bought from our platform.
