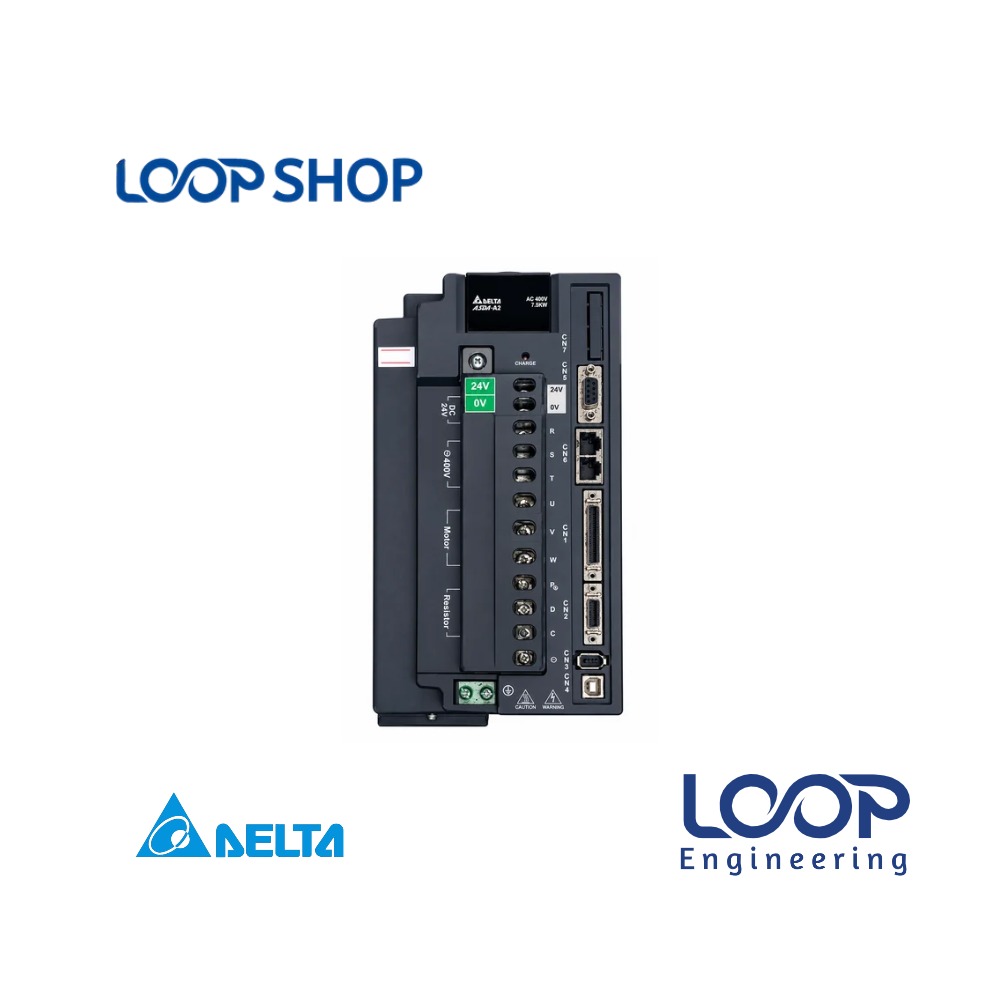

Delta ASD-A2-7543-M 7.5kW A2 AC Servo Drive High Precision Industrial

Description

The Delta 7.5kW A2 Series AC Servo Drive (ASD-A2-7543-M) is an advanced, high-performance motion control drive designed to deliver superior positioning accuracy, fast response time, and high dynamic control for heavy industrial machinery. Operating as the control nerve center for Delta ECMA series AC servo motors, this 400V 3-phase drive converts digital control signals into precise electrical currents, ensuring exact speed, torque, and position regulation.

Designed for machinery manufacturers, system integrators, and automation engineers across Bangladesh, the ASD-A2-7543-M provides built-in motion control capabilities that simplify complex multi-axis control setups. Whether you are building new automated packaging lines or replacing legacy drives in textile and CNC factories, this drive ensures seamless operational stability and enhanced energy efficiency.

Key Features

• High power output capacity of 7.5kW designed for heavy-duty servo motor driving
• Supports high-resolution encoder feedback for micrometer-level positioning accuracy
• Integrated CANopen and DMCNET communication protocols for high-speed network integration
• Built-in Electronic Cam (E-CAM) control function for complex mechanical motions
• Flexible PR mode with 64 programmable internal motion commands
• Built-in dynamic braking circuit for fast and safe deceleration
• Comprehensive protection against overcurrent, overvoltage, overheat, and phase loss

Technical Advantages

• High Efficiency Motion Control: High-frequency pulse handling and digital loop processing reduce cycle times and maximize throughput.
• Durable Construction: Heavy-duty aluminum heat sinks and industrial-grade internal componentry resist continuous thermal loads.
• Safety Protection: Multi-layered protective circuits guard internal components against voltage fluctuations and phase imbalance.
• Energy Saving Operation: Advanced PWM vector control optimizes motor current delivery, reducing power loss under dynamic load conditions.
• Easy Maintenance: Plug-and-play wiring connectors, clear digital LED status displays, and software diagnostics simplify system troubleshooting.

Applications

• Industrial: Heavy manufacturing plants, automated assembly cells, metal cutting, and wire drawing machines.
• Factory: High-speed textile machines, automated printing presses, plastic processing equipment, and CNC routing.
• Project Installation: Automated storage and retrieval systems (ASRS), industrial robotics, continuous conveying systems, and custom automation.

Why Choose This Product?

• Proven Reliability: Manufactured by Delta Electronics, a global benchmark in industrial automation and power management.
• Superior Performance: Unmatched dynamic response and synchronization capabilities prevent positioning errors in continuous operations.
• Cost Effectiveness: Combines drive and PLC motion functions in a single unit, significantly lowering system hardware and panel wiring costs.
• After-Sales Value: Backed by local delivery, technical documentation, and customer support through loopshop.com.bd in Bangladesh.

Technical Specification Table

Features List

✓ High-performance 7.5kW 3-phase AC servo drive

✓ Advanced internal PR mode and built-in E-CAM function

✓ CANopen and DMCNET industrial network integration

✓ Rapid dynamic response with high-resolution position feedback

✓ Integrated multi-layer protective hardware for harsh industrial grids

Benefits For Customers

• Reduces Electricity Cost: Vector control algorithm minimizes unnecessary thermal and power losses.
• Improves Operational Reliability: Prevents machine downtime and product defects caused by speed or position fluctuations.
• Saves Maintenance Cost: Eliminates mechanical wear by utilizing smooth software-driven Electronic Cams.
• Suitable for Bangladesh Environment: Rugged housing and thermal design handle local industrial temperatures and grid conditions effectively.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside a clean, well-ventilated enclosure to allow natural convection airflow over the cooling fins.
• Maintain minimum clearance space around the top, bottom, and sides of the drive as per Delta panel layout guidelines.
• Ensure proper 3-phase 400V class power grounding and use twisted-pair shielded cables for encoder and signal terminals to avoid EMI interference.

Maintenance Tips:

• Routinely check and clean heat sinks to prevent dust buildup from impairing heat dissipation.
• Verify that all screw terminals, control power wiring, and communication connectors remain tight and secure.
• Monitor ambient panel temperature and ensure cabinet exhaust fans are functioning properly.

Safety Instructions:

• Always isolate the main power source before attempting any wiring, maintenance, or inspection work.
• Wait at least 10 minutes after powering off to allow internal high-voltage capacitors to fully discharge before touching terminals.
• Never connect AC line power directly to the motor output terminals (U, V, W), as this will cause catastrophic damage to the drive.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta 7.5kW A2 Servo Drive ASD-A2-7543-M in Bangladesh?

A: Prices vary based on stock status and import duties. Please check the real-time price on loopshop.com.bd or contact our sales hotline for a competitive quotation.

Q: Where can I buy Delta 7.5kW Servo Drive ASD-A2-7543-M in Bangladesh?

A: You can order genuine Delta ASD-A2-7543-M servo drives online directly through loopshop.com.bd with reliable island-wide delivery in Bangladesh.

Q: Which voltage rating is required for the ASD-A2-7543-M drive?

A: This model belongs to Delta’s 400V class and operates on 3-phase AC line voltage (typically 380V to 480V AC).

Q: What warranty does this product have?

A: The product is covered under Delta’s standard manufacturer warranty against manufacturing defects. Check loopshop.com.bd for specific warranty terms.

Q: Is this drive suitable for the Bangladesh industrial climate?

A: Yes, it is constructed to operate reliably in humid, hot, and dust-prone industrial cabinet environments when properly ventilated.

Q: Which servo motors are compatible with ASD-A2-7543-M?

A: It is designed to drive matching 7.5kW Delta ECMA series AC servo motors (such as model ECMA-LA1875R3).

Q: How to install this product?

A: Mount the drive vertically inside a control panel, connect the 3-phase input power, ground terminals, motor output (U, V, W), and encoder feedback. Commissioning can be performed using Delta’s ASDA-Soft software via USB.

Q: Does ASD-A2-7543-M support communication networks?

A: Yes, the “M” suffix in the model number designates CANopen and DMCNET high-speed motion control communication support.

Q: Can this drive perform motion control without an external PLC?

A: Yes, it features built-in PR mode with 64 programmable commands and E-CAM control to handle autonomous motion sequences.

Q: Is technical support available after buying from loopshop.com.bd?

A: Yes, loopshop.com.bd provides sales verification, product documentation, and customer support for all industrial automation equipment.
