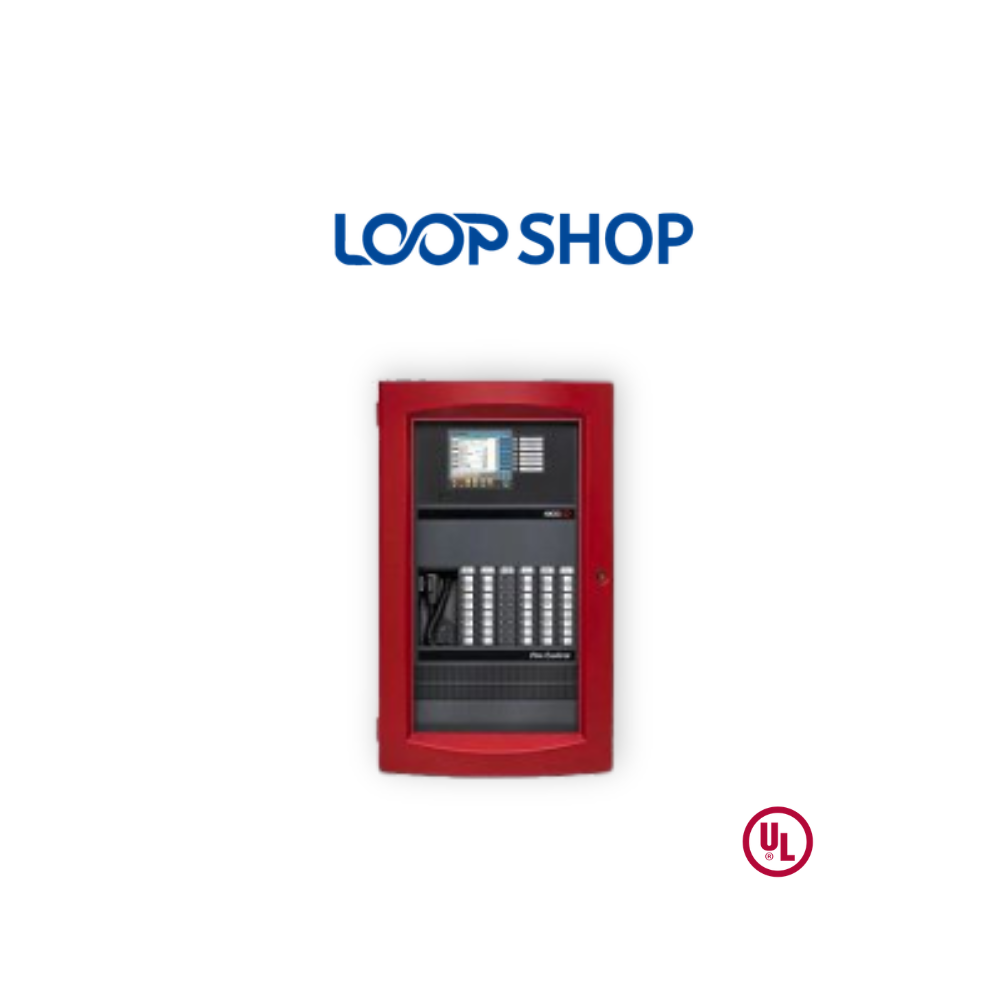

Simplex 4100ES Addressable Fire Alarm Control Panel

Description

The Simplex 4100ES is a high-capacity, fully networkable intelligent addressable fire alarm control panel engineered to manage the complex structural and life-safety demands of medium-to-large commercial facilities and multi-building campus networks. Supporting up to 3,000 addressable points, the 4100ES delivers seamless addressability across both initiating and notification circuits. This premier solution offers advanced high-speed IP networking, dual-rate temperature-compensated battery charging, and integrated emergency voice communications listed to UL 2572 standards for mass notification, providing an unrivaled, future-proof command center.

Technical Specifications

Advanced System Integration & Expansion Bay Modular Setup

As detailed in the technical documentation framework and image_52e925_2.png, the Simplex 4100ES utilizes a highly efficient expansion bay chassis layout. The system mounts specialized modules in a rigid, block-and-slot architecture (Blocks A through H), ensuring the control unit can be custom-tailored to each facility’s precise zone capacity requirements. The 4100ES arrives custom-built and ready to connect, simplifying field installation and radically lowering infrastructure labor costs.

• Multi-Hazard Suppression Support: Agency-listed for specialized releasing device service, allowing seamless programmatic control of suppression release sequences right from the panel interface.
• Smart System Interconnectivity: Integrates natively with Johnson Controls Metasys building automation systems and security layers. Supports standard communication protocols including BACnet and Modbus to synchronize smoke dampers, elevators, air pressurization, and magnetic door holders.

Integrated Firefighter Telephone & Emergency Audio Networks

• Emergency Voice Communications: Features a robust digital message player, up to 5 supervised remote microphone inputs, and a local panel speaker for broadcast verification. Audio amplifiers are power-rated for 25 VRMS or 70.7 VRMS outputs.
• Fail-Safe Firefighter Telephone Systems: Allows a master phone module to communicate with up to 6 remote party-line telephones simultaneously over supervised lines (up to 7,500 ft distance). Features a Degraded Mode that enables remote phone circuits to remain actively connected to each other even if communications with the host CPU are lost.

Frequently Asked Questions (FAQ)

Q1: What is the primary application area for the Simplex 4100ES?
A: The Simplex 4100ES is explicitly designed for medium-to-large scale facilities, high-rise buildings, multi-building institutions, and university campus infrastructure requiring intelligent addressable networking.

Q2: How many total addressable points can this system manage?
A: A single panel supports up to 3,000 addressable address points, interacting flawlessly with TrueAlarm sensors and TrueAlert ES notification appliances.

Q3: Does the system include voice evacuation capabilities?
A: Yes, it features built-in emergency voice/alarm communications, supporting dual-channel analog systems or digital audio networks capable of managing up to eight simultaneous audio paths.

Q4: Can this control panel actuate suppression releasing systems?
A: Yes, it is officially agency-listed for multi-hazard suppression release control, allowing direct programmatic integration with gas or specialized clean agent extinguishing systems.

Q5: What brand family does this panel belong to and what is its origin?
A: The unit belongs to the world-renowned Simplex fire safety portfolio by Johnson Controls, manufactured with absolute precision in Mexico.
