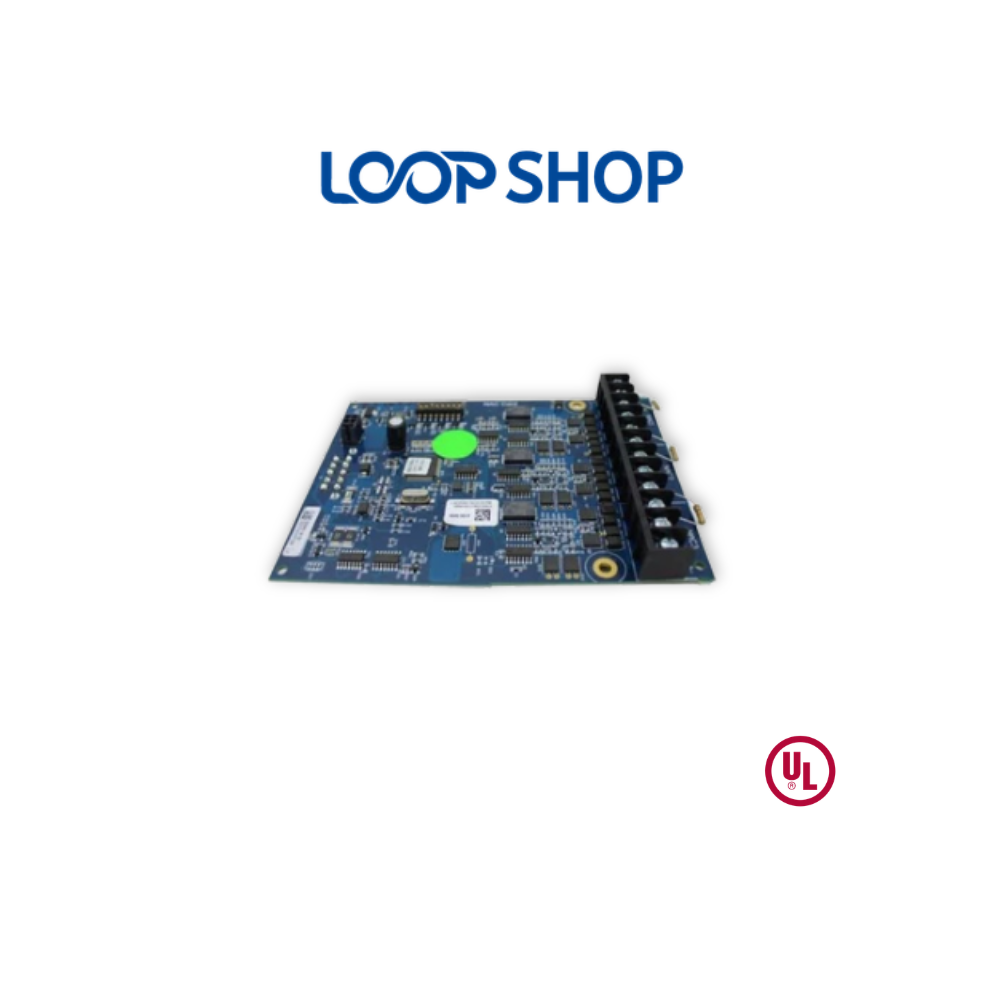

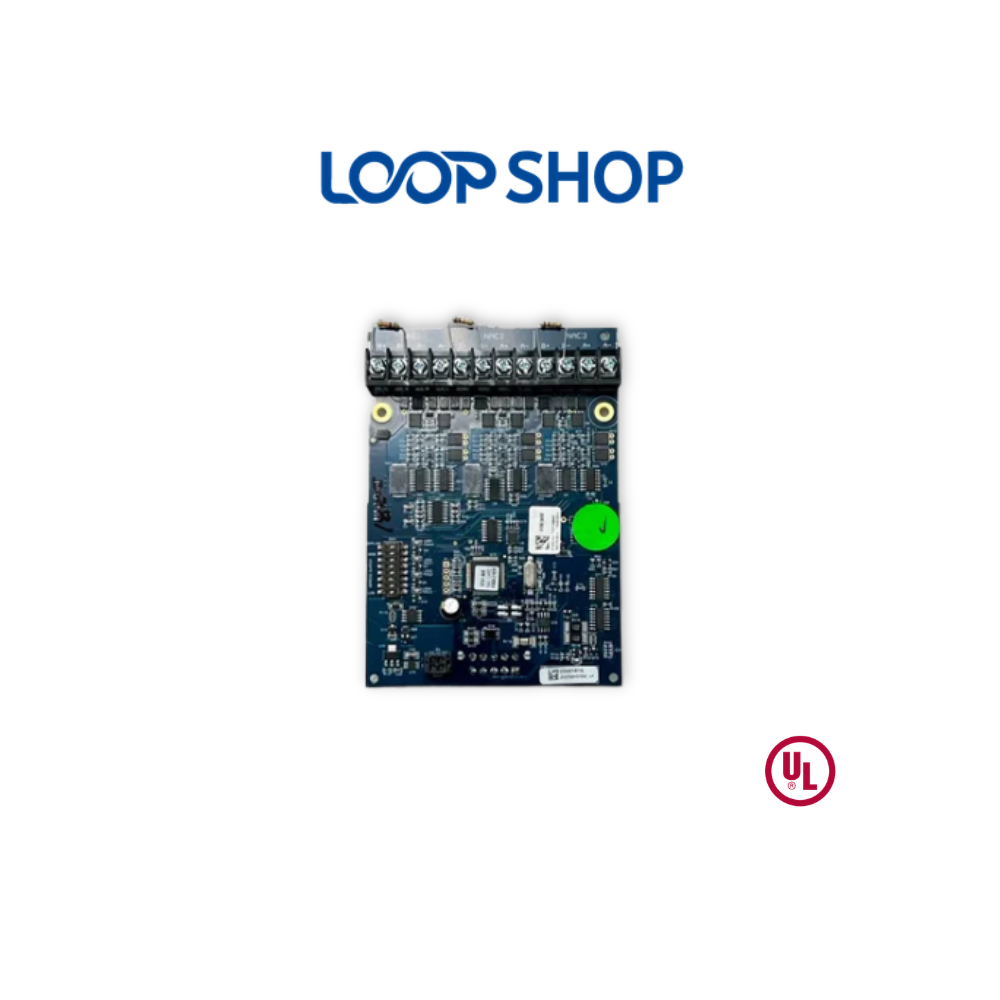

Simplex 4100-5451 Addressable NAC Card

Description

The Simplex 4100-5451 Addressable NAC Card is a high-integrity intelligent notification circuit expansion component designed to enhance the signaling and power capabilities of modern fire alarm control networks. Functioning as a high-performance IDNAC Signaling Line Circuit (SLC) module, this card mounts directly onto compatible panel power supply assemblies within the master control bay. By delivering individual addressability and precise software programming control over entire groups of audible and visible appliances, the Simplex 4100-5451 Addressable NAC Card is a crucial component for large commercial facility structures, campuses, and multi-story environments.

Technical Specifications Table

High-Efficiency 29 VDC Switching Power & Advanced Two-Wire Loop Supervisions

The structural advantage of upgrading panel configurations with the Simplex 4100-5451 Addressable NAC Card centers on its advanced regulated switching power output. While conventional notification modules experience heavy voltage drops when switching to standby batteries, this card maintains a constant, regulated 29 VDC source voltage under both primary AC power and secondary battery operations. This constant voltage allows addressable signaling runs driven by the Simplex 4100-5451 Addressable NAC Card to extend two to three times farther than conventional circuits, works smoothly with smaller wire gauges, and accommodates more appliances per loop, providing significant installation savings for large retrofit projects.

Furthermore, because the card acts as an intelligent communication hub over a two-wire IDNAC SLC, it provides exceptional loop supervision. Every individual appliance on the circuit is continuously interrogated for data verification, expanding supervision capabilities right into the internal circuitry of each horn or strobe. When Class B wiring parameters are deployed for the Simplex 4100-5451 Addressable NAC Card link, loops can be freely “T-tapped,” removing the rigid pigtail and series requirements of conventional layouts. Appliances can be grouped via software into distinct Virtual NACs (VNACs) for precise zoning control, allowing building engineers to reconfigure building zoning rules via programming updates without running new conduits.

• Short-Circuit Isolation Safeguards: Built with immediate short-circuit protection and supervision boundaries to stop a single localized loop fault from dropping your other circuits.
• DCAI Module Expansion Compatibility: Integrates with optional Dual Class A IDNAC Isolator (DCAI) modules to cleanly split a single Class B input into two isolated Class A loop outputs.
• Comprehensive Current Monitoring: Continuously monitors and reports individual loop current metrics to the host processor board, providing real-time data to help isolate field loop issues.
• TrueAlert ES Self-Test Synchronization: Natively handles automated, scheduled Appliance Self-Test sequences from the command panel, logging visual and audio status results via diagnostic sensors.

Frequently Asked Questions (FAQ)

Q1: What type of notification appliances are compatible with the Simplex 4100-5451 addressable module?
A: The card is engineered specifically to power, control, and monitor intelligent TrueAlert and TrueAlert ES addressable notification horns, strobes, and horn/strobes.

Q2: Can the module be mounted inside any open bay slot of a 4100U panel?
A: No. The card requires two vertical block mounting spaces and must draw power and data directly by mounting onto an active 4100-5401 or 4100-5402 master power supply assembly.

Q3: How does the constant 29 VDC regulated output help optimize building wire designs?
A: By maintaining 29 VDC even during battery standby, the module can drive signaling line data two to three times farther than conventional notification circuits, allowing for smaller wire sizes or more devices per circuit run.

Q4: What is the maximum number of individual device addresses supported per IDNAC circuit?
A: Each of the three independent loops on the card can support up to 127 individual device addresses and up to 139 unit loads, providing a high total device capacity per module.

Q5: Does this module support T-tapped branch wiring layouts on commercial real estate loops?
A: Yes, absolutely. When configured for Class B loop operations, the circuit can be freely T-tapped, which eliminates the need for complex in-out series wiring runs and saves significant copper material costs.

Q6: What happens to a system-wide test sequence if an actual fire alarm occurs?
A: The automated TrueAlert ES Appliance Self-Test routine is constantly monitored by the panel; if an actual alarm condition is validated on an input, the test is instantly terminated to prioritize building evacuation scripts.

Q7: Where is this addressable notification loop replacement card manufactured?
A: This authentic fire alarm panel spare component is built to strict international life-safety compliance specifications and is manufactured in Mexico.
