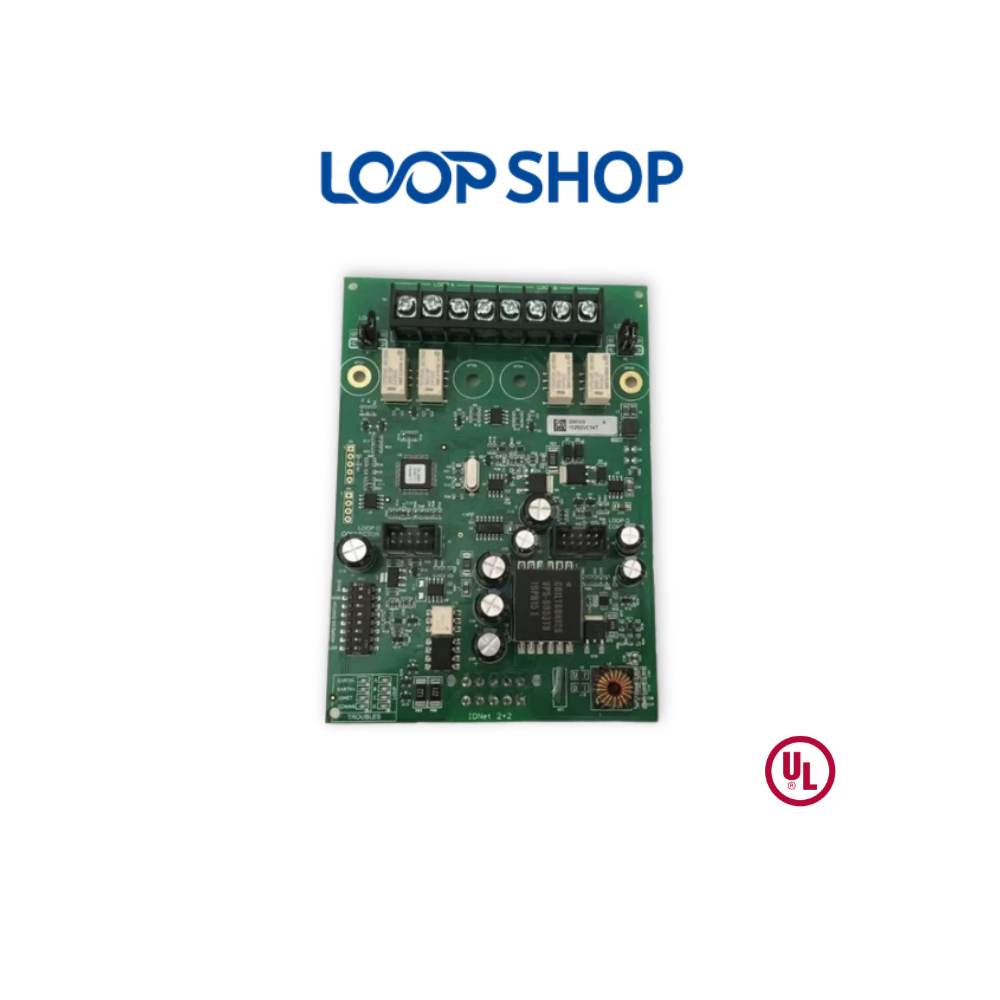

Simplex 4100-3109 Loop Card

Description

The Simplex 4100-3109 Loop Card is an enterprise-grade fire alarm panel component engineered to provide robust addressable loop expansion for intelligent fire command systems. Functioning as a high-performance IDNet 2 Interface Module, this card installs securely into the control bay or expansion slots of Simplex 4100 series emergency power systems (EPS). By managing up to 250 individual initiating and notification points over a supervised two-wire circuit, the Simplex 4100-3109 Loop Card serves as a critical network backbone for complex commercial spaces, multi-story high-rises, and industrial manufacturing plants.

Technical Specifications Table

Bi-Directional Isolated Wiring Logic & Advanced On-Board Troubleshooting Diagnostics

The standout advantage of upgrading or repairing fire enclosures with a premium Simplex 4100-3109 Loop Card centers on its advanced electrical isolation layout. Both output circuits are completely isolated from standard system reference voltages, which prevents common-mode ground noise from messing with adjacent building wires. When a Class A wiring layout is selected for the Simplex 4100-3109 Loop Card, the loop establishes an alternate, bi-directional path. If a single open circuit break occurs down the line, the card instantly reroutes data commands through both sides, keeping 100% of your field sensors completely active. Alternatively, in Class B setups, the card supports extensive branch T-tapping, which saves major installation labor and copper materials during complex retrofits.

For immediate on-site maintenance, the internal architecture of the Simplex 4100-3109 Loop Card includes a dedicated row of eight diagnostic troubleshooting LEDs. Instead of forcing technicians to hook up complex testing equipment just to diagnose a line fault, the board instantly isolates errors via specific visual indicators. Dedicated LEDs activate for separate loop troubles, negative earth ground faults, and positive earth ground faults. Furthermore, during a live system test, the host plastic loop devices can flash or latch steadily on at the same time, giving inspecting engineers a clear visual map to verify system-wide loop communication integrity.

• Short-Circuit Isolation Security: If a short-circuit wiring fault occurs beyond the card terminals, that specific loop segment is instantly separated, preventing a single failure from crashing the other loops.
• Base-Mounted Address DIP Switches: Uses an 8-position binary DIP switch configuration block to map the card address inside the ES panel programmer software before final hardware installation.
• Daughter-Card Scalability Path: The standard 4×5 block card includes pre-molded connection pins designed to accept up to two aftermarket field expansion cards, instantly upgrading the layout to a full 4-loop configuration.
• Earth Fault Search Safety: Leverages automated, built-in control panel diagnostics to run background earth search sweeps down to 10k Ohms, preventing costly line noise issues in large industrial complexes.

Frequently Asked Questions (FAQ)

Q1: What does an active “No Answer” trouble code indicate when displayed on this card address?
A: A “No Answer” error on loop addresses 253 or 254 indicates that an expansion loop daughter card has been programmed into the master system software but cannot be detected physically on the motherboard pins.

Q2: Does the Simplex 4100-3109 Loop Card require a separate external power supply connection?
A: No. Power is supplied directly through the panel’s built-in Power Distribution Interface (PDI) connectors when the card is seated into an open block space inside the expansion bay chassis.

Q3: What is the maximum allowable wiring run distance to the farthest addressable loop device?
A: For loops populated with up to 125 active devices, the maximum wire length per run is 4,000 feet (1,219 meters). For higher loads between 126 and 250 devices, the distance is limited to 2,500 feet (762 meters).

Q4: Can this interface card communicate with older legacy devices on existing retrofit building circuits?
A: Yes, absolutely. The smart IDNet 2 protocol automatically manages communication loops containing a mix of modern TrueAlarm ES addressable components as well as legacy MAPNET II addressable devices.

Q5: What are the target loop capacitance parameters to prevent data drops on full runs?
A: The total channel wiring parameters require the sum of all line-to-line capacitance plus any line-to-shield capacitance across the isolated loops to not exceed 0.6 µF (600 nF).

Q6: How do on-board diagnostic LEDs behave when the module loses connection with the master panel CPU?
A: The dedicated COOMs trouble LED on the card will illuminate steady on if the card completely loses internal communication with the main fire panel processor board.

Q7: What is the primary manufacturing origin and casing profile of this replacement spare card?
A: This authentic life-safety system spare card is manufactured under strict fire safety guidelines in Mexico and features a standard 4×5 open circuit board block layout.
