Simplex 4090-9116 Addressable IDNet Communications Isolator Module

Description

The Simplex 4090-9116 Addressable IDNet Communications Isolator is a critical loop-safety peripheral engineered to increase systemic circuit data path integrity across modern addressable fire alarm installations. Powered entirely by the line current of the Signaling Line Circuit (SLC), this diagnostic device monitors the two-wire communication path to guard against data loops being dropped by single-point fields faults. By introducing local circuit isolation barriers between floors or building wings, the 4090-9116 ensures that localized physical wiring failures remain cleanly segmentized, maximizing life-safety continuity for enterprise engineering projects.

Technical Specifications Table

Bi-Directional Short-Circuit Protection & Advanced Earth Fault Segmentation

The operational logic of the Simplex 4090-9116 Addressable Isolator relies on a dual-port, bi-directional short-circuit monitoring architecture. Upon initial system power-up, the module boots up in isolation mode to screen the field lines. Once directed by the central console panel, it sweeps the line resistance; if the output path shows normal baseline electrical metrics, it bridges the segment to the active loop. If a short circuit occurs anywhere beyond its drop point, the isolator snaps its internal switches open immediately. This prevents the fault from causing a total loop communications crash, localizing the data drop strictly to the affected zone while keeping the remaining initiating modules completely functional.

Beyond short-circuit shielding, this module resolves one of the most common and labor-intensive installation and maintenance issues: ground/earth faults. Traditionally, tracing an earth fault requires building maintenance teams to disconnect complex loop wires across multiple floors manually. When deployed using multi-floor riser strategies, the 4090-9116 lets system managers leverage built-in control panel diagnostics to isolate earth faults down to a specific floor or section. This significantly narrows the tracking area, speeds up field repairs, and reduces total system downtime during modern building maintenance routines.

• Dual-Port Bi-Directional Balancing: Either terminal array can act as an input or output, providing full flexibility during loop integration and preventing polarity installation mistakes.
• Class A Loop Optimization: When configured in a Class A loop riser, the isolators enable the control panel to maintain full two-way communication with all active field devices located outside of the shorted cable section.
• Sequential Device Address Optimization: Designed to report back to the host workstation under low-number sequential addresses, speeding up channel power-up tracking sequences.
• Segregated Application Safety: Serves as the required technical bridge to isolate and separate life-safety devices from non-fire alarm devices (such as security IAMs or single-station detectors).

Frequently Asked Questions (FAQ)

Q1: How does the Simplex 4090-9116 handle an unexpected short circuit on an addressable fire loop?
A: The module automatically breaks the circuit connection at its terminal boundary when an output short circuit is detected, isolating the broken line section and allowing the rest of the loop to stay online.

Q2: Does this fault isolator module require an independent external power supply run?
A: No. The 4090-9116 is fully line-powered, drawing its operational currents directly from the two-wire IDNet signaling line loop while consuming only a single device unit load.

Q3: Can the loop isolation function be activated manually by field technicians?
A: Yes, absolutely. Operators can manually trigger individual isolator modules directly from the front keypad of the fire alarm control panel to assist in diagnostic trace routines and wiring fault isolation.

Q4: What is the maximum allowable circuit distance limit between two isolator units?
A: The signaling circuit supports line resistances up to 10 Ohms between devices, which equals a maximum run length of 780 feet (238 meters) using standard 18 AWG twisted-pair wires.

Q5: Can you view the diagnostic LED indicator when the junction backbox is sealed?
A: Yes. Simplex offers optional surface and semi-flush galvanized trim plates (such as the 4090-9801 or 4090-9802) equipped with integrated plastic light pipes to pass the internal flashing LED signal cleanly through the face cover.

Q6: Which central fire alarm panels are fully compatible with this addressable module?
A: The module interfaces smoothly with modern intelligent addressable systems, including the Simplex 4007ES, 4008, 4010ES, and 4100ES fire alarm control panel series running IDNet loops.

Q7: What is the primary manufacturing origin and shell material of this safety module?

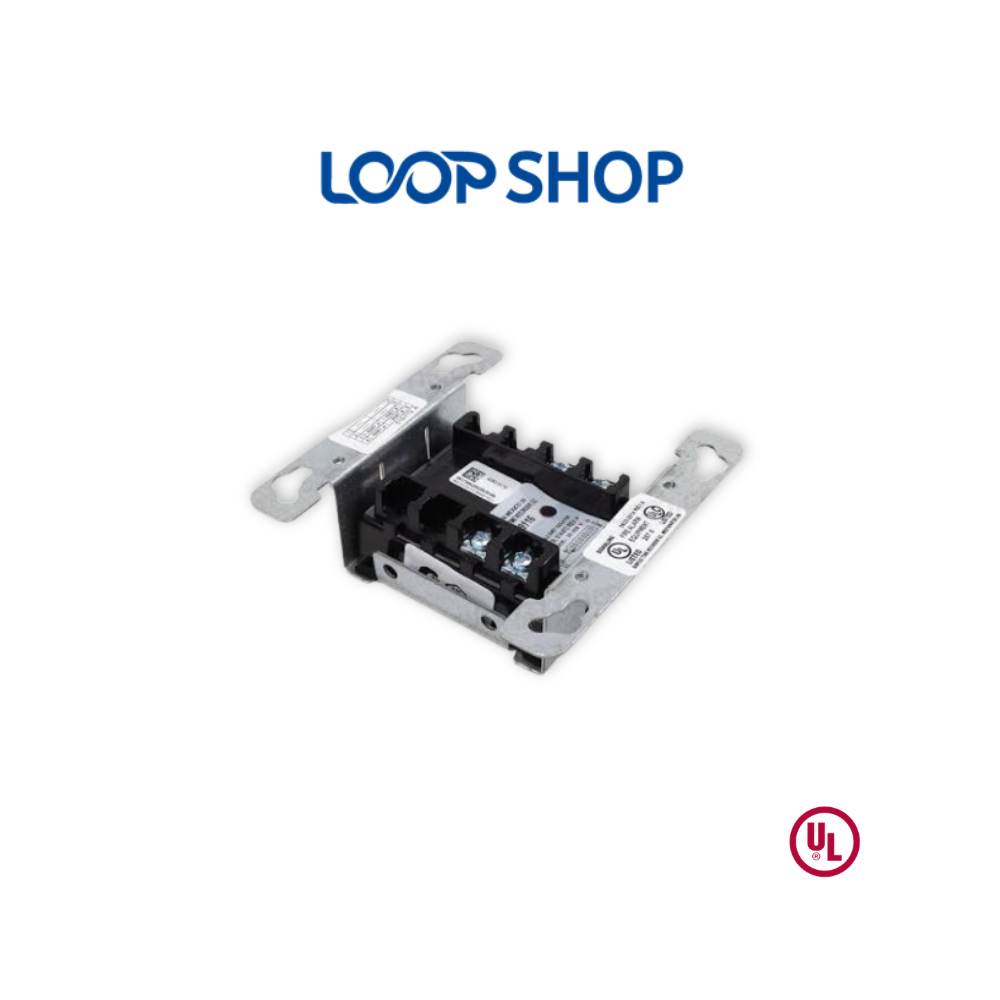

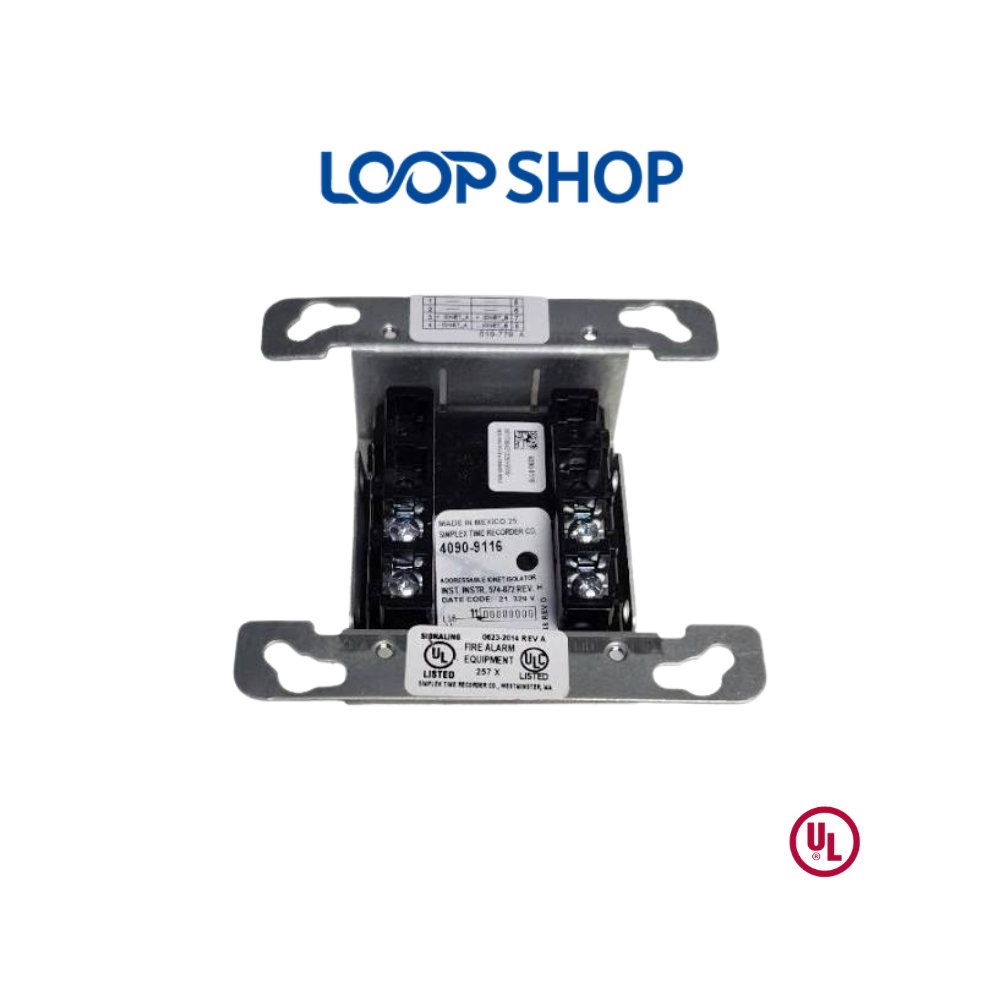

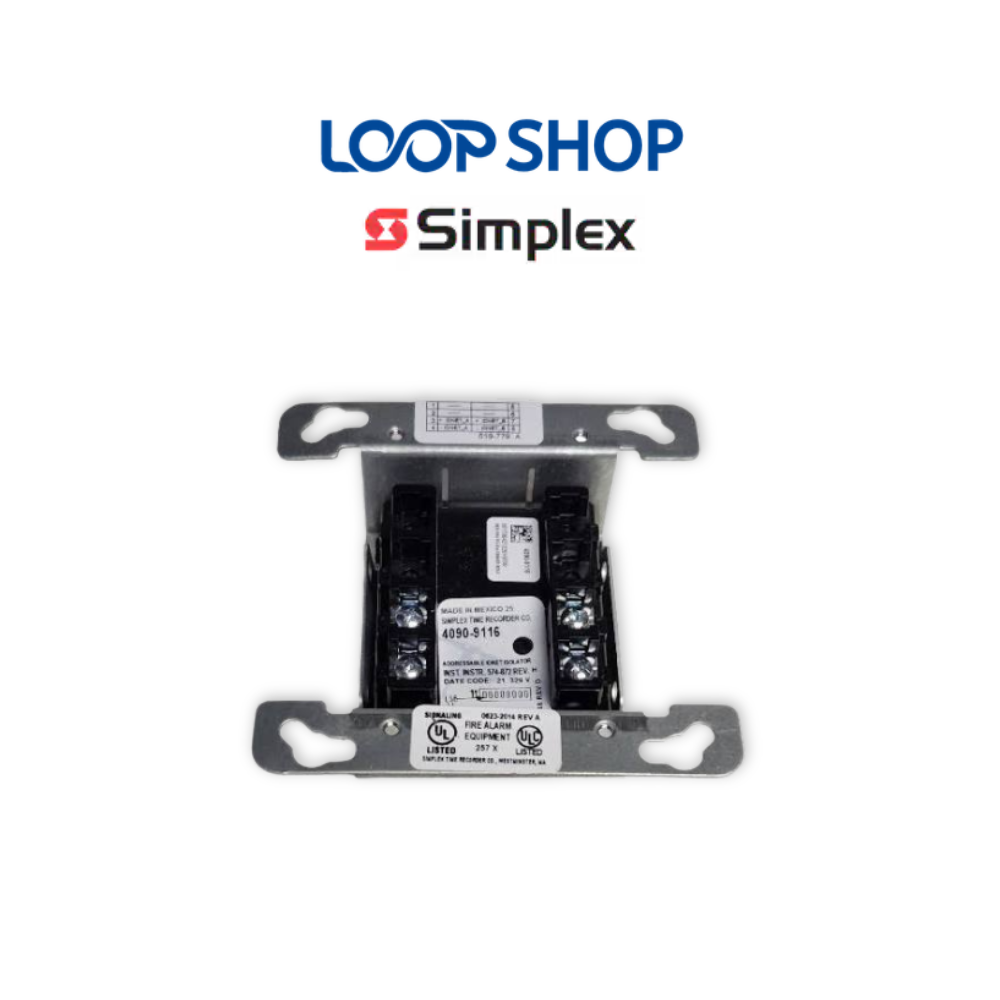

A: This authentic device features a black thermoplastic enclosure mounted on a rugged sheet steel mounting plate and is manufactured in Mexico.
