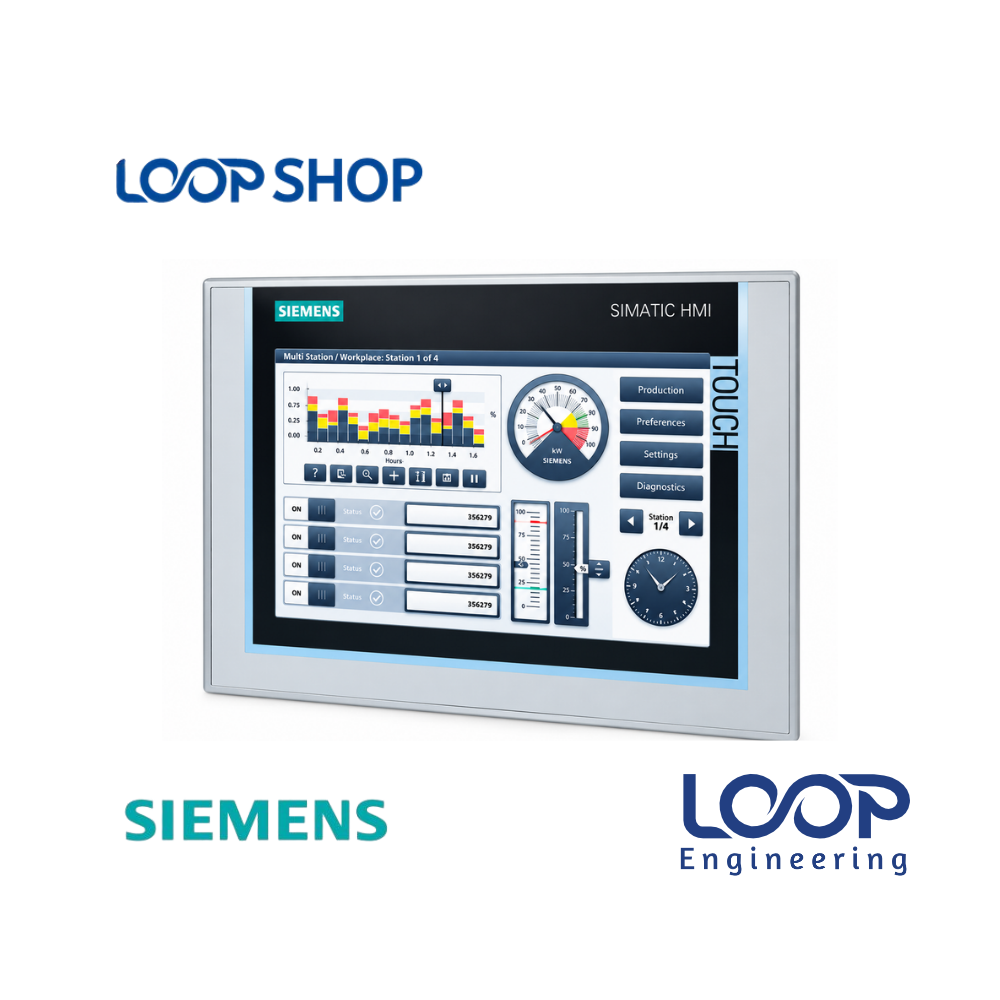

Siemens TP900 Comfort HMI 9-Inch 6AV2124-0JC01-0AX0 Display Panel

Description

The Siemens SIMATIC HMI TP900 Comfort Panel (6AV2124-0JC01-0AX0) is a premium 9-inch widescreen industrial display interface designed for demanding industrial automation applications. Featuring high-resolution visual output with 16 million colors and wide viewing angles, this human-machine interface enables machine operators to oversee and manage complex plant processes effortlessly.

Engineered to operate seamlessly within Siemens SIMATIC S7 PLC environments through TIA Portal, the TP900 Comfort panel delivers real-time process diagnostic feedback, alarm handling, recipe management, and process logging. In Bangladesh’s growing manufacturing sector, this unit provides factory engineers and panel builders with an exceptionally reliable control solution that minimizes process errors and reduces costly line downtime.

Key Features

• 9-Inch Widescreen Display: Bright $800 \times 480$ pixel TFT panel rendering 16 million vivid colors for clear diagnostic monitoring.
• Multi-Protocol Connectivity: Integrated PROFINET, PROFIBUS DP, and MPI communication interfaces for flexible PLC networking.
• Advanced Functionality: Supports archive logging, script execution, recipe administration, and PDF/HTML documentation viewing directly on screen.
• PROFIenergy Compatibility: Allows central management of display brightness and energy-saving modes during line idling.
• Integrated USB Interfaces: Features high-speed USB ports for easy data backup, mouse/keyboard connections, and license transfer.

Technical Advantages

• High Efficiency: Fast processing response times and smooth page transitions optimize operator productivity on high-speed lines.
• Durable Construction: Built with an IP65-rated front faceplate that withstands harsh industrial airborne dust and oil residue.
• Safety Protection: Built-in system diagnostics and password-protected user administration ensure secure process access.
• Energy Saving: Intelligent dimmable LED backlight technology reduces power draw and extends operational display life.
• Easy Maintenance: Automatic backup via system memory cards permits rapid plug-and-play unit swapping without PC re-programming.

Applications

• Industrial: Automated packaging machinery, plastics processing, chemical processing, and material handling lines.
• Factory: Textile dyeing and spinning mills, pharmaceutical manufacturing plants, and food and beverage processing facilities.
• Commercial: Building management control, HVAC monitoring systems, and central water treatment facilities.
• Project Installation: Control cabinet retrofitting, system integration, and plant modernization projects across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ rigorous industrial standards to sustain continuous 24/7 operation under demanding plant conditions.
• Performance: Exceptional visual contrast, high capacitive/resistive accuracy, and rapid data throughput across fieldbus networks.
• Cost Effectiveness: Reduces operational errors through clear visual feedback while saving energy via PROFIenergy management.
• After-Sales Value: Fully backed by technical expertise, authentic product sourcing, and localized support through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 9-inch widescreen TFT display with 16 million color rendering

✓ Integrated PROFINET, PROFIBUS DP, and MPI communication interfaces

✓ Rugged IP65 front protection against dust and moisture ingress

✓ Supports recipe management, alarm logs, vector graphics, and scripts

✓ Easily configured via Siemens WinCC / TIA Portal engineering suite

Benefits For Customers

• Improves Operational Reliability: Accurate real-time diagnostic alarms help operators resolve field faults immediately.
• Reduces Electricity Cost: Dimmable backlighting and PROFIenergy integration conserve energy during downtime.
• Saves Maintenance Cost: Simple backup-card swapping minimizes production delays when replacing panels.
• Suitable for Bangladesh Environment: Rugged design handles ambient industrial heat, humidity, and dusty environments reliably.

Installation & Maintenance Guide

Installation Requirements:

1. Ensure the control cabinet door cutout matches the required $274 \text{ mm} \times 190 \text{ mm}$ physical dimension.
2. Maintain adequate clearance around the rear enclosure for proper air circulation and heat dissipation.
3. Wire the unit to a stable, filtered 24V DC industrial power supply.
4. Ensure proper grounding (earthing) of the panel chassis to prevent electromagnetic field interference on fieldbus lines.

Maintenance Tips:

• Clean the front screen using a soft, non-abrasive microfiber cloth and mild neutral screen cleaner.
• Periodically check terminal block connections and fieldbus connector tightness inside the cabinet.
• Ensure enclosure panel gaskets remain clean and free from oil build-up to preserve the IP65 seal.

Safety Instructions:

• Disconnect all electrical power sources before performing any panel wiring or mechanical adjustments.
• Avoid using sharp metal objects or excessive localized pressure on the touch glass.

Frequently Asked Questions (FAQ)

Q: What is the price of Comfort Touch HMI TP900 6AV2 124-0JC01-0AX0 9inch siemens in Bangladesh?

A: The price of the Siemens TP900 Comfort HMI (6AV2124-0JC01-0AX0) in Bangladesh can be found on loopshop.com.bd. Contact us directly or visit our online store for up-to-date pricing and current stock status.

Q: Where can I buy Comfort Touch HMI TP900 6AV2 124-0JC01-0AX0 9inch siemens in Bangladesh?

A: You can purchase the genuine Siemens TP900 Comfort HMI online directly from loopshop.com.bd with secure delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: This Siemens HMI comes with standard warranty coverage provided by LOOP Shop to ensure authenticity and working order.

Q: Is this suitable for Bangladesh climate?

A: Yes, the IP65-rated front housing and wide operating temperature threshold make it well-suited for humid, dusty factory environments in Bangladesh.

Q: How to install this product?

A: Mount the HMI into the cabinet cutout, secure it using the supplied mounting clamps, connect the 24V DC power line, and attach the PROFINET or PROFIBUS communication cables.

Q: Which software is used to program the Siemens TP900 Comfort HMI?

A: The Siemens TP900 Comfort panel is configured using Siemens WinCC Comfort in the TIA Portal engineering framework.

Q: Does this panel support both PROFINET and PROFIBUS networks?

A: Yes, it features built-in dual PROFINET interfaces as well as a PROFIBUS DP / MPI port for versatile industrial network integration.

Q: Can I back up the HMI program to an SD card?

A: Yes, the TP900 Comfort panel features system card slots allowing automatic backups and fast hardware replacement without needing a PC.

Q: Does the display support multi-language operator screens?

A: Yes, Siemens Comfort panels support multi-language runtime visualization setups.

Q: Does LOOP Shop provide delivery outside Dhaka?

A: Yes, LOOP Shop delivers industrial automation equipment and PLC/HMI modules to customers across all major cities and industrial zones in Bangladesh.
