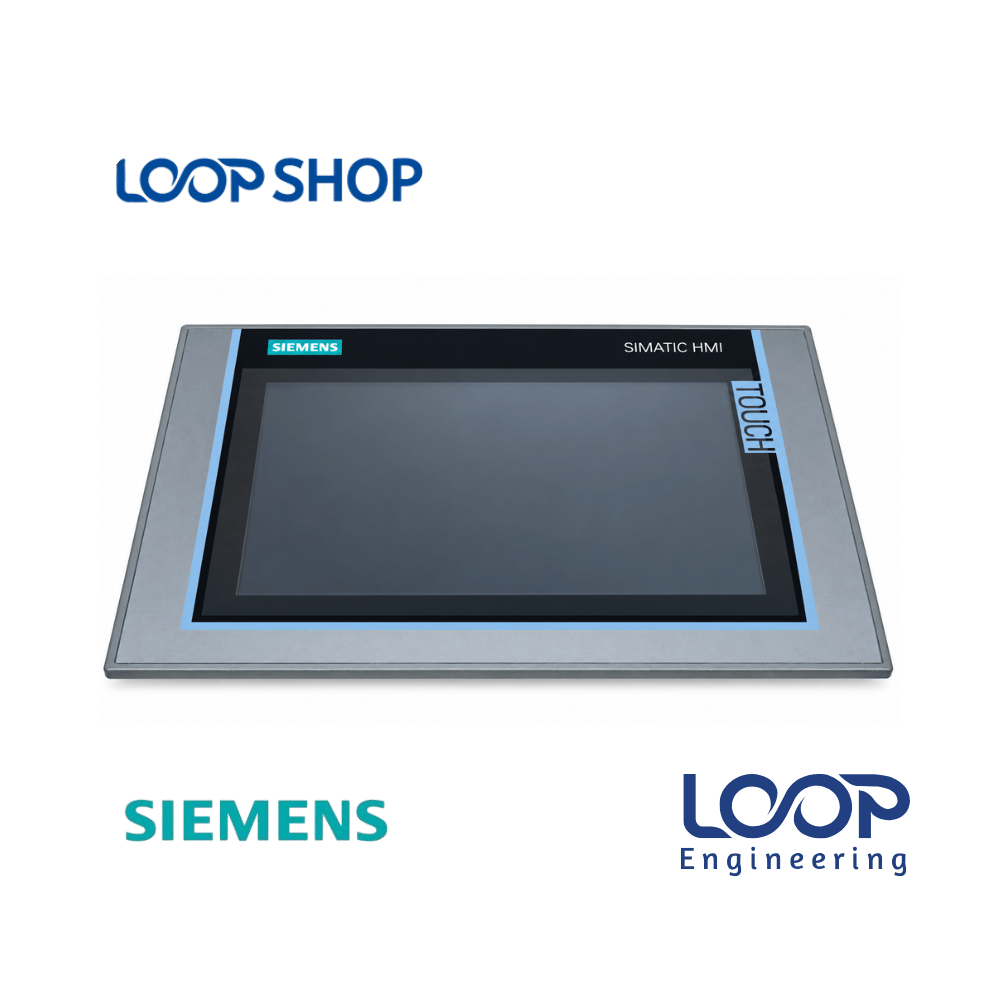

Siemens TP900 Comfort 9″ HMI 6AV2124-0JC01-0AX0 Display Panel for Industrial PLC

Description

The Siemens SIMATIC HMI TP900 Comfort (6AV2124-0JC01-0AX0) is a premium 9-inch widescreen touchscreen panel engineered for sophisticated visualization and supervisory control in modern industrial automation environments. Equipped with a brilliant TFT display capable of rendering 16 million colors, it offers crisp graphical representations of complex industrial processes, real-time alarm handling, historical data logging, and interactive parameter control.

Designed for seamless integration into Siemens TIA Portal automation ecosystems, the TP900 Comfort panel features integrated PROFINET / Ethernet ports with an onboard switch alongside PROFIBUS / MPI communication interfaces. This robust multi-protocol panel empowers automation engineers and machine builders in Bangladesh to achieve reliable, high-speed connectivity with SIMATIC S7-1200, S7-1500, and multi-vendor PLC platforms.

Key Features

• 9″ Widescreen TFT Display: High-resolution widescreen display with 16 million vivid colors and wide viewing angles for detailed process monitoring.
• Dual PROFINET / Ethernet Interface: Integrated 2-port switch simplifies network topology and enables fast daisy-chain integration into plant networks.
• TIA Portal Engineering: Fully configured via SIMATIC WinCC in the TIA Portal framework for streamlined project setup and system diagnostics.
• Integrated Media & USB Interfaces: Onboard USB host ports, SD card slots, and audio playback capability for comprehensive data logging and media handling.
• IP65 Front Bezel Rating: Heavy-duty front panel construction designed to resist dust, oils, and water splashing in demanding shop-floor conditions.

Technical Advantages

• Durable Construction: Industrial-grade enclosure and scratch-resistant glass front engineered to endure continuous 24/7 multi-shift factory operation.
• Safety Protection: Visual color alerts and audio system alarms facilitate rapid operator response to prevent machine downtime.
• High Efficiency: Dimmable LED backlighting reduces overall panel power consumption while extending screen backlight service life.
• Easy Maintenance: Automatic backup via system SD memory card allows quick hardware replacement without requiring a PC.

Applications

• Industrial: Automated assembly machinery, packaging systems, and material handling plants.
• Factory: Textile dyeing and spinning lines, pharmaceutical processing units, and food manufacturing systems.
• Commercial: Centralized building automation systems and HVAC plant monitoring units.
• Project Installation: Control panel upgrades, system retrofits, and new machine builds across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens SIMATIC Comfort standards for long-term operational stability in severe industrial environments.
• Performance: Rapid system processing speed, fluid screen navigation, and high graphic clarity ensure seamless operator control.
• Cost Effectiveness: Combines display functions, network switching, and archive logging into one panel, reducing overall cabinet hardware costs.
• After-Sales Value: Backed by global standardization and widespread local technical expertise throughout Bangladesh.

Technical Specification Table

Features List

✓ 9.0-inch widescreen TFT display with 16 million colors

✓ Widescreen display area offering up to 40% more display space than standard 4:3 screens

✓ Integrated PROFINET/Ethernet switch ports and PROFIBUS interface

✓ USB host interfaces and SD memory card slots for logging and updates

✓ Dimmable LED backlighting from 0% to 100% for optimal viewing comfort

Benefits For Customers

• Improves Operational Reliability: High-resolution display with multi-color alarms allows operators to quickly identify line faults.
• Saves Energy & Hardware Costs: Dimmable LED backlight lowers power consumption, while dual Ethernet ports eliminate external network switches.
• Simplifies Service & Maintenance: System backup card feature enables instant project recovery without requiring software tools.
• Suitable for Bangladesh Environment: IP65-sealed front face resists industrial humidity, airborne dust, and ambient temperature variations in Bangladeshi factories.

Installation & Maintenance Guide

Installation Requirements:

• Prepare cabinet door cutout to match exact Siemens TP900 Comfort panel mounting dimensions.
• Connect a stabilized 24V DC industrial power supply maintaining correct terminal polarity.
• Secure all perimeter mounting clips evenly to ensure an IP65 front panel seal against dust and liquid.
• Use shielded PROFINET/Ethernet or PROFIBUS cables routed away from heavy power drives to avoid EMI interference.

Maintenance Tips:

• Clean the front touch glass regularly using a soft, non-abrasive cloth dampened with neutral cleaning liquid.
• Check rear cable connections and power terminal blocks periodically to ensure secure seating against machinery vibration.
• Keep cabinet ventilation clear to maintain ambient temperatures within the 0 °C to +50 °C operating range.

Safety Instructions:

• Disconnect power supply to the enclosure prior to mounting, dismounting, or performing electrical terminal connections.
• Ensure proper panel chassis grounding according to Siemens safety guidelines to prevent static charges.
• System installation, cable termination, and project downloads should only be conducted by qualified automation engineers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens TP900 Comfort HMI 6AV2124-0JC01-0AX0 in Bangladesh?

A: The price of the Siemens TP900 Comfort 9″ HMI panel in Bangladesh depends on current market availability and import rates. Please check loopshop.com.bd or contact our sales team for updated pricing.

Q: Where can I buy Siemens TP900 Comfort HMI 6AV2124-0JC01-0AX0 in Bangladesh?

A: You can purchase genuine Siemens TP900 Comfort HMI panels directly online through loopshop.com.bd with reliable nationwide delivery across Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard supplier guarantee covering manufacturing defects and operational performance upon installation.

Q: Is this suitable for Bangladesh climate?

A: Yes, with IP65 front protection and an industrial-grade thermal operating range, it is well suited for ambient factory conditions in Bangladesh.

Q: How to install this product?

A: Insert the panel into the cabinet cutout, fasten the mounting clamps, wire the 24V DC supply, and attach communication cables to your PLC network.

Q: What engineering software is used to program the Siemens TP900 Comfort?

A: The TP900 Comfort panel is configured using SIMATIC WinCC in TIA Portal (Comfort/Advanced edition).

Q: Does the Siemens TP900 Comfort support USB flash drives for data logging?

A: Yes, it features integrated USB host ports that support external memory sticks for archiving alarm logs and recipe data.

Q: Can the TP900 Comfort communicate with third-party PLCs?

A: Yes, it supports driver communication with various third-party PLC protocols alongside native Siemens PROFINET and PROFIBUS.

Q: What display resolution does the 9-inch Comfort panel offer?

A: It features a widescreen 800 x 480 pixel resolution TFT color screen displaying 16 million colors.

Q: What is the benefit of the widescreen display format?

A: The 16:9 widescreen format provides up to 40% more display space for system graphics compared to traditional 4:3 aspect screens.
