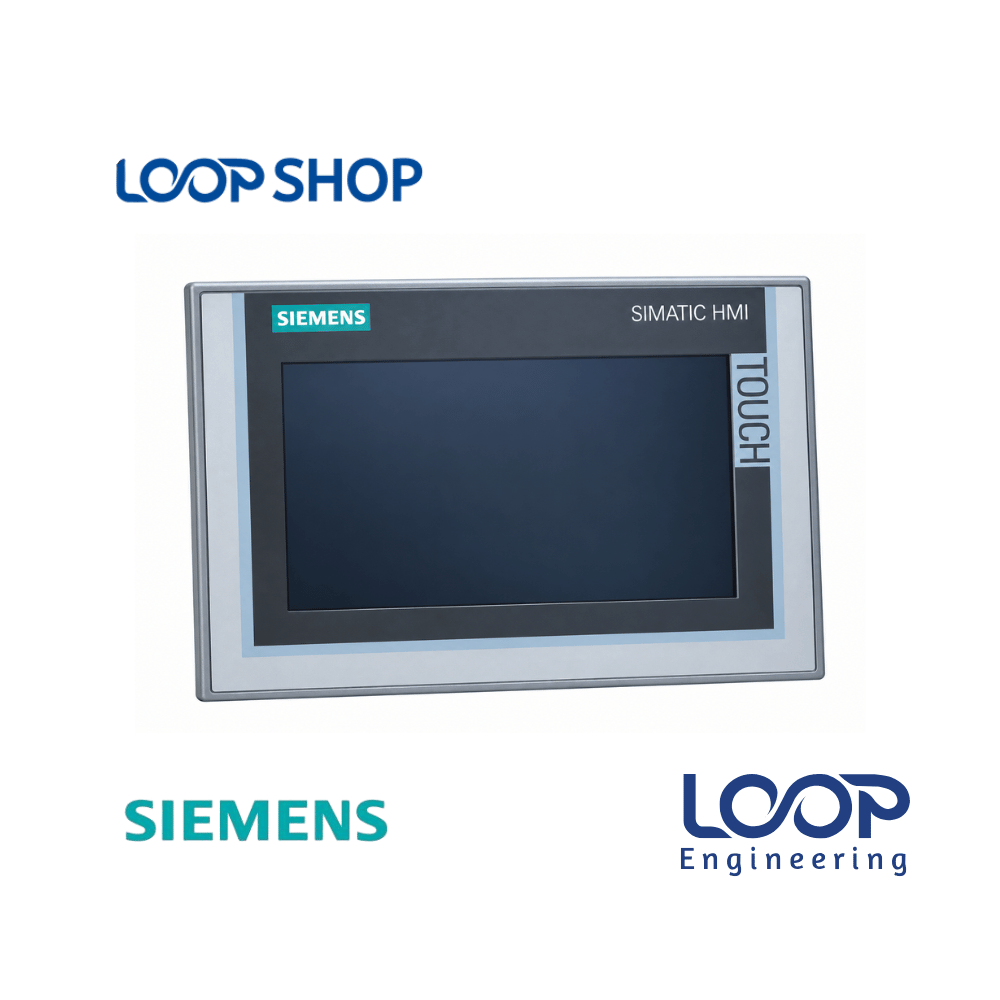

Siemens TP700 Comfort HMI 6AV2124-0GC01-0AX0 7″ Touch Panel PLC

Description

The SIEMENS SIMATIC TP700 Comfort HMI (6AV2124-0GC01-0AX0) is an advanced, high-performance operator panel engineered for sophisticated visualization tasks in industrial automation and process control. As part of Siemens’ flagship Comfort Panel family, the TP700 combines exceptional graphic performance with comprehensive functionality, enabling engineers to design highly intuitive user interfaces for complex machine logic and plant supervision.

Equipped with a brilliant 7-inch widescreen TFT display rendering up to 16 million colors, this HMI provides sharp rendering of system graphics, live trends, and detailed alarm management windows. In Bangladesh’s rapidly modernizing industrial landscape—spanning textile dyeing units, pharmaceutical production, and heavy manufacturing—the TP700 Comfort panel ensures maximum operational efficiency, empowering plant operators to monitor, diagnose, and control processes with absolute precision.

Key Features

• Brilliant 7-Inch Widescreen Display: High-resolution TFT touch screen (800 x 480 pixels) supporting 16 million vibrant colors for rich graphic visualization.
• Advanced Industrial Networking: Integrated PROFINET (Ethernet) interfaces supporting multiple protocols for high-speed data exchange with SIMATIC S7 controllers.
• TIA Portal Integration: Fully configurable using Siemens SIMATIC WinCC Comfort within the TIA Portal engineering framework.
• Robust IP65 Front Enclosure: Heavy-duty aluminum front bezel designed to resist harsh shop-floor conditions, dust ingress, and liquid splashes.
• Data Logging & System Security: Integrated system diagnostics, user administration security levels, and data backup support via USB and SD card slots.

Technical Advantages

• Durable Construction: Industrial-grade aluminum front and rugged enclosure absorb severe shop-floor vibration and thermal stresses.
• High Efficiency: Powerful processor hardware ensures instantaneous screen switching, rapid trend updates, and zero operator input lag.
• Safety Protection: Built-in galvanic isolation protects communication ports against electrical noise and transient grid voltage surges.
• Energy Saving: Intelligent LED backlight dimming control reduces power draw and minimizes thermal buildup inside sealed control cabinets.
• Easy Maintenance: Integrated service tools and removable memory cards allow fast project updates and simple field hardware replacement.

Applications

• Industrial: Automated packaging machinery, CNC production lines, plastic injection molding, and material handling systems.
• Factory: Textile spinning and weaving mills, pharmaceutical manufacturing plants, food processing units, and cement plants in Bangladesh.
• Commercial: Municipal water treatment facilities, central HVAC building management systems, and power distribution grids.
• Project Installation: Preferred high-end operator panel for system integrators, OEM machine builders, and panel fabricators across BD.

Why Choose This Product?

• Siemens Comfort Quality: Premium global manufacturing standards guaranteeing continuous 24/7 reliability under demanding industrial cycles.
• Unmatched Visualization Performance: Superior graphic color depth and processing speed surpass standard entry-level panels.
• Long-Term Investment Value: Maximizes production uptime and prevents costly plant stoppages through proactive alarm monitoring.
• Trusted Local Support: Authenticity verification, datasheet support, and reliable shipping across Bangladesh via LOOP Shop.

Technical Specification Table

Features List

• ✓ 7-inch widescreen TFT touch display with 16 million colors
• ✓ Integrated PROFINET (Ethernet) communication ports
• ✓ Rugged aluminum front bezel with IP65 protection rating
• ✓ USB and SD memory card slots for data logging and backups
• ✓ Configurable via Siemens WinCC Comfort (TIA Portal)

Benefits For Customers

• Minimizes Plant Downtime: Advanced alarm logging and high-speed diagnostics allow operators to identify and resolve faults immediately.
• Enhances Operational Clarity: 16-million-color display allows intricate process graphics and status animations to be monitored effortlessly.
• Saves Panel Space: Compact mounting depth and high-density screen layouts optimize control desk configurations.
• Resilient in Bangladesh Conditions: Aluminum front bezel and IP65 sealing withstand tropical humidity, dust, and factory floor challenges.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a precise panel door cutout measuring 197 mm x 141 mm according to Siemens mounting blueprints.
2. Insert the TP700 Comfort panel from the front and tighten all mounting clamps evenly to achieve an airtight IP65 seal.
3. Wire a regulated 24 V DC power supply to the main terminal block, ensuring secure earth grounding (PE).
4. Connect the PROFINET Ethernet cable securely into the RJ45 interface port.

Maintenance Tips:

1. Clean the touch screen surface regularly using a soft, non-abrasive microfiber cloth; avoid harsh industrial solvents.
2. Inspect cabinet ventilation filters periodically to maintain ambient internal temperatures below 50 °C.
3. Keep an SD card inserted with updated project backups for fast emergency system restoration.

Safety Instructions:

1. Always isolate incoming 24 V DC electrical power before installing, wiring, or removing the HMI panel.
2. Verify correct power supply polarity prior to energizing the device to prevent circuit board damage.
3. Operate the touch screen matrix using bare fingers or dedicated styluses; never use sharp tools or screwdrivers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC TP700 Comfort HMI 6AV2124-0GC01-0AX0 in Bangladesh?

A: Product pricing fluctuates based on import costs, batch availability, and foreign exchange rates. Please check loopshop.com.bd or contact our team directly for current pricing in BD.

Q: Where can I buy original Siemens TP700 Comfort HMI in Bangladesh?

A: You can purchase 100% genuine Siemens TP700 Comfort panels online directly from loopshop.com.bd with secure shipping across Dhaka, Chittagong, and all districts of Bangladesh.

Q: What warranty does this product come with?

A: This product carries standard supplier warranty coverage against factory defects. Please confirm detailed warranty terms with LOOP Shop at the time of purchase.

Q: Is the Siemens TP700 Comfort suitable for Bangladesh climate conditions?

A: Yes, featuring an IP65 aluminum front bezel and an operating tolerance up to 50 °C, it is engineered to operate dependably in tropical, humid, and dusty industrial environments in BD.

Q: How do I program and configure the TP700 Comfort panel?

A: Configuration and screen editing are performed using Siemens WinCC Comfort engineering software within the TIA Portal framework via an Ethernet connection.

Q: What display resolution and color depth does this model feature?

A: It features a 7-inch widescreen TFT display with an 800 x 480 resolution and supports up to 16 million colors.

Q: Does this HMI support data logging via external memory?

A: Yes, it includes built-in SD card and USB slots to support runtime data logging, recipe management, and project backups.

Q: What communication interfaces are built into the 6AV2124-0GC01-0AX0?

A: It includes integrated PROFINET Ethernet interfaces for high-speed industrial networking and controller communication.

Q: Can this panel directly replace an older KTP700 or TP700 basic unit?

A: The TP700 Comfort offers advanced features and higher resolution performance; verify your software project target and physical cutout dimensions before upgrading.

Q: Does LOOP Shop provide technical and sales support in Bangladesh?

A: Yes, LOOP Shop provides expert product sales support, datasheet verification, and order assistance across Bangladesh.
