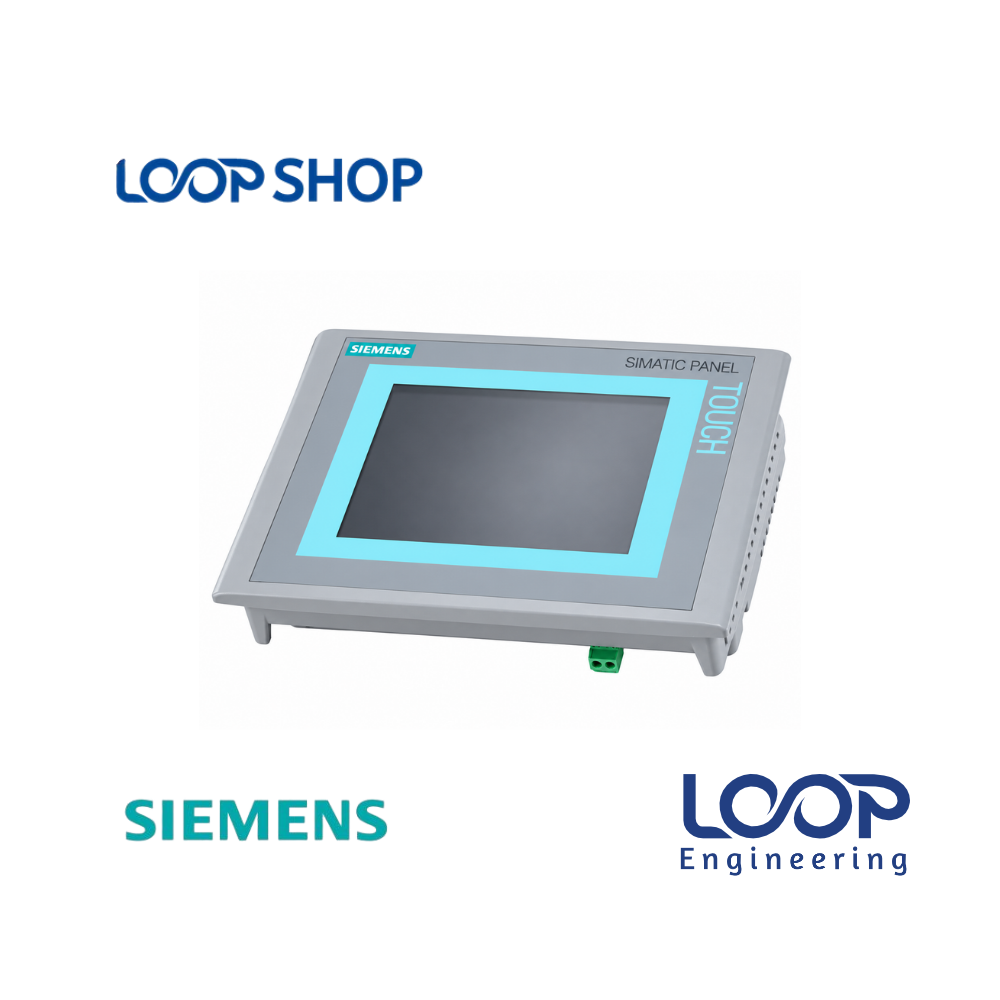

Siemens TP277 6-Inch Touch Panel 6AV6643-0AA01-1AX0 HMI Display BD

Description

The Siemens SIMATIC HMI TP277 6-Inch Touch Panel (6AV6643-0AA01-1AX0) is an industrial-grade human-machine interface designed for mid-to-high complexity automated machinery. Featuring a vivid 5.7-inch active matrix TFT display rendering 256 colors at $320 \times 240$ pixel resolution, this panel allows machine operators to navigate system menus, monitor real-time trends, adjust setpoints, and handle alarm messages efficiently.

Equipped with 4 MB of non-volatile configuration memory and rich multi-protocol communication choices—including RS422/RS485 (MPI/PROFIBUS DP up to 12 Mbit/s), PPI, and Industrial Ethernet (PROFINET)—the TP277 connects seamlessly to Siemens S7-200, S7-300, S7-400, and S7-1200/1500 controllers. For factory managers, control panel builders, and maintenance engineers in Bangladesh, this unit provides an original replacement interface that prevents costly line stoppages and extends the service life of automated equipment.

Key Features

• 5.7-Inch Color TFT Display: Sharp $320 \times 240$ pixel resolution displaying 256 bright colors with wide viewing angle support.
• Multi-Protocol Connectivity: Integrated RS422/RS485 port (MPI/PROFIBUS DP/PPI) and RJ45 Ethernet port (PROFINET) for total network flexibility.
• 4 MB Configuration Memory: Ample memory for storing graphical user screens, alarm archives, recipe databases, and trend curves.
• Analog Resistive Touch Screen: Smooth touch response for accurate parameter input without requiring physical membrane keys.
• WinCC Flexible & TIA Portal Configurable: Programmed easily using Siemens WinCC flexible 2005 Standard (or higher) and TIA Portal engineering suites.

Technical Advantages

• High Efficiency: Swift screen refreshes and rapid data polling speeds across PROFINET and PROFIBUS networks shorten cycle times.
• Durable Construction: Heavy-duty front panel with IP65 oil- and dust-resistant sealing protects internal circuits against harsh plant environments.
• Safety Protection: Multi-level password security, system access logs, and real-time diagnostic alarms prevent accidental parameter corruption.
• Energy Saving: Optimized LED display backlighting ensures minimal power draw and reduced cabinet heat buildup.
• Easy Maintenance: Automatic backup capability using optional MMC cards permits rapid hardware swapping without a programming PC.

Applications

• Industrial: Textile stenter machines, fabric dyeing ranges, plastic extrusion, and automated printing presses.
• Factory: Pharmaceutical production lines, food and beverage packaging, chemical batching, and paper converting mills.
• Commercial: Building management control systems, water treatment plants, and pump station automation.
• Project Installation: Control cabinet repairs, legacy panel retrofitting, and system modernization projects across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles.
• Performance: High touch accuracy, non-volatile data archiving, and multi-fieldbus networking.
• Cost Effectiveness: Sourcing an original TP277 panel restores existing S7 automation setups directly, saving up to 70% compared to complete panel redesigns.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 5.7-inch 256-color TFT display panel ($320 \times 240$ resolution)

✓ 4 MB configuration memory with retentive data protection

✓ Multi-interface support: PROFINET Ethernet, MPI, PROFIBUS DP, and PPI

✓ Rugged IP65 dust-tight and splash-proof front bezel

✓ Configurable via WinCC flexible 2005 Standard or TIA Portal

Benefits For Customers

• Saves Maintenance Capital: Avoids expensive control panel rewiring by replacing broken HMI hardware directly.
• Improves Operational Reliability: Real-time alarms display exact fault codes for instant operator response.
• Minimizes Machine Downtime: Fast drop-in installation gets factory machinery back into production quickly.
• Suitable for Bangladesh Environment: IP65 front face defends against dusty, humid, and warm industrial factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean enclosure door cutout measuring $198 \text{ mm} \times 142 \text{ mm}$.
2. Position the supplied front rubber seal ring correctly around the bezel to maintain its IP65 rating.
3. Insert the TP277 panel into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire a regulated 24V DC power supply line to the power plug and attach the PROFINET or PROFIBUS communication cables securely.

Maintenance Tips:

• Gently clean the front touch glass using a soft, non-abrasive dry microfiber cloth.
• Avoid using sharp metal objects, alcohol, or aggressive chemical solvents on the touch surface.
• Check terminal blocks and fieldbus connector screws periodically to prevent loose contact caused by machine vibration.

Safety Instructions:

• Always turn off main control panel power before connecting power terminals or mounting the panel.
• Ensure proper earthing/grounding of the cabinet frame to prevent static interference on fieldbus communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6AV6643-0AA01-1AX0 SIMATIC TP277 Touch Panel 6-inch MPI/DP/PPI/PN in Bangladesh?

A: The current sales price of the Siemens TP277 6-inch HMI (6AV6643-0AA01-1AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy Siemens 6AV6643-0AA01-1AX0 SIMATIC TP277 Touch Panel 6-inch MPI/DP/PPI/PN in Bangladesh?

A: You can purchase the genuine Siemens TP277 touch panel online directly from loopshop.com.bd with delivery options across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to verify full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($198 \text{ mm} \times 142 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power terminals, and attach the communication network cable.

Q: Which software is used to program the Siemens TP277 6-inch Touch Panel?

A: It is programmed using Siemens WinCC flexible 2005 Standard (or higher) or SIMATIC WinCC in TIA Portal.

Q: Does this panel support both PROFINET and PROFIBUS DP?

A: Yes, it features an integrated RS422/RS485 port supporting MPI, PROFIBUS DP, and PPI, alongside an RJ45 Ethernet port for PROFINET.

Q: What is the actual screen display size of the TP277 6-inch model?

A: The TP277 6-inch class panel features an active 5.7-inch TFT color display ($320 \times 240$ pixels).

Q: Can this panel store recipe data on a memory card?

A: Yes, it includes a MultiMedia Card (MMC) slot for recipe data storage, configuration backup, and system archives.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
