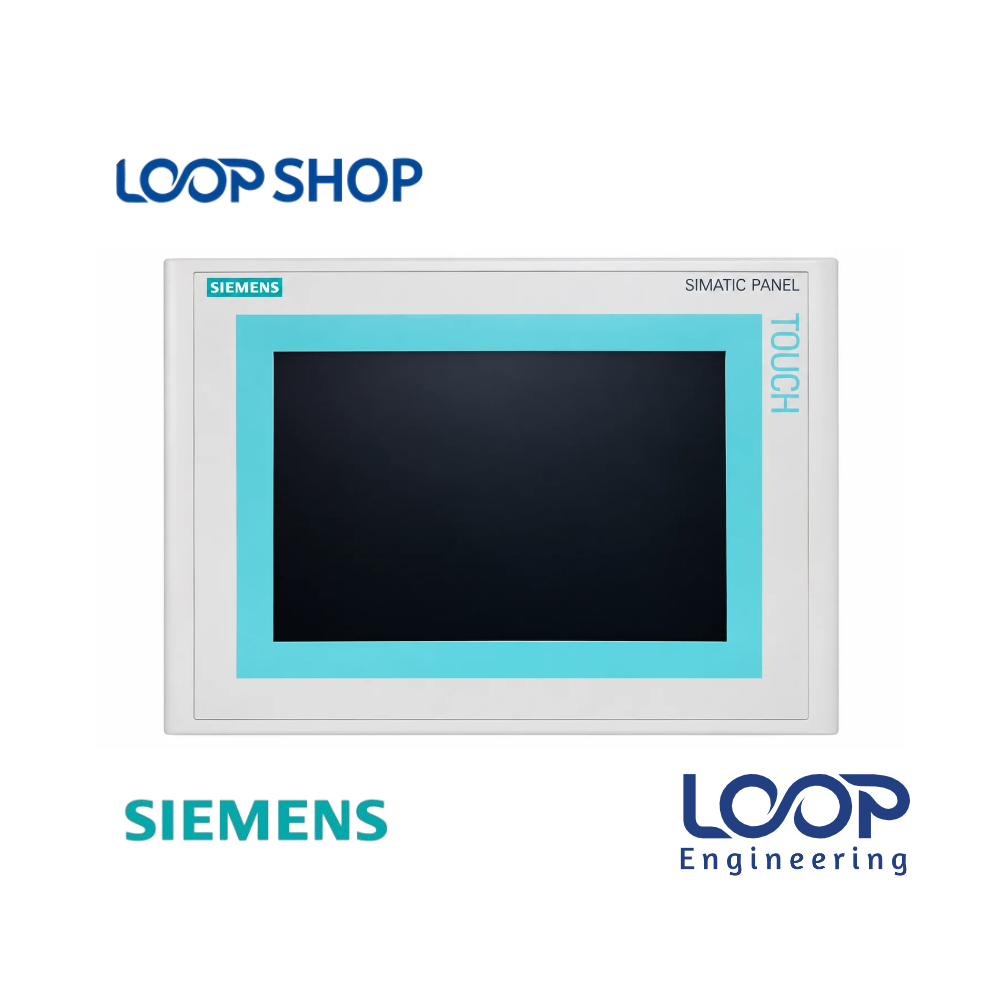

Siemens TP270 10.4-Inch Touch Panel 6AV6545-0CC10-0AX0 HMI BD

Description

The Siemens SIMATIC Touch Panel TP270 10.4-Inch (6AV6545-0CC10-0AX0) is an industrial-grade operator display interface engineered for mid-to-high complexity automation systems. Featuring a 10.4-inch STN color display rendering clear $640 \times 480$ pixel VGA graphics, this HMI provides factory operators with a responsive analog-resistive touch surface for navigating machine menus, inspecting trend curves, adjusting setpoints, and tracking diagnostic alarms.

Equipped with 2048 KB of onboard flash/RAM memory and extensive fieldbus communication interfaces—including RS485 (MPI / PROFIBUS DP up to 12 Mbit/s), RS232, and RS422 ports—the TP270 connects directly to Siemens SIMATIC S7-300, S7-400, and S5 automation controllers. For plant managers, control panel builders, and maintenance engineers in Bangladesh, sourcing this original replacement interface eliminates production stoppages and extends the service life of automated factory machinery.

Key Features

• 10.4-Inch STN Color Display: High-contrast $640 \times 480$ pixel VGA display matrix providing clear visual process readouts and system status graphics.
• Responsive Touch Operation: Smooth analog-resistive touch screen for accurate parameter adjustments without physical membrane keys.
• Multi-Protocol Communications: Built-in RS485 interface supporting high-speed PROFIBUS DP (up to $12 \text{ Mbit/s}$) and MPI, plus dual RS232 and RS422 serial ports.
• 2 MB User Configuration Memory: Generous internal memory capacity for storing complex graphical screens, alarm logs, and recipe files.
• ProTool & WinCC Flexible Configuration: Easily programmed using Siemens ProTool (Version V6.0 or higher) or WinCC flexible Standard engineering suites.

Technical Advantages

• High Efficiency: Fast processor response and high fieldbus data polling rates prevent operational delays during routine batch adjustments.
• Durable Construction: Heavy-duty front panel faceplate with an IP65 dust- and splash-resistant seal protects internal circuits against industrial contaminants.
• Safety Protection: Built-in multi-level user password security, active system alarm logging, and diagnostic reporting prevent accidental parameter corruption.
• Energy Saving: Optimized display backlight ($60,000 \text{ hours}$ MTBF) and low active power draw ($15 \text{ W}$) reduce thermal stress inside control enclosures.
• Easy Maintenance: Standardized cabinet cutout dimensions and pluggable 24V DC terminal blocks simplify hardware installation.

Applications

• Industrial: Textile stenter machines, fabric dyeing ranges, plastic extrusion lines, and automated printing presses.
• Factory: Food and beverage processing lines, pharmaceutical packaging, chemical batching, and paper converting mills.
• Commercial: Building automation systems, central water treatment monitoring, and power distribution management.
• Project Installation: Control cabinet retrofitting, system modernization, and emergency HMI replacement across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest industrial standards for continuous 24/7 duty cycles under heavy industrial conditions.
• Performance: High touch accuracy, non-volatile data archiving, and multi-fieldbus networking across SIMATIC architectures.
• Cost Effectiveness: Sourcing an original TP270 panel replaces damaged hardware directly, avoiding multi-million Taka complete control system re-engineering.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 10.4-inch STN color display with $640 \times 480$ pixel resolution

✓ 2048 KB internal configuration user memory

✓ Multi-interface connectivity: RS485 (MPI/PROFIBUS DP up to 12 Mbit/s), RS232, and RS422

✓ IP65 dust-tight and splash-water resistant front bezel

✓ Configurable via Siemens ProTool (V6.0+) or WinCC flexible

Benefits For Customers

• Saves Maintenance Capital: Replaces damaged 10.4-inch HMI hardware directly without altering host PLC code or cabinet wiring.
• Improves Operational Reliability: Displays real-time alarm codes and trend graphs across a clear 10.4-inch display workspace for fast operator response.
• Minimizes Production Downtime: Fast drop-in installation gets factory processing lines back into operation quickly.
• Suitable for Bangladesh Environment: Heavy-duty IP65 front face protects against dusty, humid, and warm factory environments in BD.

 Installation & Maintenance Guide

Installation Requirements:

1. Cut out a clean panel opening matching standard TP270 mounting template dimensions ($310 \text{ mm} \times 248 \text{ mm}$).
2. Position the supplied front rubber sealing gasket properly around the bezel to maintain its IP65 moisture rating.
3. Insert the TP270 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire to a filtered 24V DC industrial power supply line and attach the PROFIBUS DP / MPI or serial communication cables securely.

Maintenance Tips:

• Gently clean the front touch glass using a soft, non-abrasive microfiber cloth.
• Do not apply harsh chemical solvents, alcohol, or abrasive cleaning wipes directly onto the display surface.
• Check terminal block screws and fieldbus connector latches periodically to prevent loosening from machine vibration.

Safety Instructions:

• Always disconnect main electrical power prior to handling panel terminals or dismounting the HMI.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on fieldbus communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI 6AV6 545-0CC10-0AX0 SIMATIC TP270 Touch panel 10.4″ STN color display in Bangladesh?

A: The current sales price of the Siemens TP270 10.4-inch Touch Panel (6AV6545-0CC10-0AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy Siemens HMI 6AV6 545-0CC10-0AX0 SIMATIC TP270 Touch panel 10.4″ STN color display in Bangladesh?

A: You can purchase the genuine Siemens TP270 touch panel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating threshold up to 50°C, it is well suited for industrial plants in BD.

Q: How to install this product?

A: Cut the designated panel opening on your cabinet door, insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFIBUS/MPI communication cable.

Q: Which software is used to program the Siemens TP270 10.4-inch HMI?

A: It is programmed using Siemens ProTool (Version V6.0 or higher) or Siemens WinCC flexible Standard.

Q: Does this panel support PROFIBUS DP fieldbus communication?

A: Yes, it features an integrated RS485 interface supporting PROFIBUS DP up to 12 Mbit/s as well as MPI protocols.

Q: What is the usable memory capacity of the 6AV6545-0CC10-0AX0 model?

A: It features 2048 KB (2 MB) usable internal memory for storing user screen configurations and recipe data.

Q: What are the physical housing dimensions of the TP270 10.4-inch panel?

A: The housing dimensions measure approximately $335 \text{ mm} \text{ (width)} \times 275 \text{ mm} \text{ (height)} \times 59 \text{ mm} \text{ (depth)}$.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
