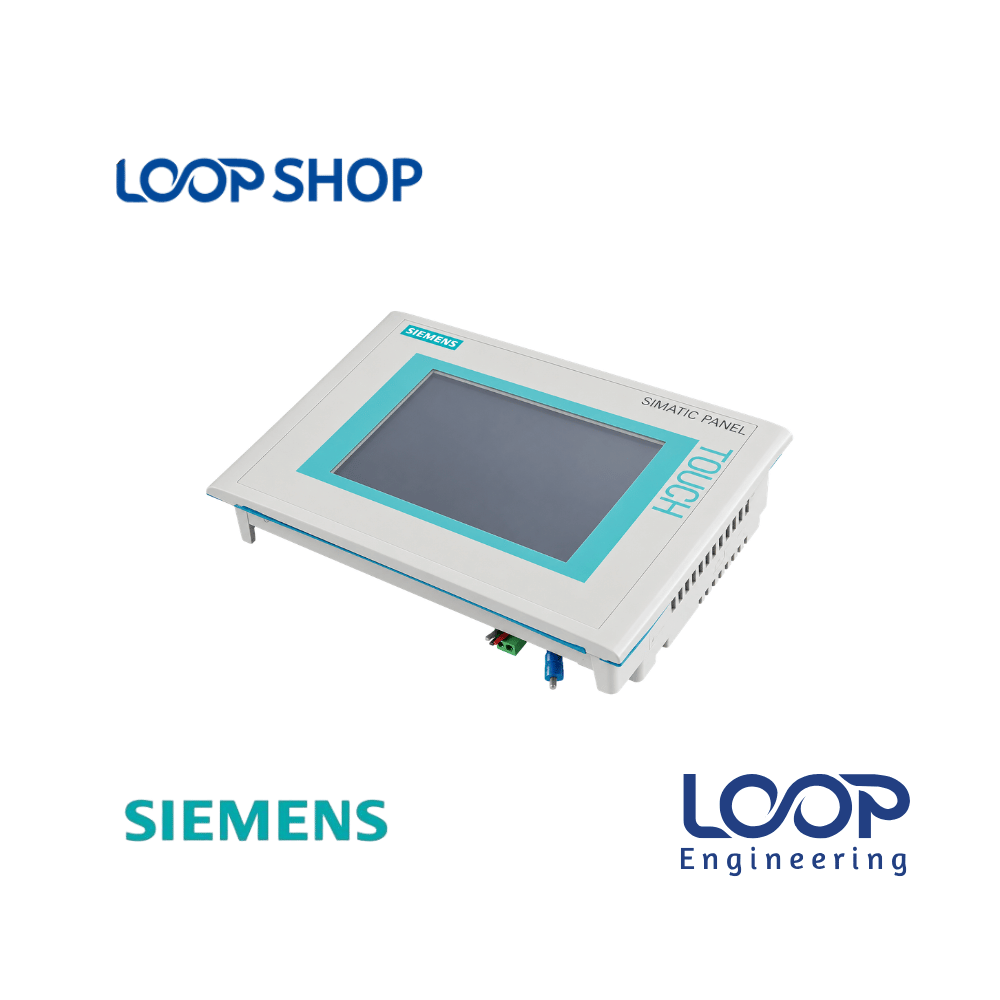

Siemens TP177 Micro Touch Panel 5.7-Inch Display 6AV6640-0CA11-0AX1

Description

The Siemens SIMATIC TP177 Micro Touch Panel (6AV6640-0CA11-0AX1) is a compact Human Machine Interface tailored specifically for SIMATIC S7-200 automation systems. Featuring a 5.7-inch blue-mode STN display with resistive touch controls, this panel enables machine operators to oversee processes, track alarms, and adjust parameters in real time.

By replacing push-buttons and indicator lamps with a centralized graphical touch display, the TP177 Micro simplifies complex machine interactions. Automation engineers, panel builders, and maintenance teams across Bangladesh rely on this operator panel for compact machinery builds, legacy retrofits, and reliable 24/7 industrial runtime.

Key Features

• 5.7-Inch STN Blue-Mode Display: Delivers clear, high-contrast process graphics and text rendering for operator clarity.
• Resistive Touch Screen: Smooth touch interface designed for precise parameter inputs and screen navigation.
• Native S7-200 PLC Integration: Connects directly to Siemens SIMATIC S7-200 controllers via sub-D communication ports.
• WinCC Flexible Configuration: Engineered using Siemens WinCC Flexible 2004 Micro (HSP upwards) software.
• Compact Cabinet Cutout: Small mounting footprint allows easy installation in space-constrained control boxes.
• IP65 Rated Front Enclosure: Front membrane protected against industrial dust, dirt, and water splashes.

Technical Advantages

• High Efficiency & Low Power Draw: Low thermal output reduces overall cabinet heat generation.
• Durable Construction: Industrial-grade front casing designed to handle mechanical vibration and repetitive touch inputs.
• Easy Maintenance: Quick project updates and parameter backup transfers via WinCC Flexible software.
• Safety & User Access: Multi-level password security prevents unauthorized adjustments to critical machine settings.

Applications

• Industrial Facilities: Small automated machinery, conveyor controllers, dosing systems, and packaging lines.
• Factory Environments: Textile spinning auxiliary machines, plastic molding units, and food processing equipment.
• Commercial & Utility Projects: Water pumping stations, small HVAC control units, and generator panel monitoring.
• Project Installation: Ideal for machine OEMs and system integrators building compact, budget-friendly S7-200 control panels in Bangladesh.

Why Choose This Product?

• Proven Siemens Quality: Built to strict engineering standards for long service life on busy plant floors.
• Cost-Effective Visualization: Delivers full graphical touch interface capabilities at an economical price point for small machines.
• Downtime Reduction: Real-time alarm diagnostics help operators troubleshoot machine faults quickly.
• Trusted Local Sourcing: Backed by direct sourcing, technical guidance, and fast nationwide delivery through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

• ✓ 5.7-inch STN blue-mode resistive touch display
• ✓ Native communication interface for Siemens SIMATIC S7-200 PLCs
• ✓ Configurable via WinCC Flexible 2004 Micro (HSP upwards)
• ✓ Front panel IP65 dust and moisture protection
• ✓ Compact chassis design for small control cabinet doors
• ✓ Energy-efficient low power consumption operation

Benefits For Customers

• Improves Operational Reliability: Clear visual alarm reporting allows operators to resolve process issues immediately.
• Saves Panel Space: Compact size easily replaces multiple physical push buttons and pilot lamps.
• Reduces Maintenance Costs: Rugged industrial construction minimizes mechanical hardware failure risks.
• Suitable for Bangladesh Environment: Performs reliably under high ambient factory temperatures (up to 50 °C) standard in BD.

Installation & Maintenance Guide

Installation Requirements:

• Prepare a clean panel cutout on the control cabinet door according to TP177 Micro physical frame dimensions.
• Secure the unit into the cutout using rear mounting clamps to ensure proper front panel seal contact.
• Connect to a stable, regulated 24 V DC power supply line with appropriate circuit protection.

Maintenance Tips:

• Clean the front touchscreen regularly using a soft, dry, lint-free cloth; avoid harsh solvents or abrasive pads.
• Inspect terminal blocks and communication connectors periodically for tight signal contact.
• Keep updated digital backups of panel runtime projects on your engineering station.

Safety Instructions:

• Always disconnect main line power from the panel cabinet before mounting, wiring, or servicing the unit.
• Connect the dedicated grounding terminal securely to shield internal circuitry against static charges and noise interference.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens TP177 Micro Touch Panel 6AV6640-0CA11-0AX1 in Bangladesh?

A: For live stock updates, competitive pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer sales team.

Q: Where can I buy original Siemens TP177 Micro in Bangladesh?

A: You can purchase authentic Siemens operator panels directly online from LOOP Shop at loopshop.com.bd.

Q: Which PLC series is the TP177 Micro compatible with?

A: The TP177 Micro (6AV6640-0CA11-0AX1) is specifically designed for communication with Siemens SIMATIC S7-200 PLCs.

Q: What display technology does the TP177 Micro use?

A: It features a 5.7-inch STN touch display operating in blue mode.

Q: What software is required to program this panel?

A: It is configured using Siemens WinCC Flexible 2004 Micro (HSP upwards) engineering software.

Q: What warranty does this product have?

A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.

Q: Is this product suitable for Bangladesh climate conditions?

A: Yes, with an IP65 rated front panel and operating temperature tolerance up to 50 °C, it performs reliably in local factory environments.

Q: How to install this product?

A: Cut out the designated opening on your cabinet door, insert the TP177 Micro, clamp it securely from the rear, and wire the 24 V DC power and S7-200 communication cables.

Q: Does it support open-source software licenses?

A: Yes, it contains open-source software components as detailed in the manufacturer documentation.

Q: Does LOOP Shop deliver across all districts in Bangladesh?

A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
