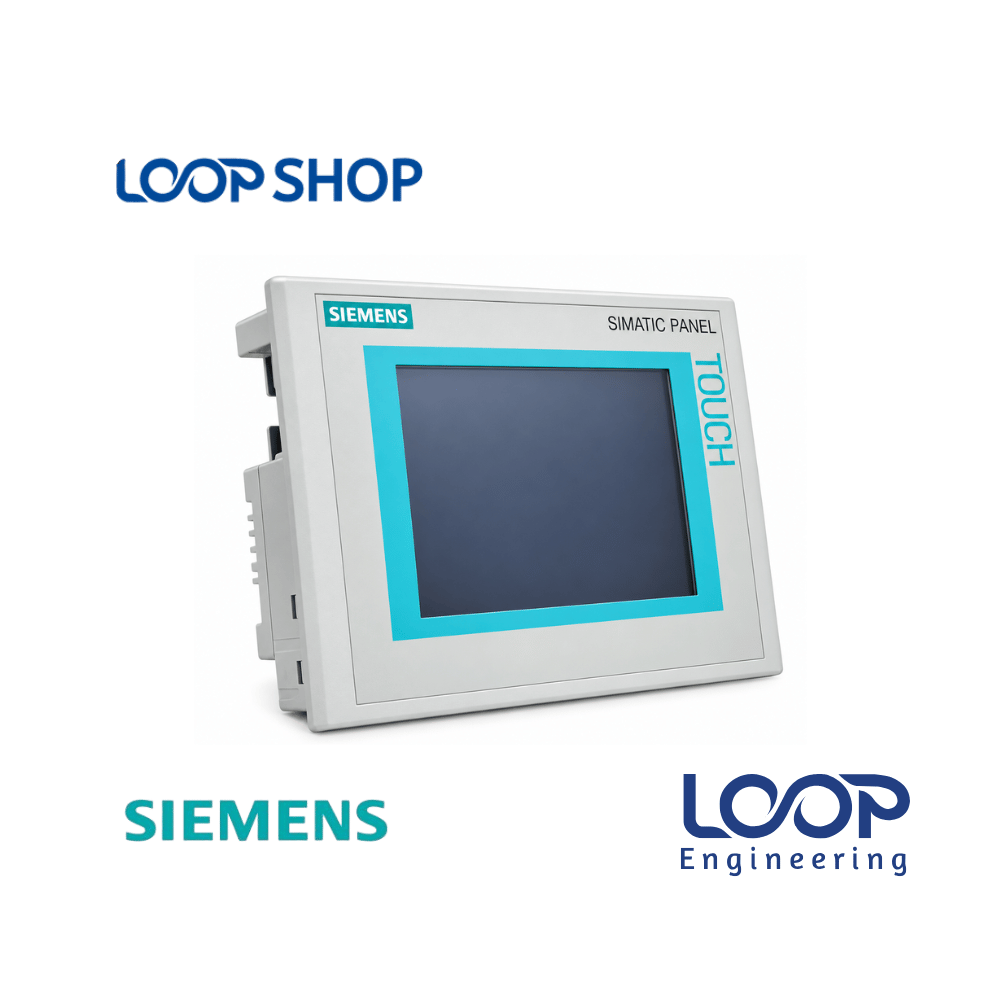

Siemens TP170A 6″ Touch HMI 6AV6642-0AA11-0AX1 Panel for Industrial PLC

Description

The Siemens SIMATIC HMI TP170A (6AV6642-0AA11-0AX1) is a compact, highly reliable 6-inch touch screen Human-Machine Interface panel built for industrial machine control and monitoring applications. Designed to link seamlessly with Programmable Logic Controllers (PLCs)—specifically the Siemens SIMATIC S7-200, S7-300, and S7-400 series—this operator panel allows machine operators to easily monitor process statuses, adjust timers and counters, and react to operational messages directly on the shop floor.

Equipped with a 5.7-inch STN blue-mode display and direct tactile touch capability, the TP170A panel processes communication commands via integrated MPI and PROFIBUS DP serial fieldbus interfaces. Configurable via ProTool or WinCC Flexible software packages, it offers a dependable, drop-in replacement option for Bangladeshi factory engineers and panel builders looking to sustain established automation lines without undergoing expensive system overhauls.

Key Features

• 5.7″ STN Touch Display: Clear blue-scale graphical screen designed for intuitive, button-free touch operation and status monitoring.
• Multi-Point Interface (MPI/PROFIBUS): Built-in serial fieldbus connection supporting fast data polling with Siemens S7 controllers.
• TIA / WinCC Configuration: Configurable using standard Siemens software environments including ProTool and WinCC Flexible.
• Compact Form Factor: Saves panel door real estate while offering full graphical machine control capabilities.
• IP65 Front Bezel Rating: Sealed front panel structure designed to protect against dust ingress and liquid splashes in harsh factory environments.

Technical Advantages

• Durable Construction: Industrial-grade enclosure and rugged touchscreen membrane built to withstand continuous multi-shift operation.
• Safety Protection: Immediate alarm message pop-ups enable operators to respond swiftly to critical equipment faults, preserving machinery integrity.
• Easy Maintenance: Quick project transfer and standardized mounting allow rapid unit replacement with minimal maintenance downtime.
• High Operational Efficiency: Direct touch inputs reduce operator error rates and streamline everyday machine setpoint adjustments.

Applications

• Industrial: Machine control cabinets, conveyor systems, and automated packaging lines.
• Factory: Textile dyeing and spinning machinery, pharmaceutical packaging equipment, and food processing lines.
• Commercial: Pumping stations, HVAC plant monitoring, and centralized generator control units.
• Project Installation: Control panel retrofits, legacy machinery upgrades, and OEM control integration across Bangladesh.

Why Choose This Product?

• Reliability: Engineered under Siemens SIMATIC quality standards to deliver consistent operational performance in industrial environments.
• Performance: Direct fieldbus connectivity ensures low communication latency and fast touch-input response times.
• Cost Effectiveness: Avoids major capital expenditure by replacing broken legacy touch panels without replacing entire PLC systems.
• After-Sales Value: Widely recognized architecture supported by established technical expertise across Bangladesh manufacturing hubs.

Technical Specification Table

Features List

✓ 5.7-inch STN touch screen display for graphical control

✓ Integrated MPI and PROFIBUS DP fieldbus interfaces

✓ Configurable via Siemens ProTool or WinCC Flexible software

✓ Compact 6-inch form factor suitable for tight control cabinets

✓ IP65 front panel protection against dust and water splashing

Benefits For Customers

• Improves Operational Reliability: Real-time diagnostic message display helps operators address line faults quickly.
• Saves Maintenance Cost: Direct swap-in replacement for failed TP170 panels eliminates full cabinet redesign expenses.
• Simplifies Field Operation: Touch-screen interface streamlines parameter adjustments on the factory floor.
• Suitable for Bangladesh Environment: Sealed front face resists industrial humidity, dust accumulation, and heat in Bangladeshi facilities.

 Installation & Maintenance Guide

Installation Requirements:

• Prepare cabinet door cutout according to standard Siemens TP170A panel mounting dimensions.
• Connect a stabilized 24V DC industrial power supply with correct wiring polarity.
• Fasten mounting clips uniformly around the bezel perimeter to establish an IP65 front panel seal.
• Connect shielded MPI or PROFIBUS cables securely to the rear communication port.

Maintenance Tips:

• Clean the front touch screen periodically using a soft, non-abrasive cloth moistened with mild cleaner.
• Inspect rear wiring terminal screws and communication cable connectors periodically to ensure tight seating.
• Keep cabinet cooling vents clear to maintain ambient temperatures within the specified 0 °C to +50 °C range.

Safety Instructions:

• De-energize main panel power prior to mounting, dismounting, or performing electrical terminal wiring.
• Ensure proper panel grounding according to Siemens safety standards to prevent static charge accumulation.
• Electrical wiring and project downloads should only be conducted by qualified automation technicians or engineers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens TP170A 6 inch HMI 6AV6642-0AA11-0AX1 in Bangladesh?

A: The price of the Siemens TP170A 6″ touch HMI panel in Bangladesh depends on current stock availability and import rates. Please check loopshop.com.bd or contact our team for live pricing.

Q: Where can I buy Siemens TP170A 6 inch HMI 6AV6642-0AA11-0AX1 in Bangladesh?

A: You can purchase genuine Siemens TP170A HMI panels directly online through loopshop.com.bd with reliable nationwide delivery across Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard supplier warranty covering hardware performance and manufacturing integrity upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an IP65 front protection rating and heat-tolerant industrial components, it is well suited for ambient conditions in Bangladeshi factories.

Q: How to install this product?

A: Insert the panel into the cabinet cutout, secure it with mounting clamps, wire the 24V DC power terminals, and connect the MPI/PROFIBUS cable to your PLC.

Q: What engineering software is used to program the Siemens TP170A?

A: The TP170A panel is configured using Siemens ProTool or WinCC Flexible software packages.

Q: Which PLCs are compatible with the Siemens TP170A HMI?

A: It is compatible with Siemens SIMATIC S7-200, S7-300, and S7-400 series PLCs, as well as multi-vendor controllers via supported protocols.

Q: What display technology does the TP170A 6-inch panel use?

A: It features a 5.7-inch STN monochrome/blue-mode display with touch-sensitive overlay.

Q: Does the Siemens TP170A support touch operation?

A: Yes, it utilizes an analog resistive touch screen for direct buttonless control and menu navigation.

Q: Can I use this panel to replace a broken TP170A in an existing machine?

A: Yes, it serves as an exact direct replacement, allowing you to reload the original project file without modifying cabinet cutouts.
