Siemens TP1500 Comfort Panel 15-Inch 6AV2124-0QC02-0AX1 Touch BD

Description

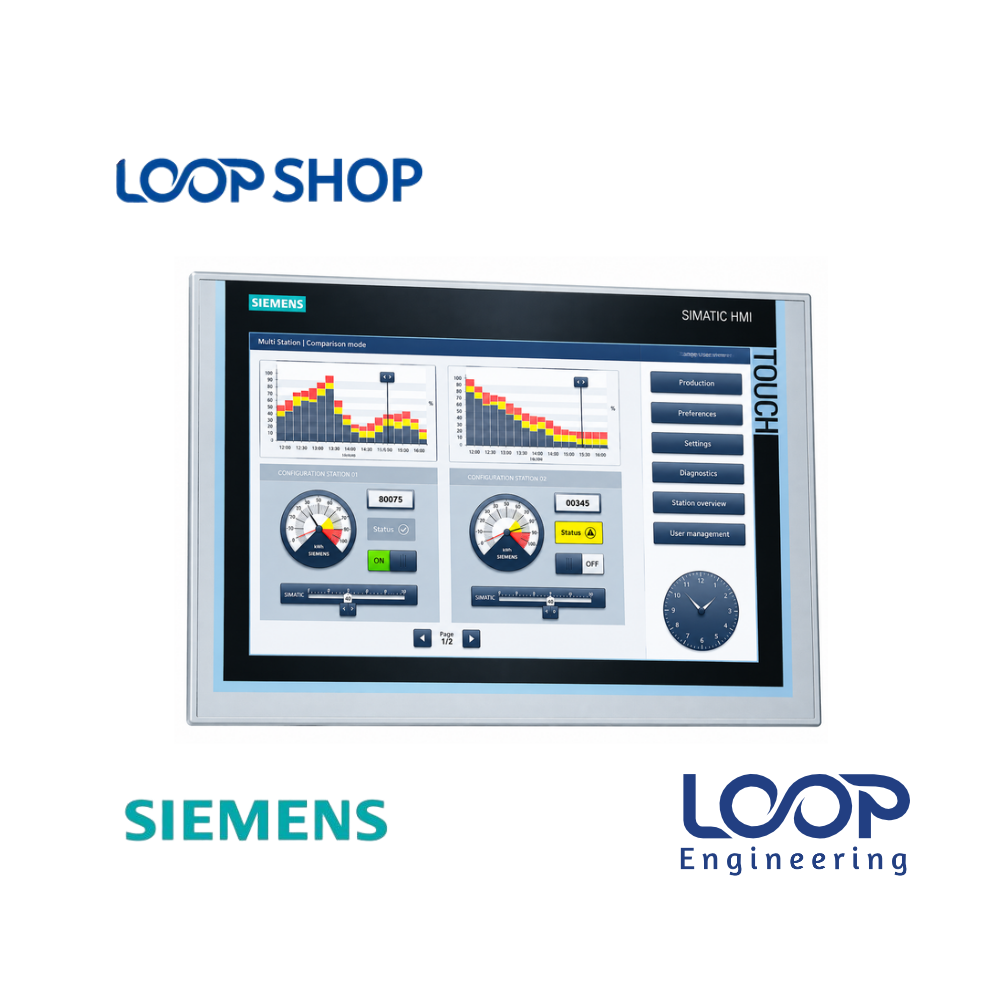

The Siemens SIMATIC HMI TP1500 Comfort Panel (6AV2124-0QC02-0AX1) is a premium, large-format operator display engineered for complex, mission-critical industrial automation applications. Featuring a 15.4-inch active-matrix widescreen TFT touch display rendering 16 million vivid colors at a crisp $1280 \times 800$ pixel WXGA resolution, this panel allows operators to oversee complex process loops, navigate multi-zone machine menus, track real-time alarm queues, and analyze trend charts effortlessly.

Powered by an X86 processor running Windows Embedded Compact 2013 and equipped with a generous 24 MB of non-volatile configuration memory, the TP1500 Comfort panel executes demanding scripts, recipe files, and historical data logging without performance drops. For multi-network connectivity, it features PROFINET Industrial Ethernet (with an integrated 2-port switch plus an independent port) and an RS422/RS485 interface for MPI and PROFIBUS DP. Heavily relied upon in Bangladesh’s textile sector—especially for Brückner stenter machines and continuous finishing ranges—this original German-engineered unit serves as an authentic replacement solution that prevents costly factory shutdowns.

Key Features

• 15.4-Inch Widescreen Color TFT Display: Sharp $1280 \times 800$ pixel resolution presenting 16 million colors with wide viewing angles for detailed plant schematics.
• Analog-Resistive Touch Screen: Highly responsive touch glass optimized for industrial plant floors, enabling precise operator inputs even when wearing industrial gloves.
• 24 MB User Configuration Memory: Expansive memory capacity supporting complex WinCC projects, extensive recipe libraries, and historical data archiving.
• Triple PROFINET & PROFIBUS Connectivity: Features PROFINET IO interfaces with an integrated 2-port switch plus an additional independent Ethernet port, alongside RS422/485 for PROFIBUS DP / MPI.
• Configurable via TIA Portal: Configured using Siemens WinCC Comfort V14 SP1 (with HSP) or higher engineering environments.

Technical Advantages

• High Efficiency: Fast processor boot times and high-speed fieldbus polling maintain smooth real-time data flow on large machinery.
• Durable Construction: Heavy-duty front housing with an IP65 moisture- and dust-resistant seal protects internal circuits against aggressive factory airborne lint, oil, and moisture.
• Safety Protection: Integrated multi-level user password administration, active diagnostic alarm logging, and audit trail options prevent operational errors.
• Energy Saving: Dimmable LED backlighting ($80,000 \text{ hours}$ MTBF at $25^\circ\text{C}$) reduces active power draw ($41 \text{ W}$ typical) and limits heat buildup inside control enclosures.
• Easy Maintenance: Dual SD card slots and USB 2.0 host ports permit rapid automatic project backups, firmware updates, and flash drive data extractions.

Applications

• Industrial: Brückner stenter machines, textile continuous dyeing ranges, plastic extrusion lines, and heavy metal stamping equipment.
• Factory: High-speed pharmaceutical packaging lines, food and beverage processing, chemical batching, and paper converting mills.
• Commercial: Centralized building management control centers, power generation stations, and municipal water treatment plants.
• Project Installation: Control cabinet retrofitting, system expansion, and high-end PLC-HMI modernization projects across Bangladesh.

Why Choose This Product?

• Reliability: Built in Germany to Siemens’ highest industrial standards for continuous 24/7 duty cycles under challenging plant conditions.
• Performance: High graphical rendering capacity, multi-fieldbus networking, and responsive touch tracking across S7 automation architectures.
• Cost Effectiveness: Sourcing an original 15-inch TP1500 Comfort panel replaces damaged hardware directly without requiring expensive complete system re-engineering.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ Large 15.4-inch widescreen TFT display with 16 million colors ($1280 \times 800$ resolution)

✓ 24 MB onboard user memory for complex scripts, recipe management, and process logging

✓ PROFINET Ethernet (2-port switch + 1 independent port) and RS422/RS485 (MPI/PROFIBUS DP)

✓ Dual USB 2.0 host ports and dual SD card slots for peripheral devices and backup media

✓ Heavy-duty IP65 dust-tight and splash-water resistant front bezel

Benefits For Customers

• Saves Maintenance Capital: Avoids multi-million Taka control system overhauls by replacing broken Comfort Panels directly without altering host PLC code.
• Improves Operational Reliability: High-definition 15.4-inch workspace allows operators to monitor multiple machine parameters simultaneously.
• Minimizes Production Downtime: Fast boot times and simple SD/USB backup options reduce turnaround times during routine plant maintenance.
• Suitable for Bangladesh Environment: Heavy-duty IP65 front face defends against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out a clean panel door opening measuring $396 \text{ mm} \times 291 \text{ mm}$ to match the TP1500 Comfort mounting cutout.
2. Ensure the surrounding cabinet provides vertical installation orientation with adequate air ventilation clearance.
3. Position the perimeter rubber sealing gasket properly around the bezel channel to preserve its IP65 moisture rating.
4. Insert the unit into the cutout, tighten all cabinet mounting clamps evenly, and connect the 24V DC power terminals alongside network cables.

Maintenance Tips:

• Clean the touch display surface using a soft, dry, non-abrasive microfiber cloth.
• Do not apply harsh industrial chemical solvents, strong alcohol, or abrasive cleaning wipes directly onto the display glass.
• Periodically check terminal connections and Ethernet latches inside the cabinet to prevent loosening caused by machine vibration.

Safety Instructions:

• Always disconnect main electrical power to the panel before handling wiring connectors or dismounting the HMI.
• Ensure proper protective earthing (PE) of the metal mounting enclosure to prevent static discharge on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI TP1500 COMFORT PANEL 6AV2124-0QC02-0AX1 15inch Germany in Bangladesh?

A: The current sales price of the Siemens TP1500 Comfort Panel (6AV2124-0QC02-0AX1) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy Siemens HMI TP1500 COMFORT PANEL 6AV2124-0QC02-0AX1 15inch Germany in Bangladesh?

A: You can purchase the genuine Siemens TP1500 Comfort Panel online directly from loopshop.com.bd with secure courier delivery across all industrial regions in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial plants in BD.

Q: How to install this product?

A: Prepare the cabinet door cutout ($396 \text{ mm} \times 291 \text{ mm}$), insert the unit with its sealing ring, secure mounting clamps, wire 24V DC power terminals, and attach the PROFINET/PROFIBUS network cables.

Q: Is the Siemens TP1500 Comfort Panel compatible with Brückner stenter machines?

A: Yes, the 6AV2124-0QC02-0AX1 model is extensively used on Brückner stenter machines and textile finishing equipment as the main operator interface.

Q: Which software is used to program the Siemens TP1500 Comfort Panel?

A: It is programmed using Siemens WinCC Comfort V14 SP1 (with HSP) or higher versions within TIA Portal.

Q: What is the memory capacity of the TP1500 Comfort 6AV2124-0QC02-0AX1?

A: It features 24 MB of onboard user configuration memory for scripts, recipes, and trend logs.

Q: What communication protocols are supported on this model?

A: It supports PROFINET IO, PROFIBUS DP, MPI, Modbus TCP, EtherNet/IP, and TCP/IP protocols.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation products to Chittagong, Gazipur, Narayanganj, Savar, and all other industrial zones across Bangladesh.
