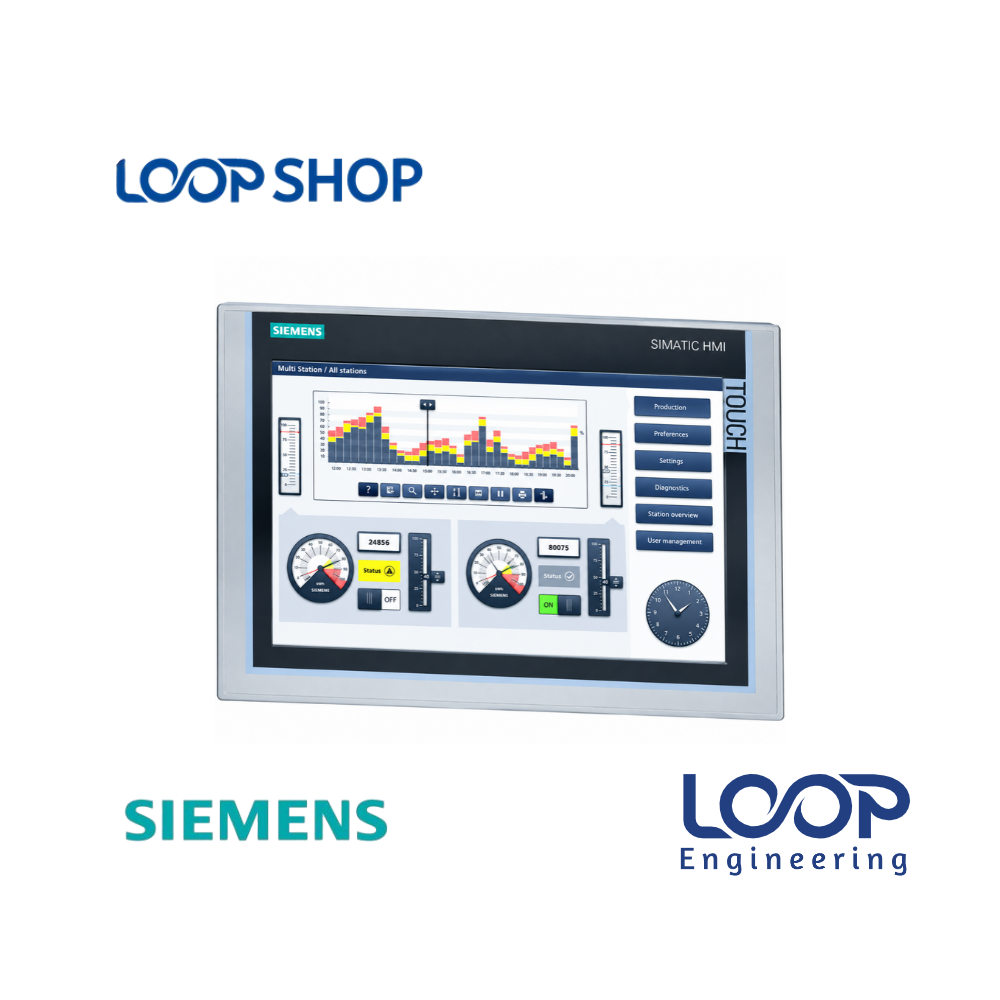

Siemens TP1200 Comfort HMI Panel 12-Inch 6AV2124-0MC01-0AX0 Touch

Description

The Siemens SIMATIC HMI TP1200 Comfort Panel (6AV2124-0MC01-0AX0) represents the benchmark in high-end industrial operator interfaces. Engineered for demanding machine-level visualization tasks, this panel features a brilliant 12.1-inch widescreen TFT touch display rendering up to 16 million vibrant colors at a crisp $1280 \times 800$ pixel WVGA resolution. Powered by Windows CE 6.0 and equipped with 12 MB of non-volatile user memory, the TP1200 Comfort delivers exceptional processing power for complex graphic animations, extensive recipe management, and high-speed data logging.

Designed to communicate effortlessly across diverse plant architectures, it features integrated PROFINET Industrial Ethernet ports with built-in switch capability and an RS422/RS485 interface supporting MPI and PROFIBUS DP. For plant managers, automation engineers, and system integrators in Bangladesh, sourcing this original Siemens Comfort Panel ensures maximum uptime, superior operational clarity, and absolute reliability for mission-critical automation systems.

Key Features

• 12.1-Inch Widescreen TFT Display: High-definition $1280 \times 800$ pixel resolution with 16 million colors delivering crisp process mimic diagrams and trend curves.
• Resistive Touch Operation: Highly responsive touch screen optimized for industrial plant floors, ensuring precise operator inputs even when wearing protective gloves.
• 12 MB Configuration Memory: Ample internal memory capacity for heavy runtime projects, historical data archiving, and large recipe databases.
• Integrated Dual Ethernet & Fieldbus: Features PROFINET IO interfaces with integrated switch functionality alongside an RS422/RS485 port for MPI/PROFIBUS DP networking.
• TIA Portal Engineering: Configured seamlessly using Siemens SIMATIC WinCC Comfort within the advanced TIA Portal engineering framework.

Technical Advantages

• High Efficiency: Rapid screen refresh rates and fast data processing eliminate operational bottlenecks during high-speed production cycles.
• Durable Construction: Rugged cast-aluminium front bezel with an IP65 degree of protection designed to withstand harsh factory moisture, dust, and vibration.
• Safety Protection: Advanced user administration levels, system diagnostics, and robust password security prevent unauthorized access.
• Energy Saving: Dimmable LED backlighting ($80,000 \text{ hours}$ MTBF at $25^\circ\text{C}$) minimizes power consumption ($20 \text{ W}$ typical) and cabinet heat buildup.
• Easy Maintenance: Integrated USB 2.0 ports allow quick project updates, firmware backups, and data extraction using standard flash drives.

Applications

• Industrial: Heavy textile finishing ranges, chemical processing plants, plastic extrusion lines, and metal stamping presses.
• Factory: Automated production lines, pharmaceutical manufacturing, food and beverage packaging, and water treatment facilities.
• Commercial: Central building automation management systems and power distribution substations.
• Project Installation: Advanced control cabinet retrofitting, system expansion, and high-end PLC-HMI modernization projects across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest industrial standards for continuous 24/7 duty cycles in aggressive plant environments.
• Performance: Exceptional graphical rendering power, multi-protocol communication, and high-speed data logging capabilities.
• Cost Effectiveness: Maximizes overall plant productivity and prevents costly catastrophic stoppages by providing crystal-clear diagnostic tracking.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 12.1-inch widescreen TFT touch display with 16 million colors ($1280 \times 800$ resolution)

✓ 12 MB non-volatile user configuration memory for scripts, logs, and recipes

✓ Dual PROFINET Ethernet ports with switch functionality and RS422/485 (MPI/PROFIBUS)

✓ Dual USB 2.0 host ports for peripheral devices and external data storage

✓ Rugged aluminium IP65 dust-tight and splash-water resistant front bezel

Benefits For Customers

• Saves Maintenance Capital: Replaces damaged high-end operator panels directly without rewriting complex PLC control scripts.
• Improves Operational Reliability: High-definition widescreen workspace allows operators to monitor multiple machine parameters simultaneously.
• Minimizes Production Downtime: Fast boot times and rapid data backups reduce turnaround times during routine plant maintenance.
• Suitable for Bangladesh Environment: Rugged aluminium IP65 front face withstands dusty, humid, and warm factory conditions across industrial zones in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel door cutout measuring $310 \text{ mm} \times 221 \text{ mm}$ to match the TP1200 Comfort mounting profile.
2. Ensure the surrounding enclosure provides at least a vertical installation orientation ($\pm 45^\circ$) with proper ventilation clearance.
3. Position the perimeter sealing gasket correctly within the aluminium bezel groove to preserve its IP65 moisture rating.
4. Insert the unit into the cutout, secure evenly with the integrated mounting clamps, and connect the 24V DC power supply alongside network cables.

Maintenance Tips:

• Clean the touch screen surface using a soft, non-abrasive dry microfiber cloth.
• Avoid applying harsh industrial solvents, strong alcohol, or abrasive chemical pads directly to the touch overlay.
• Inspect terminal connection blocks and Ethernet latches periodically to ensure secure contact despite heavy plant vibration.

Safety Instructions:

• Always isolate main electrical power to the control panel before opening enclosures or adjusting internal wiring.
• Ensure proper protective earth (PE) grounding of the mounting frame to eliminate electromagnetic interference.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI TP1200 Comfort 6AV2124-0MC01-0AX0 12 inch in Bangladesh?

A: The current sales price of the Siemens TP1200 Comfort Panel (6AV2124-0MC01-0AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock availability and pricing details.

Q: Where can I buy Siemens HMI TP1200 Comfort 6AV2124-0MC01-0AX0 12 inch in Bangladesh?

A: You can purchase the genuine Siemens TP1200 Comfort Panel online directly from loopshop.com.bd with secure courier delivery across all industrial regions in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to verify full operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring a robust aluminium IP65 front enclosure and an operating threshold up to 50°C, it is engineered for demanding industrial plants in BD.

Q: How to install this product?

A: Cut the proper cabinet opening, insert the unit with its sealing gasket, tighten the mounting clamps, wire the 24V DC power lines, and plug in the PROFINET or PROFIBUS cables.

Q: Which software is used to program the Siemens TP1200 Comfort Panel?

A: It is programmed using Siemens SIMATIC WinCC Comfort within the TIA Portal engineering environment (V11 or higher).

Q: Does the TP1200 Comfort panel support data logging?

A: Yes, it features 12 MB of user memory and supports advanced data logging, archiving, and recipe management via USB or network storage.

Q: What communication interfaces are available on this model?

A: It includes dual PROFINET Industrial Ethernet ports with integrated switch capability and an RS422/RS485 combo port for MPI/PROFIBUS DP.

Q: What is the screen resolution of the TP1200 Comfort HMI?

A: It features a high-definition widescreen resolution of $1280 \times 800$ pixels.

Q: Does LOOP Shop provide delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation products to Chittagong, Gazipur, Narayanganj, Savar, and all other industrial zones across Bangladesh.
