Siemens TD17-DP12 Text Display 6AV3017-1NE30-0AX0 PROFIBUS Panel

Description

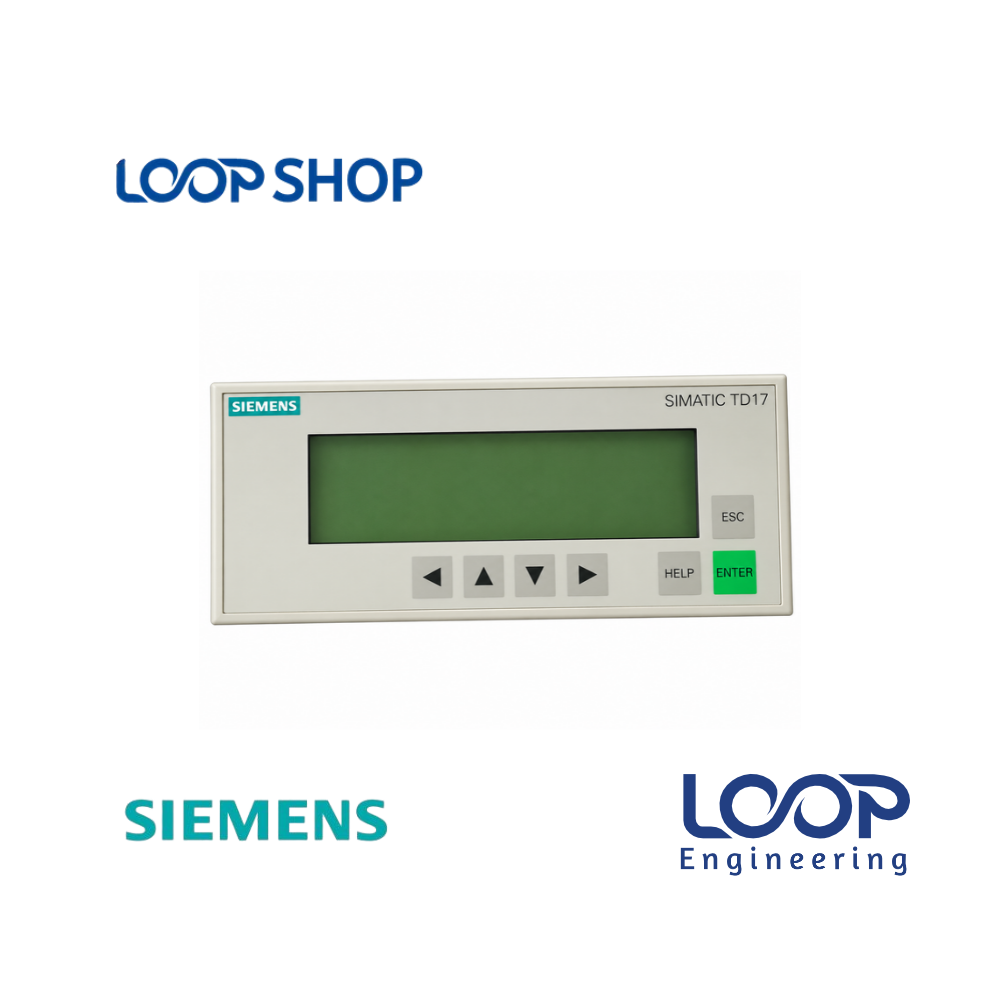

The Siemens SIMATIC Text Display TD17-DP12 (6AV3017-1NE30-0AX0) is an industrial-grade operator interface engineered for legacy Siemens PLC systems. Featuring a high-contrast LC display with LED backlighting, the TD17-DP12 supports dual-mode display configurations of $4 \times 20$ or $8 \times 40$ lines/characters, providing clear operator feedback for machine alarms, system setpoints, and status messages.

Equipped with built-in native drivers for SIMATIC S5, SIMATIC S7, SIMATIC M7, and 505 controllers alongside a PROFIBUS-DP12 fieldbus interface, this text terminal connects seamlessly into complex industrial communication networks. For factory engineers and maintenance specialists in Bangladesh, sourcing this original display panel allows legacy plant machinery to maintain peak operational reliability without incurring high costs from complete system retrofits.

Key Features

• Versatile Display Modes: Backlit LED LC display configured for $4 \times 20$ or $8 \times 40$ lines x characters for high-density diagnostic text layout.
• PROFIBUS-DP12 Fieldbus: Integrated PROFIBUS-DP interface ensuring high-speed cyclic data exchange with host automation systems.
• Multi-PLC Native Drivers: Pre-loaded protocol drivers for SIMATIC S5, S7, M7, and 505 controller families.
• Rugged Keypad Layout: Tactile membrane keys for reliable parameter input and menu navigation in factory floor conditions.
• Industrial Enclosure: Compact panel-mount housing built for harsh industrial environments.

Technical Advantages

• High Efficiency: Low boot time and rapid communication polling speed ensure instant diagnostic message reporting.
• Durable Construction: Industrial-grade front membrane keyboard designed to resist dust, oil residue, and mechanical wear.
• Safety Protection: Built-in password levels and clear alarm text displays help operators react quickly to plant fault conditions.
• Energy Saving: Energy-efficient LED backlight technology lowers total power consumption and extends operating life.
• Easy Maintenance: Direct drop-in replacement simplifies hardware swaps on legacy machine control cabinets.

Applications

• Industrial: Textile spinning, weaving, and finishing machinery, packaging systems, and plastics machinery.
• Factory: Chemical dosing units, food processing lines, paper converting plants, and pharmaceutical machinery.
• Commercial: Central HVAC status reporting and water pump stations.
• Project Installation: Control cabinet repairs, legacy PLC communication maintenance, and factory modernization projects in Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles.
• Performance: Clear LED-backlit contrast and reliable PROFIBUS DP network throughput.
• Cost Effectiveness: Avoids multi-million Taka system retrofits by restoring existing SIMATIC S5/S7 control interfaces.
• After-Sales Value: Backed by testing guarantees, genuine sourcing, and fast dispatch from LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Backlit LED LC display with $4 \times 20$ / $8 \times 40$ character configuration

✓ Built-in PROFIBUS-DP12 communication interface

✓ Native software drivers for SIMATIC S5, S7, M7, and 505 PLCs

✓ Industrial IP65 front membrane overlay keyboard

✓ Compact, drop-in replacement panel for legacy SIMATIC installations

Benefits For Customers

• Reduces Maintenance Cost: Keeps existing legacy PLC infrastructure working smoothly without expensive control panel replacement.
• Improves Operational Reliability: High-contrast LED backlighting enables quick operator parameter adjustments and alarm tracking.
• Saves Engineering Time: Native S5/S7 drivers eliminate the need to write custom communication protocol code.
• Suitable for Bangladesh Environment: Rugged IP65 front face protects internal electronics against factory dust, heat, and humidity in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Turn off all electrical power to the control cabinet before installing or removing the display panel.
2. Cut the panel door opening precisely according to the Siemens TD17 mounting template.
3. Seat the front rubber sealing gasket properly to maintain IP65 dust and liquid protection.
4. Secure the unit using the panel mounting clips, then connect the 24V DC power connector and PROFIBUS DP cable.

Maintenance Tips:

• Clean the front membrane keys using a soft, non-abrasive dry cloth or light neutral cleaner.
• Inspect the PROFIBUS bus connector and terminal screws periodically to ensure solid contact despite machine vibration.
• Keep control enclosure cooling vents clear to maintain ambient temperature stability.

Safety Instructions:

• Never handle terminal blocks or cable connections while power is applied.
• Ensure cabinet earthing/grounding is properly connected to eliminate static build-up on fieldbus lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6AV3017-1NE30-0AX0 Text Display TD17-DP12 in Bangladesh?

A: The current price for the Siemens TD17-DP12 (6AV3017-1NE30-0AX0) text display in Bangladesh is listed on loopshop.com.bd. Contact us directly or visit our online shop for live pricing and availability.

Q: Where can I buy Siemens 6AV3017-1NE30-0AX0 Text Display TD17-DP12 in Bangladesh?

A: You can buy the genuine Siemens TD17-DP12 display panel online directly from loopshop.com.bd with delivery options available across Bangladesh.

Q: What warranty does this product have?

A: This product comes with a standard checking and testing warranty from LOOP Shop to confirm operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an IP65 front panel protection rating, it is well suited for dusty and humid industrial factory conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening on your cabinet door, insert the unit with its sealing ring, tighten the mounting clips, connect 24V DC power, and plug in the PROFIBUS DP connector.

Q: Which PLCs are compatible with the Siemens TD17-DP12 text display?

A: The TD17-DP12 includes native drivers for SIMATIC S5, SIMATIC S7, SIMATIC M7, and 505 PLC controllers.

Q: Does this display panel feature a backlighting system?

A: Yes, it features an LED-backlit LC display matrix supporting $4 \times 20$ or $8 \times 40$ line/character layouts.

Q: What network interface does the 6AV3017-1NE30-0AX0 model support?

A: It features an integrated PROFIBUS-DP12 fieldbus port for high-speed industrial network communication.

Q: Can this panel replace older TD17 display units?

A: Yes, it serves as a direct form, fit, and function replacement for legacy Siemens TD17 operator panels.

Q: Does LOOP Shop provide courier delivery across all districts in Bangladesh?

A: Yes, LOOP Shop delivers industrial automation equipment and PLC/HMI modules across all major industrial areas in Bangladesh.
