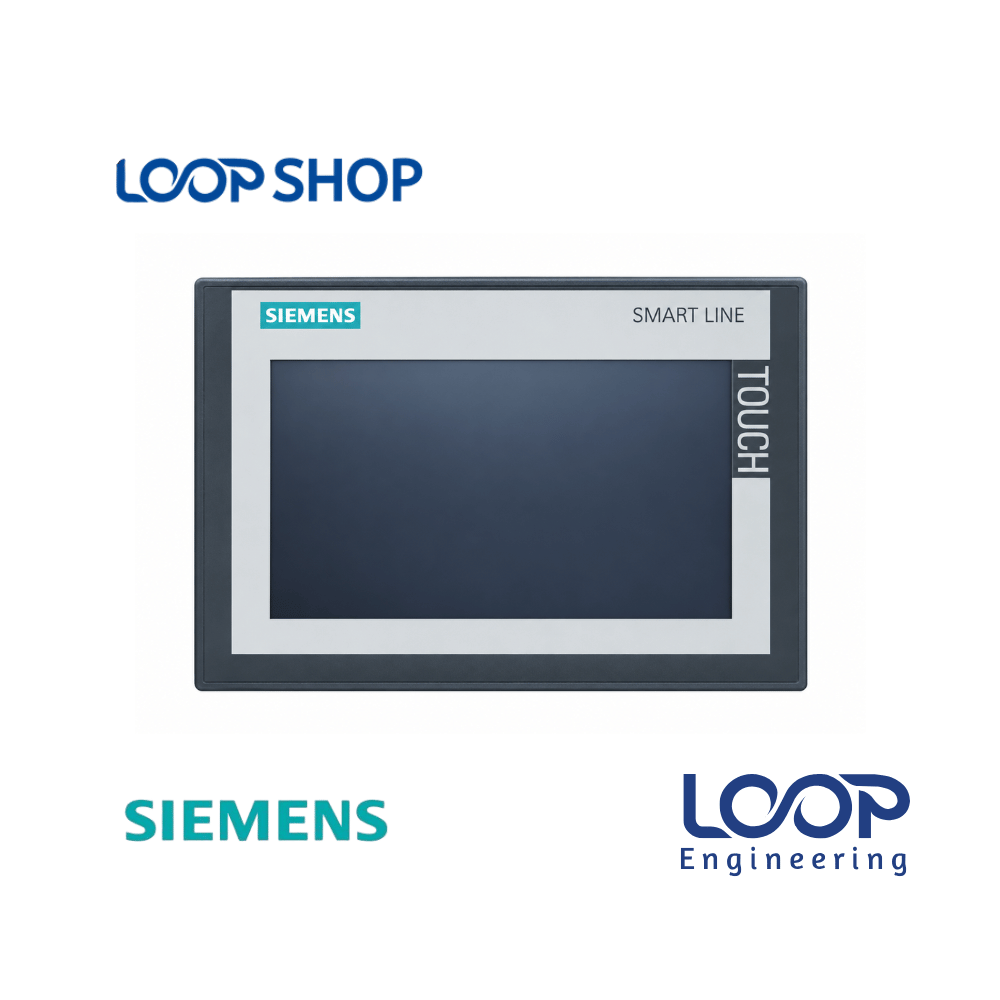

Siemens Smart 700 IE V3 HMI Touch Panel 7″ for S7-200 SMART PLC

Description

The Siemens SIMATIC HMI SMART 700 IE V3 (6AV6648-0CC11-3AX0) is a 7-inch widescreen touch operator panel belonging to Siemens’ specialized SMART LINE product family. Purpose-built for cost-sensitive automation projects, this display interface is deliberately optimized to pair seamlessly with the SIMATIC S7-200 SMART PLC ecosystem and LOGO! micro-controllers, making it a staple in modern machine automation setups.

Featuring an 800 x 480 high-resolution TFT display rendering 65,536 vivid colors, the Smart 700 IE V3 translates complex PLC ladder logic parameters, process values, and system diagnostics into clear graphical representations. In Bangladesh’s fast-expanding manufacturing sector, local machine fabricators and plant engineers rely on the Smart 700 IE V3 as a reliable, cost-effective HMI that optimizes project budgets while upholding Siemens’ rigorous quality standards.

Key Features

• 7-Inch Widescreen TFT Display: 800 x 480 pixel resolution supporting 65,536 colors for sharp layout rendering and easy parameter navigation.
• S7-200 SMART & LOGO! Optimization: Natively designed to communicate efficiently with Siemens S7-200 SMART PLCs and LOGO! logic modules.
• Dual Communication Interfaces: Equipped with an Ethernet port (RJ45) for fast PROFINET/IP networking and an RS422/RS485 serial port.
• Front Panel IP65 Protection: Heavy-duty front membrane panel provides complete protection against airborne dust and water splash ingress.
• WinCC Flexible SMART Configuration: Programmed via Siemens WinCC Flexible SMART engineering software for fast project design and deployment.

Technical Advantages

• Durable Construction: Built with high-grade industrial polymer housing designed to withstand cabinet vibration and electromagnetic noise.
• High Efficiency: Low operator input latency and fast screen redraw rates streamline daily machine operations and fault diagnostics.
• Safety Protection: Built-in galvanically isolated communication lines shield sensitive internal processors against voltage transients on field busses.
• Energy Saving: Dimmable LED backlight technology reduces total cabinet thermal dissipation and lowers electrical power consumption.
• Easy Maintenance: Modern fanless housing design eliminates dust build-up inside the chassis, significantly extending component service life.

Applications

• Industrial: Packaging machines, plastic extrusion, labeling systems, conveyor lines, and automatic assembly units.
• Factory: Textile dyeing and spinning facilities, food and beverage processing, pharmaceuticals, and printing plants in Bangladesh.
• Commercial: Water treatment systems, central pump automation, building HVAC control panels, and generator monitoring.
• Project Installation: Ideal OEM solution for system integrators, control panel builders, and automation projects across BD.

Why Choose This Product?

• Siemens Industrial Reliability: Delivers top-tier global engineering quality and continuous duty cycle stability for 24/7 manufacturing environments.
• Exceptional Cost-to-Performance Ratio: Offers advanced graphical touch control at a fraction of standard panel costs, maximizing return on investment.
• Optimized SMART Automation: Eliminates complex protocol setup when pairing with S7-200 SMART controllers.
• Trusted Local After-Sales Value: Verified hardware authenticity, technical datasheet support, and fast nationwide delivery via LOOP Shop.

Technical Specification Table

Features List

• ✓ 7-inch widescreen TFT display with 65,536 colors
• ✓ Integrated Ethernet (RJ45) and RS422/485 serial communication ports
• ✓ Natively optimized for Siemens S7-200 SMART PLC and LOGO! controllers
• ✓ Front IP65 dust-proof and splash-water protection rating
• ✓ Configurable via WinCC Flexible SMART engineering software

Benefits For Customers

• Lowers Total Automation Costs: Delivers genuine Siemens touch visual performance at a budget-conscious price point.
• Reduces System Downtime: Immediate real-time alarm display allows operators to locate and rectify machinery trips quickly.
• Saves Energy & Cabinet Space: Compact installation footprint and low 24 V DC power draw optimize control panel space.
• Resilient in Bangladesh Conditions: IP65-sealed front face withstands tropical humidity, dust, and factory environment challenges in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the designated mounting area on the electrical enclosure door precisely to 197 mm x 141 mm.
2. Insert the Smart 700 IE V3 panel into the cutout from the outside and secure it tightly with the provided mounting clamps to maintain an IP65 seal.
3. Connect a clean, regulated 24 V DC power supply to the main terminals, ensuring proper earth grounding (PE).
4. Plug the RJ45 Ethernet or RS485 communication cable into its corresponding port and secure all strain reliefs.

Maintenance Tips:

1. Clean the front display face regularly using a soft, dry or slightly damp microfiber cloth; do not use aggressive solvents.
2. Periodically check cabinet ventilation and cooling fans to ensure ambient enclosure temperatures stay below 50 °C.
3. Inspect wiring terminal screws and serial port lock-screws to prevent vibration-induced signal dropouts.

Safety Instructions:

1. Always isolate incoming 24 V DC electrical power before installing, wiring, or servicing the HMI unit.
2. Verify correct power supply polarity prior to energizing the device to prevent internal power board damage.
3. Touch the screen matrix using bare fingers or designated soft styluses; never use metal screwdrivers or sharp objects.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC Smart 700 IE V3 6AV6648-0CC11-3AX0 in Bangladesh?

A: Product pricing varies based on stock availability, import tariffs, and exchange rates in BD. Please visit loopshop.com.bd or contact our sales team directly for updated pricing.

Q: Where can I buy original Siemens Smart 700 IE V3 HMI in Bangladesh?

A: You can purchase genuine Siemens Smart 700 IE V3 panels online directly at loopshop.com.bd with secure payment options and fast delivery across BD.

Q: What warranty does this product come with?

A: This product carries standard supplier warranty coverage against manufacturing defects. Please verify full terms with LOOP Shop at the time of purchase.

Q: Is the Siemens Smart 700 IE V3 suitable for Bangladesh factory conditions?

A: Yes, featuring an IP65 front face rating and an operating temperature threshold up to 50 °C, it is built to operate dependably in tropical, dusty, and humid factory settings in BD.

Q: What software is used to program the Siemens Smart 700 IE V3?

A: The panel is configured using Siemens WinCC Flexible SMART software via an Ethernet network connection.

Q: Is this HMI panel compatible with Siemens LOGO! controllers?

A: Yes, the Smart LINE series is specifically optimized for smooth connectivity with both S7-200 SMART PLCs and Siemens LOGO! micro-controllers.

Q: What display resolution does the 6AV6648-0CC11-3AX0 offer?

A: It features a 7-inch widescreen TFT display with an 800 x 480 pixel resolution and up to 65,536 colors.

Q: Does this panel feature an Ethernet port?

A: Yes, it includes an onboard RJ45 Ethernet port for fast PROFINET/IP data transfers and programming upload/download.

Q: Can this unit replace an older Smart 700 IE V1 or V2 panel?

A: Yes, the V3 release (6AV6648-0CC11-3AX0) is the upgraded successor designed to replace or upgrade earlier Smart 700 IE generations.

Q: Does LOOP Shop provide technical and specification support in BD?

A: Yes, LOOP Shop provides sales support, technical datasheet verification, and order processing across Bangladesh.
