Siemens SIPLUS TP1500 Comfort HMI 15-Inch Touch Display Stenter Machine

Description

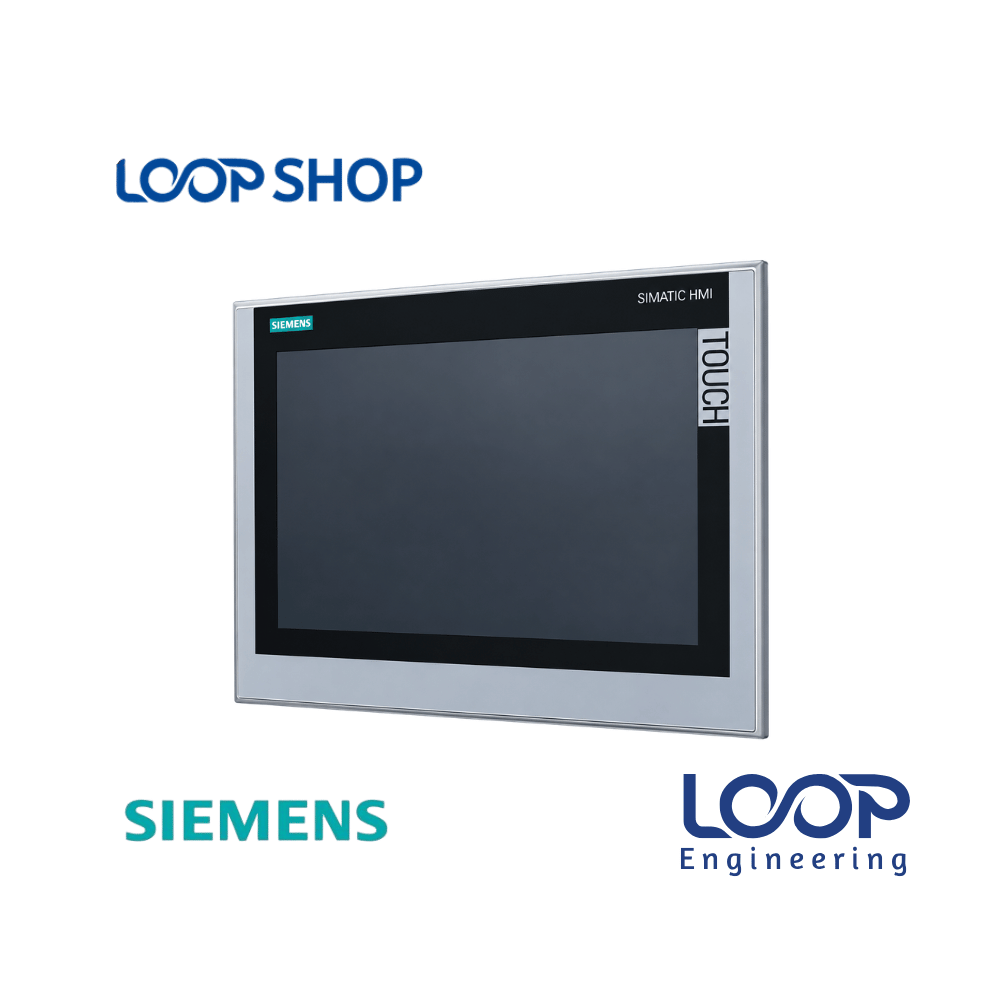

The Siemens SIPLUS HMI TP1500 Comfort (6AG1124-0QC02-4AX0) is an extreme-environment industrial touch panel engineered for demanding machine visualization and process control. Based on the standard SIMATIC HMI TP1500 Comfort platform (6AV2124-0QC02-0AX0 / successor 6AV2124-0QC02-0AX1), this SIPLUS model features a specialized conformal coating that shields sensitive internal electronics from corrosive gases, high humidity, and atmospheric contaminants.

Equipped with a large 15.4-inch widescreen TFT display and 24 MB of configuration memory, the panel provides detailed real-time monitoring and parameter management. Automation engineers and plant managers across Bangladesh rely on the SIPLUS TP1500 Comfort panel for Stenter textile machinery, fabric finishing lines, and heavy-duty chemical processing plants where standard HMIs risk premature failure due to environmental stress.

Key Features

• Conformal Coated Circuit Boards: Special protective coating guards against biological, chemical, and mechanically active substances as well as condensation.
• 15.4-Inch Widescreen Touch Display: Delivers clear process graphics with high visual resolution and responsive touch interaction.
• 24 MB Configuration Memory: Generous user memory to handle complex project graphic files, recipe storage, and trend archives.
• Comprehensive Networking: Built-in PROFINET (Ethernet) dual-port interface along with PROFIBUS DP and MPI ports.
• TIA Portal Configurable: Configurable using Siemens WinCC Comfort V14 SP1 or higher (operating on Windows Embedded Compact 2013 / WEC 2013).
• Rugged Front Panel: IP65-rated front casing designed for harsh industrial production lines.

Technical Advantages

• Conformal Coating Protection: Superior engineering protection against corrosive airborne chemicals, high moisture, and condensation common in dyeing/finishing mills.
• High Efficiency & Operational Stability: Fast processing speeds prevent display lagging during high-speed production line adjustments.
• Durable Construction: Heavy-duty enclosure handles continuous physical vibration and ambient thermal shifts.
• Easy Maintenance: Supports seamless project updates, parameter transfers, and data backups via external storage options.

Applications

• Textile & Garment Machinery: Stenter frames, fabric dyeing lines, washing ranges, and chemical coating machines.
• Industrial Facilities: Chemical processing plants, paper mills, automated packaging, and heavy manufacturing lines.
• Commercial & Utility Projects: Water and wastewater treatment plants, air scrubbers, and utility management units.
• Project Installation: Perfect for retrofitting vulnerable standard panels on Stenter machinery or installing new harsh-environment automation systems in Bangladesh.

Why Choose This Product?

• Unmatched Environmental Durability: Conformal coating ensures long-term continuous operation where standard HMIs fail due to chemical corrosion or moisture.
• Direct Drop-in Compatibility: Mechanically and functionally compatible with standard Siemens 15-inch Comfort panels (6AV2124-0QC02-0AX0 / 6AV2124-0QC02-0AX1).
• Cost-Effective Long-Term Investment: Dramatically reduces machine downtime and frequent replacement costs in harsh factory conditions.
• Trusted Local Sourcing: Backed by authentic sourcing, competitive pricing, and fast nationwide delivery from LOOP Shop in Bangladesh.

Technical Specification Table

Features List

• ✓ 15.4-inch widescreen TFT display with responsive touch screen
• ✓ Conformal coating on internal electronics for corrosive environment protection
• ✓ 24 MB user configuration memory for complex project files
• ✓ Integrated PROFINET, PROFIBUS DP, and MPI ports
• ✓ Configurable via Siemens WinCC Comfort V14 SP1 or higher
• ✓ IP65 rated front protection against industrial dust and liquids

Benefits For Customers

• Prevents Corrosion Failures: Special coating protects circuit boards from chemical vapors in textile Stenter and dyeing processes.
• Improves Operational Reliability: Eliminates unexpected machine stops caused by moisture or environmental short-circuits.
• Saves Maintenance Cost: Long service life in aggressive atmospheres lowers total cost of ownership.
• Suitable for Bangladesh Climate: Specially built to operate reliably under high humidity, ambient heat, and dusty factory conditions in BD.

Installation & Maintenance Guide

Installation Requirements:

• Cut a clean vertical opening in the control cabinet door matching 15-inch Comfort panel cutout dimensions (382 mm x 272 mm).
• Maintain at least 15 mm clearance around the rear enclosure for proper thermal ventilation.
• Connect to a clean, regulated 24 V DC power supply line with appropriate fusing.

Maintenance Tips:

• Clean the front screen periodically using a soft, non-abrasive cloth; avoid aggressive chemical solvents.
• Keep cabinet sealing gaskets in good condition to maintain front enclosure protection in wet/chemical environments.
• Maintain updated digital backups of panel runtime projects on external memory media.

Safety Instructions:

• Always disconnect main electrical power from the cabinet before installing, wiring, or servicing the unit.
• Connect the grounding terminal securely to ensure electrostatic discharge protection and noise immunity.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIPLUS HMI TP1500 Comfort 6AG1124-0QC02-4AX0 in Bangladesh?

A: For live stock availability, pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer sales team.

Q: Where can I buy genuine SIPLUS TP1500 Comfort HMI in Bangladesh?

A: You can purchase original Siemens SIPLUS industrial panels directly online from LOOP Shop at loopshop.com.bd.

Q: What is the difference between SIPLUS 6AG1124-0QC02-4AX0 and SIMATIC 6AV2124-0QC02-0AX1?

A: The SIPLUS model (6AG1124-0QC02-4AX0) features conformal coating on its internal circuit boards to withstand corrosive gases, chemicals, and high humidity, whereas the standard SIMATIC model does not.

Q: Is this panel suitable for textile Stenter machines in Bangladesh?

A: Yes, the SIPLUS TP1500 Comfort is widely used on Stenter frames, textile dyeing ranges, and chemical coating lines due to its high chemical resistance.

Q: What software is required to program this panel?

A: It is configured using Siemens SIMATIC WinCC Comfort V14 SP1 or higher within the TIA Portal framework.

Q: What warranty does this product have?

A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.

Q: Is this suitable for Bangladesh climate?

A: Yes, the SIPLUS coating and IP65 front protection make it highly resilient against high humidity, temperature shifts, and factory pollutants standard in BD.

Q: How to install this product?

A: Cut a 382 mm x 272 mm opening in the panel door, mount the unit using rear clamps, and connect 24 V DC power and network lines.

Q: What memory capacity does this panel offer?

A: It features 24 MB of integrated configuration memory for user application files and graphics.

Q: Does LOOP Shop deliver across all districts in Bangladesh?

A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones in Bangladesh.
