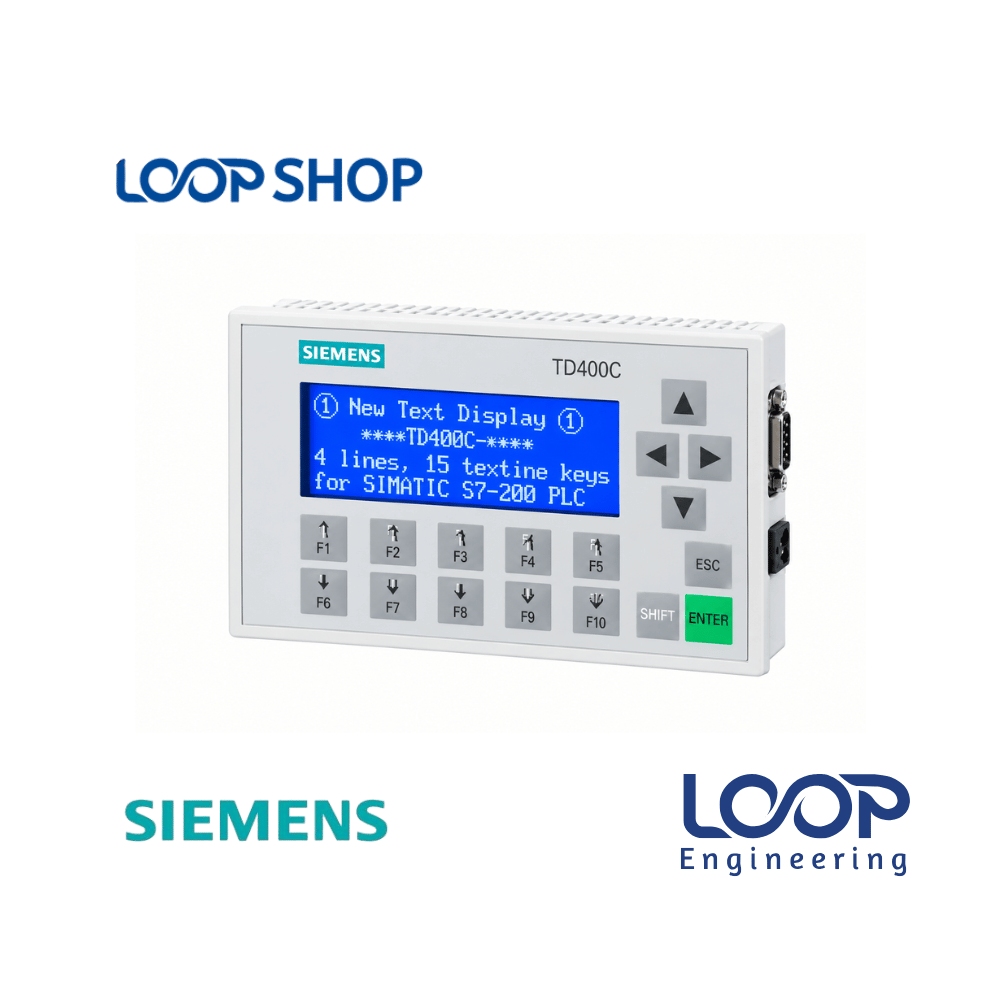

Siemens SIMATIC TD400C Custom Text Display for S7-200 PLC

Description

The Siemens SIMATIC TD400C Text Display (6AV6640-0AA00-0AX1) is an advanced, customizable operator interface designed specifically for use with Siemens SIMATIC S7-200 Programmable Logic Controllers (PLCs). Featuring a 3.7-inch backlit liquid crystal display (LCD), the TD400C provides flexible visual formatting, displaying either 4 lines of 24 characters or 2 lines of 12 characters based on application requirements.

The “C” designation highlights its customizable front membrane layout, enabling plant engineers to insert custom-printed key label sheets beneath the front foil. Connecting directly through the PLC’s PPI (Point-to-Point Interface) communication port, the TD400C retrieves display texts and runtime variables directly from S7-200 V-memory blocks. In Bangladesh’s active manufacturing sector, this module provides an economical, robust replacement interface that preserves machine functionality without needing complex PLC control overhauls.

Key Features

• Customizable Keypad Design: Blank front membrane faceplate allows custom key labeling and functional symbols tailored to specific machine operations.
• Flexible Text Formatting: 3.7-inch backlit LCD screen configurable to display 4 lines of 24 characters or 2 lines of 12 characters.
• Direct PPI Protocol Communication: Interfaces directly with the RS485 / PPI port of Siemens S7-200 CPUs for high-speed data access.
• PLC-Integrated Text Architecture: Reads text strings, diagnostic messages, and user menus directly from configured S7-200 memory blocks.
• Industrial IP65 Front Face: Heavy-duty front panel sealing protects internal logic circuits against shop-floor airborne dust and liquid splashes.

Technical Advantages

• Durable Construction: Built with high-grade industrial polymers to withstand severe mechanical vibration, thermal fluctuation, and noise.
• High Efficiency: Low operator input latency ensures instant transmission of alarm resets and parameter changes to the PLC.
• Energy Saving: Low total power draw powered directly through the PPI connection cable or an external 24 V DC power connector.
• Safety Protection: Built-in galvanically isolated communication lines shield sensitive logic circuitry against transient line surges.
• Easy Maintenance: Plug-and-play installation requires no separate runtime firmware downloads into the unit.

Applications

• Industrial: Packaging equipment, plastic processing machines, labeling equipment, and automated conveyor systems.
• Factory: Textile spinning and weaving mills, food and beverage processing, pharmaceuticals, and printing plants in Bangladesh.
• Commercial: Municipal water treatment plants, central HVAC panels, pump stations, and generator controls.
• Project Installation: Ideal replacement component for automation system integrators, machine fabricators, and panel builders in BD.

Why Choose This Product?

• Siemens Industrial Quality: Engineered to rigorous global standards, ensuring continuous 24/7 duty cycle stability on factory floors.
• Custom Operator Experience: Tailored key labeling minimizes operational errors and speeds up operator adjustments.
• Maximum Cost Effectiveness: Budget-friendly replacement unit that eliminates the cost of upgrading to expensive graphical touch screens.
• Trusted Local Value in BD: Guaranteed product authenticity, technical datasheet verification, and fast nationwide delivery via LOOP Shop.

Technical Specification Table

Features List

• ✓ 3.7-inch backlit LCD screen with configurable line formatting
• ✓ Customizable front key membrane foil for custom key labeling
• ✓ Direct PPI (RS485) serial communication with S7-200 PLCs
• ✓ Front panel IP65 protection rating against dust and moisture
• ✓ Driven directly by S7-200 PLC V-memory configuration

Benefits For Customers

• Reduces Operator Input Errors: Custom-labeled key faceplate clarifies button functions for factory operators.
• Eliminates Machine Downtime: Replaces damaged S7-200 display units directly without rewriting PLC control code.
• Saves Energy & Cabinet Space: Compact physical footprint and minimal power draw optimize control panel space.
• Resilient in Bangladesh Conditions: Robust IP65 sealed front face operates dependably in tropical humidity and dusty environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the mounting area on the enclosure door precisely according to Siemens physical dimension specifications.
2. Insert custom-printed key label strips beneath the front clear membrane sheet before final panel installation.
3. Fit the TD400C unit into the door cutout from the front and tighten all mounting clamps to form an airtight IP65 seal.
4. Connect the dedicated Siemens PPI communication cable to the sub-D port on the rear of the TD400C and connect the other end to the S7-200 CPU.

Maintenance Tips:

1. Clean the front display face periodically using a soft, dry or slightly damp microfiber cloth; avoid aggressive chemical solvents.
2. Regularly inspect cabinet cooling systems to ensure ambient operational temperatures stay below 50 °C.
3. Keep cable strain reliefs tight to prevent intermittent signal dropouts caused by panel vibration.

Safety Instructions:

1. Always isolate incoming electrical power before installing, servicing, or removing display cables.
2. Verify correct 24 V DC wiring polarity prior to energizing the device to prevent power board damage.
3. Press membrane keys with bare fingers or soft styluses; never use sharp metallic tools or screwdrivers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC TD400C 6AV6640-0AA00-0AX1 in Bangladesh?

A: Product pricing varies depending on stock availability, import tariffs, and market demand in BD. Please visit loopshop.com.bd or contact our team directly for updated pricing.

Q: Where can I buy original Siemens TD400C text display in Bangladesh?

A: You can purchase 100% genuine Siemens SIMATIC TD400C text displays online at loopshop.com.bd with secure shipping across Dhaka, Chittagong, and all districts in BD.

Q: What warranty does this product come with?

A: This product carries standard supplier warranty coverage against manufacturing defects. Please check exact warranty terms with LOOP Shop upon order placement.

Q: Is the Siemens TD400C text display suitable for Bangladesh factory climate?

A: Yes, featuring an IP65 rated front face and an operating temperature ceiling up to 50 °C, it is engineered to operate dependably in tropical, humid, and dusty factory settings in BD.

Q: How do I customize the key labels on the Siemens TD400C?

A: The TD400C features a removable front membrane foil; custom key symbols and labels can be printed on paper/film templates using Siemens Keypad Designer software and inserted beneath the cover.

Q: How is the TD400C text display configured in software?

A: Display screens and messages are configured using the TD400C Wizard inside Siemens STEP 7-Micro/WIN engineering software.

Q: Which PLCs are compatible with the TD400C display unit?

A: The TD400C is designed specifically for point-to-point PPI serial communication with Siemens SIMATIC S7-200 series PLCs.

Q: Does the TD400C require external power?

A: Power is typically supplied directly through the Siemens PPI cable connected to the S7-200 CPU port, or via an external 24 V DC terminal connector.

Q: What is the display size and text capability of the 6AV6640-0AA00-0AX1?

A: It features a 3.7-inch backlit LCD screen that can display either 4 lines of 24 characters or 2 lines of 12 characters.

Q: Does LOOP Shop provide technical and specification support in BD?

A: Yes, LOOP Shop provides sales support, datasheet verification, and order processing across Bangladesh.
