Siemens SIMATIC TD-200 Text Display Module for S7-200 PLC

Description

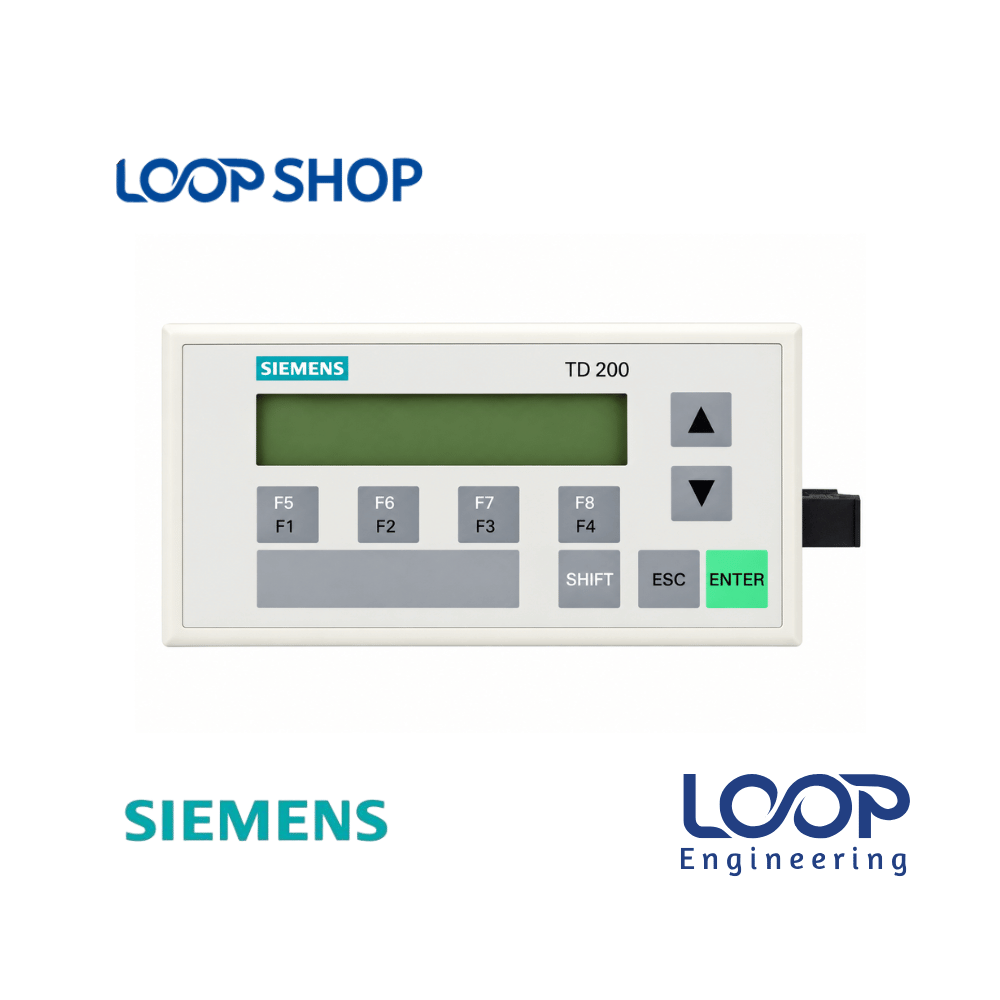

The Siemens SIMATIC TD-200 Text Display (6ES7272-0AA30-0YA0) is an ultra-compact, cost-effective operator interface designed exclusively for seamless integration with Siemens SIMATIC S7-200 Programmable Logic Controllers (PLCs). Featuring a clear backlit liquid crystal display (LCD) capable of rendering 2 lines of text at 20 characters per line, the TD-200 gives machine operators immediate insight into process values, runtime parameters, and real-time error messages.

Connecting directly through the PLC’s serial PPI (Point-to-Point Interface) port, the TD-200 reads its message configuration data directly from the S7-200 memory block, eliminating the need for dedicated HMI runtime configuration. In Bangladesh’s manufacturing sector—where thousands of machines powered by S7-200 controllers operate daily—the TD-200 serves as an essential direct replacement module, maintaining system uptime and operational control without requiring expensive panel modifications or PLC program overhauls.

Key Features

• Backlit LCD Text Screen: Displays up to 2 lines of 20 monochrome characters with adjustable contrast for clear readability on the factory floor.
• Integrated Keypad Matrix: Built-in membrane pushbuttons including set/navigation keys and configurable function keys for operator inputs and parameter edits.
• Direct PPI Protocol Communication: Plugs directly into the RS485 / PPI interface port of S7-200 CPUs for zero-lag data transmission.
• PLC-Driven Message Architecture: Reads display texts, variables, and menu structures directly from designated S7-200 V-memory blocks.
• Rugged Front Panel Design: IP65-rated front face provides splash and dust resistance, making it suitable for tough industrial cabinet mounting.

Technical Advantages

• Durable Construction: Industrial-grade housing designed to withstand shop-floor mechanical vibration, electrical noise, and thermal variation.
• Energy Saving: Ultra-low power consumption directly driven via the PLC interface cable or an external 24 V DC power connector.
• High Efficiency: Low-overhead data exchange protocol ensures fast transmission of alarm flags and process variables.
• Easy Maintenance: Plug-and-play unit replacement requires no separate firmware updates or independent software installation tools.
• Safety Protection: Built-in reverse polarity and overvoltage protection safeguards internal logic boards during wiring.

Applications

• Industrial: Compact machinery lines, plastic processing equipment, conveyor controls, and small automated assembly stations.
• Factory: Textile spinning and weaving mills, packaging plants, food and beverage processing, and pharmaceutical lines in Bangladesh.
• Commercial: Small pump control stations, water filtration units, generator panels, and HVAC monitoring panels.
• Project Installation: Ideal OEM operator panel solution for automation integrators, machine builders, and control panel fabricators in BD.

Why Choose This Product?

• Siemens Standard Quality: Time-tested engineering offering unmatched continuous duty stability across long operational lifespans.
• Maximum Cost Effectiveness: Highly budget-friendly solution that fulfills process monitoring needs without requiring high-end touch screen panels.
• Eliminates Machine Downtime: Drop-in replacement for damaged S7-200 displays, keeping factory production lines running smoothly across Bangladesh.
• After-Sales Support in BD: Guaranteed product authenticity, specification verification, and reliable nationwide shipping via LOOP Shop.

Technical Specification Table

Features List

• ✓ 2-line x 20-character backlit LCD monochrome text display
• ✓ Direct PPI (RS485) communication interface for S7-200 PLCs
• ✓ Built-in tactile membrane keyboard with customizable function keys
• ✓ IP65 rated dust and splash-proof front panel enclosure
• ✓ Plug-and-play installation driven directly by PLC memory configuration

Benefits For Customers

• Restores Machinery Instantly: Direct replacement for faulty S7-200 displays without rewriting PLC control programs.
• Reduces Operator Errors: Clear real-time text alerts enable operators to react quickly to machine faults and status shifts.
• Saves Energy & Space: Extremely compact physical profile and minimal power draw allow clean integration into small control panels.
• Resilient in Bangladesh Conditions: Robust IP65 front panel withstands high ambient humidity, dust, and factory environment challenges in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean rectangular cutout in the control cabinet door measuring 138 mm x 68 mm.
2. Insert the TD-200 text display unit from the front side and secure it firmly using the provided side clamps to seal the gasket.
3. Connect the dedicated Siemens PPI communication cable into the rear sub-D port of the TD-200 and connect the other end to the S7-200 CPU port.
4. If the PPI cable distance requires separate power, connect an auxiliary 24 V DC power supply to the terminal connector.

Maintenance Tips:

1. Wipe the front membrane panel periodically using a dry or slightly damp lint-free microfiber cloth; do not use aggressive solvents.
2. Ensure control panel ventilation prevents internal ambient temperatures from exceeding 50 °C.
3. Keep cable connections tightly seated to avoid communication dropouts caused by factory floor vibration.

Safety Instructions:

1. Always isolate electrical power to the cabinet before mounting, wiring, or removing display cables.
2. Verify correct 24 V DC power connection polarity prior to energizing the module.
3. Avoid pressing membrane key pads with sharp metal objects or tools.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC TD-200 6ES7272-0AA30-0YA0 in Bangladesh?

A: Product pricing varies depending on stock availability, import duties, and batch availability in BD. Please visit loopshop.com.bd or contact our team directly for updated pricing.

Q: Where can I buy original Siemens TD-200 text display in Bangladesh?

A: You can order 100% genuine Siemens SIMATIC TD-200 text displays online at loopshop.com.bd with secure delivery across Dhaka, Chittagong, and all districts in Bangladesh.

Q: What warranty does this product come with?

A: This product carries standard supplier warranty coverage against factory defects. Please check exact warranty terms with LOOP Shop upon order placement.

Q: Is the Siemens TD-200 text display suitable for Bangladesh factory conditions?

A: Yes, with an IP65 rated front face and an operating temperature ceiling up to 50 °C, it is built to operate reliably in tropical, dusty, and humid factory settings in BD.

Q: How to install and program the Siemens TD-200 text display?

A: Physical installation requires mounting into a 138 x 68 mm panel cutout and attaching the PPI cable to an S7-200 CPU. Text messages are configured using the TD-200 Wizard inside Siemens STEP 7-Micro/WIN software.

Q: Which PLCs are compatible with the SIMATIC TD-200 display?

A: The TD-200 is specifically designed for point-to-point communication with Siemens SIMATIC S7-200 series PLCs (e.g., CPU 221, CPU 222, CPU 224, CPU 226).

Q: Does the TD-200 require a separate software download into the unit?

A: No, the TD-200 reads its text configuration and variable parameters directly from the V-memory block set up in the S7-200 PLC program.

Q: How is power supplied to the TD-200 text display?

A: Power is supplied directly through the standard Siemens PPI connecting cable from the S7-200 CPU, or via an external 24 V DC connector for longer cable runs.

Q: What display size and format does the 6ES7272-0AA30-0YA0 feature?

A: It features a backlit LCD monochrome text display screen displaying 2 lines with 20 characters per line.

Q: Does LOOP Shop provide sales and specification support in Bangladesh?

A: Yes, LOOP Shop provides technical guidance, datasheet verification, and order fulfillment services across BD.
