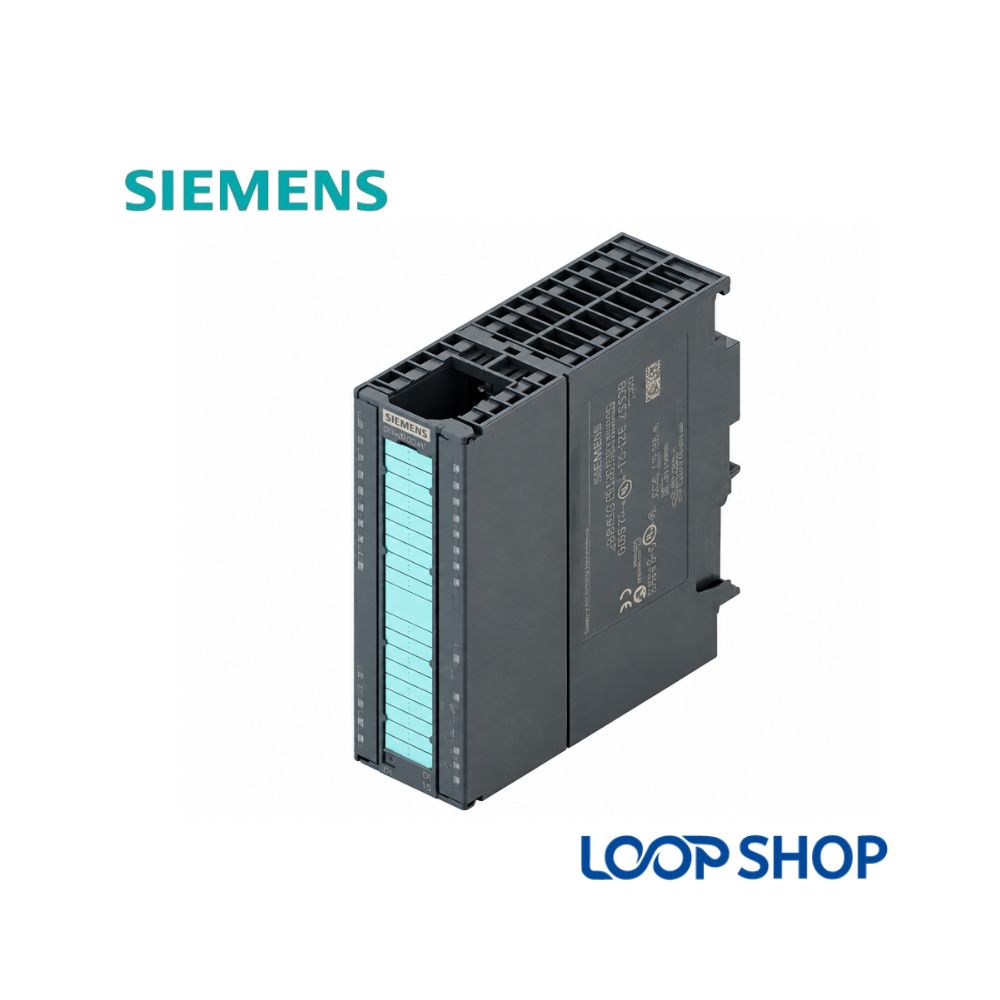

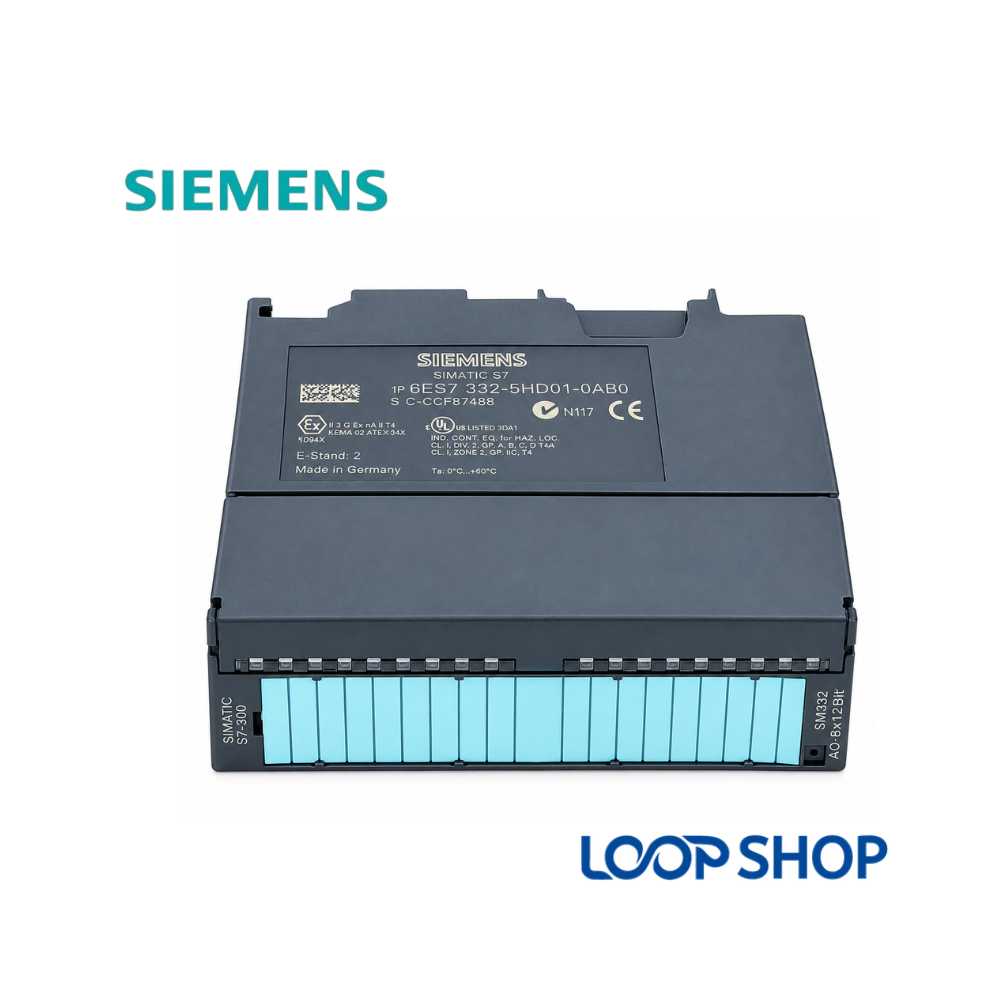

The Siemens SIMATIC S7-300 SM 332 (6ES7332-5HF00-0AB0) is an 8-channel isolated analog output module engineered for precision control in industrial automation. It supports multiple standard voltage and current ranges with 11/12-bit resolution and built-in diagnostic capabilities. Designed for SIMATIC S7-300 PLCs, it allows module hot-swapping on active backplane buses to minimize system downtime.
The Siemens 6ES7332-5HF00-0AB0 SM 332 analog output module provides conversion of digital CPU values into continuous analog control signals for field actuators. It integrates into SIMATIC S7-300 PLC racks and ET 200M distributed I/O systems.
Main Features
Featuring 8 individually programmable output channels, the SM 332 supports voltage ranges ($\pm10\text{ V}$, $0\text{ to }10\text{ V}$, $1\text{ to }5\text{ V}$) and current ranges ($\pm20\text{ mA}$, $0\text{ to }20\text{ mA}$, $4\text{ to }20\text{ mA}$). The channels are galvanically isolated from the backplane bus and load supply voltage. Built-in diagnostic functions monitor operational integrity and flag errors via an onboard red SF (Group Error) LED and diagnostic interrupts.
Benefits
With a fast conversion time of 0.8 ms per channel, the module delivers quick response times for variable-speed drives, control valves, and positioning units. High electrical isolation protects control hardware against electrical field noise and ground loops. Support for live insertion and removal on an active backplane bus reduces maintenance time during servicing.
Applications
This analog output module is used in process automation, motion control, and continuous manufacturing systems. It connects directly to field actuators including proportional valves, variable frequency drives (VFDs), analog recorders, and panel meters across industrial environments.
Key Features
| Specification | Details |
| Brand | Siemens |
| Model | 6ES7332-5HF00-0AB0 |
| Product Type | SIMATIC S7-300 Analog Output Module (SM 332) |
| Number of Outputs | 8 Analog Outputs |
| Resolution | 11/12 Bits |
| Conversion Time | Max. 0.8 ms per channel |
| Front Connector | 40-Pin |
| Dimensions (W x H x D) | 40 x 125 x 117 mm |
| Rated Load Voltage (L+) | 24V DC (Reverse polarity protection) |
| Backplane Bus Current | Max. 100 mA |
| Supply Current Consumption | Max. 340 mA |
| Power Loss | Typ. 6.0 W |
| Warranty | Standard Manufacturer Warranty |
Q: What is the main function of the Siemens 6ES7332-5HF00-0AB0 module?
A: It converts digital control values from an S7-300 PLC CPU into analog voltage or current signals to operate field actuators.
Q: How many analog outputs does this module provide?
A: It features 8 individually programmable analog output channels.
Q: What signal types can be output by the SM 332 module?
A: It supports voltage outputs ($\pm10\text{ V}$, $0\text{ to }10\text{ V}$, $1\text{ to }5\text{ V}$) and current outputs ($\pm20\text{ mA}$, $0\text{ to }20\text{ mA}$, $4\text{ to }20\text{ mA}$).
Q: Which front connector is required for wiring?
A: Wiring is connected through a standard Siemens 40-pin front connector.
Q: Does this module support live replacement (hot-swapping)?
A: Yes, it supports removal and insertion while powered when installed on an active backplane bus.
Q: What is the signal resolution of the outputs?
A: The outputs operate at an 11-bit or 12-bit resolution depending on the configured measurement range.
