Siemens SIMATIC S7-300 Digital Input Module SM 321 6ES7321-1BP00-0AA0

Description

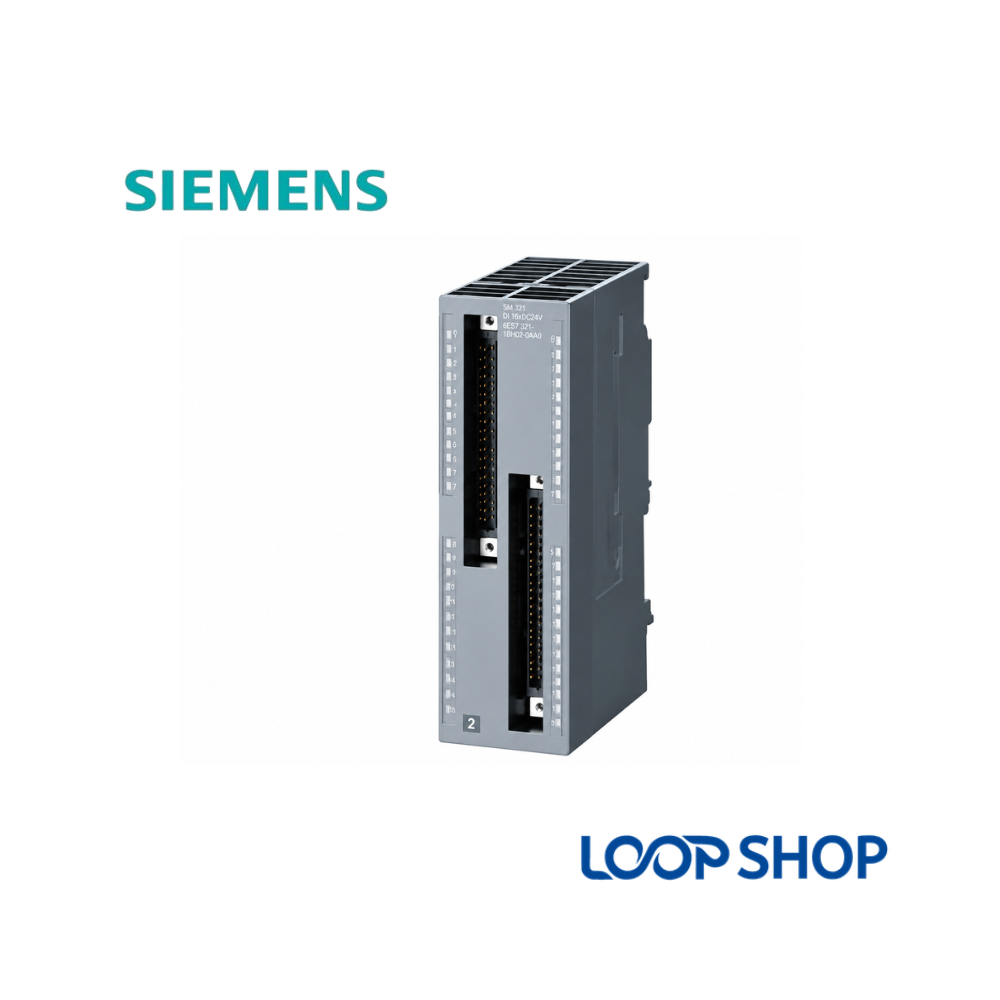

The Siemens SIMATIC S7-300 SM 321 digital input module (6ES7321-1BP00-0AA0) expands the I/O capacity of SIMATIC S7-300 controllers and ET 200M distributed I/O stations. Providing 64 discrete 24 V DC digital input channels, it allows plant engineers to capture operational signals across large-scale industrial machinery without consuming excessive rack space. It connects directly to field devices to transmit digital operational states back to the central controller.

Main Features

• 64 Digital Inputs: Delivers high input channel density on a single module slot to maximize control cabinet space.
• Optocoupler Isolation: Galvanic isolation between field input channels and the backplane bus ensures immunity against electrical noise and ground loops.
• Flexible Wiring Options: Supports sinking and sourcing field input configurations to match diverse sensor hardware setups.
• 40-Pin Front Connector Interface: High-density terminal connection layout ensures tidy and secure control panel wiring.

Benefits

• Cost-Effective Scalability: Expands machine input capacity efficiently without requiring additional PLC racks or CPUs.
• High Panel Space Efficiency: Compact width enables high I/O packing density in space-constrained electrical enclosures.
• Reliable Signal Processing: Optical isolation protects sensitive PLC electronics from field-level voltage spikes and transients.
• Simplified Diagnostics: LED indicators enable rapid field diagnostic troubleshooting during routine maintenance.

Applications

Widely used in automated manufacturing lines, packaging machinery, conveyor systems, water treatment plants, and industrial process control cabinets requiring high digital input counts.

Key Features

• 64 digital inputs (24 V DC) in one compact module.
• Designed for SIMATIC S7-300 PLCs and ET 200M distributed I/O systems.
• Supports both sinking (P-reading) and sourcing (M-reading) input types.
• Optocoupler isolation between channels and internal backplane bus.
• Fast signal propagation delay for real-time digital state monitoring.
• Compact enclosure width for maximum rack density.
• Standard 40-pin front connector connection interface.
• Green LED status indicators for operational visibility.

Technical Specification Table

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of the Siemens 6ES7321-1BP00-0AA0 module?

A: It is an expansion module that adds 64 digital input channels (24 V DC) to Siemens S7-300 PLCs or ET 200M distributed I/O systems.

Q2: How many digital inputs does this module provide?

A: This module features 64 discrete digital input channels.

Q3: Does the module support both sinking and sourcing field inputs?

A: Yes, the 6ES7321-1BP00-0AA0 supports both sinking and sourcing input connections depending on field wiring.

Q4: Which connector is required to wire field signals to this module?

A: It requires standard 40-pin terminal front connectors for wiring field input devices.

Q5: Is an external power supply required for operation?

A: Yes, it requires an external 24 V DC supply to power the input field circuits.

Q6: Can this module be used with ET 200M remote I/O stations?

A: Yes, it can be mounted on an S7-300 rack or an ET 200M expansion rack connected via PROFINET or PROFIBUS.
