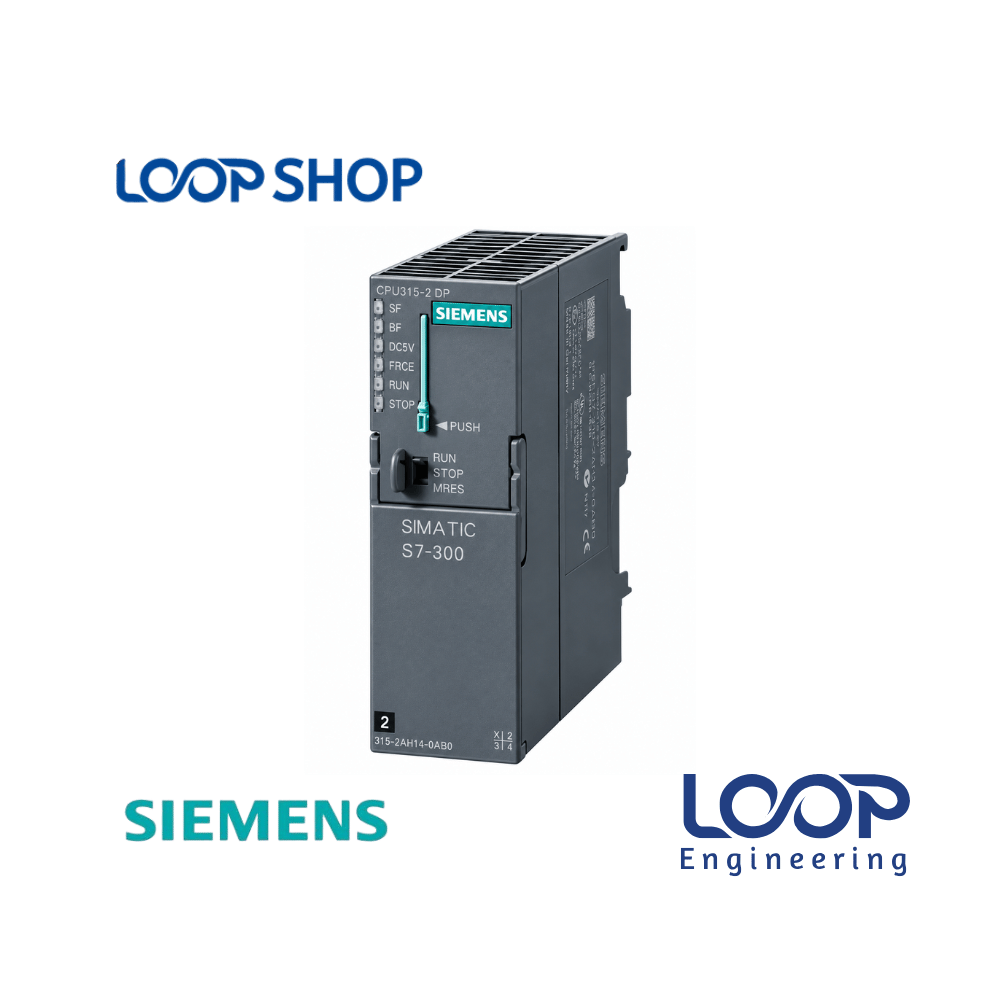

Siemens SIMATIC S7-300 CPU 315-2DP PLC 6ES7315-2AH14-0AB0 Industrial Automation

Description

The Siemens SIMATIC S7-300 CPU 315-2DP (Part Number: 6ES7315-2AH14-0AB0) is a high-performance central processing unit designed for processing complex automation programs in industrial environments. Serving as the core intelligence of the SIMATIC S7-300 modular PLC series, it processes input signals from sensors and field devices, executes user programs stored in memory, and commands connected actuators with high precision.

Equipped with 256 KB of work memory and two communication ports (MPI and PROFIBUS DP), this CPU manages distributed I/O systems and multi-node field networks smoothly. For industrial plants and engineering projects in Bangladesh, it provides a trusted, field-proven solution to maintain continuous machine operations, upgrade aging panels, or manage critical replacement needs in automated production lines.

Key Features

• Integrated 256 KB Work Memory: Provides fast processing capability for medium-to-large ladder logic, block programming, and complex data structures.
• Dual Field Communication Ports: Equipped with a standard Multi-Point Interface (MPI) for programming/HMI connections and a PROFIBUS DP interface supporting master/slave operation up to 12 Mbps.
• Micro Memory Card (MMC) Slot: Requires a Siemens MMC (up to 8 MB) for non-volatile load memory storage and maintenance-free program retaining.
• High Processing Speed: Delivers execution times down to 0.05 µs per bit operation, enabling rapid response in critical process loops.
• Modular S7-300 Rack System: Fully compatible with standard SIMATIC S7-300 signal modules (SM), function modules (FM), and communication processors (CP).

Technical Advantages

• High Operational Efficiency: Optimizes cycle times through fast instruction processing, ensuring high machine productivity.
• Robust Industrial Construction: Compact IP20 plastic housing designed to resist vibration, electromagnetic interference (EMI), and noise in harsh panel environments.
• Comprehensive Diagnostic Capabilities: Front LED indicators for RUN/STOP, system errors (SF), and bus faults (BF) simplify troubleshooting and panel inspection.
• Energy-Efficient Execution: Operates on low power consumption (typ. 4.5 W power loss) with a standard 24V DC control power supply.
• Simplified Maintenance: MMC-based memory backup removes the requirement for internal backup batteries, preserving retention data without routine cell replacement.

Applications

• Industrial Manufacturing: Automated production lines, automated assembly setups, and material handling systems.
• Textile & Garment Mills: Spinning machines, dyeing machinery, fabric printing units, and industrial washing systems.
• Pharmaceutical Plants: HVAC control, liquid filling lines, blister packaging machinery, and cleanroom automation.
• Commercial & Infrastructure Projects: Central water treatment systems, building management systems (BMS), and boiler control panels.
• Factory & OEM Machinery: Custom machinery manufacturing, panel fabrication, and legacy control panel retrofits.
• Project Installation: Industrial automation expansion and PLC panel modernizations across Bangladesh.

Why Choose This Product?

• Proven Field Reliability: Decades of operational track record in global and local Bangladesh industrial sites guarantee predictable, stable performance.
• Seamless Legacy Integration: Direct drop-in swap for failed CPU 315-2DP units without requiring extensive rewiring or panel reconstruction.
• Cost-Effective Maintenance: Keeps operational lines running without forcing immediate, costly whole-plant migration to newer platforms.
• Reliable After-Sales Value: Broad local engineer familiarity with STEP 7 / TIA Portal programming ensures easy serviceability and quick engineering support.

Technical Specification Table

Features List

✓ Integrated 256 KB work memory for fast program handling

✓ Built-in PROFIBUS DP interface (12 Mbps master/slave)

✓ Flexible MPI connection for HMI and PG programming

✓ Battery-free program backup via Siemens MMC

✓ Compact DIN-rail mounting for space-saving control panels

✓ Fast bit execution speed of 0.05 µs

Benefits For Customers

• Minimizes Unplanned Downtime: Quickly replaces faulty S7-300 CPUs to restore industrial production lines in minimal time.
• Improves Operational Reliability: Standardized hardware ensures stable performance under continuous factory duty cycles.
• Saves System Upgrade Costs: Extends the lifecycle of functional automation panels without expensive complete redesigns.
• Suitable for Bangladesh Environment: Designed to operate reliably up to 60 °C operating temperature within ventilated industrial control cabinets.

 Installation & Maintenance Guide

Installation Requirements:

1. Turn off all main power sources to the control panel before mounting or dismounting modules.
2. Snap the CPU onto the standard S7-300 DIN rail and secure the bus connector from the adjacent power module or I/O card.
3. Ensure the 24V DC power supply line is protected with a external fuse or circuit breaker (minimum 2 A recommended).
4. Insert a genuine Siemens SIMATIC Micro Memory Card (MMC) into the slot prior to powering on.

Maintenance Tips:

1. Periodically check power supply terminals and communication cable connectors for secure tightening.
2. Keep the panel environment clean, ensuring ventilation slots remain unobstructed by dust or fiber particles.
3. Keep an offline backup copy of the STEP 7 / TIA Portal project file for quick program reloading in emergencies.

Safety Instructions:

1. Wiring must be performed by qualified automation technicians or industrial electricians.
2. Observe proper polarity when connecting 24V DC power lines (+24V and M terminals) to prevent component damage.
3. Do not insert or remove the Micro Memory Card (MMC) while power is applied unless explicitly performing hardware reset procedures as defined by Siemens manuals.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC S7-300 CPU 315-2DP 6ES7315-2AH14-0AB0 in Bangladesh?

A: Prices vary based on stock availability, import duties, and procurement condition (new/refurbished/spare). Please check live pricing on loopshop.com.bd or contact our sales team for an instant quote.

Q: Where can I buy Siemens SIMATIC S7-300 CPU 315-2DP 6ES7315-2AH14-0AB0 in Bangladesh?

A: You can order it directly online from loopshop.com.bd with delivery options available across Dhaka, Chattogram, Gazipur, Narayanganj, and nationwide industrial zones.

Q: What warranty does this product have?

A: loopshop.com.bd provides standard seller/replacement warranty against manufacturing defects. Detailed terms are listed on the checkout page.

Q: Is this suitable for Bangladesh climate?

A: Yes. The unit supports ambient operating temperatures up to 60 °C inside ventilated control panels, making it well-suited for industrial factory conditions in Bangladesh.

Q: How to install this product?

A: Mount the CPU on a standard SIMATIC S7-300 rail, connect the 24V DC power supply cables, attach the backplane bus connector, insert the MMC card, and plug in the MPI/PROFIBUS communication cables.

Q: Does the CPU 315-2DP require a Micro Memory Card (MMC) to operate?

A: Yes, a Siemens Micro Memory Card (MMC) is required for user program execution and load memory storage on this module.

Q: What programming software is used for 6ES7315-2AH14-0AB0?

A: This CPU can be programmed using Siemens STEP 7 V5.5 or higher, as well as Siemens TIA Portal (Step 7 Professional).

Q: What is the main difference between MPI and PROFIBUS DP ports on this CPU?

A: The MPI port is primarily used for programming devices and local HMI connection. The PROFIBUS DP port allows high-speed industrial network communication (up to 12 Mbps) with distributed ET 200 I/O stations, drives, and sensors.

Q: Can this CPU replace an older 6ES7315-2AG10-0AB0 CPU?

A: In most cases, yes. It acts as a direct spare part replacement, though hardware configuration in STEP 7 may need updating depending on the exact firmware version.
