Description

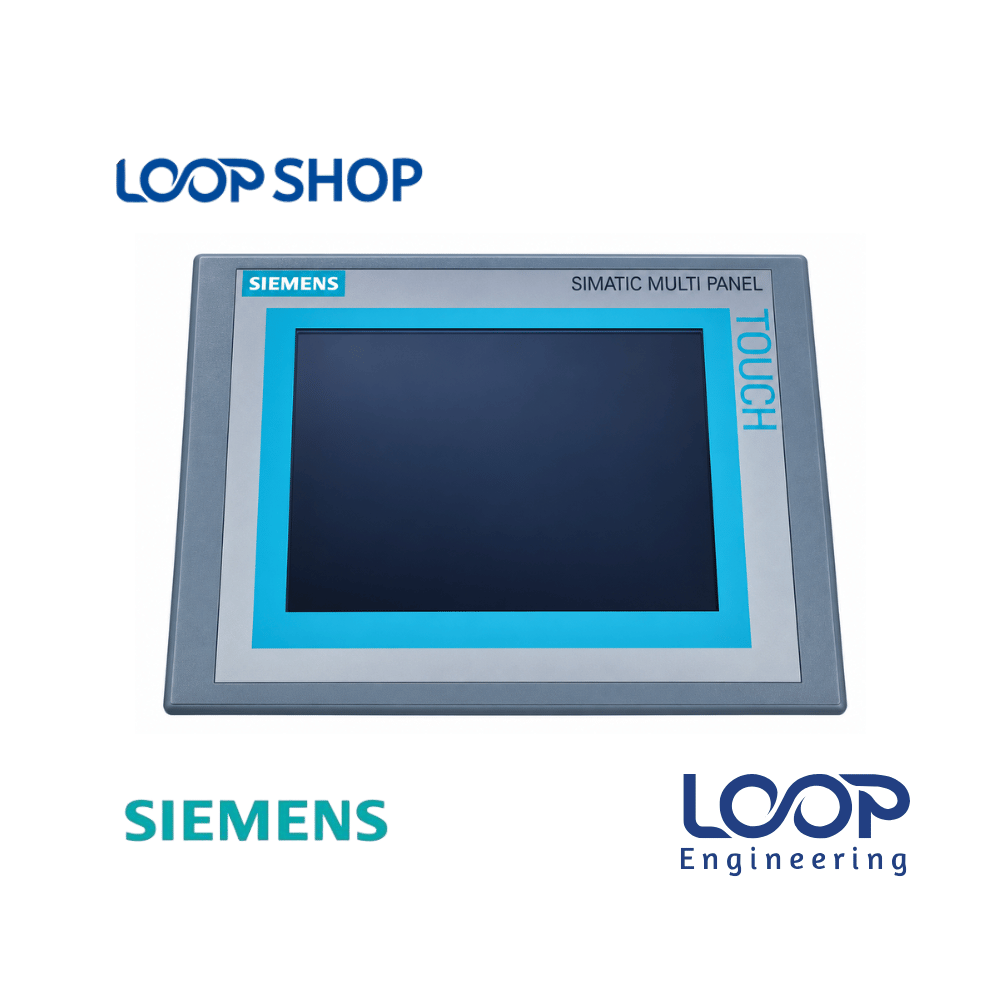

The Siemens SIMATIC MP277 8″ Touch Multi Panel (6AV6643-0CB01-1AX1) is a robust, versatile Human Machine Interface designed for advanced automation tasks. Featuring a sharp 7.5-inch TFT display and built-in retentive memory, it handles heavy visualization requirements, complex alarm logging, and detailed process graphic displays with high efficiency.
Engineered to bridge standard operator panels and PC-based systems, the MP277 integrates seamlessly with Siemens SIMATIC S7 controllers via standard communication interfaces. In Bangladesh, where heavy manufacturing, spinning mills, and processing industries rely on continuous uptime, this multi-panel serves as a critical drop-in replacement or upgrade part, preventing prolonged plant downtime and expensive system redesigns.
Key Features
- 7.5-Inch TFT Display: High-resolution color TFT screen delivering crisp graphics, clear text rendering, and intuitive touch interaction.
- Retentive Memory: Internal battery-backed retentive memory preserves critical process data and alarm logs safely during unexpected power losses.
- 6-MB Configuration Memory: Generous project memory capacity supporting complex screen hierarchies, scripts, and multi-language projects.
- Flexible Software Setup: Configurable using Siemens WinCC Flexible 2005 Standard SP1 (or compatible TIA Portal migration paths).
- Robust Enclosure Protection: Front panel meets IP65 protection standards, guarding delicate internal circuitry against shop-floor dust and water splashes.
Technical Advantages
- Durable Construction: Industrial-grade housing built to withstand mechanical vibration, electromagnetic interference, and thermal stress.
- High Efficiency: Advanced processing hardware ensures instant screen updates and zero input lag during critical operator actions.
- Safety Protection: Galvanically isolated communication ports protect control networks against transient electrical surges and ground loops.
- Energy Saving: Optimized LED backlight power management reduces heat generation inside sealed electrical cabinets.
- Easy Maintenance: Supports external memory cards for rapid project backups, firmware updates, and simple field recovery.
Applications
- Industrial: Heavy automated machinery, assembly lines, metal fabrication, and packaging systems.
- Factory: Textile dyeing plants, spinning mills, pharmaceutical production units, and chemical processing lines in Bangladesh.
- Commercial: Municipal water treatment plants, central HVAC control systems, and power distribution monitoring.
- Project Installation: Ideal replacement or upgrade component for local control panel fabricators and automation system integrators across BD.
Why Choose This Product?
- Siemens Global Reliability: Built to continuous duty-cycle standards, ensuring long-term operational stability in harsh factory environments.
- Advanced Multi-Panel Features: Offers robust script support, data logging, and retentive memory far beyond basic operator terminals.
- Cost-Effective System Preservation: Direct replacement for existing MP277 installations, saving companies thousands of takas in complete control overhauls.
- Local After-Sales Value: Backed by product authenticity verification and reliable delivery across Bangladesh via LOOP Shop.
Technical Specification Table
| Specification |
Details |
| Model |
SIMATIC MP277 8″ Touch (6AV6643-0CB01-1AX1) |
| Brand |
Siemens |
| Rated Power |
24 V DC |
| Voltage |
24 V DC (19.2 V to 28.8 V DC permissible range) |
| Current |
Not Available |
| Frequency |
Direct Current (DC) |
| Efficiency |
High-efficiency TFT display panel |
| Protection |
IP65 (Front), IP20 (Rear) |
| Dimension |
Not Available |
| Weight |
Approx. 1.7 kg |
| Operating Temperature |
0 °C to 50 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
- ✓ 7.5-inch TFT touch screen display
- ✓ Built-in retentive memory for secure data logging
- ✓ 6-MB configuration memory for complex projects
- ✓ Front IP65 dust and liquid splash protection rating
- ✓ Configurable via WinCC Flexible 2005 Standard SP1
Benefits For Customers
- Minimizes Plant Downtime: Quickly replaces legacy or damaged MP277 touch panels to restore automated production lines without delay.
- Protects Critical Data: Retentive memory safeguards important operational logs and alarm histories during power failures.
- Improves Operator Control: High-resolution 7.5-inch color display allows clear monitoring of multi-variable industrial processes.
- Suitable for Bangladesh Environment: IP65-sealed front face resists high humidity, airborne dust, and factory floor conditions.
Installation & Maintenance Guide
Installation Requirements:
- Ensure the electrical enclosure door cutout matches the exact physical dimensions specified in the Siemens MP277 manual.
- Insert the HMI unit from the front side and secure it using all provided mounting clamps to guarantee an IP65 gasket seal.
- Wire a stable, regulated 24 V DC power supply to the main terminals, ensuring proper earth grounding (PE).
- Connect communication cables securely to the respective interface ports and lock retaining screws.
Maintenance Tips:
- Clean the touch screen surface periodically using a soft, non-abrasive microfiber cloth; avoid harsh chemical solvents.
- Inspect cabinet ventilation and cooling systems regularly to keep operating temperatures below 50 °C.
- Keep current project backups stored externally to facilitate quick recovery if hardware replacement is ever needed.
Safety Instructions:
- Always isolate incoming 24 V DC electrical power before installing, wiring, or removing the HMI panel.
- Verify correct power supply polarity prior to energizing the device to prevent internal circuit damage.
- Operate the touch screen matrix using bare fingers or dedicated styluses; never use sharp tools or screwdrivers.
Frequently Asked Questions (FAQ)
Q: What is the price of Siemens SIMATIC MP277 8″ Touch Panel 6AV6643-0CB01-1AX1 in Bangladesh?
A: Pricing varies depending on import costs, batch availability, and foreign exchange rates. Please check loopshop.com.bd or contact our team directly for current pricing in BD.
Q: Where can I buy original Siemens MP277 8″ HMI in Bangladesh?
A: You can purchase 100% genuine Siemens MP277 touch panels online directly from loopshop.com.bd with secure shipping across Dhaka, Chittagong, and all regions of Bangladesh.
Q: What warranty does this product come with?
A: This product carries standard supplier warranty coverage against factory defects. Please confirm detailed terms with LOOP Shop at the time of purchase.
Q: Is this Siemens MP277 panel suitable for Bangladesh climate conditions?
A: Yes, featuring an IP65 front protection rating and an operating tolerance up to 50 °C, it is built to operate dependably in tropical, humid, and dusty industrial environments in BD.
Q: How do I program and configure this Multi Panel?
A: Configuration and screen editing are performed using Siemens SIMATIC WinCC Flexible 2005 Standard SP1 (or higher compatible versions) via programming cables.
Q: What is the display size of the 6AV6643-0CB01-1AX1 model?
A: It features a 7.5-inch TFT color touch display screen.
Q: How much configuration memory does this model have?
A: It is equipped with 6 MB of onboard configuration memory for holding project files, screens, and tags.
Q: Does this HMI panel feature retentive memory?
A: Yes, it includes built-in retentive memory to retain vital runtime data during unexpected power outages.
Q: Can this unit directly replace my older MP277 7.5″ touch display?
A: Yes, the 6AV6643-0CB01-1AX1 is an exact drop-in replacement unit for identical Siemens SIMATIC MP277 8-inch touch multi panels.
Q: Does LOOP Shop provide technical and specification support in Bangladesh?
A: Yes, LOOP Shop provides expert product sales support, datasheet verification, and order assistance across Bangladesh.
