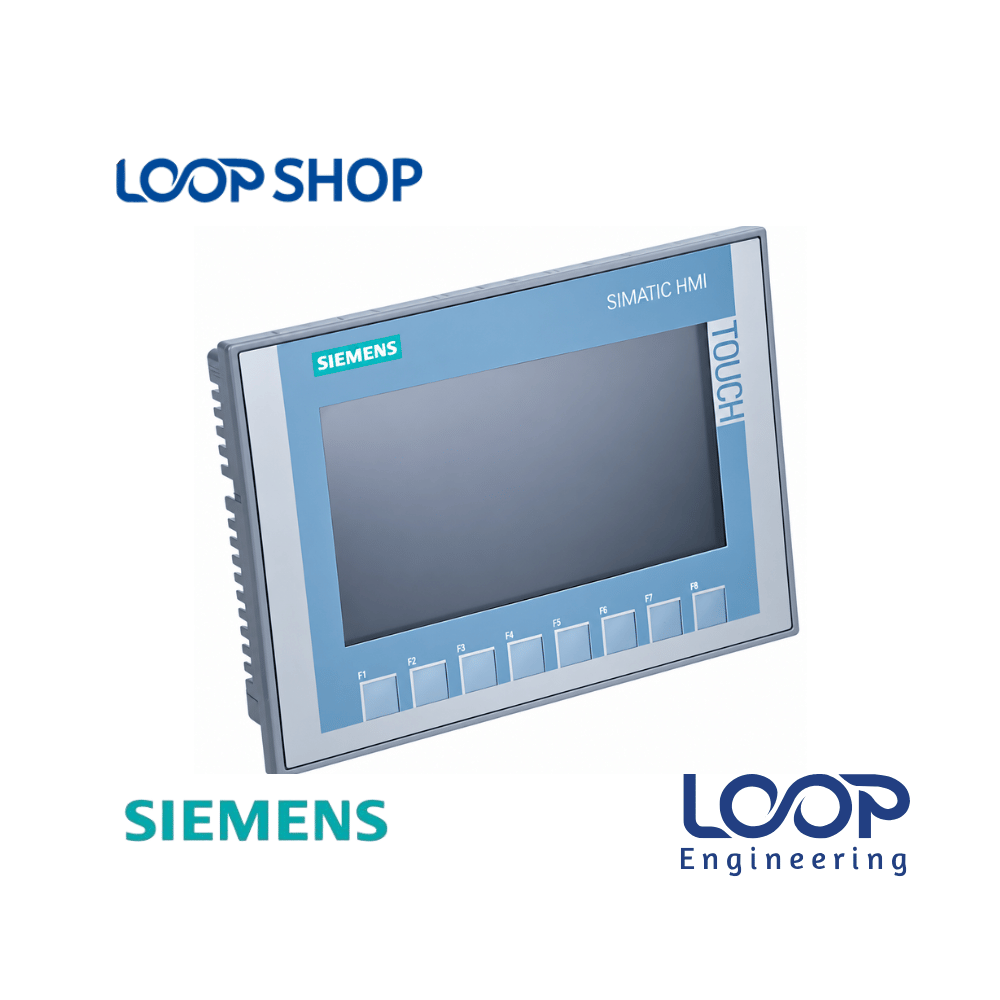

Siemens SIMATIC KTP700 Basic HMI 7″ Touch Panel PROFINET PLC

Description

The Siemens SIMATIC KTP700 Basic Panel (6AV2123-2GB03-0AX0) is an advanced 7-inch widescreen Human Machine Interface designed for entry-level and mid-range industrial automation systems. Featuring a high-resolution TFT display with 65,536 colors, it offers clear visual rendering of real-time machine status, trend graphics, and alarm management system messages.

Equipped with an onboard PROFINET interface, the KTP700 Basic communicates effortlessly with Siemens S7-1200, S7-1500, and S7-300 PLCs, as well as third-party controllers. In Bangladesh’s rapidly growing industrial sector, local manufacturing facilities, chemical processing units, and panel builders rely on the KTP700 Basic as a robust, user-friendly interface that balances top-tier German engineering with overall cost efficiency.

Key Features

• High-Resolution Widescreen TFT Display: 7-inch display supporting 65,536 colors for crisp visualization of process layouts.
• Dual Touch and Key Operation: Combines an intuitive touch screen matrix with tactile, programmable membrane function keys.
• PROFINET Industrial Interface: Integrated RJ45 Ethernet port for high-speed network communication and easy firmware/project deployment.
• TIA Portal Integration: Fully configurable using WinCC Basic V13, STEP 7 Basic V1, or higher software versions.
• Rugged IP65 Front Enclosure: Sealed front panel provides complete resistance against dust ingress and water splashes.

Technical Advantages

• Durable Construction: Industrial-grade housing protects internal components against shop-floor vibration, electrical noise, and thermal stress.
• Energy Saving: Dimmable LED backlighting reduces overall thermal dissipation in control enclosures and conserves power.
• High Efficiency: Fast touch response and clear graphics streamline operator workflow, reducing input errors and training requirements.
• Safety Protection: Built-in isolation on communication lines protects control networks against transient electrical surges.
• Easy Maintenance: Modern fanless chassis reduces internal dust accumulation, extending service life in demanding industrial settings.

Applications

• Industrial: Automated packaging machinery, labeling systems, plastics extrusion lines, and conveyor networks.
• Factory: Textile dyeing and spinning mills, food and beverage processing, pharmaceuticals, and paper mills in Bangladesh.
• Commercial: Water treatment plants, HVAC control systems, and generator panel monitoring.
• Project Installation: Ideal panel choice for system integrators, OEM machinery builders, and electrical panel fabricators across BD.

Why Choose This Product?

• Siemens Global Standard: Ensures exceptional product longevity and round-the-clock operational stability for critical plant machinery.
• Cost Effectiveness: Delivers premium TIA Portal visual functionality at a budget-friendly price point for new and upgraded control panels.
• Proven Performance: Minimizes production downtime through clear real-time diagnostic reporting and rapid alarm notification.
• Local After-Sales Value: Backed by technical verification, original product authenticity, and fast delivery across Bangladesh via LOOP Shop.

Technical Specification Table

Features List

• ✓ 7-inch widescreen TFT display with 65,536 colors
• ✓ Integrated PROFINET (RJ45) communication port
• ✓ Touch screen combined with programmable function keys
• ✓ IP65 rated dust and splash-proof front panel
• ✓ Configurable via WinCC Basic V13 / STEP 7 Basic V1 (TIA Portal)

Benefits For Customers

• Reduces Operational Downtime: Immediate alarm visualization allows operators to quickly locate and resolve equipment trips.
• Improves Operational Reliability: Fast Ethernet communication ensures real-time data sync between PLC and panel.
• Saves Energy & Cabinet Space: Low-power chassis and compact installation depth optimize control enclosure layouts.
• Suitable for Bangladesh Environment: IP65 front protection withstands high ambient humidity, ambient dust, and factory floor conditions.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the mounting area on the enclosure door precisely to 197 mm x 141 mm.
2. Fit the KTP700 Basic panel into the cutout from the outside and secure it with the provided mounting clips to maintain the IP65 seal.
3. Wire a stable, regulated 24 V DC power supply to the designated terminals.
4. Plug the RJ45 Ethernet communication cable into the PROFINET port and verify cable strain relief.

Maintenance Tips:

1. Clean the display panel regularly using a soft, lint-free microfiber cloth; avoid harsh solvents and aggressive chemicals.
2. Check cabinet cooling systems periodically to keep ambient operational temperatures below 50 °C.
3. Routinely verify physical cable terminal connections to maintain solid communication link health.

Safety Instructions:

1. Always disconnect power to the control panel before installation, wiring, or removal.
2. Observe proper supply polarity (24 V DC) prior to energizing the device to prevent circuit damage.
3. Use bare fingers or soft styluses on the touch surface; do not use sharp metallic tools.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC KTP700 Basic 6AV2123-2GB03-0AX0 in Bangladesh?

A: Pricing varies depending on import duties, batch availability, and exchange rates. Please check loopshop.com.bd or contact our team directly for the latest stock and price in BD.

Q: Where can I buy original Siemens KTP700 Basic HMI in Bangladesh?

A: You can purchase 100% genuine Siemens KTP700 Basic HMI panels online from loopshop.com.bd with reliable shipping across Dhaka, Chittagong, and all districts of Bangladesh.

Q: What warranty does this product come with?

A: This product carries standard supplier warranty coverage against factory defects. Please verify full terms with LOOP Shop at the time of order placement.

Q: Is the Siemens KTP700 Basic suitable for Bangladesh climate conditions?

A: Yes, with an IP65 rated front face and an operating temperature limit up to 50 °C, it is well-suited for humid, dusty, and tropical factory environments across Bangladesh.

Q: How do I program and configure the Siemens KTP700 Basic HMI?

A: The panel is configured using Siemens TIA Portal software (WinCC Basic V13 / STEP 7 Basic V1 or higher versions) via a standard Ethernet cable connection.

Q: Does this HMI support Ethernet PROFINET communication?

A: Yes, it features an integrated PROFINET interface (RJ45 port) for fast networking and data communication with PLCs.

Q: Can this panel connect to third-party PLCs?

A: Yes, in addition to Siemens S7 controllers, it supports Modbus TCP/IP and driver protocols for various third-party automation controllers.

Q: What is the difference between touch and key operation on this panel?

A: The KTP700 Basic features a full touchscreen display along with physical, programmable tactile function keys located along the panel frame.

Q: What display resolution does the 6AV2123-2GB03-0AX0 offer?

A: It features a 7-inch widescreen TFT display with 800 x 480 pixel resolution and up to 65,536 colors.

Q: Does LOOP Shop offer technical support for HMI hardware verification in BD?

A: Yes, LOOP Shop provides sales support, datasheet verification, and baseline guidance to ensure you select the correct equipment for your plant requirements.
